For Sale by Premier Equipment Inc
Description

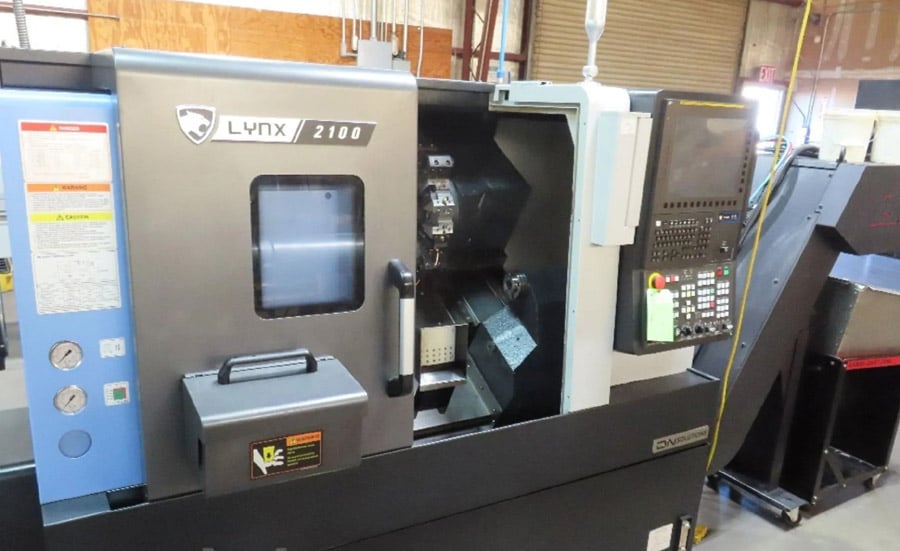

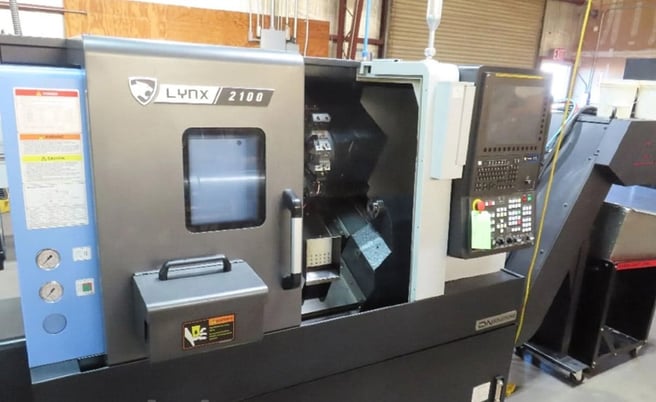

DN Solutions LYNX 2100A
Capacity:
Max Turning Diameter: 13.77″
Max Turning Length: 13.00″
Max Bar Capacity: 2.00″
Swing Over Bed: 23.60″
Swing Over saddle: 15.70″
Travels:
X Axis Travel: 8.07″
Z Axis Travel: 13.40″
Rapid Traverse X Axis: 1181 IPM
Rapid Traverse Z Axis: 1417 IPM
Spindle:
Spindle Nose: A2-5
Spindle Bore: 2.4″
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Turret:
Turret Capacity: 12 Stations
Turret Index Time: 0.11 Second
Max OD Tool Size: 1.0″ x 1.0″
Tool Holders Type: Bolt Mounted
Tailstock:
Quill Diameter: 2.56″
Travel Distance: 14.1″
Taper Size: MT#4
General:
Power: 24.21 kva, 220v / 3-Phase
Overall Dimensions: 91.3″ x 62.8″ x 6.7″ High Approx.
Weight: 6,834 lbs. Approx.
EQUIPPED WITH:
Fanuc i Series Control
LNS Super Hydrobar Bar Feeder
Royal Quick Grip Collet Chuck (6″ Chuck Capable)
12 Station Automatic Turret
Programmable Tailstock
Tool Presetter
Parts Catcher
LNS Chip Conveyor
Foot Switch
(2) Boring Tool Holders & (2) Square Tool Holders
Get Your Price from Premier Equipment Inc!
