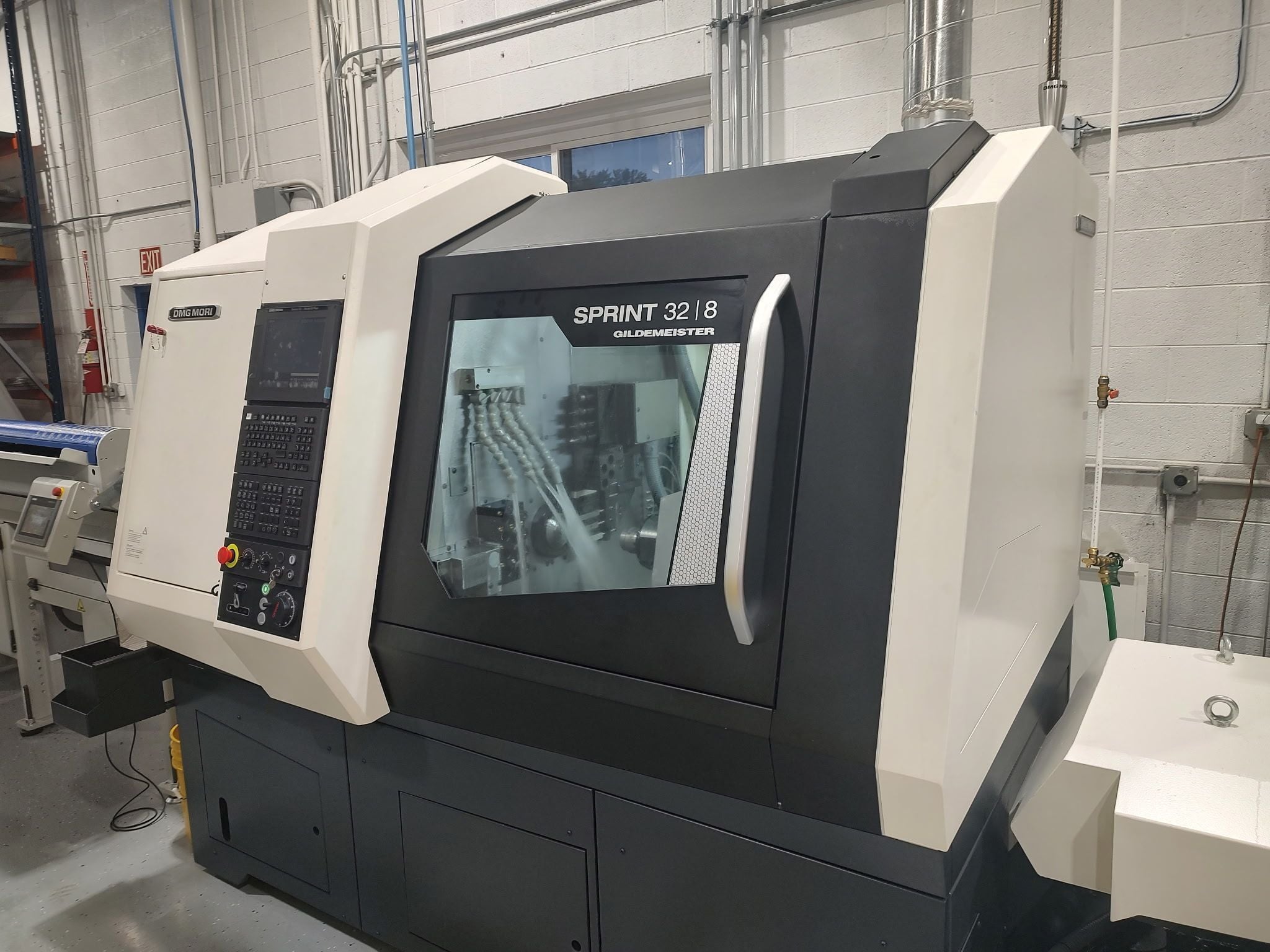

DMG, Mori #Sprint-32/8, Swiss Type CNC, 8 axis, 1.25" capacity, Fanuc 32i-B, 2 spindle, Iemca BOSS-388, coolant, Chip Conv., 7.5 HP, 8500 RPM, 2024

$457,388 USD

Request Formal Quote

Like New 8 AXIS Swiss DMG, Gildemeister, 1.25" Capacity w/ Fanuc 32i-B control, 5/6 linear axis, 2 Electric Spindle w/"C" axis
Basic machine
SPRINT 32 Platform
- slide 1 - X1 Y1 Z1
- slide 2 - X2 Z2
- Counterspindle
- Pneumatic cleaning system for counter spindle collet
- Coolant system
- Pneumatic ejector with work piece unloading check
device
- Tape unloading workpiece
Options for preconfigured machine SPRINT 32|8, consisting of:
8-axis variant:
- Gear box for rotating tools located beside the
counterspindle
- slide 2 - Y2
- Electrical and software interface for bar loader
according DMG MORI standard
- Electrical and software interface for fire extinguisher
system powered directly in electrical cabinet according
to DMG MORI Bergamo standard
- Hour counter
- electrical cabinet for 8 axes
Main spindle max bar passage 32
stroke Z1=100 mm
(with SWISSTYPEkit Z1=240 mm)
(with SWISSTYPEkit and B-axis Z1=221.5 mm)
max 8.500 rpm
nominal motor power 5.5 kW (S1)
Driven unit for slide 1
included:
- nr 4 radial rotating toolholders 31,5 mm
for ESX20 collet
(nr 2 ratio 1:1, max 6.000 rpm,
nr 2 ratio 1:0.7 , max 4.200 rpm)
with splined coupling DIN 5480
Block nr 4 fixed tool holders 25 for slide 1,
for axial machining with internal cooling
Block nr 6 tool holders with 16x16 shank
for slide 1, for radial machining
Driven unit for slide Y2 for machining on the
counterspindle, included:
- nr 4 axial rotating toolholders for ESX20 collet
(ratio 1:1, max 6.000 rpm)
- nr 4 fixed toolholders for axial machining 25
with internal refrigeration
Collet application compression type,
size 32 for main spindle 32 mm
for collets type 76/740
diameter max 32 mm
hexagon max 27 mm
square max 22 mm
Collet application compression type,
size 32 for counterspindle
for collets type 76/740
diameter max 32 mm
hexagon max 27 mm
square max 22 mm
Block nr 2 fixed toolholders 25
located beside the counterspindle,
for operations on main spindle

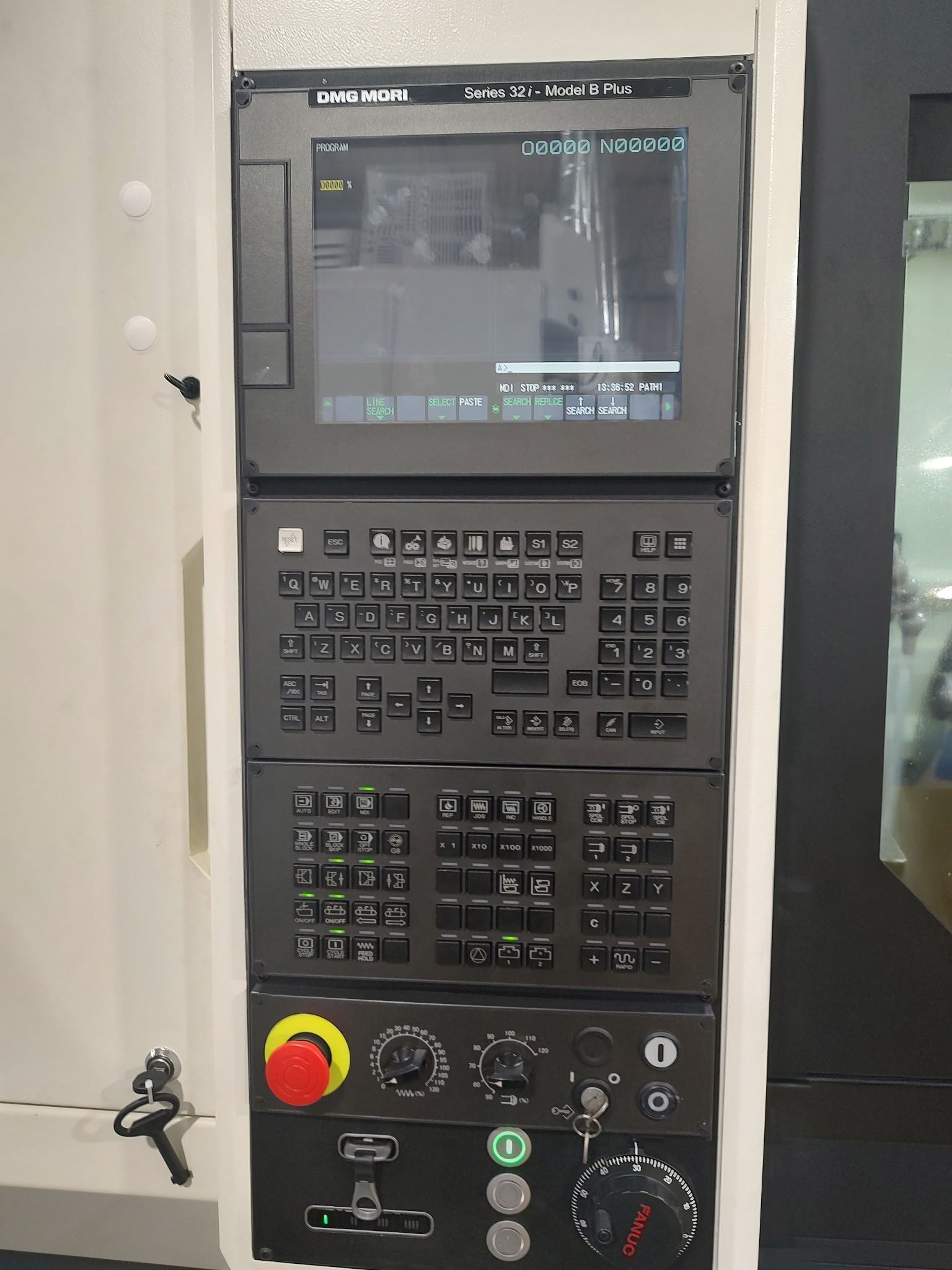

Control
FANUC 32i-B Plus
(for 5-axis or 8-axis variant)
Spindles
SWISSTYPEkit up to 32 mm
Changing kit from steady
to sliding headstock
including application bush
type Dunner J9
and bush-spindle syncronism
Counter spindle collet cleaning
with coolant
Control Options
2 additional M functions
free for customer use
consisting in on-off
(total 4 M-functions)
Cooling media / chip removal
Electrical and software preparation for
cooling system USA version
Kit for machining with soluble water coolant
Electrical and software interface
for oil mist collector according to
DMG MORI Bergamo standard
Belt type chip conveyor,
compatible with shaft-unloading-device
not suitable for short chip material
machining for example: brass, aluminium etc
swarf falling height 600 mm
Various options
Signal lamp with 4 colours
red: general error
yellow: intervention required
green: machine in automatic operation
blue: machine in set-up operation
Frequency 60 Hz
Special constructions

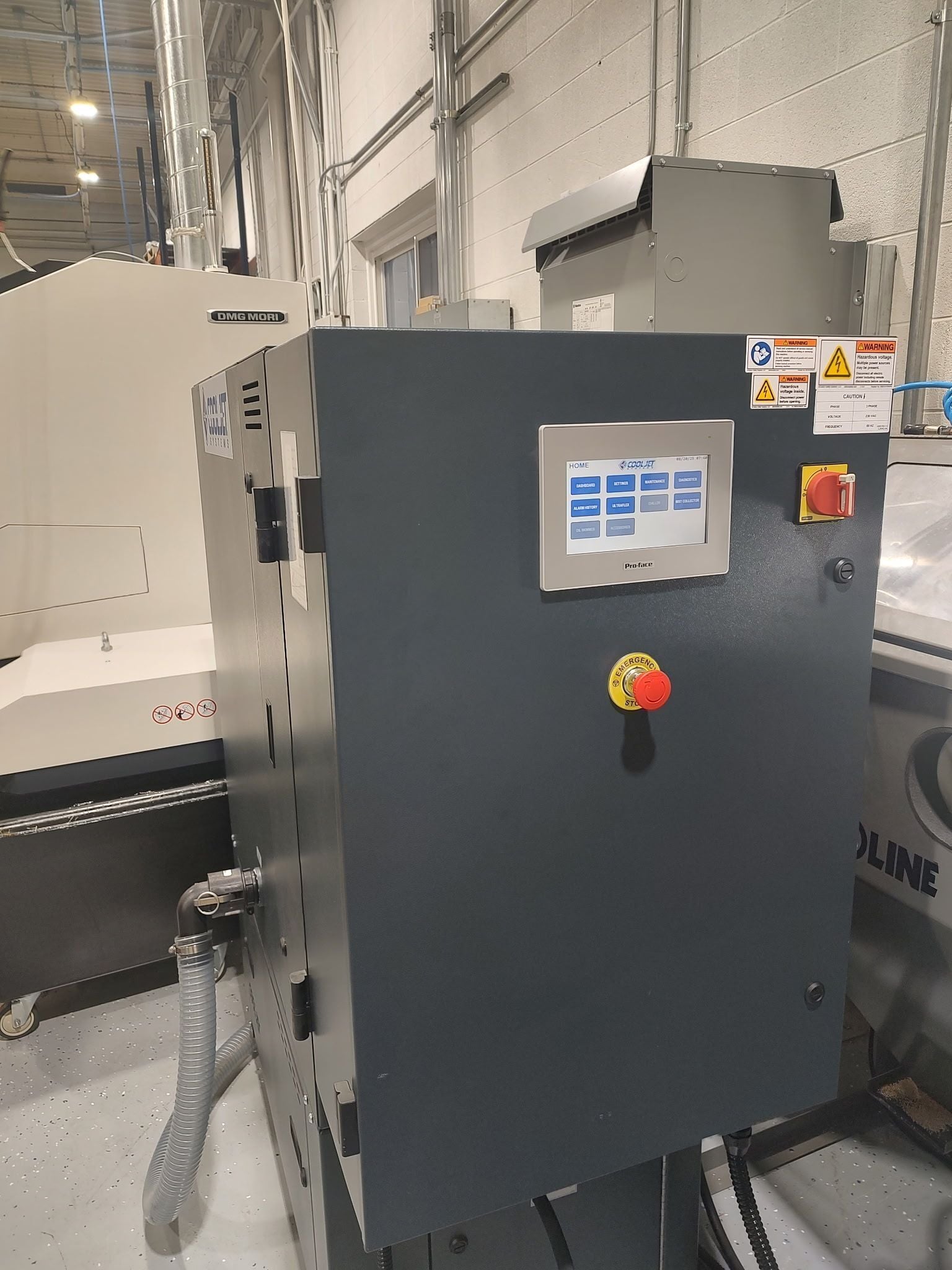

DMQP: ATS-P# U70-36V - 9gpm/36lpm Variable Flow - 1,000psi/70bar Pressure, Dual Outlet, HMI Display - Quad - 2+2 manual crossover 10um bag Filtration - 4 Preset Pressures - Pre-wire Kit for mounted chiller & mist collector - Machine tank Standpipe Assembly with Float - Water or oil Coolant - Unit Options: Unit intergrated Oil Skimmer, add Part# UMOS - For *Oil Coolant add the required Oil Transfer Pump Upgrade - Part # OTPU36 - Additional Unit high pressure outlets, up to 6, add Part# HPUOK4 OR HPUOK8 - To Expand the number of outlets to, 2, 4 or 8 outlets for Swiss applications using a machine mounted and controled manifold kit, add Part# SWO2, SW04, or SW08 - Add Unit outlet flow sensor, one per outlet, add Part# OFS - Add Unit integrated magnetic separator pre-filter, add Part# MagS12 - Add a Supplemental Coolant Tank - 100gal/380L - Part # SCT380L, 240gal/900L-Part#SCT900L, 480gal/1800L-Part#SCT1800L
DMQP: Shipping and Handling
DMQP: (SQ) ATS, HP coolant Installation by supplier
DMQP: (SQ) ATS, Machine Mounted & Controlled 2, 4, & 8 Ports Kits, QTY. 8
External Manifold outlets Kit - 2 Port (2) / 4 Port (4) / 8 Port (8) - Enter the (#) of Ports Desired
DMQP: (SQ) ATS, Swiss Machine internal Tooling Coolant Delivery Manifold, QTY. 8
Custom Internal machine coolant distibution Block - 4 Port (4) / 8 Port (8) - Enter the (#) of Ports Desired -
Includes Hoses

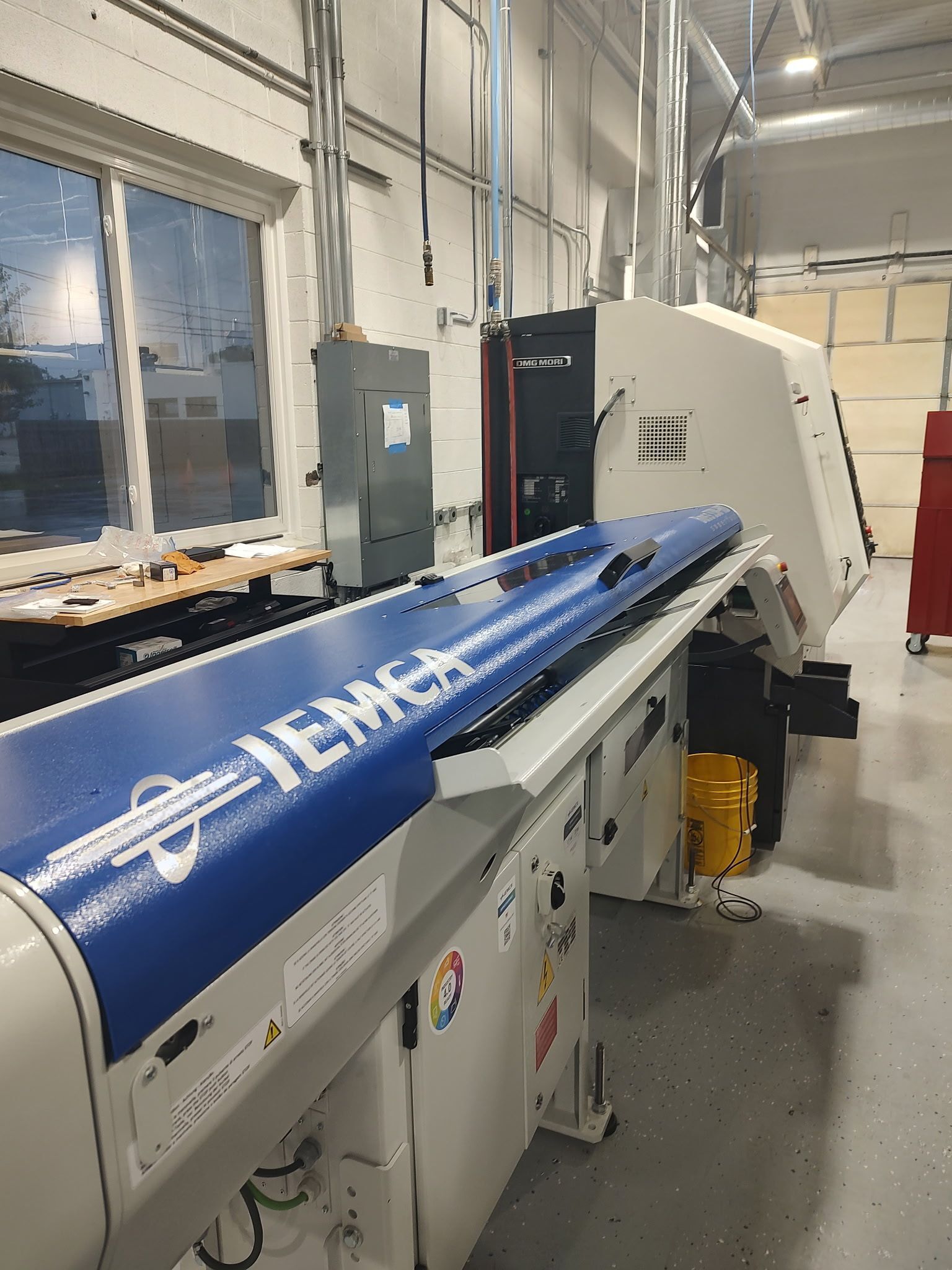

DMQP: (SQ) Iemca, Boss 338 Superfast 6 feet with 38mm (1.496'') guide channel
Ref: 20240917_RV_Boss338_6_DMG MORI
DMQP: (SQ) Iemca, Anti Vibration Device
DMQP: (SQ) Iemca, Category III interface (Dual Channel Safety Circuit Protection)
DMQP: (SQ) Iemca, Additional guide channel set (17mm)
DMQP: (SQ) Iemca, Spindle liner (17mm)
DMQP: (SQ) Iemca, Installation by Supplier
