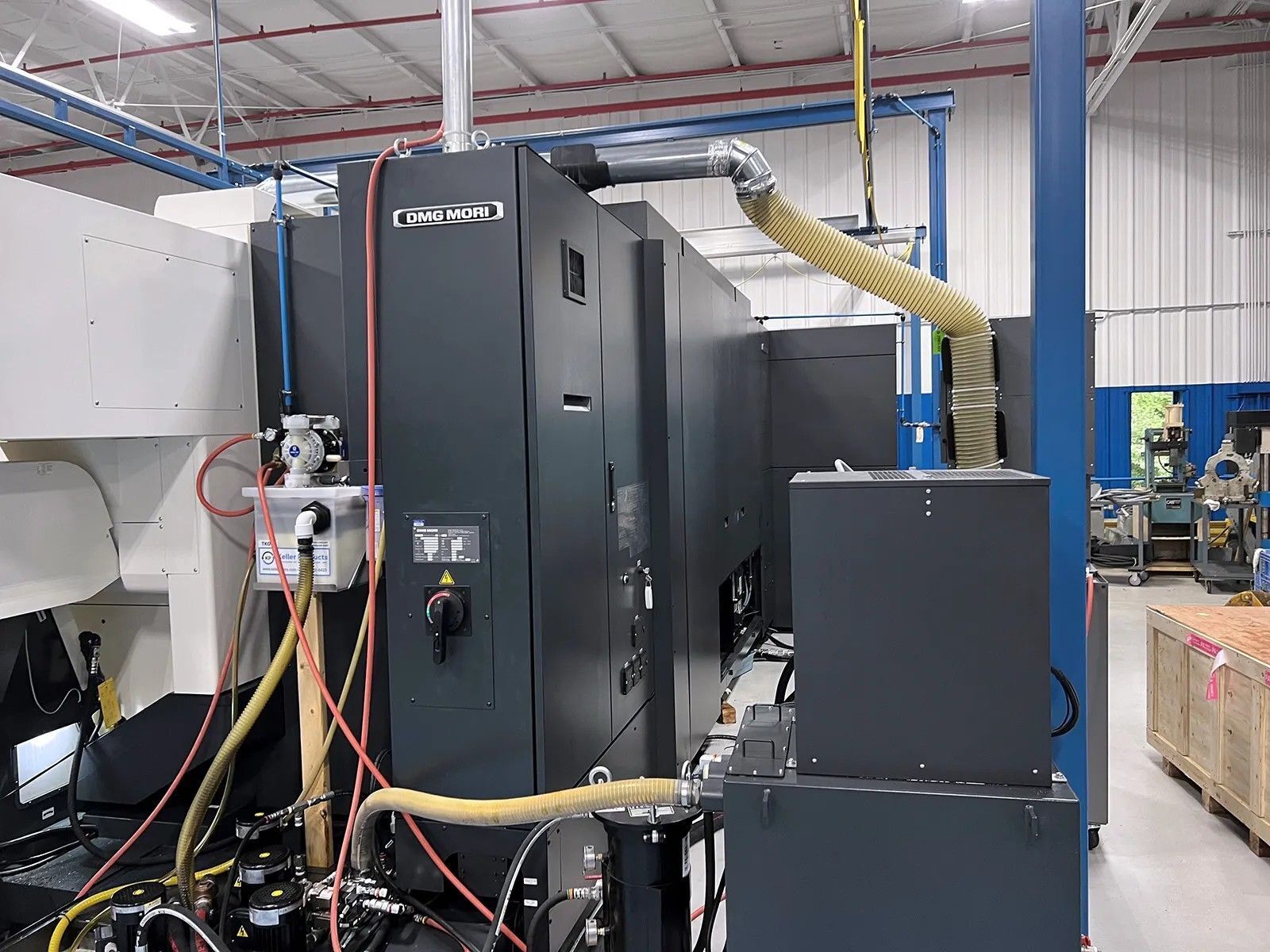

DMG Mori Seiki #NTX-3000/1500S2, CNC multi-tasking center, 26.3" turning diameter, 59.8" turning length, 12" chuck, 54 HP, sub spindle, 246 ATC, 2022

Discover the 2022 DMG MORI NTX 3000/1500S2 CNC Multi-Tasking Center, a versatile, lightly-used lathe designed for precision. Features include 26.3" turning diameter, 59.8" turning length, and CELOS FANUC 31I-B5 control for enhanced performance.
2022 DMG MORI NTX 3000/1500S2
SPECIFICATIONS:
Turning Diameter....................... 26.3"
Turning Length......................... 59.8"
Chuck Size 1........................... 12"
Spindle Nose 1......................... A2 - 11
Spindle Bore Diameter 1................ 4.5"
Bar Capacity 1......................... 4 mm
Spindle Speeds 1....................... 3,000 RPM
Spindle Horsepower 1................... 40 kW
Chuck Size 2........................... 10"
Spindle Nose 2......................... A2 - 8
Spindle Bore Diameter 2................ 3.6"
Bar Capacity 2......................... 3.1"
Spindle Speeds 2....................... 4,000 RPM
Spindle Horsepower 2................... 24.7 hp
B - Axis Head Travel................... + 120 DEGREE, - 120 DEGREE
B - Axis Head Indexing................. 0.0001
B - Axis Milling Spindle Taper......... CAPTO C6
B - Axis Milling Spindle Speed......... 12,000 RPM
B - Axis Milling Spindle Horse Power... 25 hp
ATC For Milling Spindle................ 246
Tool Diameter.......................... 2.7", 5.1"
Tool Length............................ 15.7"
Tool Weight............................ 17.6 lb
X1 - Axis Travel....................... 26.5"
X2 - Axis Travel....................... 8.8"
Z1 - Axis Travel....................... 61.4"
Z2 - Axis Travel....................... 60.7"
Y1 - Axis Travel....................... 11.8"
C - Axis Indexing 1.................... 0.001
C - Axis Indexing 2.................... 0.001
W - Axis Travel Sub Spindle............ 60.7"
Turret Tool Positions 1................ 12 station
Control................................ CNC (CELOS W/ FANUC 31I-B5 CNC COLOR CONTROL)
EQUIPPED WITH:
CELOS FANUC 31I - B5 CNC COLOR CONTROLCON
AI CONTOUR CONTROL II
NANO SMOOTHING
SMOOTH TPC
G332 TOLLERANCE COMMAND
TOOL CENTER POINT CONTROL
AUTO IN MACHINE TOOL PRESETTER FOR TOOL SPINDLE
CHIP CONVEYOR
HIGH PRESSURE COOLANT SYSTEM THRU B AXIS INTERFACE
ETHERNET I / P
BAR FEED INTERFACE
WORKPIECE UNLOADER
GANTRY UNLOAD SYSTEM PARTS REMOVAL WITH PENDANT CONTROLER
PARTS CONVEYOR
LOWER TURRET CAPABILITY (NO MILLING)
AIRBLOW FOR CHUCK
MIST COLLECTOR INTERFACE
SPINDLE CHILLER
ROTARY WINDOW
RENISHAW PROBING WITH INSPECTION SOFTWARE
TECHNOLOGY SOFTWARE CYCLE 5 AXIS SIMULTANEOUS MACHINING
MANUAL PULSE GENERATOR
SIGNAL LAMP
