DMG, Gildemeister #CTX-420-linear, CNC lathe, 26.8" swing, 2.6" bar, 5000 RPM, 50 HP, 2.2" bore, 12 tool, Siemens 840D Powerline, bar loader, 2003

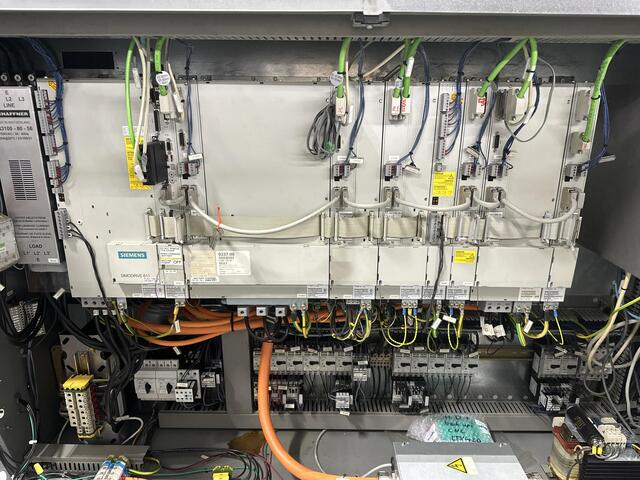

The 2003 DMG GILDEMEISTER CTX 420 linear CNC lathe features C and Y axes and is known for its precision and productivity. Built in Bielefeld, Germany, it includes a Siemens 840D powerline control, providing an efficient user interface through its ShopTurn software. The lathe is equipped with a highly dynamic linear drive on the X-axis, allowing rapid traverses up to 2,362 ipm, minimizing idle time and enhancing productivity. The machine is capable of handling diverse machining tasks with a maximum swing diameter of 26.8" and a bar capacity of 2.6". It boasts integrated spindle motors for both the main and counter spindles, delivering speeds up to 5,000 rpm and 7,000 rpm respectively. The main spindle provides a maximum torque of up to 270.1 ft/lbs (40% DC), and the counter spindle offers up to 146 ft/lbs (40% DC). A key feature of the CTX 420 linear is its 12-station turret with driven tool capability, supporting a maximum speed of 4,500 rpm for driven tools. The machine's robust build and linear guideways ensure stability and precision, complemented by a 46.23-gallon coolant capacity for prolonged operations. This well-engineered CNC lathe offers high performance and excellent operator convenience, making it suitable for a wide range of turning applications.
EQUIPPED WITH:
Chip Conveyor

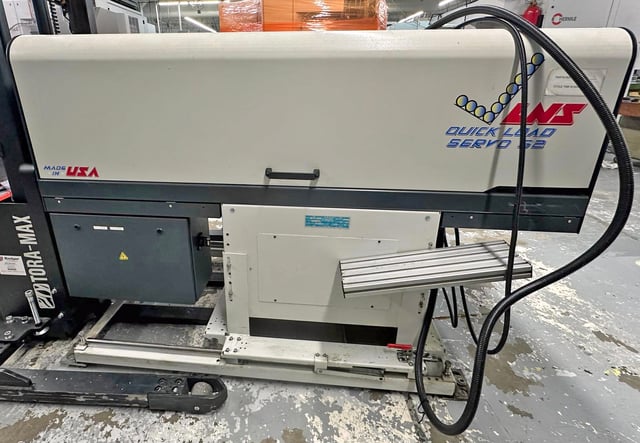

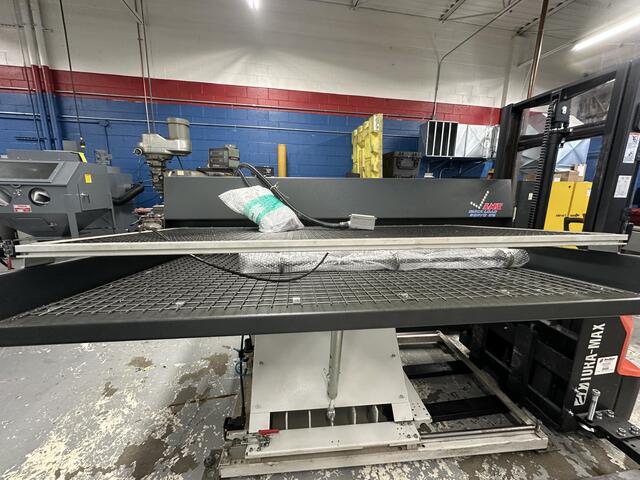

LNS QUICKLOAD SERVO S2 bar loader
Bar Machining Package consisting of:
-Hollow Clamping Cylinder
-Parts Catcher
-Interface for bar loading magazine
-Conveyor for finished parts
Tool Measuring Arm
SMW/KNCS 225-65 mm chuck on main spindle
SMW/KNCS 140-35 mm chuck on sub spindle

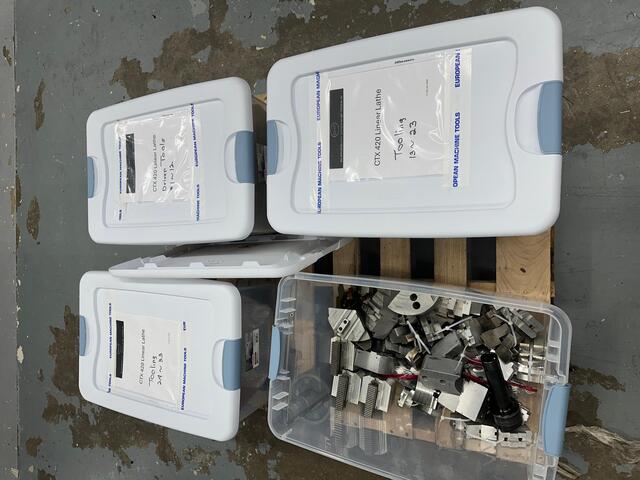

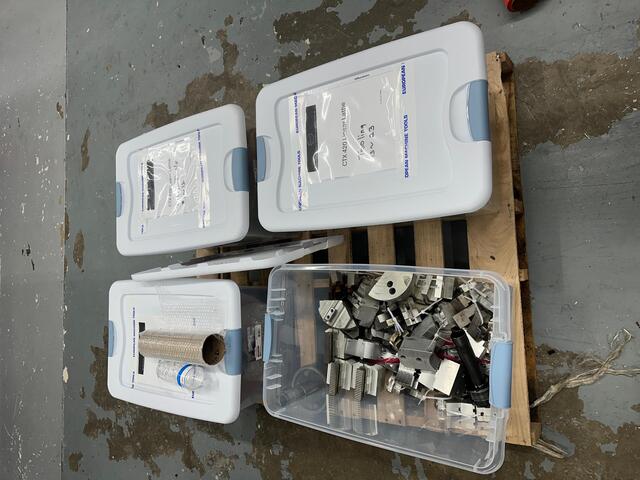

Miscellaneous live tool holders
Machine is offered subject to availability, prior sale, and terms & conditions of FRANKE CNC Sales Agreement. To the best of our knowledge all details listed are deemed correct. It is the Buyer's responsibility to confirm all details including condition, capacity, suitability or performance and we encourage an under power inspection of the machine(s) and accessories prior to purchase.
Price quoted is FOB Purchase Point. Purchase Point is Jackson, WI.
Price quoted includes the cost of loading onto truck supplied by Buyer.
