Description

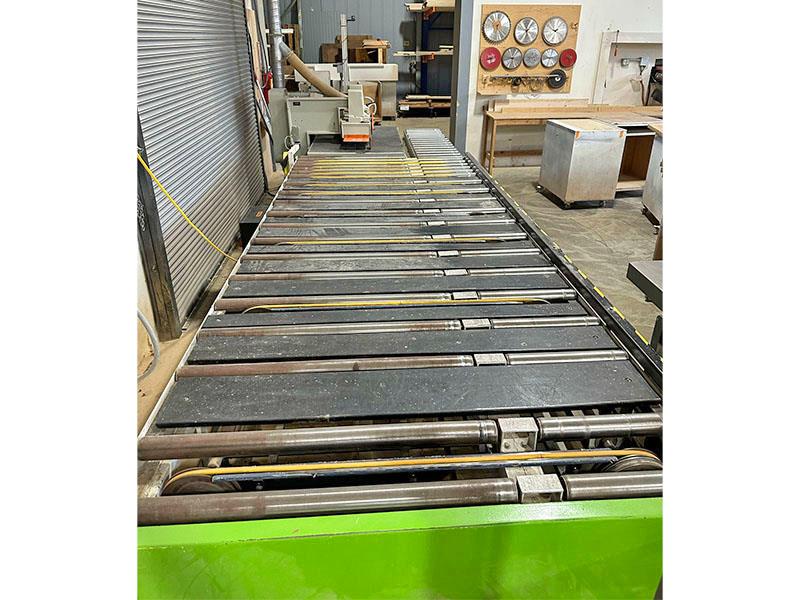

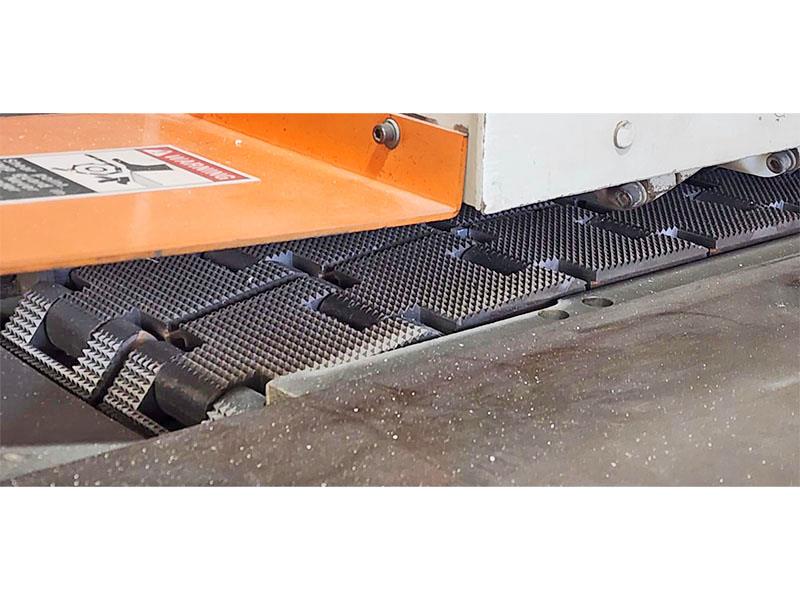

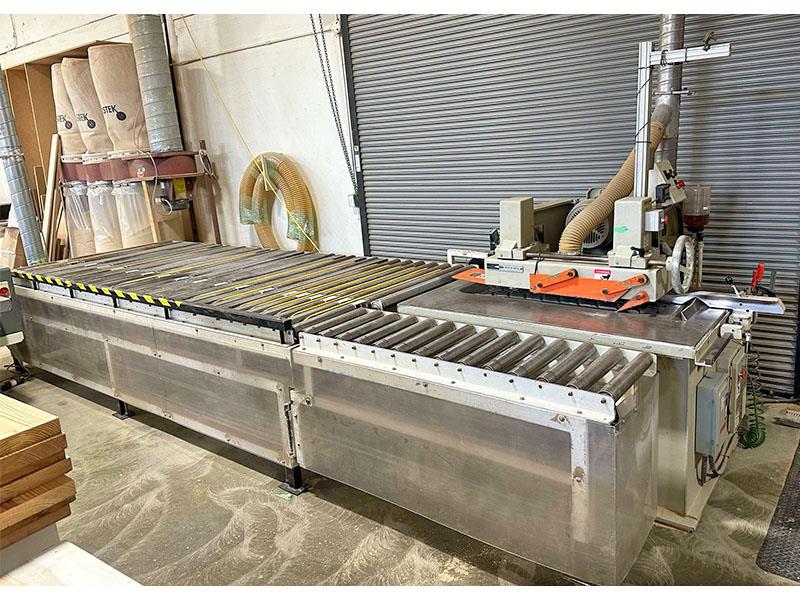

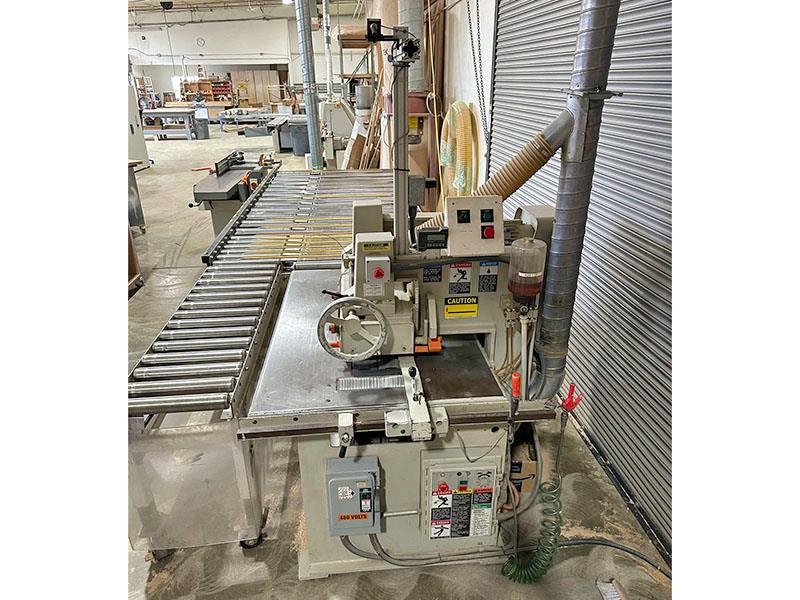

DIEHL - ESL 20: Straight Line Rip Saw w/THOMAS 60 x 144x5 Return Table10 HP Motor - 4,300 RPM belt driven fixed arbor.Specifications --16" Max. blade dia. for: 2-1/2" Max. material thickness. -- 1-1/2 HP - 1,800 RPM Feed drive; single feed speed: 60 FPM. -- 19" Throat depth: To right of blade; 19" of table: To left of blade.Equipped with & Features -- Table Size: 59" x 36". -- Cast iron pressure bar arms with: Ball bearing rollers. -- Adjustable rip fence & self-adjusting anti-kickback fingers. -- Automatic lubrication: Feed chain & race. --Saw also includes: Laser. Full overload & under voltage protection. -- Handbrake for: Arbor protection & pressure bar curtain.NOTE: Return Table has been SOLD.
G. M. Diehl Machine Works ESL-20 is a heavy-duty, precision straight-line ripsaw engineered for glue-joint accuracy.Fixed Arbor, Fixed Feed Speed At 60 FPM, Maximum Stock Thickness is 2 1/2, Blade Diameter 14 or 16, 15 HP Arbor Motor. New Hold Down Rollers. New Bearings On Main Shaft. Very good shape Straight Line Rip ...more
Diehl Model SL-30 Fixed Arbor Straight Line Rip Saw The Model SL30 sets the industry standard for accuracy, durability, and lowest cost of ownership. Bolt this machine to the floor and forget about it - It is THAT reliable. 208, 240 or 480 volt, 3 phase, 60 cycle 15 HP belt driven saw spindle 2 HP feed motor Automatic ...more
