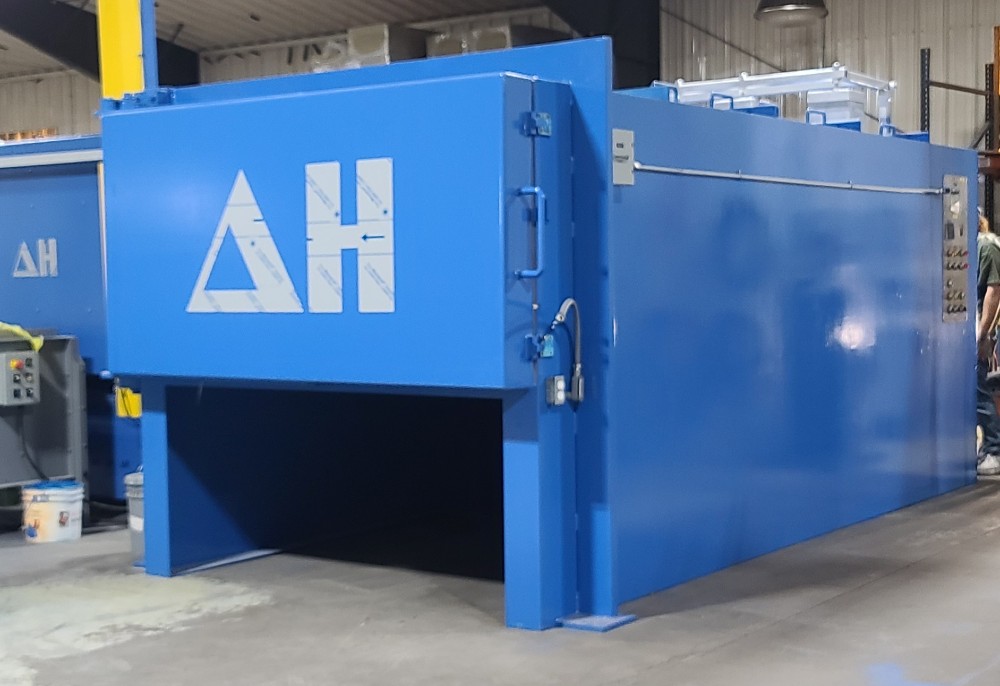

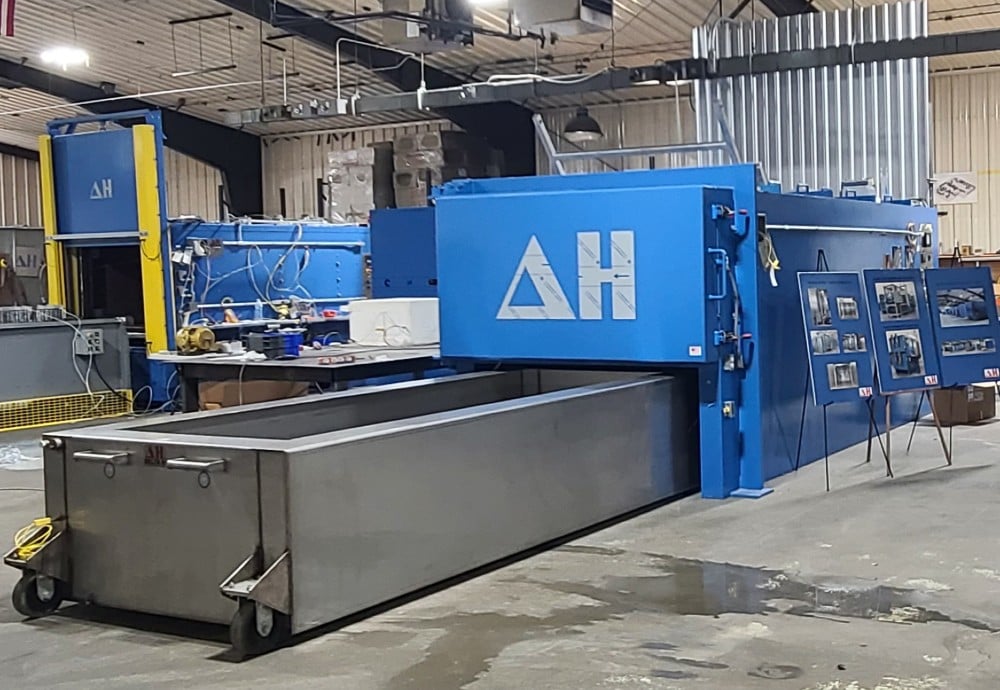

36" width x 120" L x 24" H Delta H #SCAHT-3624120-1100-AERO, horizontal manual quench furnace, 1100°F, TUS-WORK VOL, electrically heated, Class 2, 2011 refurbished
Estimated monthly payment valid upon approved credit.
Description
ALUMINUM HEAT TREATING FURNACE
Make: DELTA H®
Model: SCAHT®-3624120-1100
Serial Number: 11-015
Year Built: 2011
Heated: Electric
System was fully functional at the time of removal, and has been well maintained by a major aircraft parts supplier
Overall, in pristine condition, offered with repaired refractory, restored electrical system, and updated / serviced mechanical components
Meets AMS2750H and AMS2770R; BAC5602 and 5621M; Airbus 80-T-36-1010; USAF/NAVAIR TO 1-1A-9; also meets all necessary requirements for Nadcap Accreditation
Furnace Chamber operating range 200°F – 1100⁰F, qualified as Class 1 or 2 (AMS2750H)
Features our exclusive AGING MODETM system enabling a “furnace” to rapidly cool and behave like an “oven”
Digital Paperless Process Recorder with AMS2750 software – Honeywell MiniTrend with DELTA H configured TrendServer Pro Software
Instrumentation Type C (AMS2750H) as supplied, can also be readily configured for Instrumentation Type A or B
Independent programmable chamber temperature controllers, high temperature limit and alarms
Standard oven and furnace safety features per NFPA-86 and wiring practices per NFPA-70/79 – current editions
External TUS and SAT ports – and other exclusive DELTA H® Aerospace Systems features
Includes Quench Delay Recording on Batch Records
One-year supply of thermocouples – including replacement operational sets and full System Accuracy Test set with usage tags, individual serial numbers, and NIST traceable certifications

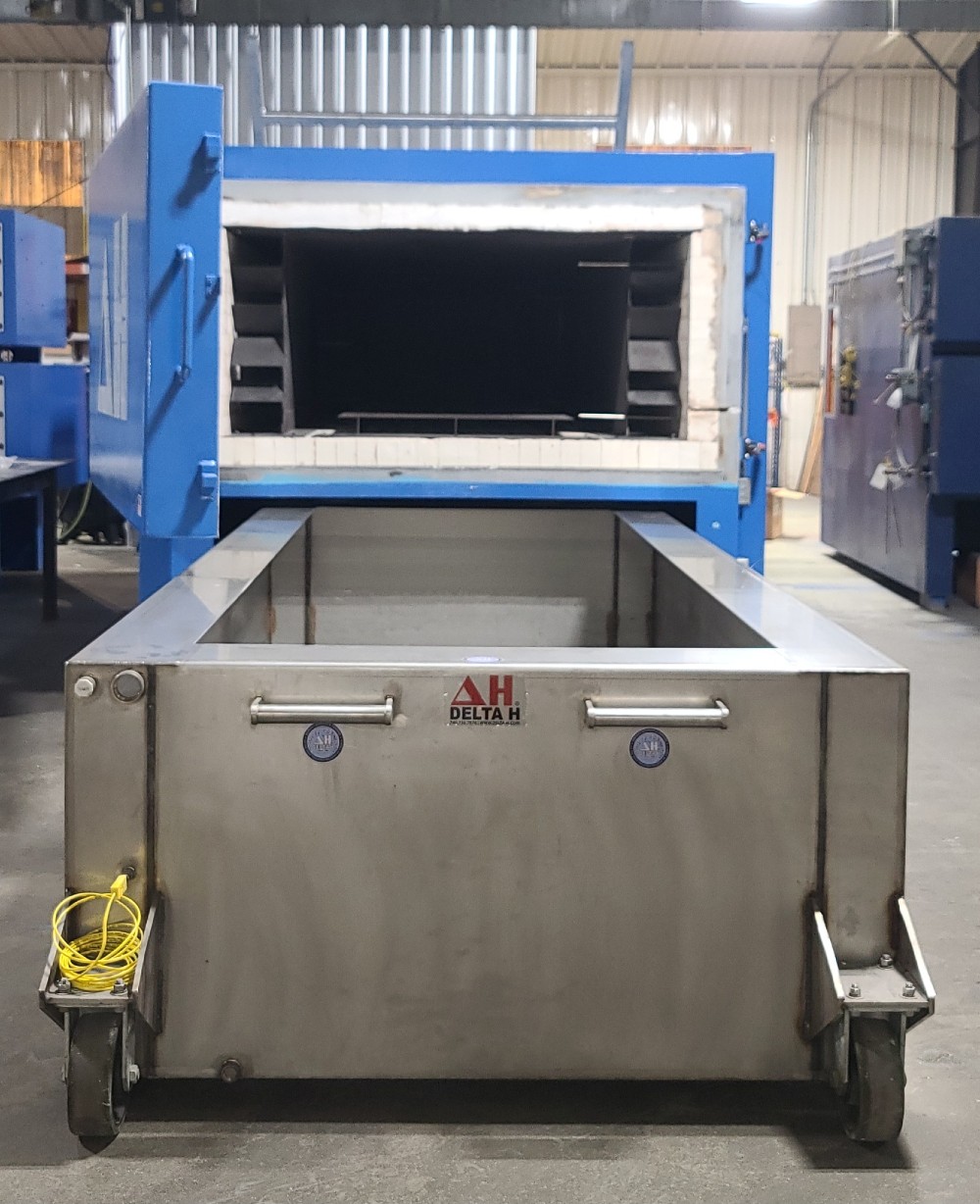

Manually operated stainless steel roll-away quench tank with mechanical agitation and temperature monitoring
Optional Power Drive System is available for quench tank
Certified TUS / Working Volume: 36” W x 24” H x 120” L – VERY LARGE TUS VOLUME
CAPABLE OF 3 SECOND QUENCH OF 10 FEET LONG PART – Per video linked here
Outside Overall Dimensions: 96” (8’) W x 78” (6.5’) H x 204” (17’) L
