Danieli Lynx #TMR-185-225, hammermill shredding system

(Located in the United States)
SYSTEM RATED** BY OEM FOR:
- 40 - 50 TPH @ AVG 75% FE CONTENT
- 90 TPH SURGE MATERIAL FLOW CAPACITY
- 50,000 TONS PER YEAR *ANTICIPATED* "NORMAL" YEARLY PRODUCTION BASED ON 50% AUTO BODIES & 50% MIXED LIGHT IRON
- .8 TO 1.1 T/M(3) DENSITY
- 18 - 24 KWH PER TON POWER CONSUMPTION
- REQUIRING UP TO 3 MVA FOR COMPLETE PLANT POWER SUPPLY
(RATING SUBJECT TO OEM TERMS & CONDITIONS OF USE & ARE ESTIMATES ONLY)

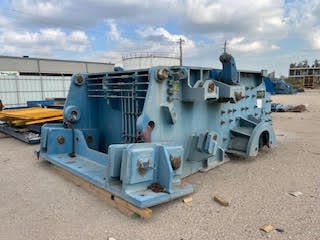

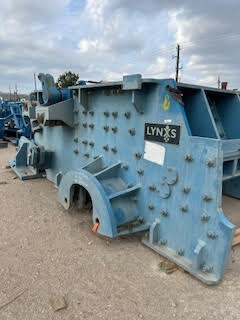

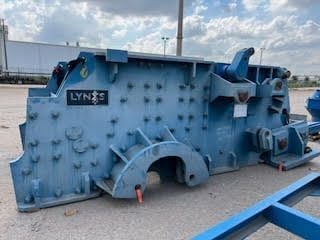

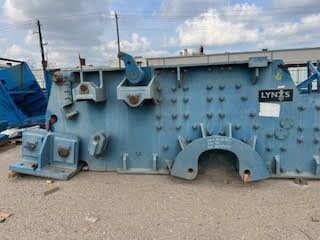

HEAVY DUTY TMR 185 × 225 SHREDDER:

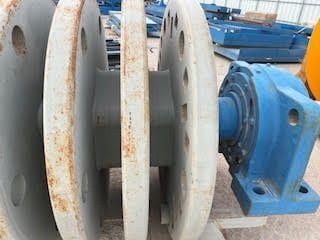

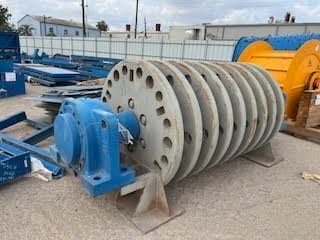

- CAPPED DISC ROTOR - 6 PIN

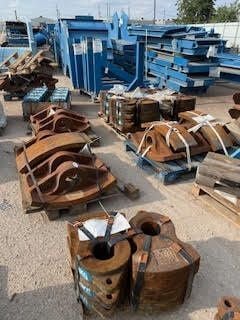

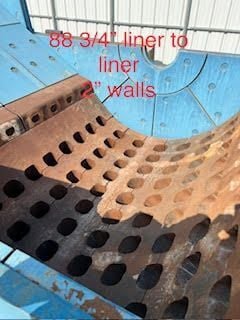

- 50-80MM WEAR LINERS
- 2250MM X 800MM FEED OPENING (THROAT)
- 720RPM ROTOR MAX SPEED
- 155T APPROXIMATE OVERALL MILL WEIGHT
- HOPPPER AND BASE W/ VIBRATION ISOLATION
- DUST MITIGRATION MISTING SYSTEM
SYSTEM ALSO INCLUDES:
INFEED CONVEYOR
INFEED CHUTE & DOUBLE ROLL COMPRESSION FEEDERS (HAGGLUND DRIVES)
HYDRAULIC POWER UNITS
PIN PULLER
UNDERMILL VIBRATING PAN FEEDER
TRANSFER CONVEYOR
FERROUS CASCADE AIR SYSTEM FOR LIGHTS/FINES REMOVAL
STEINERT 1200MM MTE 120 X 120 DRUM MAGNET
1000MM WIDE 5.5KW FERROUS PICKING CONVEYOR
1050KW (~1400HP) SHREDDER MOTOR DRIVE
MOTOR CONTROL CENTER
1000MM WIDE 11KW RADIAL STACKING CONVEYOR
STEINERT UME 95 110 R OVERBAND ELECTRO CROSSBELT MAGNET
STEINERT NES 200 220 5009 V1 EDDY CURRENT SEPARATOR (1950 FEEDER WIDTH)
STEINERT NES 100 220 5009 V1 EDDY CURRENT SEPARATOR (1950 FEEDER WIDTH)
NON FERROUS ENRICHMENT
ELECTRICAL SYSTEMS & PLANT CONTROL
