Manufacturer: Daewoo Doosan
Model: PUMA-800L
Year: 2007
Swing: 40.5
Chuck: 24
Bar Capacity: 12.6
Centers: 141.0
Stock # 10207
Click to zoom in
For Sale by Used CNC LLC
Surplus Record Dealer Since 1997
Location: Huntley, IL
Contact Mike Oracko
Phone Number: 224...> Show Phone Number 224-537-0982
Let the seller know you found their listing on Surplus Record!
Description

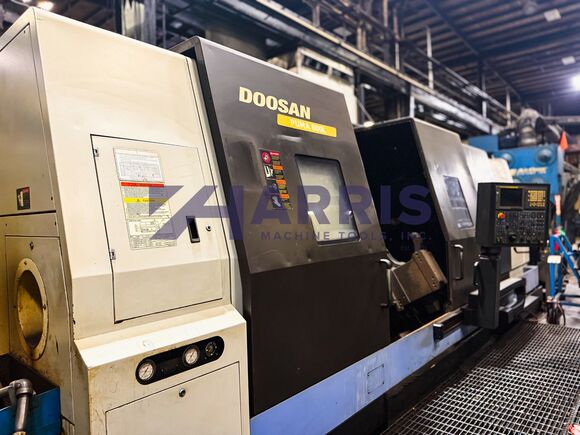

2007 Doosan PUMA 800L CNC Universal Big Hole Lathe (12.2) available, used but powerful. Offers 35.4" turning diameter, 126" machining length, and 60 HP. Equipped with FANUC 21i-TB CNC color control, chip conveyor, hydraulic steady rest and 4 jaw manual chuck. Robust option for precision machining.
2007 DOOSAN PUMA 800L
SPECIFICATIONS:
Swing Over Bed..................... 40.5"
Machining Length................... 126"
Distance Between Centers........... 141"
Turning Diameter, Shaft Diameter... 35.4"
Chuck Size 1....................... 24"
Spindle Nose 1..................... A1 - 20
Spindle Bore Diameter 1............ 12.6"
Spindle Bar Capacity 1............. 12.6"
Spindle Speeds 1................... 750 RPM
Spindle Horsepower 1............... 60 hp
X1 - Axis Travel................... 18.5"
Z1 - Axis Travel................... 127.3"
Rapid Traverse Rate - X1........... 472 in/min.
Rapid Traverse Rate- X2............ 630 in/min.
Spindle Torque..................... 4873
Gear Ranges........................ 3
Turret Configuration 1............ 12
Tailstock Quill Diameter........... 6.3"
Tailstock Taper.................... MT 6
Tailstock Quill Travel............. 5.9"
Programmable Tailstock............. YES
Tailstock Travel................... 124"

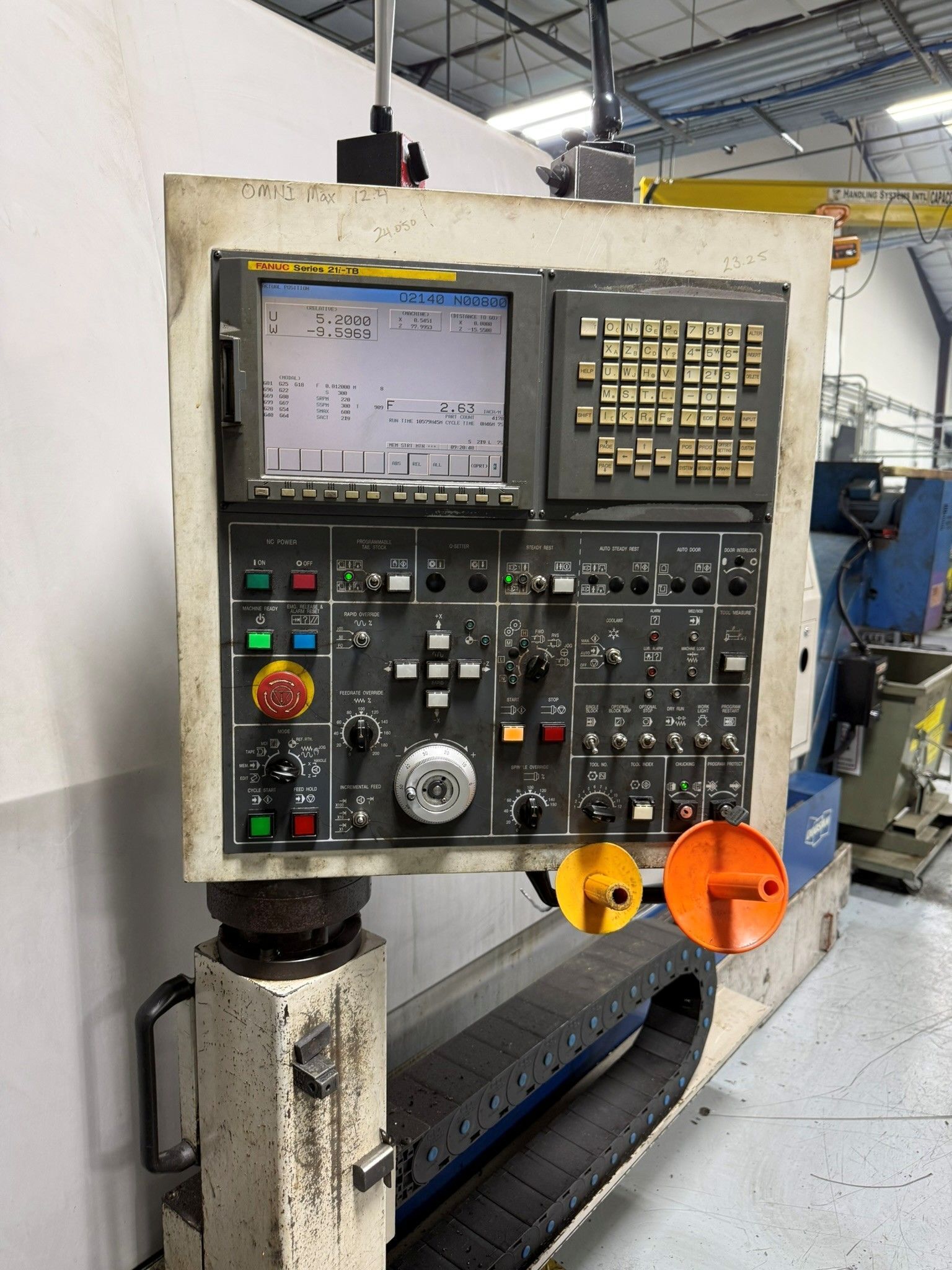

Control............................ CNC (FANUC 21I - TB CNC COLOR CONTROL)
EQUIPPED WITH:
FANUC 21I - TB CNC COLOR CONTROL
640 M MEMORY
THREAD CUTTING RETRACT
VARIABLE LEAD THREAD CUTTING
CHIP CONVEYOR
64 TOOL OFFSETS
8 PAIRS WORK COORDINATES
DOOSAN TOOL LOAD MONITORING
24" 4 JAW MANUAL CHUCK FRONT
REAR CHUCK PREP
HYDRAULIC OPEN CLOSE STEADY REST
FX 1200 MIST COLLECT SYSTEM
2007 DOOSAN PUMA 800L
SPECIFICATIONS:
Swing Over Bed..................... 40.5"
Machining Length................... 126"
Distance Between Centers........... 141"
Turning Diameter, Shaft Diameter... 35.4"
Chuck Size 1....................... 24"
Spindle Nose 1..................... A1 - 20
Spindle Bore Diameter 1............ 12.6"
Spindle Bar Capacity 1............. 12.6"
Spindle Speeds 1................... 750 RPM
Spindle Horsepower 1............... 60 hp
X1 - Axis Travel................... 18.5"
Z1 - Axis Travel................... 127.3"
Rapid Traverse Rate - X1........... 472 in/min.
Rapid Traverse Rate- X2............ 630 in/min.
Spindle Torque..................... 4873
Gear Ranges........................ 3
Turret Configuration 1............ 12
Tailstock Quill Diameter........... 6.3"
Tailstock Taper.................... MT 6
Tailstock Quill Travel............. 5.9"
Programmable Tailstock............. YES
Tailstock Travel................... 124"
Control............................ CNC (FANUC 21I - TB CNC COLOR CONTROL)
EQUIPPED WITH:
FANUC 21I - TB CNC COLOR CONTROL
640 M MEMORY
THREAD CUTTING RETRACT
VARIABLE LEAD THREAD CUTTING
CHIP CONVEYOR
64 TOOL OFFSETS
8 PAIRS WORK COORDINATES
DOOSAN TOOL LOAD MONITORING
24" 4 JAW MANUAL CHUCK FRONT
REAR CHUCK PREP
HYDRAULIC OPEN CLOSE STEADY REST
FX 1200 MIST COLLECT SYSTEM
Get Your Price from Used CNC LLC!
