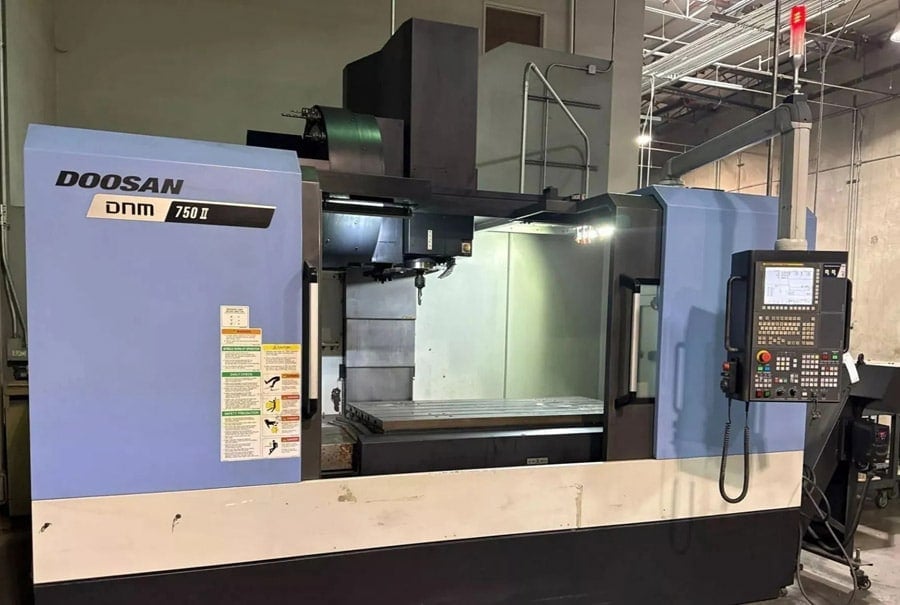

Daewoo Doosan #DNM-750II, CNC vertical machining center, Fanuc 1 Series, 64.2" X, 30" Y, 25.6" Z, 12000 RPM, 30 side mount tool changer, 2018

DOOSAN DNM-750II CNC VERTICAL MACHINING CENTER

SPECIFICATIONS:
Travels:
X-Axis: 64.2″
Y-Axis: 30.0″
Z-Axis: 25.6″
Rapid Traverse Rates X & Y Axis: 1181 IPM
Rapid Traverse Rates Z Axis: 945 IPM
Spindle Nose to Table (Min.- Max.): 5.9″ – 31.5″

Table:
Length: 64.2″
Width: 29.9″
Number of Std T-Slots: 5
T-Slot Width: 4.9″ x 0.7″
Max Weight on Table: 3306 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 12,000 RPM
Spindle Power: 21 HP

Automatic Tool Changer:
Capacity: 30 Station Side Mounted
Max Tool Weight: 17.6 lbs
Max Tool Dia: 3.1″ -4.9″
Max Tool Length: 11.81″
Tool Changing Time : 1.3 Seconds

General:
Air Required: 90 psi 4 scfm
Power: 220v / 43.1 kva / 3-Phase / 50/60 Hz
Overall Dimensions: 151″ x 137″ x 125″ High Approx.
Weight: 29,760 lbs

EQUIPPED WITH:
Doosan Fanuc i-Series CNC Control
CAT-40 Taper Spindle
USB Drive
PCMCIA Card Slot
Automatic Lubrication System
Rigid Tapping
Coolant System
12,000 RPM High Speed Spindle
Through Spindle Coolant
30 Station Automatic Tool changer
MPG Hand Wheel Control
Spindle Chiller Unit
Chip Conveyor
