Manufacturer: Daewoo Doosan
Model: DNM-750II
Year: 2022
Automatic Tool Changer: 30
Longitudinal" X: 64.0
Cross" Y: 30.0
Vertical" Z: 25.6
RPM: 12000
1 / 8
Click to zoom in
1 / 8
For Sale by Olympia Technical Services
Surplus Record Dealer Since 2018
Location: Whitby, ON Canada
Contact Scot Samek
Phone Number: 289...> Show Phone Number 289-980-2750
Let the seller know you found their listing on Surplus Record!
Description

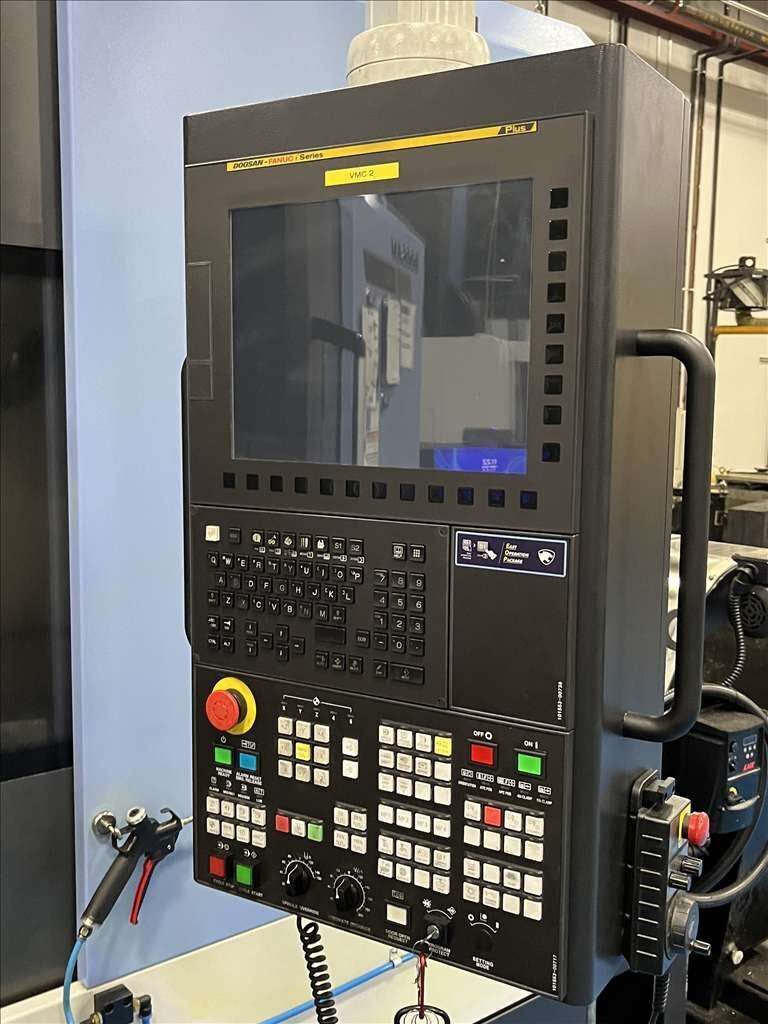

With Chip conveyor, Fanuc I-Series Control, 15" Color monitor, 12000 RPM & CAT 40 spindle
TABLE LENGTH 64
TABLE WIDTH 30
X-AXIS TRAVEL 64.2
Y-AXIS TRAVEL 30
Z-AXIS TRAVEL 25.6
TABLE LOAD 3306 LBS
RAPID TRAVEL RATE XYZ 1181, 1181, 945 IPM
SPINDLE SPEED 12,000 RPM
DISTANCE TABLE TO SPINDLE 5.9 TO 31.5
SPINDLE MOTOR 20 HP
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 30
MODEL DNM 750-II
YEAR 2022
DIMENSIONS (LWH) 193 X 136 X 125
WEIGHT 29,700 LBS.
POWER REQUIREMENTS 220 V, 3 Ph, 60 Hz, 43 kVA
TABLE LENGTH 64
TABLE WIDTH 30
X-AXIS TRAVEL 64.2
Y-AXIS TRAVEL 30
Z-AXIS TRAVEL 25.6
TABLE LOAD 3306 LBS
RAPID TRAVEL RATE XYZ 1181, 1181, 945 IPM
SPINDLE SPEED 12,000 RPM
DISTANCE TABLE TO SPINDLE 5.9 TO 31.5
SPINDLE MOTOR 20 HP
SPINDLE TAPER CAT 40
TOOL CAPACITY (ATC) 30
MODEL DNM 750-II
YEAR 2022
DIMENSIONS (LWH) 193 X 136 X 125
WEIGHT 29,700 LBS.
POWER REQUIREMENTS 220 V, 3 Ph, 60 Hz, 43 kVA
