Daewoo Doosan #BM-2035, CNC bridge type vertical machining center, 40 automatic tool changer, 137.8" X, 80.7" Y, 31.5" Z, 8000 RPM, #50, 40 HP, Fanuc 32IB, rigid tap, chip conveyor, thru spindle coolant, 2019

DOOSAN BM 2035 CNC Bridge Type VMC with FANUC 32IB control, spindle chiller, and ATC. X/Y/Z travels: 137.8"/80.7"/31.5". 8,000 RPM, 40 hp main motor, and tool changer for efficient machining, Renishaw TS27R tool length measurement and through spindle coolant.

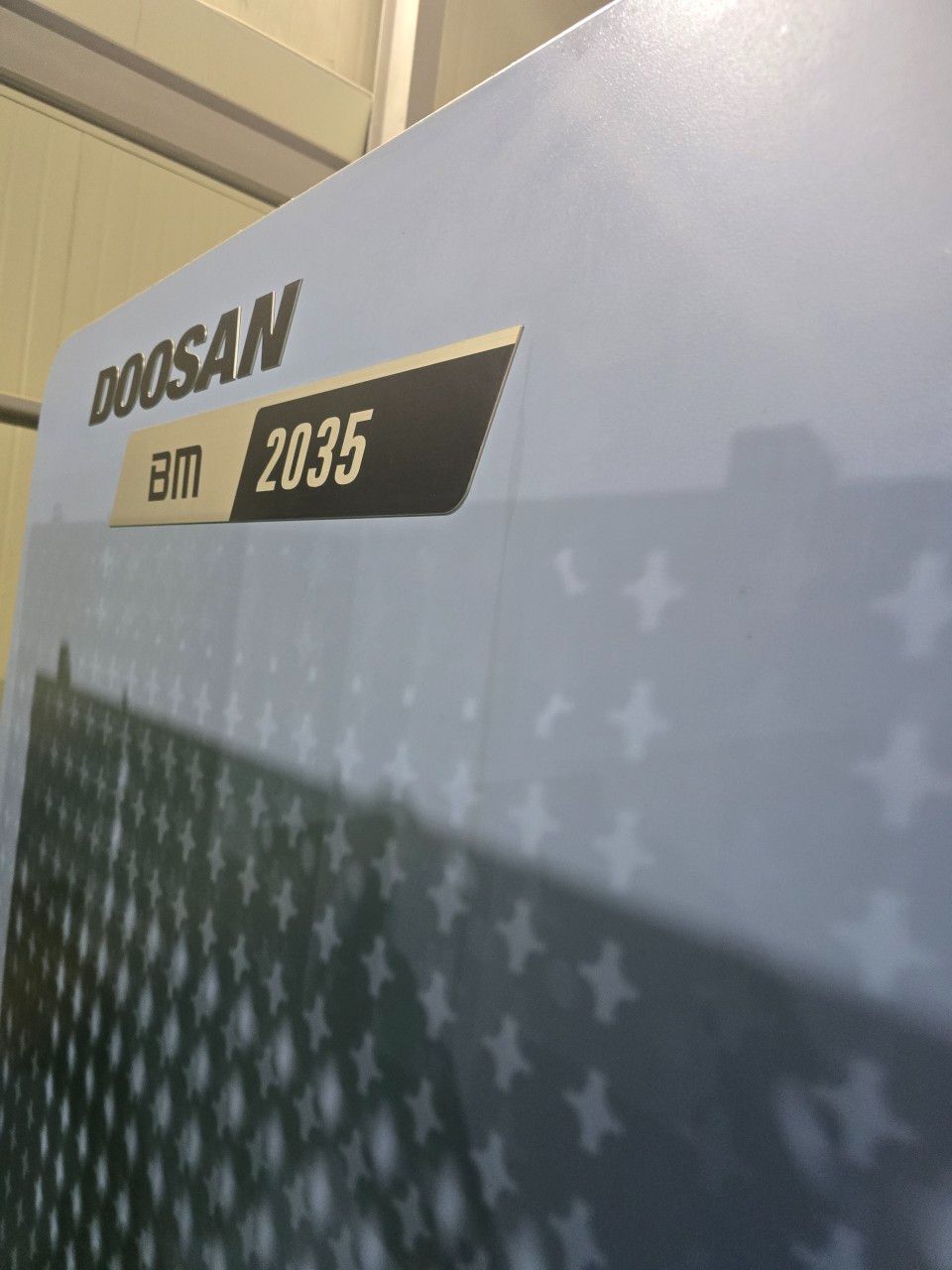

2019 DOOSAN BM 2035
SPECIFICATIONS:
Number Of Tables / Pallets... 1
Table Size - L............... 137.8"
Table Size - W............... 72.8"
Weight on Table.............. 22,046 lb
Distance Between Columns..... 86.6"
Spindle Nose to Table Top.... 7.87" - 39.37"
X - Axis Travel.............. 137.8"
Y - Axis Travel.............. 80.7"
Z - Axis Travel.............. 31.5"
Rapid Traverse Rate - X...... 629.9 in/min.
Rapid Traverse Rate - Y...... 629.9 ipm
Rapid Traverse Rate - Z...... 629.9 ipm
Cutting Feedrate............. 315 in/min.
Spindle Speed................ 8,000 RPM
Spindle Taper................ 50
Main Motor................... 40 hp
Automatic Tool Changer....... 40
Tool Diameter................ 8.7
Tool Length.................. 15.7"
Tool Weight.................. 44 lb
Control...................... CNC (FANUC 32I-B CNC COLOR CONTROL)
Weight....................... 78,265
EQUIPPED WITH:
FANUC 31I-B CNC COLOR CONTROL
640 METERS
DOOSAN TOOL LOAD MONITORING
AUTO POWER OFF
BIG PLUS SPINDLE
FLOOD COOLANT PUMP
AIR BLOWER
HAND HELD REMOTE MPG
SPINDLE CHILLER
CHIP CONVEYOR
RIGID TAPPING
64 TOOL OFFSETS
48 PAIRS WORK COORDINATES
HELICAL INTERPOLATION
THRU SPINDLE COOLANT
RENISHAW TS27R TOOL LENGTH MEASUREMENT
CHIP CONVEYOR
