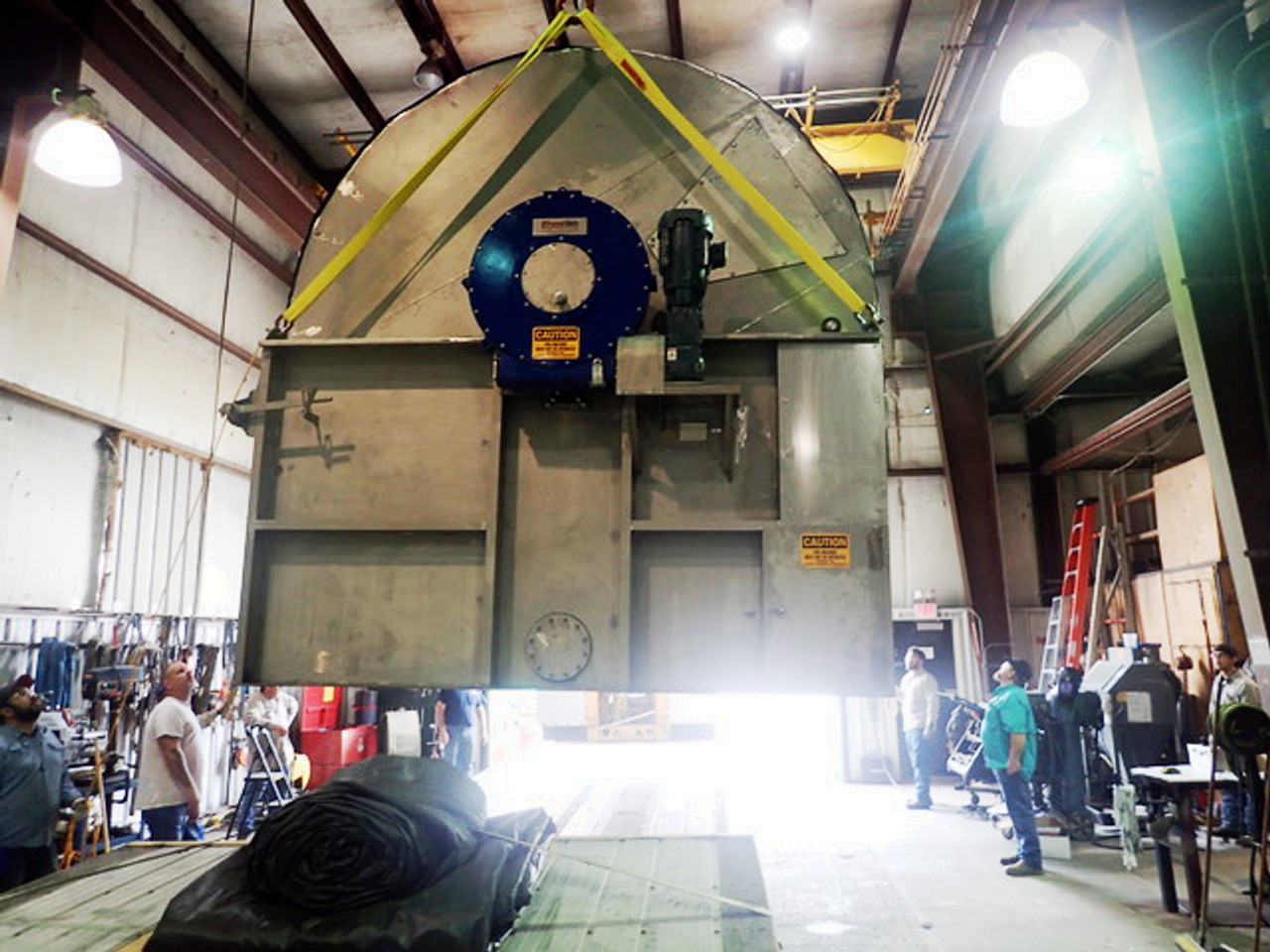

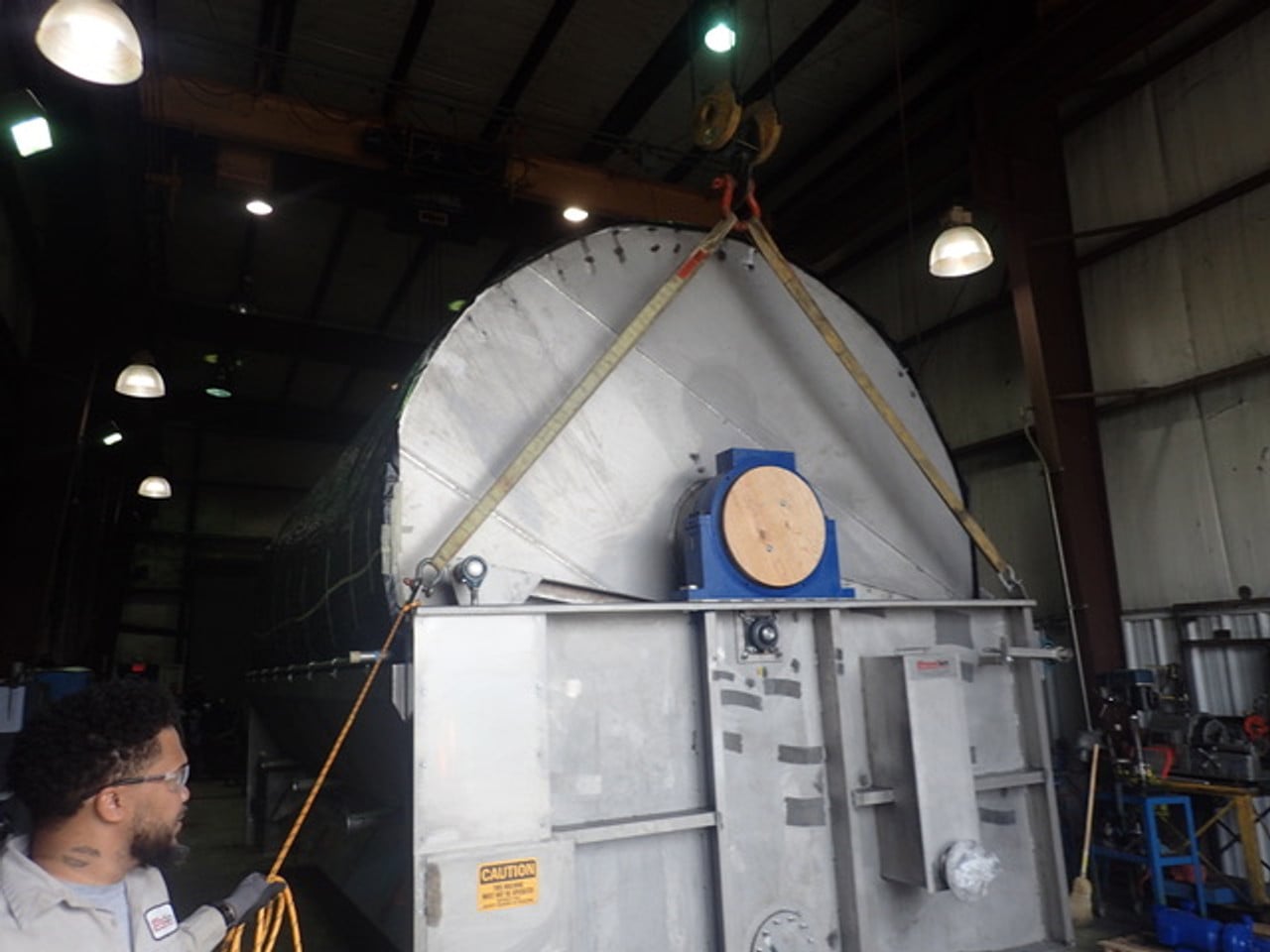

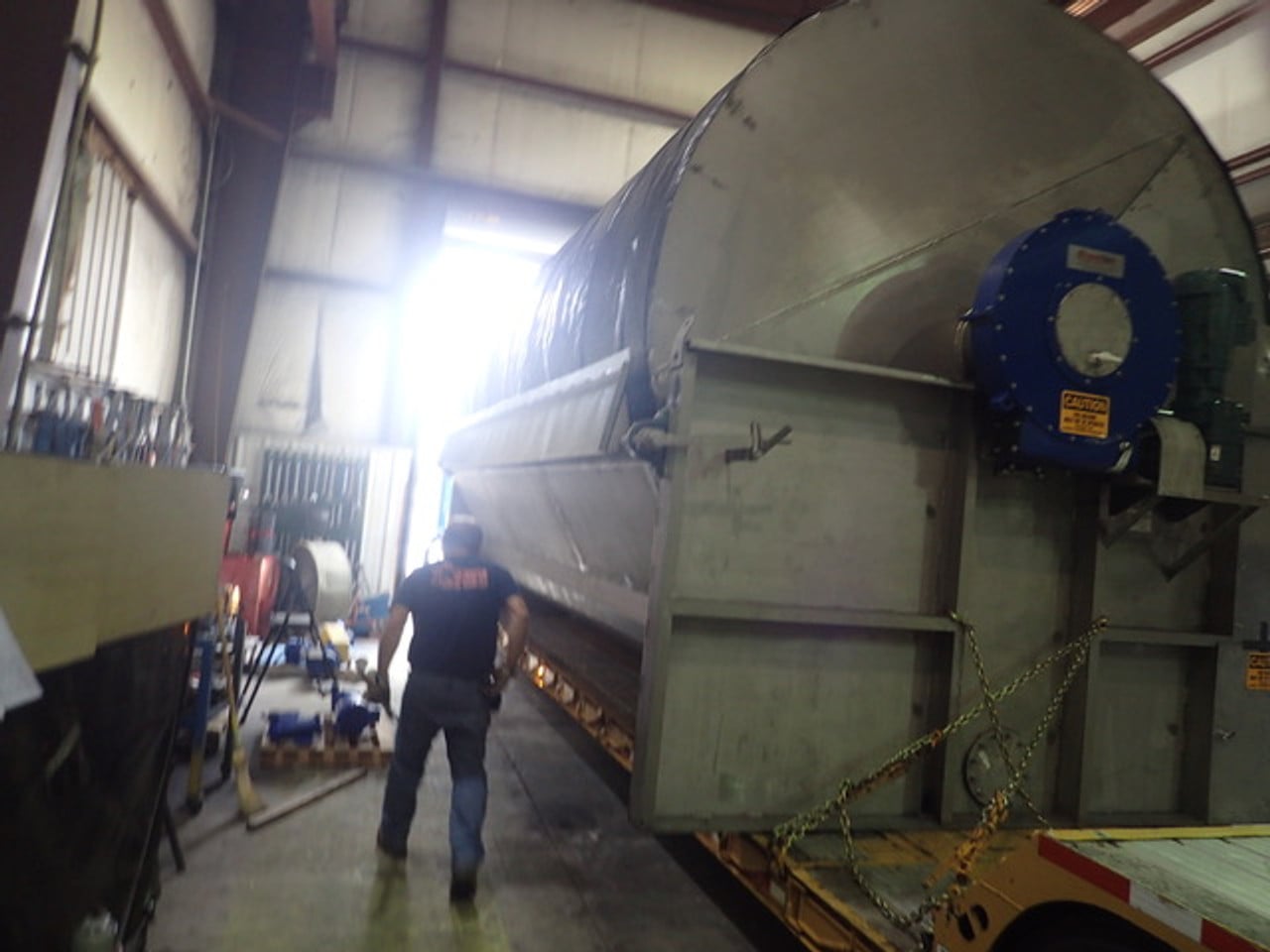

Custom Manufactured Scraper Discharge Rotary Drum Vacuum Filter, 10' x 12', 304 Stainless Steel Drum

- 10 Foot Diameter x 12 Foot Face

- 304SS Drum: All new construction, 24 Sections, 17” Valve End Trunnion, 23-1/2” Drive End Trunnion

- Vat: All new construction, Epoxy Painted Carbon Steel, Rubber Lined

- Agitator: All new construction, Carbon Steel, Rubber Lined, Rocking Rake Style with Pivot Bearings, Above Bearing Housings

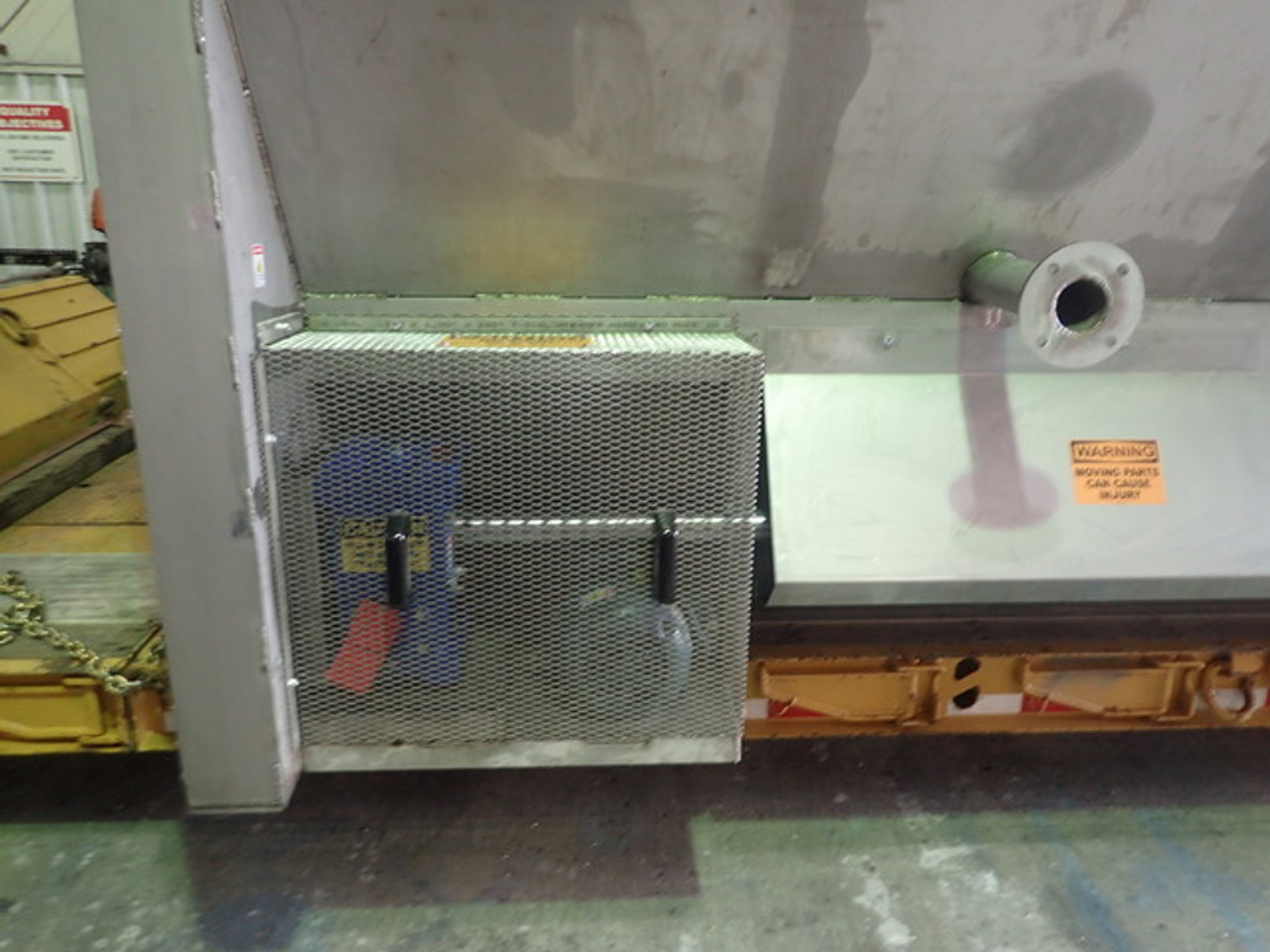

- Agitator Drive: All new construction, Splined Through Shaft Drive with Block Style Crank Throws – 3HP Motor/575V

- Main Drive: All new construction (except refurbished housing castings), 23 ½” Bore -100T Worm Drive with Cast Iron Worm Gear and 4140 PH Worm

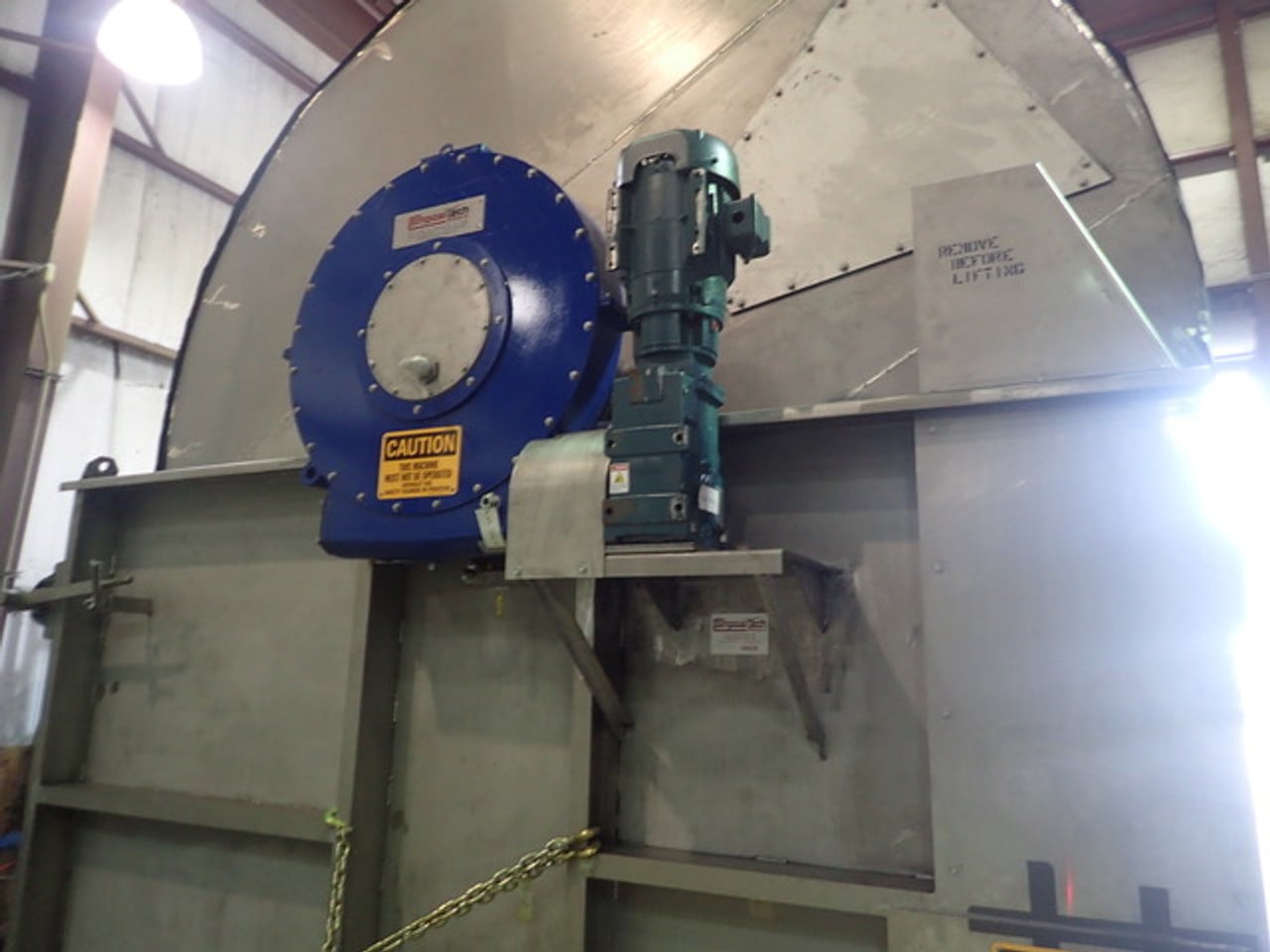

- Valve Head: All new construction, 16 ½” Dual Port Cast Iron High Flow Valve with Vacuum Gauges and UHMW-PE Wear Plate

- Scraper: All new construction, 304SS Apron with UHMW-PE Blade (replaceable)

- Specifically designed to process fluorspar
