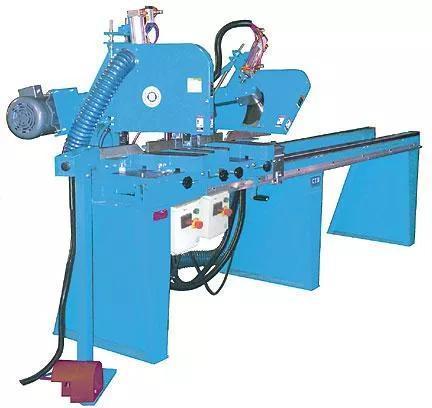

Click to zoom in
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With
10-14 WEEKS
| Blade Capacity | 16 inches |
| Motor | 3 H.P., 3 Phase, 480 Volts |
| Cutting Capacity | 45: 4" X 7"; 90: 4" X 10" |
| 45 Compound | 4" X 7 |
| Specifications | Compound double end trim mitre saw, Magnetic Starter, 10 strokes per min |
| Blade Capacity | 16" OD (406mm); saw blades not included |
| Arbor | 1" (25mm) with 3-1/2" (89mm) saw collars; mounted on preloaded and sealed bearings; 2-belt drive centered between bearings; 2,800 RPM of spindle. |
| Iron Castings | Saw arms, pivot brackets, and tables are precision machined and ground iron castings with milled keyways in table to guide fences. |
| Cutting Capacity | 90 Cutting: 4" (102mm) High x 10-1/2" (267mm) Wide; 45 Mitre: 4" High (102mm) x 7-1/4" (184mm) Wide; 90 Front to Back/45 Compound: 2-5/8" (67mm) High x 10" (254mm) Wide. |
| Table | Tables swivel from 90 to 45 toward each other with degree markings and pointer; stops are at 90 and 45; angular adjustment in opposite direction available. |
| Floor Stand | Heavy gage steel; eight foot (2.4M) centers with traveling right hand carriage on rack and pinion; length measuring scale; optional length centers available to 40 feet (12M) |
| Fences | Inside and outside fences are keyed to base and are easily adjustable front to back, and side to side. |
| Actuation | Two inside vertical clamps must be tripped by foot valve, then a two-hand anti-tie down, maintained contact safety control will work the air downfeed of saw heads; an air filter/regulator/lubricator with auto drain is provided. |
| Air Pressure & Consumption | 4 CFM at 75 PSI (.11 cubic meters at 5.2kg/cm2); based on 10 strokes per minute. |
| Production Rate | 10 strokes per minute; actual production rates will vary with type and width of material to be cut. |
| Dimensions | 120" X 40" X 69" |
| Weight | 1500 pounds |
Equipped With
Equipped With
OPTIONAL FEATURES:
16" DF 96 TOOTH X 1" CARBIDE BLADE: $435.00
BIOLUBE BLADE LUBRICATION SYSTEM: $2,350.00
BIOLUBE LUBRICANT/ONE GALLON: $95.00
DIGITAL LENGTH MEASUREMENT SYSTEM/8': $1,935.00
CRATING: $200.00
10-14 WEEKS
