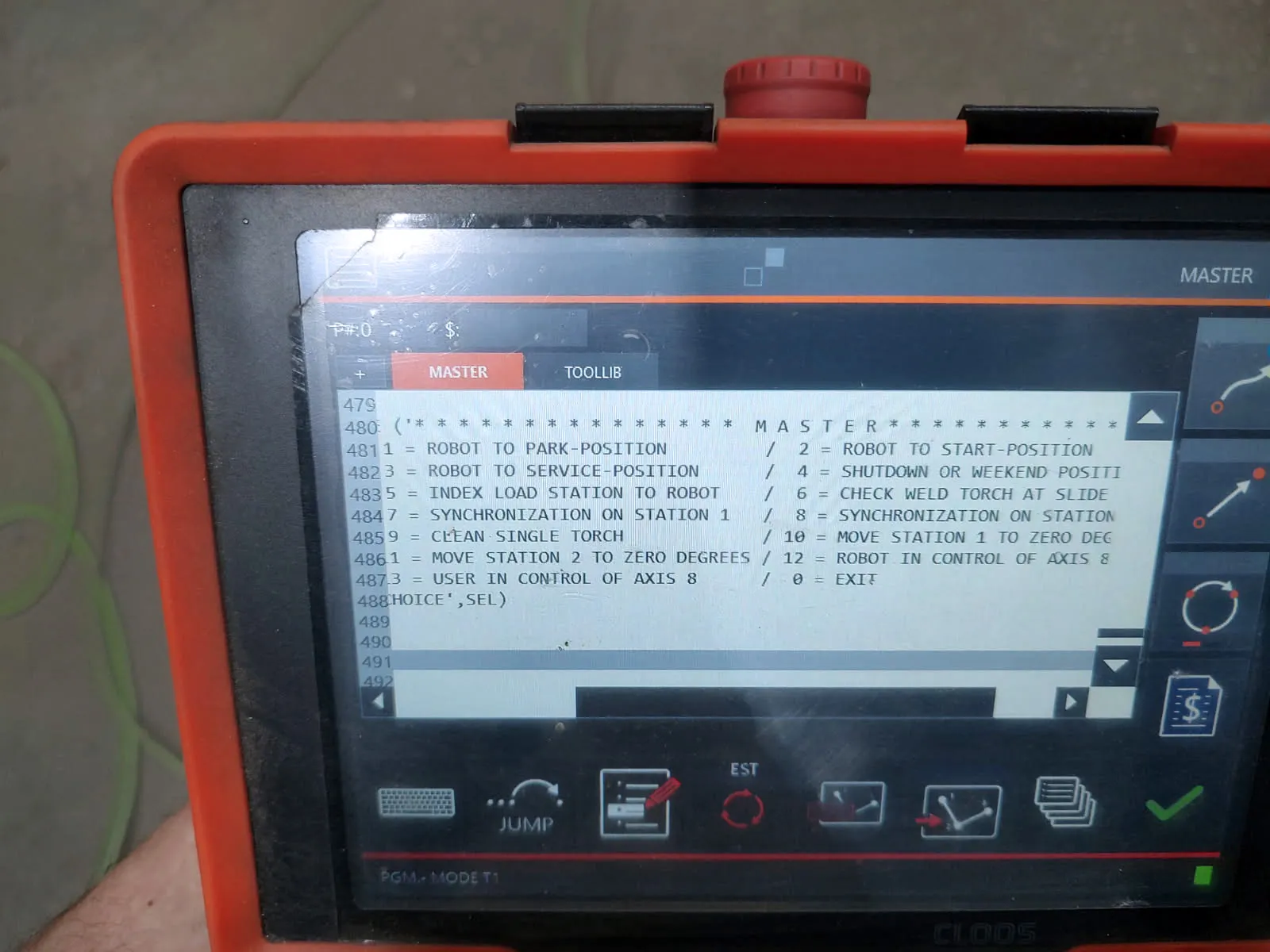

Cloos CS-30, robotic welding cell, QIROX QC2 Control, 7-Axis, 22 lb. payload, 240" operating range, 2021

Very Low Hours! Arc Welder Included!

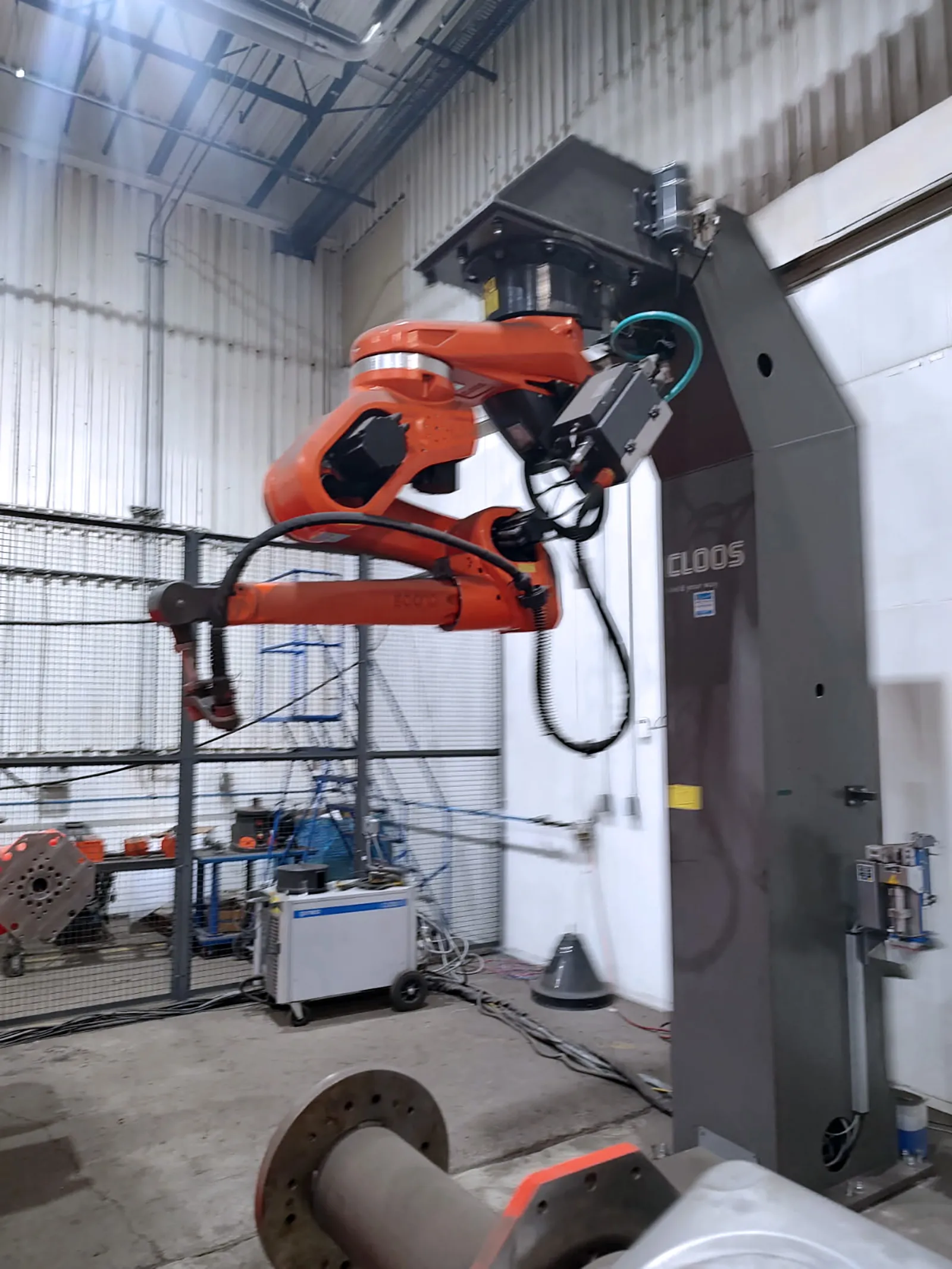

The CLOOS CS30 Robotic Welding Cell (2021) with QIROX QC2 Control is a high-performance automated welding system designed for precision arc and MIG/MAG welding. Engineered for high-volume production, it delivers consistent weld quality, faster cycle times, and reduced operator fatigue. Ideal for fabrication shops and industrial manufacturers, it efficiently handles repetitive welding tasks and supports advanced processes, including laser-hybrid welding applications. A reliable solution for boosting productivity, accuracy, and automation in modern welding operations.
Working Space: 177"

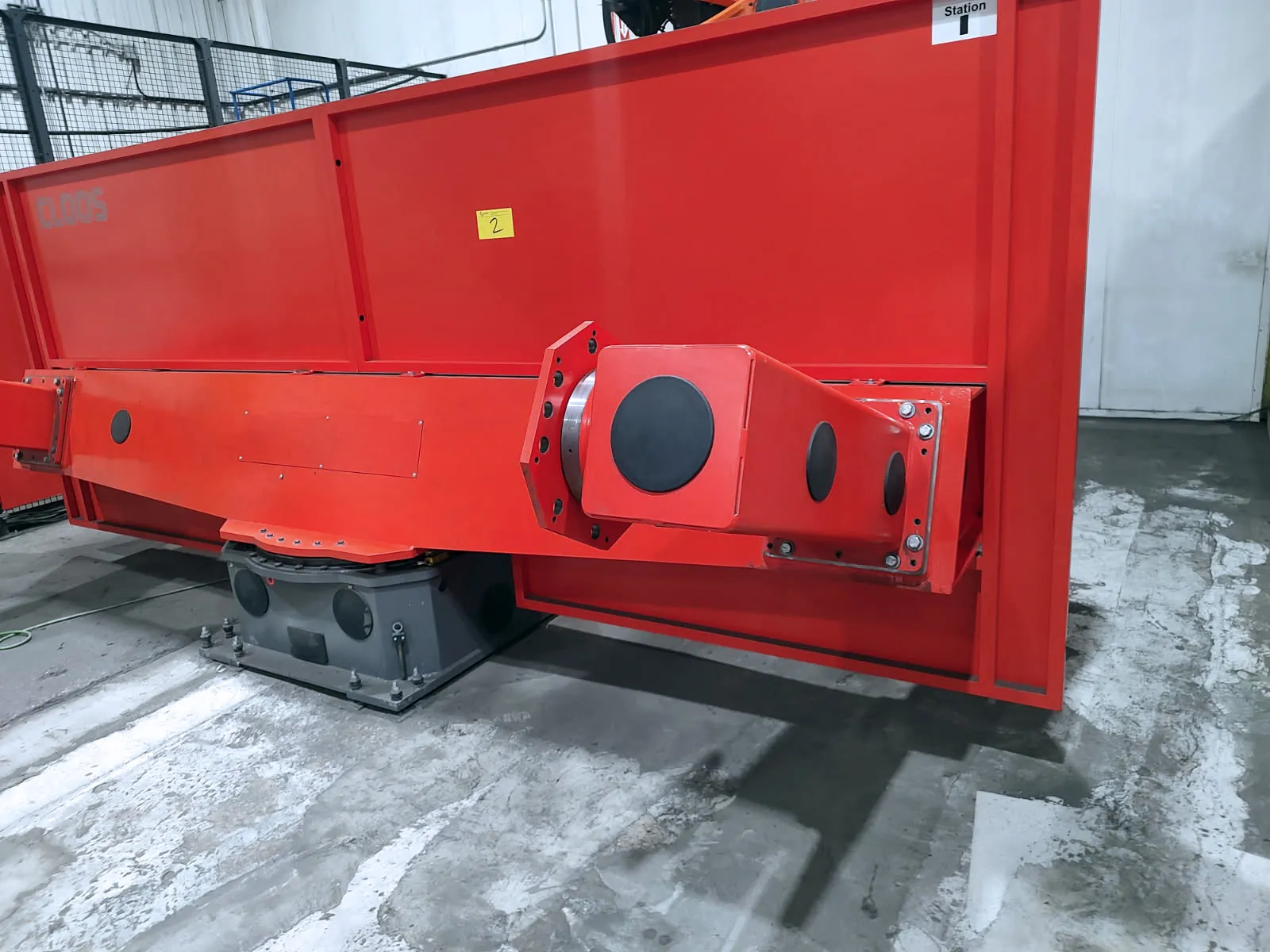

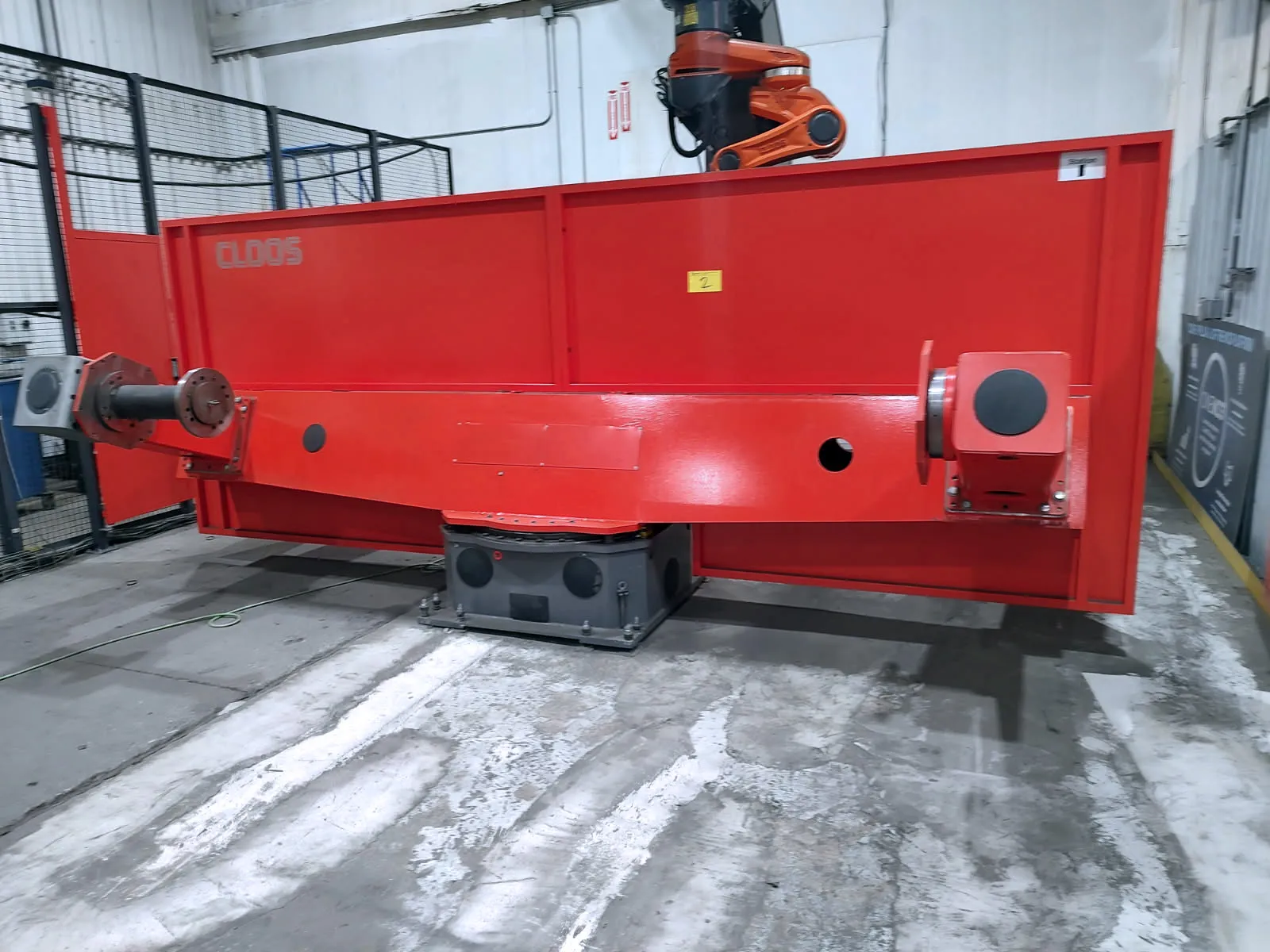

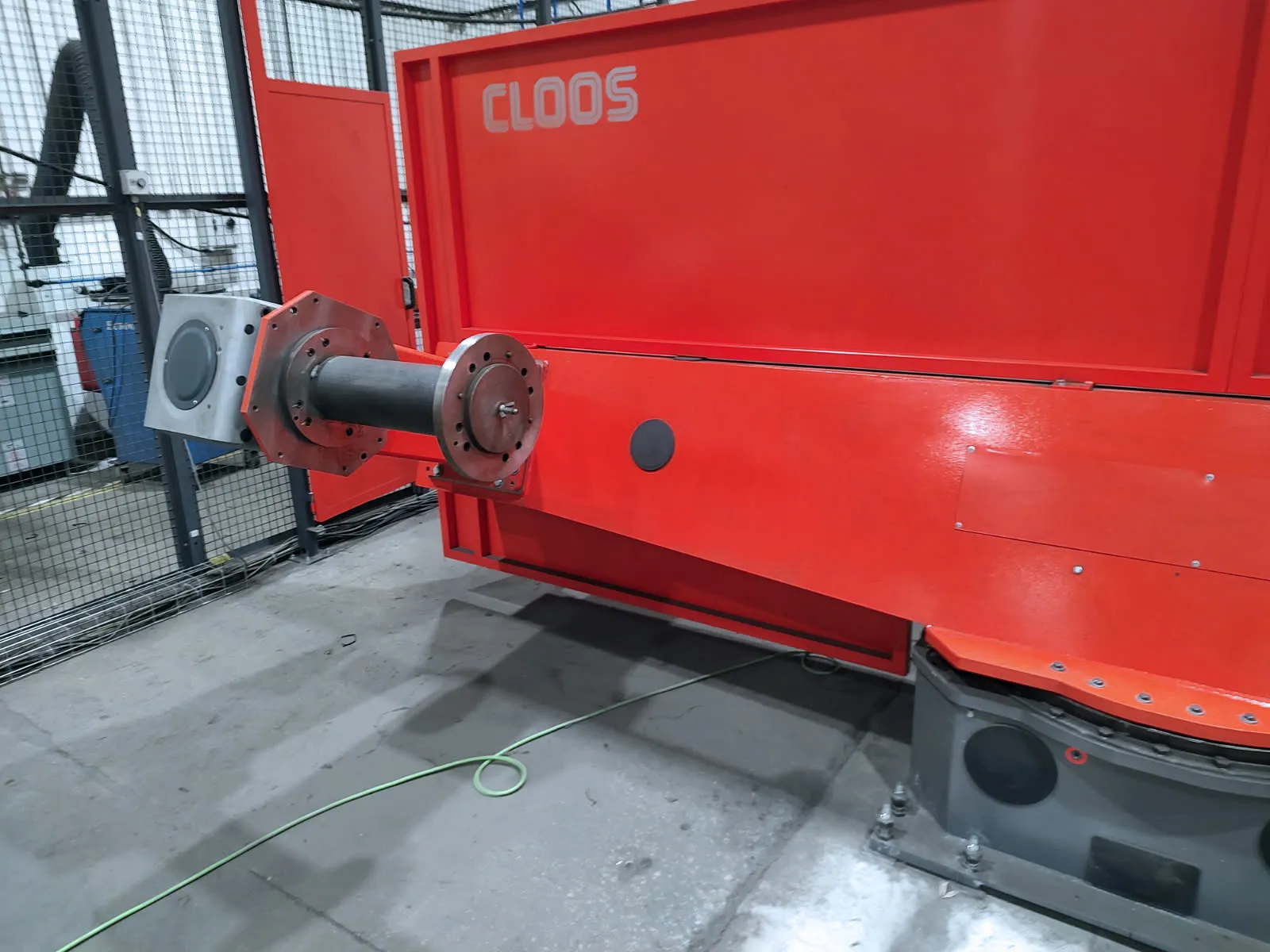

Positioner Max. Load Per Station In N: 10kN
Positioner Max. Load Per Station: 2,248 Lbs.
Positioner Max. Tilting Moment: 2450 Nm
Positioner Mass Moment Of Inertia: 150 kgm2
Positioner Max. Turning Speed: 120/Sec.
Positioner Face Plate Diameter: 15.75" x 15.75"
Positioner Clamping Length: 137
Positioner Free Turning Radius: 59
Positioner: DH-TC-10kN
Positioner Type: 2 Station
Robot Pay Load: 22 Lbs.
Robot Swivel Speed - Axis 1: 184
Robot Swivel Speed - Axis 2: 184
Robot Swivel Speed - Axis 3: 177
Robot Swivel Speed - Axis 4: 497
Robot Swivel Speed - Axis 5: 542
Robot Swivel Speed - Axis 6: 528
Robot Swivel Speed - Axis 7: 90
Operating Range: 240
