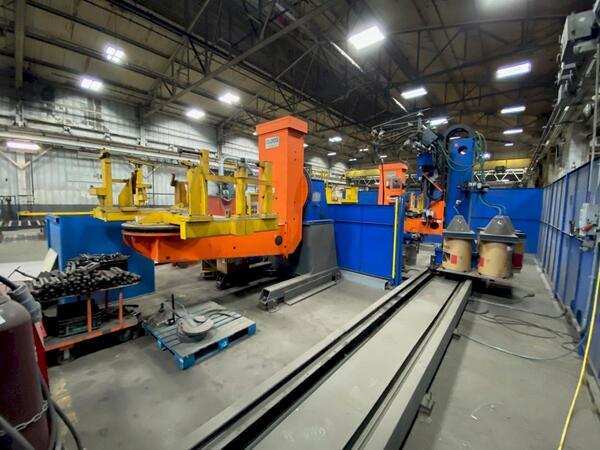

Cloos, QRC-E 410, robotic welding cell, fully programmable, 2012

7 - Axis Fully Programmable Welding Robot with Remote Pendant Control, Safety Fencing Protecting Users from robots Range & From Harmful Arc Rays, Safety Light Curtains, Torch Changing Station w/ Collision Sensor Automatically Changes between Single and Tandem Torch Heads and CLOOS WPEK - 30000N Work Piece Positioners with Freely Programmable Turn Axis and Tilting Axis, Synchronization of Robot Axes with Motions of the Work Piece Positioners Enables the Robot System to Follow Complicated Contours.
Robot Specifications

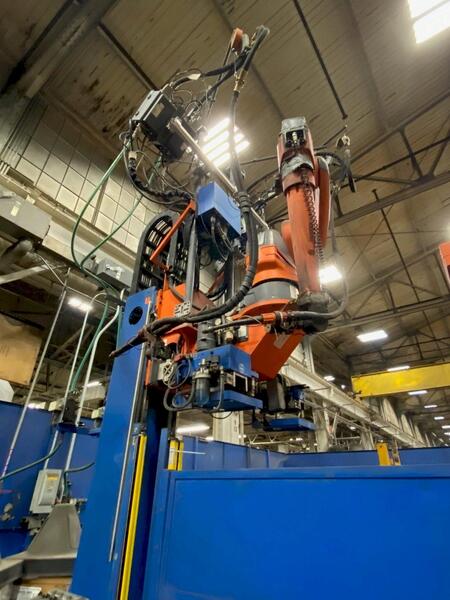

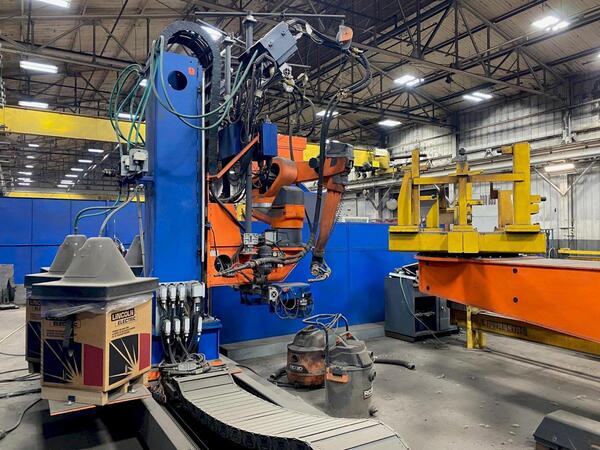

- Dynamic 7 - Axis Welding Robot Mounted to Longitudinal Base
- Longitudinal Base Allows 10 MT of Linear Rail Travel of Robot

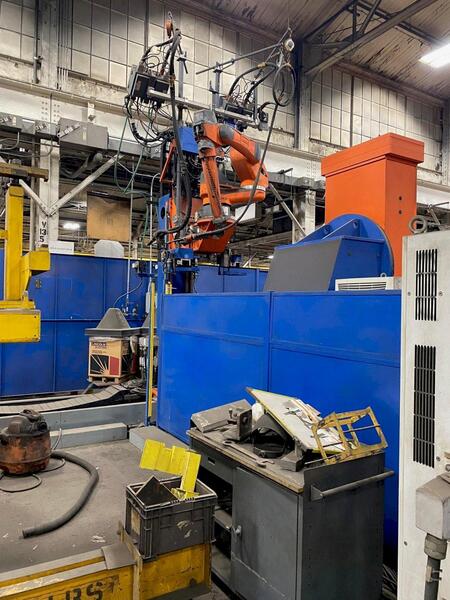

- Fully Programmable Vertical Track Allows for 1.5 Meters of Linear Rail Travel of Robot
- 90° and 35° Degree Torch Heads
- Torch Nozzle Cleaners for Both Single and Tandem Torch Heads
Welding Technology
- CLOOS Model GLC 602 Quinto II SD, 600 Amp High Performance, Pulsed Arc Welding Power Sources
- CLOOS CK 118 R K SD, Wire Feed Units for Tandem Torch Head
- Additional Wire Feed Units for Feeding Either from Wire Drum or Wire De - Coiling Unit and Wire Drive Unit
Positioner Technology

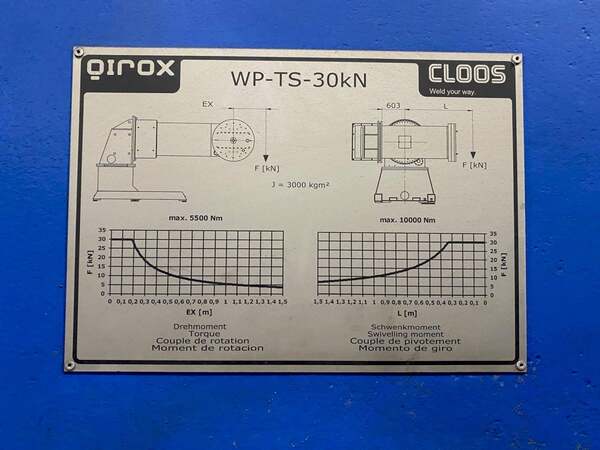

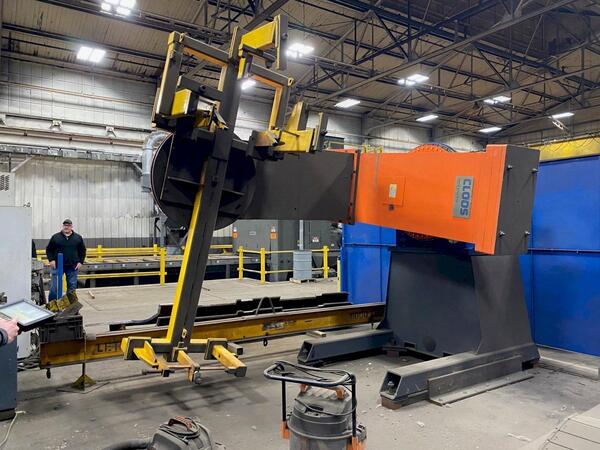

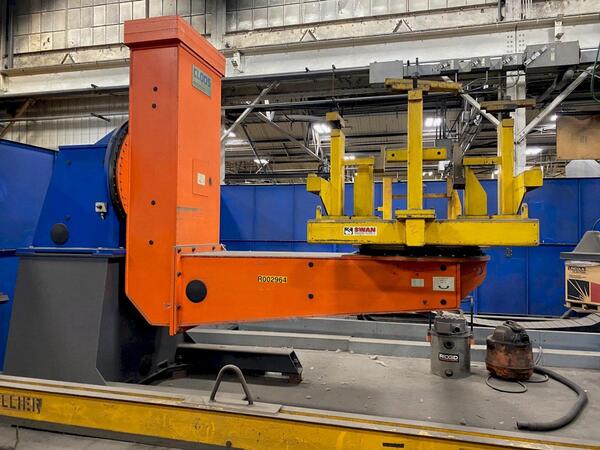

- CLOOS WPEK - 30000N, Work Piece Positioners with Freely Programmable Turn Axis and Tilting Axis.
- Faceplate Load: 30,000N
- Drive Power: 3.1 / 1.87 KW
- Torque: 5700 NM
- Mass Moment of Inertia: 3,000 KGM2
- Faceplate Diameter: 1060 MM
- Center Height Swiveling Axis: 1,480 MM
- Free Turning Radius: 2,000 MM
- Maximum Turning Speed: 22.8° Per SEC
- Turning Range: 720°
- Tilting Range: 370°

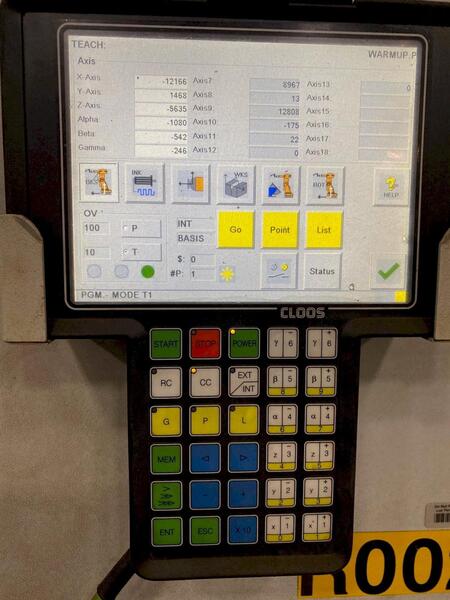

INCLUDES: Remote Pendant Control, Safety Fencing Protecting Users from robots Range & From Harmful Arc Rays, Safety Light Curtains, Torch Changing Station w/ Collision Sensor Automatically Changes between Single and Tandem Torch Heads and CLOOS WPEK - 30000N Work Piece Positioners with Freely Programmable Turn Axis and Tilting Axis, Synchronization of Robot Axes with Motions of the Work Piece Positioners Enables the Robot System to Follow Complicated Contours.

***We strongly encourage personal inspection of all pieces of used equipment***
***All Price, Location and Specifications Subject to Change without Notice***
