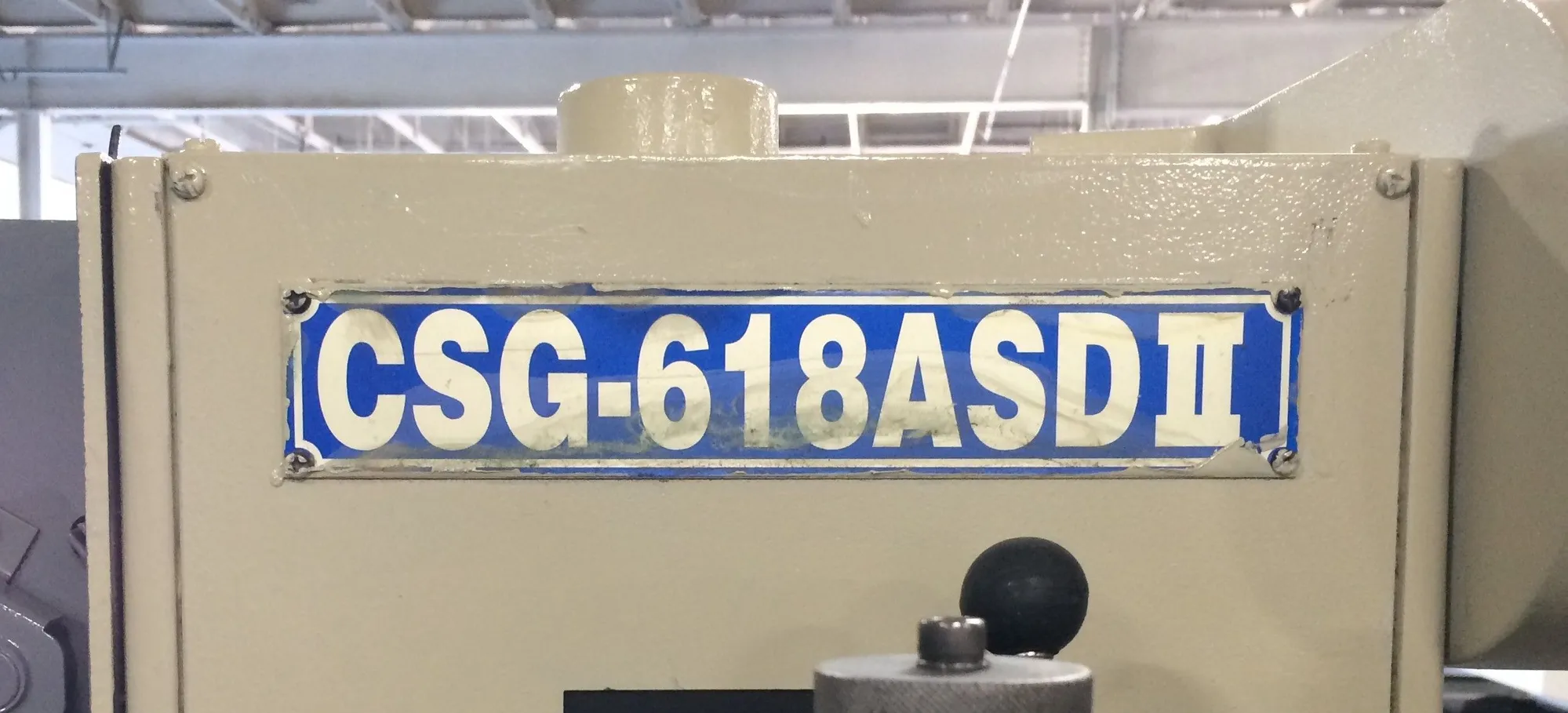

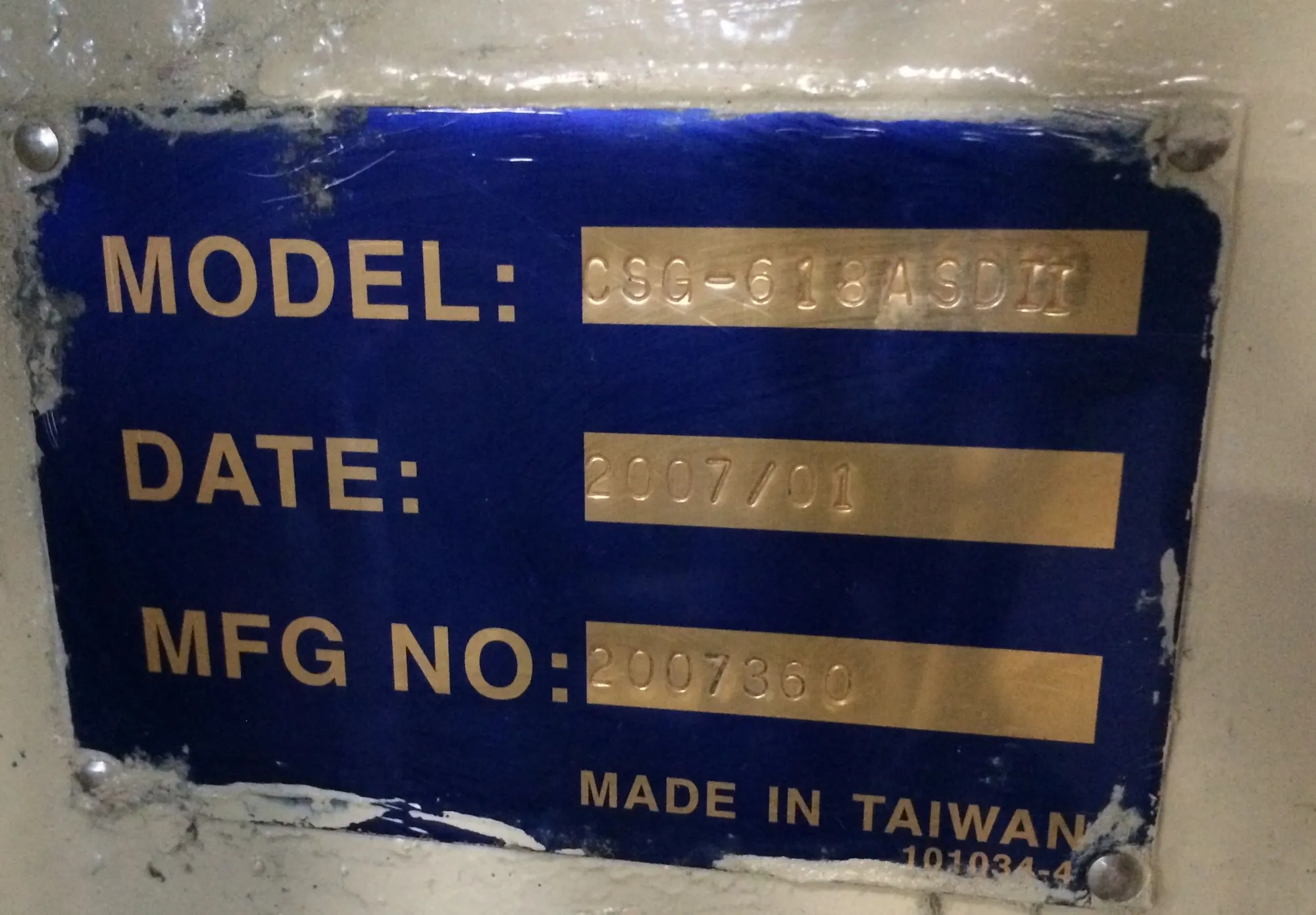

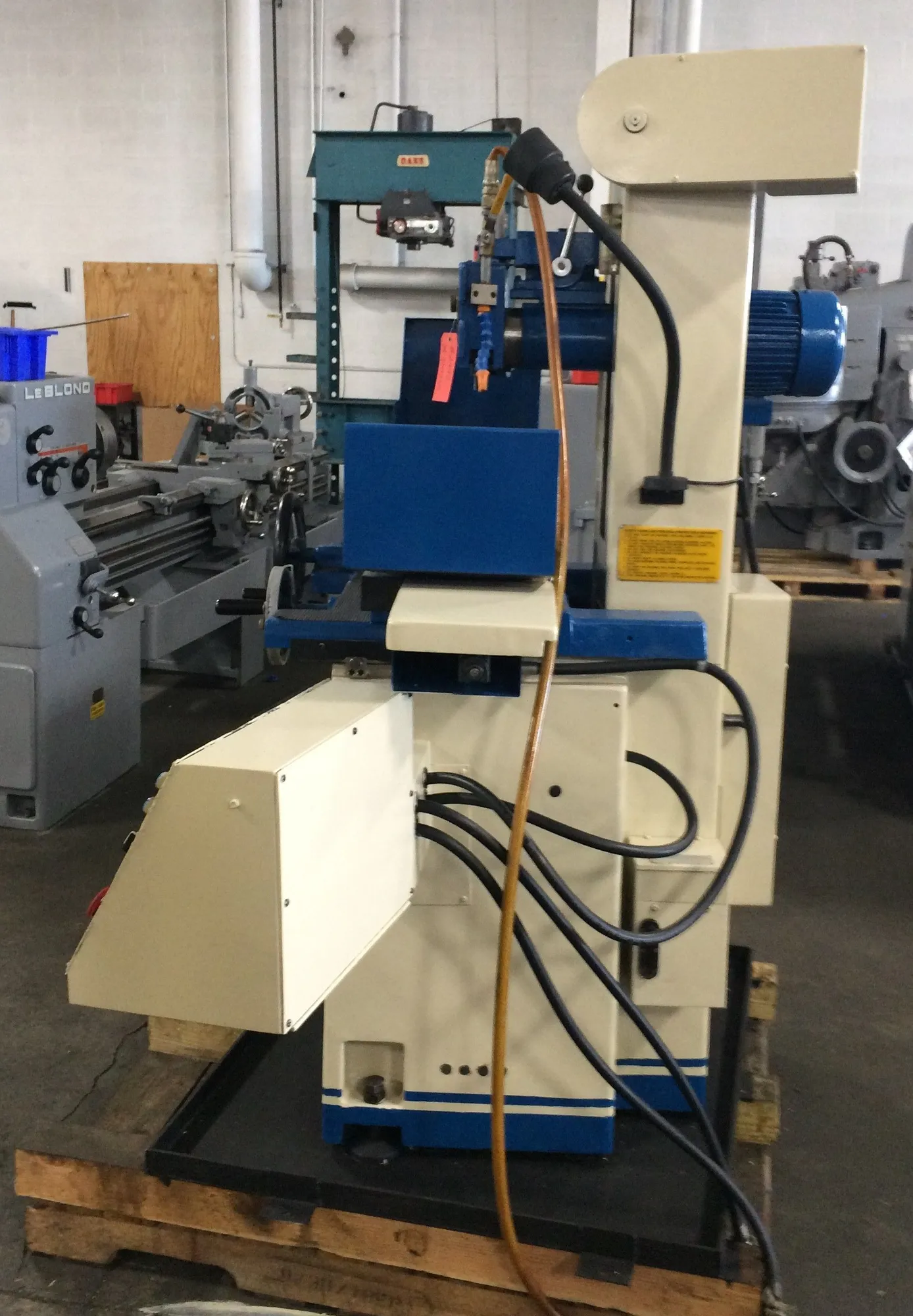

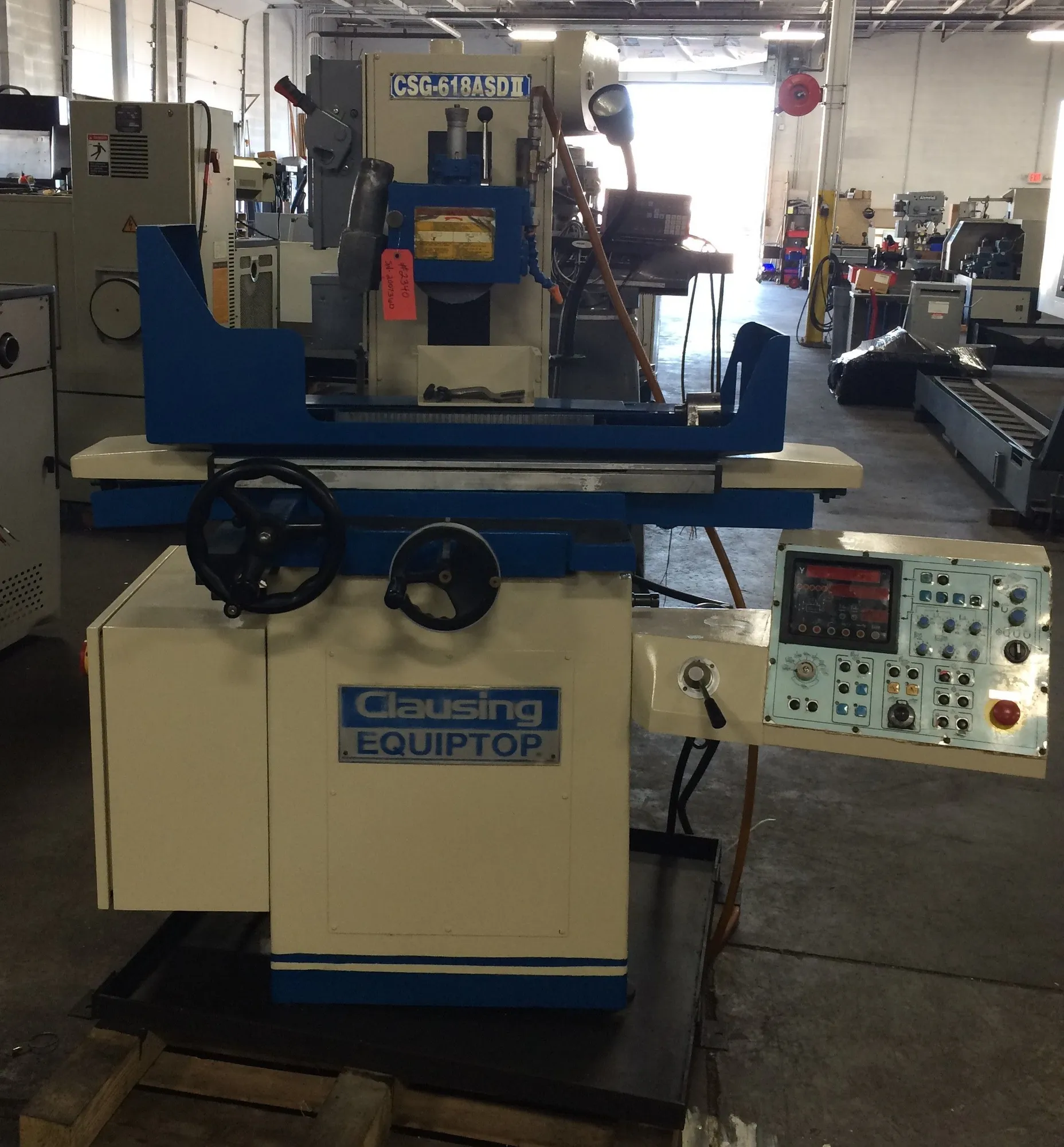

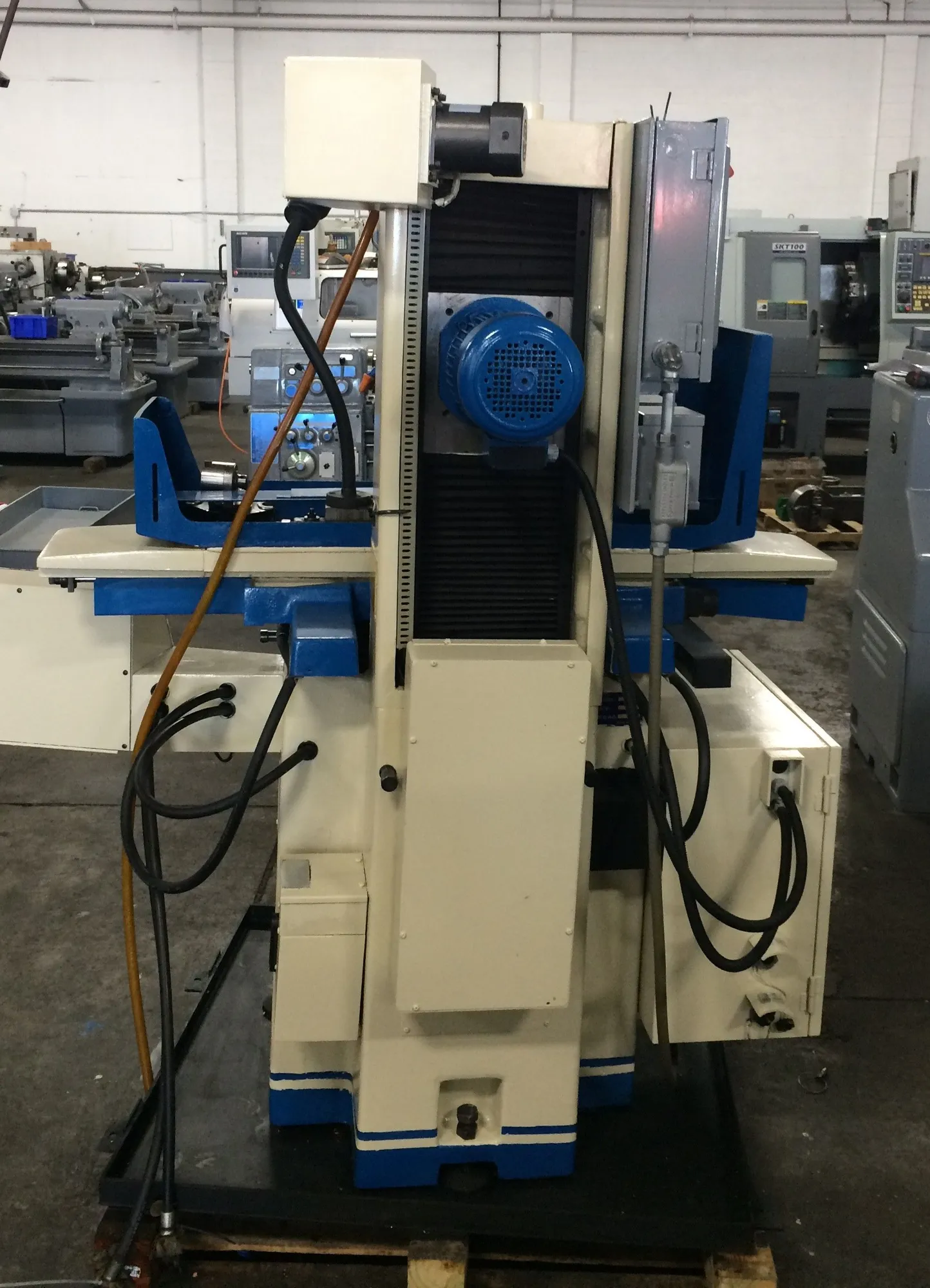

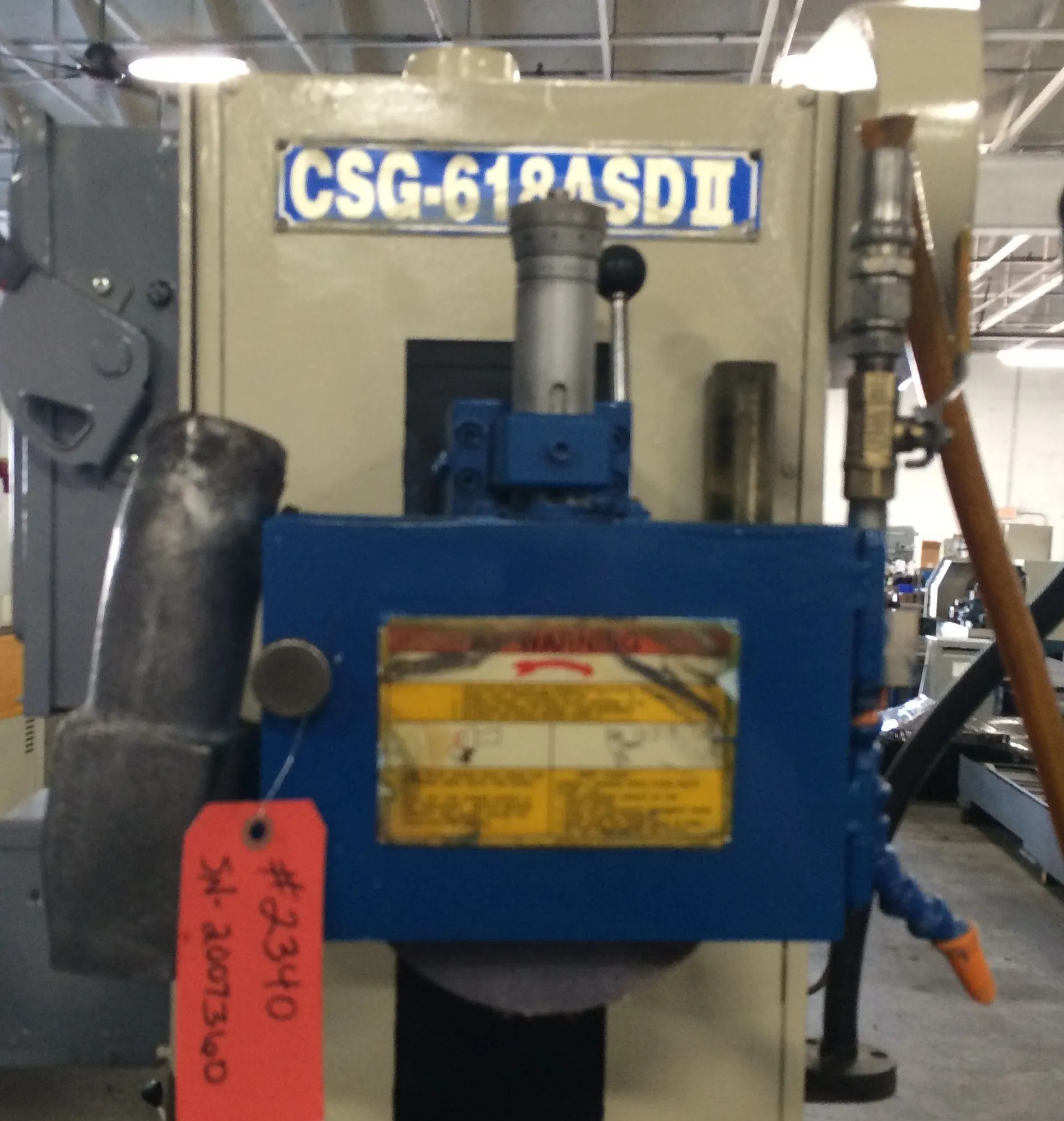

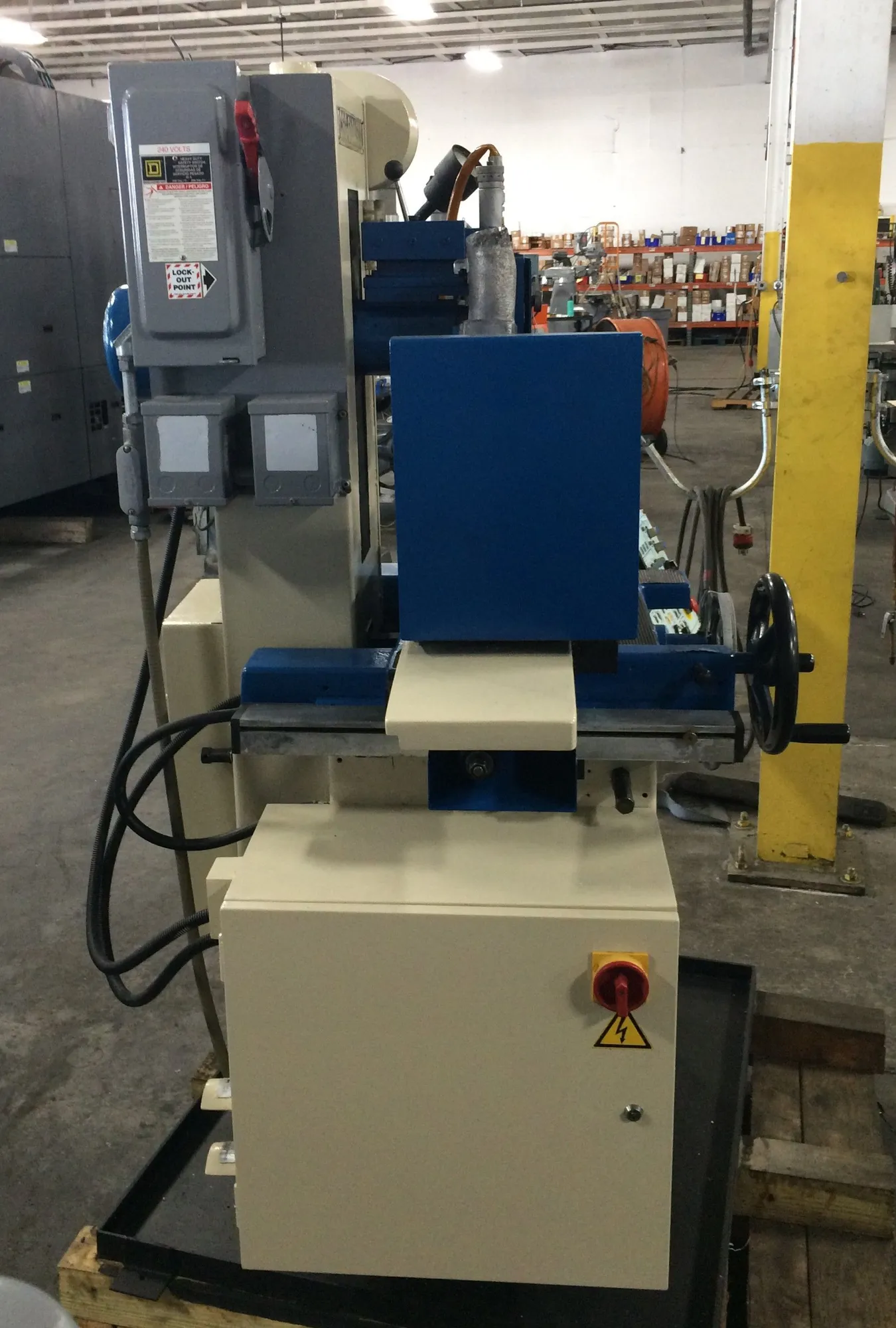

Clausing #CSG-618ASD-II, Surface Grinder, 6" x 18" Table, 2 HP, 3-Axis Automatic, 2007

Manufacturer: Clausing
Year: 2007
Width/Cross: 6.0
Length/Longit.: 18.0
Stock # 95643
Price: $12,500 USD

For Sale by Aucto

Surplus Record Dealer Since 2022
Platinum Level Dealer
Location: Louisville, KY
Contact Trevor Jenson
Let the seller know you found their listing on Surplus Record!
$12,500 USD
Finance for as low as $253/mth financing info

Description

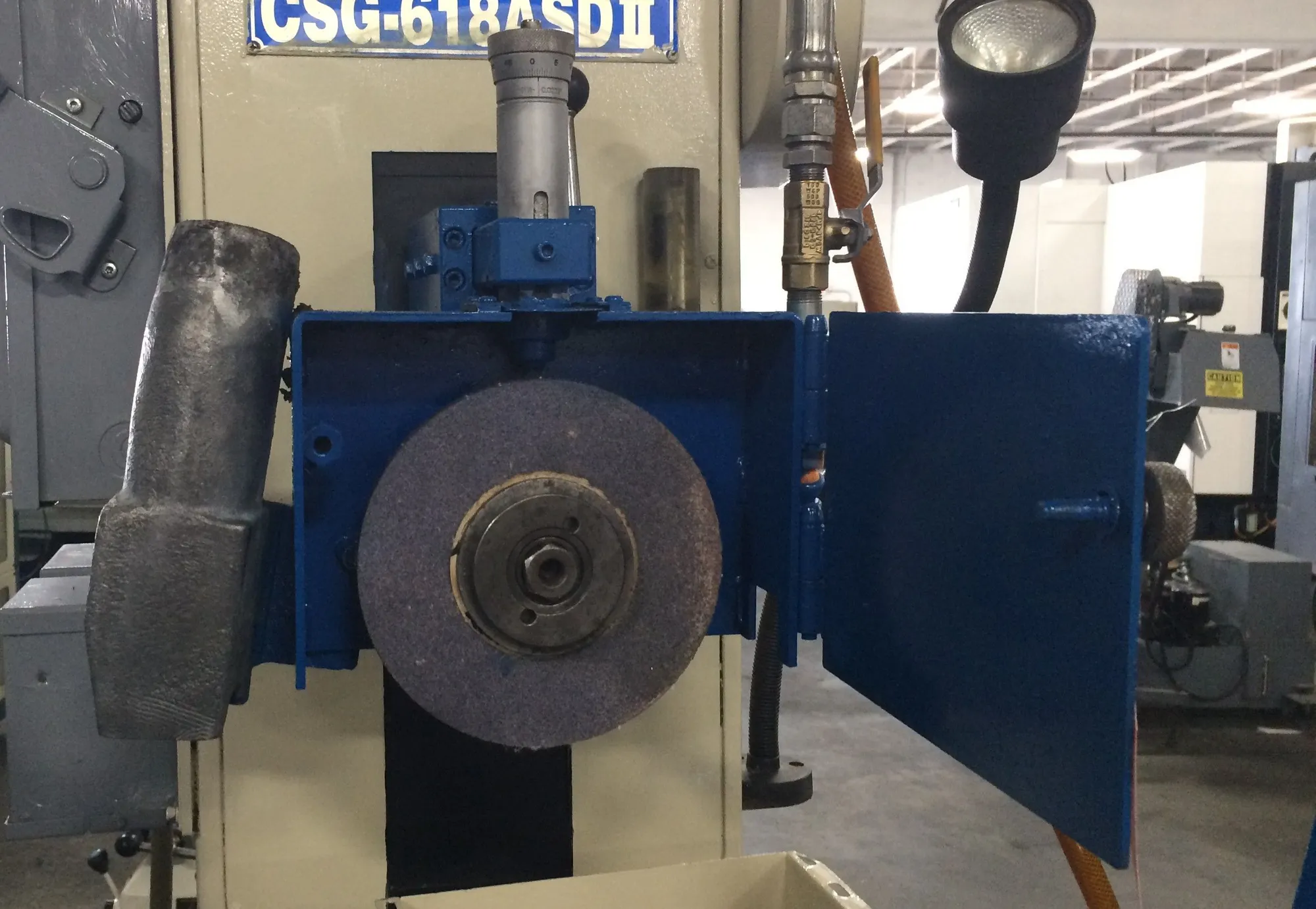

The 2007 Clausing CSG-618ASD II is a precision 6" x 18" hydraulic surface grinder designed for high-accuracy grinding tasks.Capacity and TableTable Size: 6" x 18" (152 x 460mm)Longitudinal Table Travel (Hydraulic): 18.9" - 20" (480mm - 510mm)Crossfeed Travel (Manual/Auto): 7" - 7.68" (178mm - 195mm)Maximum Distance (Table to Spindle Center): 18" (460mm)Magnetic Chuck Size: 6" x 18"Spindle and MotorSpindle Motor: 2 Hp, 3450 RPM (60Hz)Spindle Type: Cartridge-type supported by preloaded angular contact ball bearingsHydraulic Motor: 1 HpVertical Rapid Feed Motor: 40W (standard on ASD models)Grinding WheelDiameter: 8" (203mm)Width: 0.5" - 0.75" (12.7mm - 19mm)Bore: 1.25" (31.75mm)Movement and PrecisionVertical Handwheel Graduation: 0.0001" (0.005mm)Vertical Handwheel Revolution: 0.05" (1mm)Crossfeed Handwheel Graduation: 0.0005" (0.02mm)Crossfeed Handwheel Revolution: 0.2" (5mm)Longitudinal Table Speed: Infinitely variable, 196-984 in/minConstruction and DimensionsWays: Hand-scraped V and Flat ways, with Turcite-B coating on table waysWeight: Approx. 1,808 lbs (820 kg)Dimensions (L x W x H): 71.3" x 44.6" x 65.4"Standard FeaturesAutomatic lubrication systemGrinding wheel and flangeOver the wheel dresserHydraulic-driven longitudinal table movementServo motor-driven crossfeedThe 2007 Clausing CSG-618ASD II is a precision 6" x 18" hydraulic surface grinder designed for high-accuracy grinding tasks.Capacity and TableTable Size: 6" x 18" (152 x 460mm)Longitudinal Table Travel (Hydraulic): 18.9" - 20" (480mm - 510mm)Crossfeed Travel (Manual/Auto): 7" - 7.68" (178mm - 195mm)Maximum Distance (Table to Spindle Center): 18" (460mm)Magnetic Chuck Size: 6" x 18"Spindle and MotorSpindle Motor: 2 Hp, 3450 RPM (60Hz)Spindle Type: Cartridge-type supported by preloaded angular contact ball bearingsHydraulic Motor: 1 HpVertical Rapid Feed Motor: 40W (standard on ASD models)Grinding WheelDiameter: 8" (203mm)Width: 0.5" - 0.75" (12.7mm - 19mm)Bore: 1.25" (31.75mm)Movement and PrecisionVertical Handwheel Graduation: 0.0001" (0.005mm)Vertical Handwheel Revolution: 0.05" (1mm)Crossfeed Handwheel Graduation: 0.0005" (0.02mm)Crossfeed Handwheel Revolution: 0.2" (5mm)Longitudinal Table Speed: Infinitely variable, 196-984 in/minConstruction and DimensionsWays: Hand-scraped V and Flat ways, with Turcite-B coating on table waysWeight: Approx. 1,808 lbs (820 kg)Dimensions (L x W x H): 71.3" x 44.6" x 65.4"Standard FeaturesAutomatic lubrication systemGrinding wheel and flangeOver the wheel dresserHydraulic-driven longitudinal table movementServo motor-driven crossfeed
