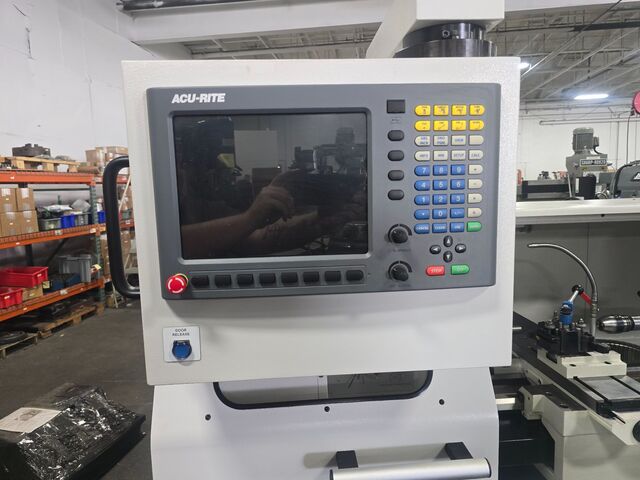

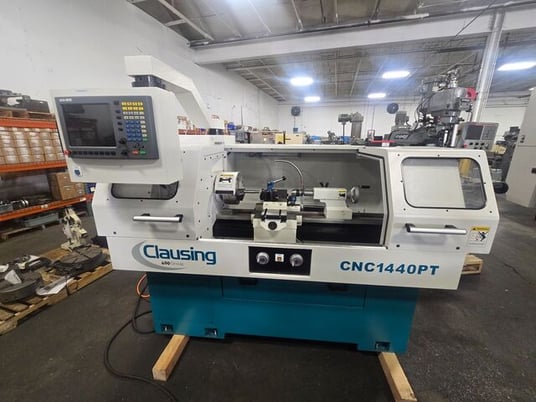

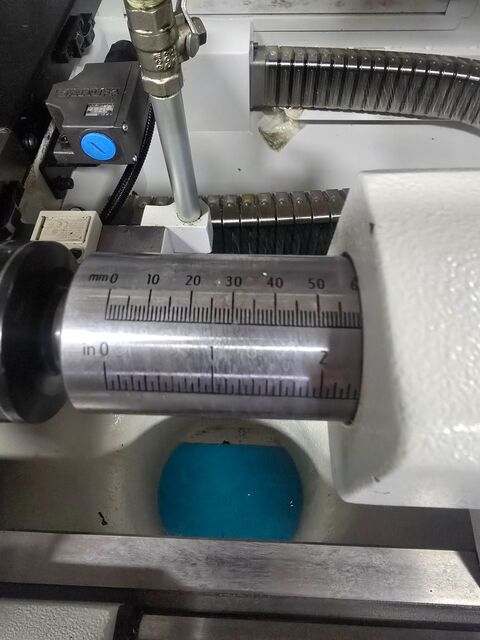

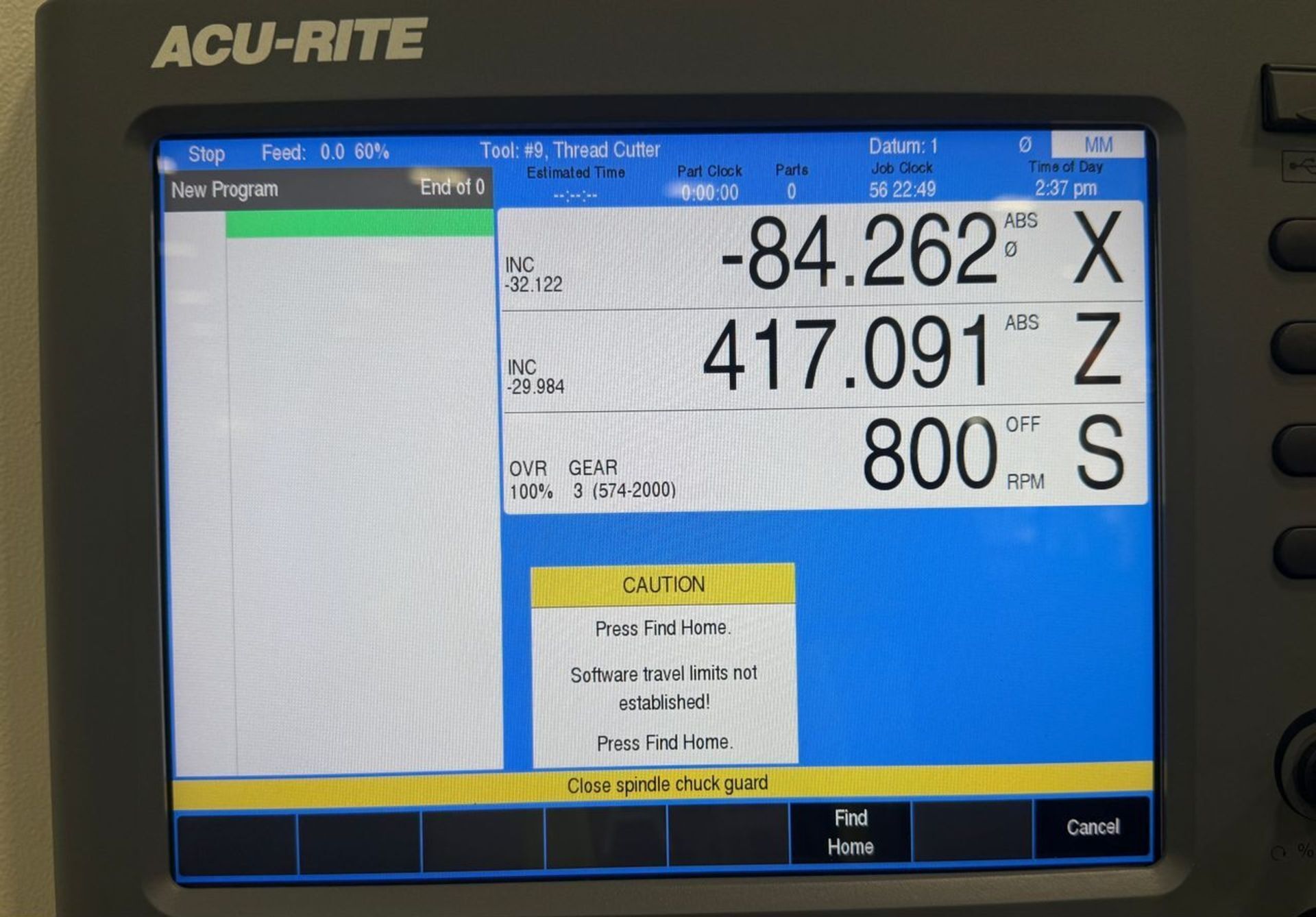

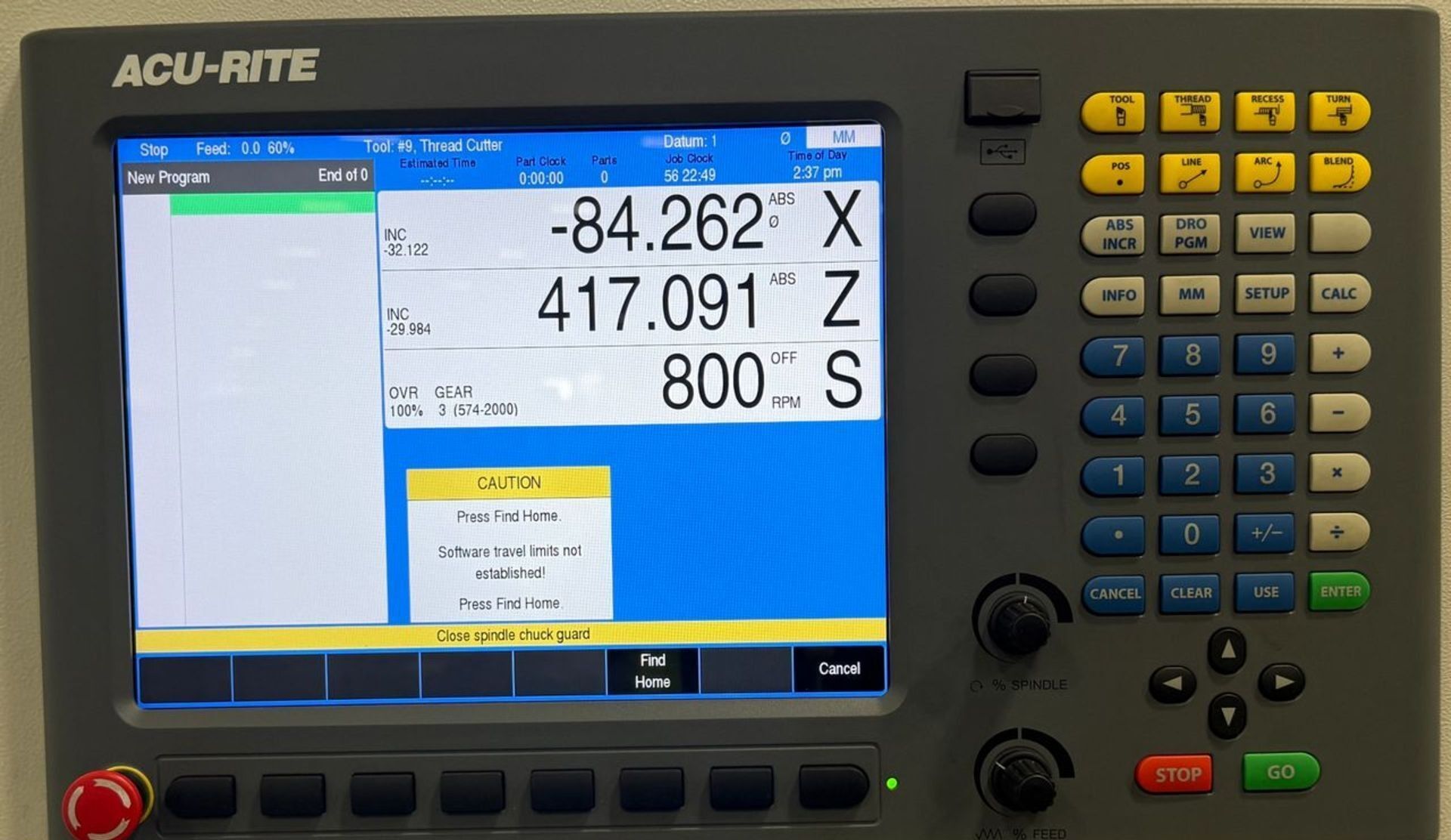

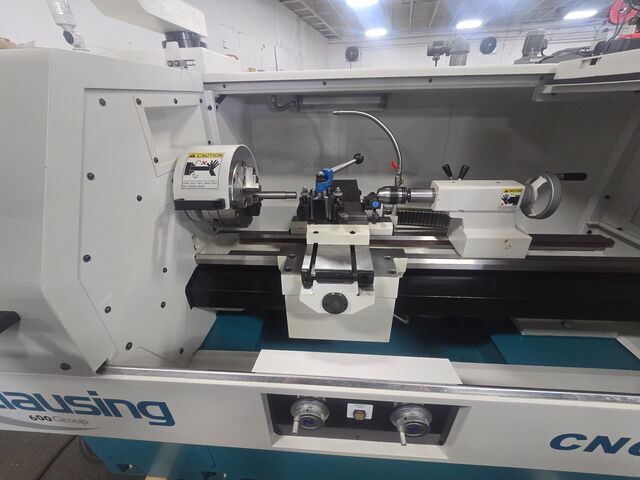

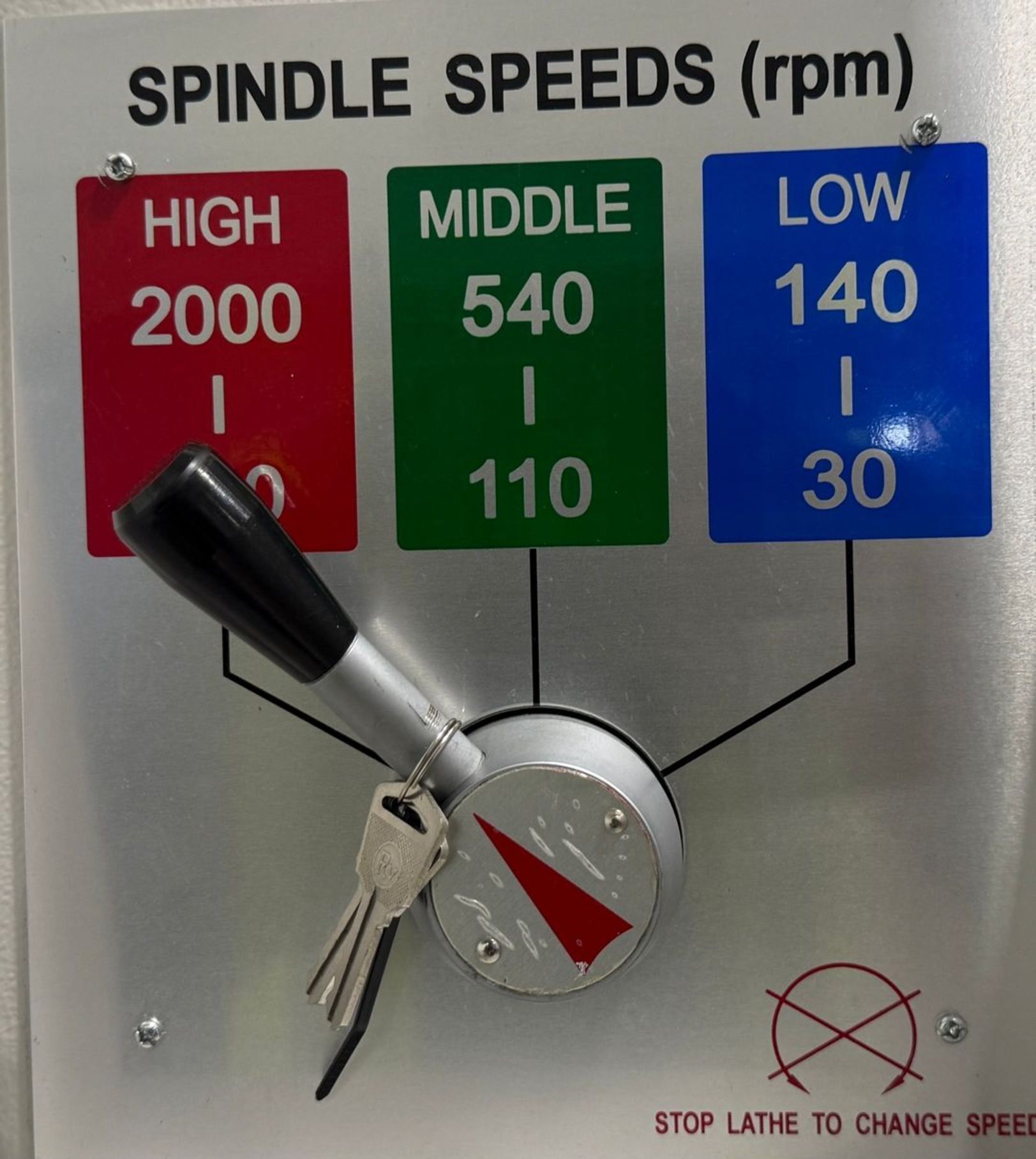

Description: Clausing CNC1440PT Lathe, 2021 model. Swing: 14", Machining Length: 40", Power: 5 HP, Max RPM: 2000. Features Acu-Rite TurnPwr control with 12.1 LED, 1.4 GHz Dual Core, DRO mode, and various programming cyclic operations. Spec Sheet: SPECIFICATIONS: SWING OVER BED ........................ 14" SWING OVER CROSS SLIDE ................ 6.7" HEIGHT OF CENTER ...................... 6.8" DISTANCE BETWEEN CENTERS .............. 40" CROSS SLIDE WIDTH ..................... 6.625 BED WIDTH & DEPTH ..................... 8.5" x 10" SPINDLE NOSE CAMLOCK .................. D1-4 SPINDLE BORE .......................... 1.5" SPINDLE SPEEDS INFINITELY VARIABLE 3 RANGES - LOW RANGE ......................... 30 - 140 RPM - MEDIUM RANGE ...................... 110 - 540 RPM - HIGH RANGE ........................ 410 - 2000 RPM SPINDLE TAPER ......................... #5MT SPINDLE MOTOR ......................... 5 HP MIN SPINDLE SPEED FOR FULL POWER ...... 70 RPM AXES X-AXIS RAPID TRAVERSE ............ 100 IPM Z-AXIS RAPID TRAVERSE ................. 100 IPM X, Z SERVO MOTOR ...................... 1.6 HP TAILSTOCK TAILSTOCK QUILL DIAMETER .... 1.75" TAILSTOCK QUILL TAPER ................. 3MT TAILSTOCK QUILL STROKE ................ 4.75" FLOOR DIMENSIONS ...................... 81.5" X 53.5" X 66.3" APPROXIMATE MACHINE WEIGHT ............ 2,750 LBS. ACU-RITE TURN POWER CONTROL THE TURNPWR IS A CONTOURING CONTROL THAT ENABLES YOU TO PROGRAM CONVENTIONAL MACHINING OPERATIONS RIGHT AT THE MACHINE IN AN EASY-TO-USE CONVERSATIONAL LANGUAGE. 12.1 COLOR LED DISPLAY, 1.4 GHZ DUAL CORE CELERON PROCESSOR, 2.5GB CFAST (SATS) USER INTERNAL STORAGE. DRO MODE MULTIPLE DATUMS (FIXTURE OFFSET):99 ZERO RESET NEAR ZERO WARNING PGM MODE THREAD CYCLES, RECESS CYCLES, TURNING CYCLES POSITION/DRILL, LINE, ARC, BLEND (BLEND/CHAMFER) ESTIMATED MACHINING TIME VIEW GRAPHICS: 2DLINE / 3D LINE /3D SOLID BLOCK FORM W/USER OVERIDE REPLICATION (REPEAT) COMMENT STEP EVENT COMMENTS PROGRAM MANAGER NAVIGATION TREE W/PROGRAM TYPE FILTER LONG PROGRAM NAMES PROGRAM PREVIEW: LISTING AND GRAPHIC W/ESTIMATED MACHINE TIME EXPLODE STEP: REPEAT REVERSE (STEP / PATH) SHIFT STEPS AUTO SAVE (PROGRAM) PROGRAM SIZE LIMIT (TPT ONLY):9999 STEPS DXF FILE IMPORT G-CODE PROGRAM: W/GRAPHICS SUPPORT / SIMPLE EDIT ON SCREEN HELP: USER MANUAL VIEWER (TEXT AND GRAPHICS) PARTS COUNTER AND CLOCK OPTIONAL STOP (G-CODE ONLY) FEED OVERRIDE BY POTENTIOMETER ERROR COMPENSATION: LINEAR AND BIDIRECTIONAL NON-LINEAR COMMUNICATION PORTS (2) USB AND ETHERNET * COOLANT SYSTEM * 3-JAW CHUCK * ALORIS QUICK CHANGE TOOLPOST w/HOLDERS * 5 HORSE POWER SPINDLE MOTOR INSPECT UNDER POWER IN OUR WAREHOUSE CONDITION: **** LIKE NEW ****
THIS CNC TURNING CENTER S A 14" SWING OVER THE BED AND 6.7" SWING OVER THE CROSS SLIDE, WITH A DISTANCE BETWEEN CENTERS OF 40" AND AN APPROXIMATE MACHINE WEIGHT OF 2,750 LBS. THE SPINDLE IS DRIVEN BY A 5 HP MOTOR, S A D1-4 NOSE AND A 1.5" BORE, AND UTILIZES A #5MT TAPER. SPINDLE SPEEDS ARE ...more
Used CNC Lathe, 14" swing over bed, 40" between centers, spindle speeds up to 2000 RPM, ACU-RITE control. s include DRO mode, threading cycles, G-code support, and more. Approx. weight: 2,750 lbs., SWING OVER BED. 14", SWING OVER CROSS SLIDE. 6.7", HEIGHT OF CENTER. 6.8", DISTANCE BETWEEN CENTERS. 40", CROSS SLIDE ...more
