Description

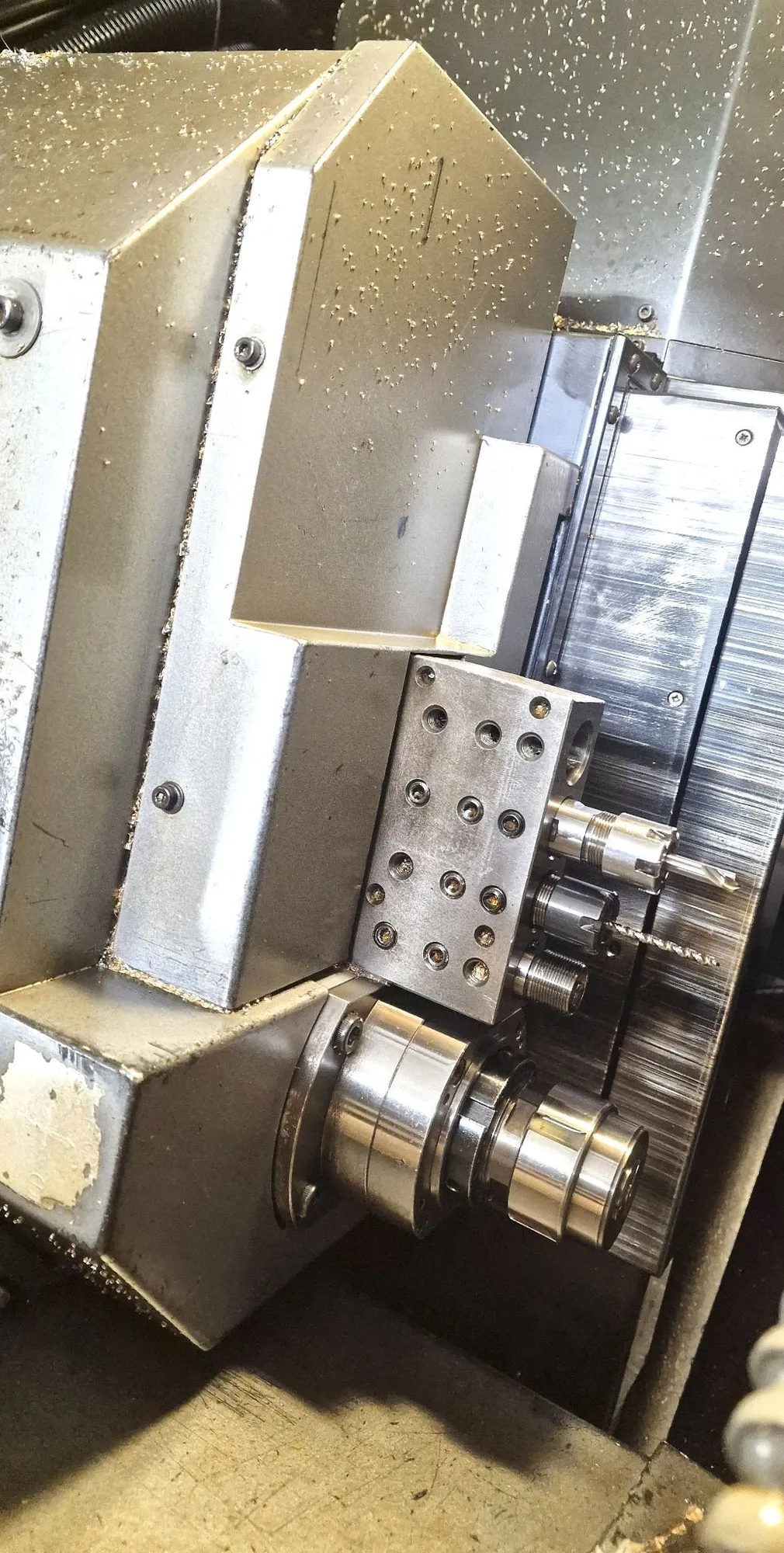

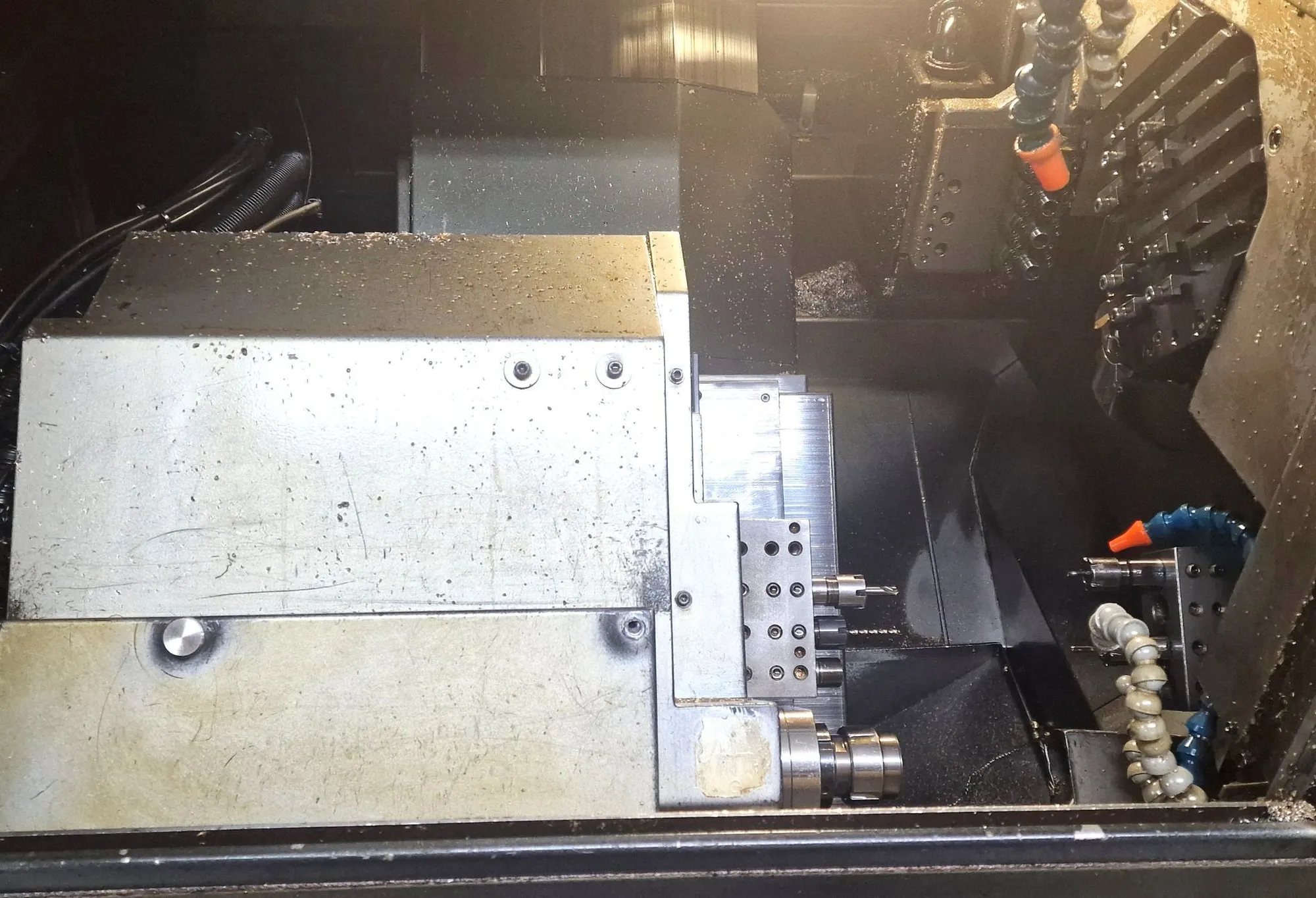

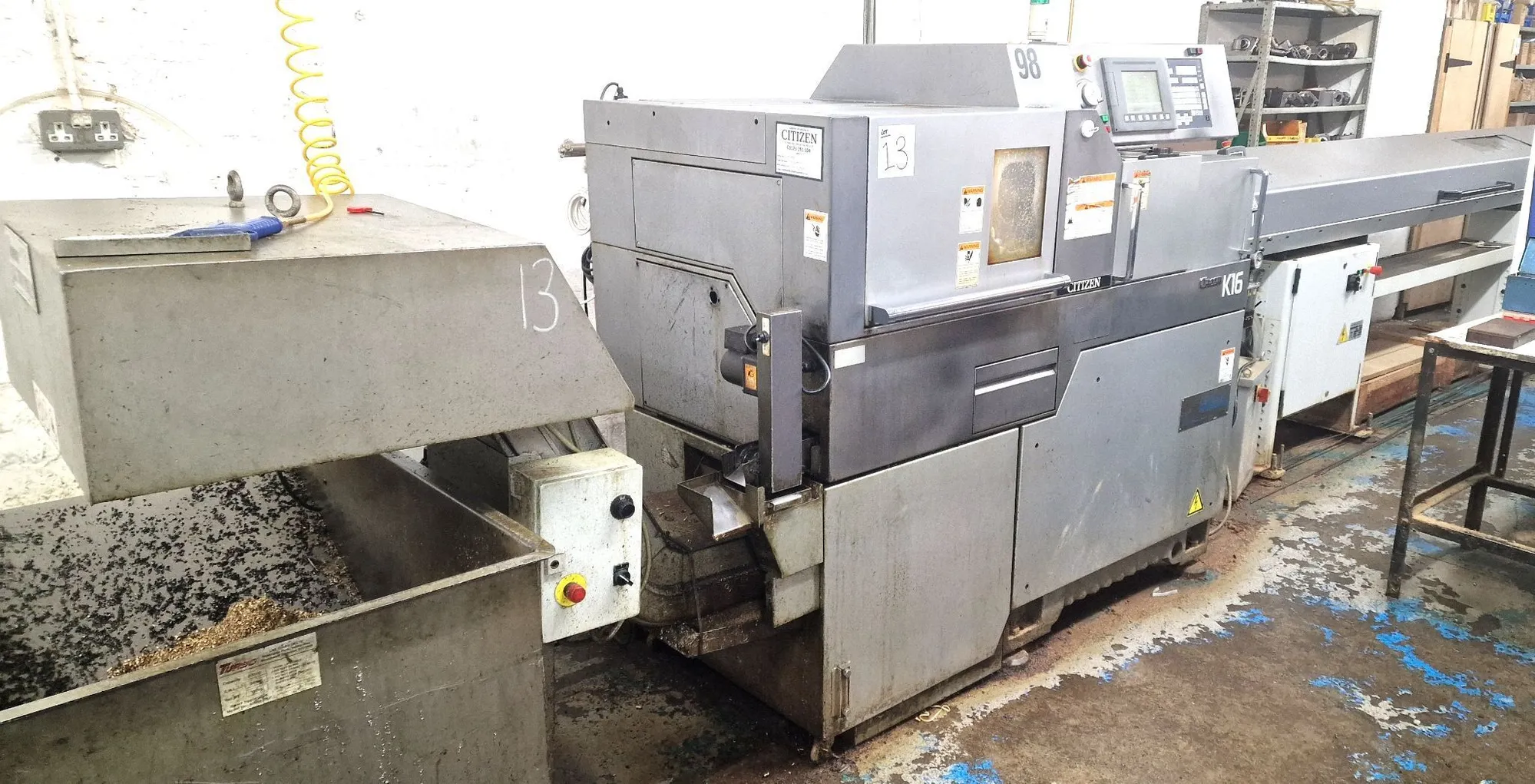

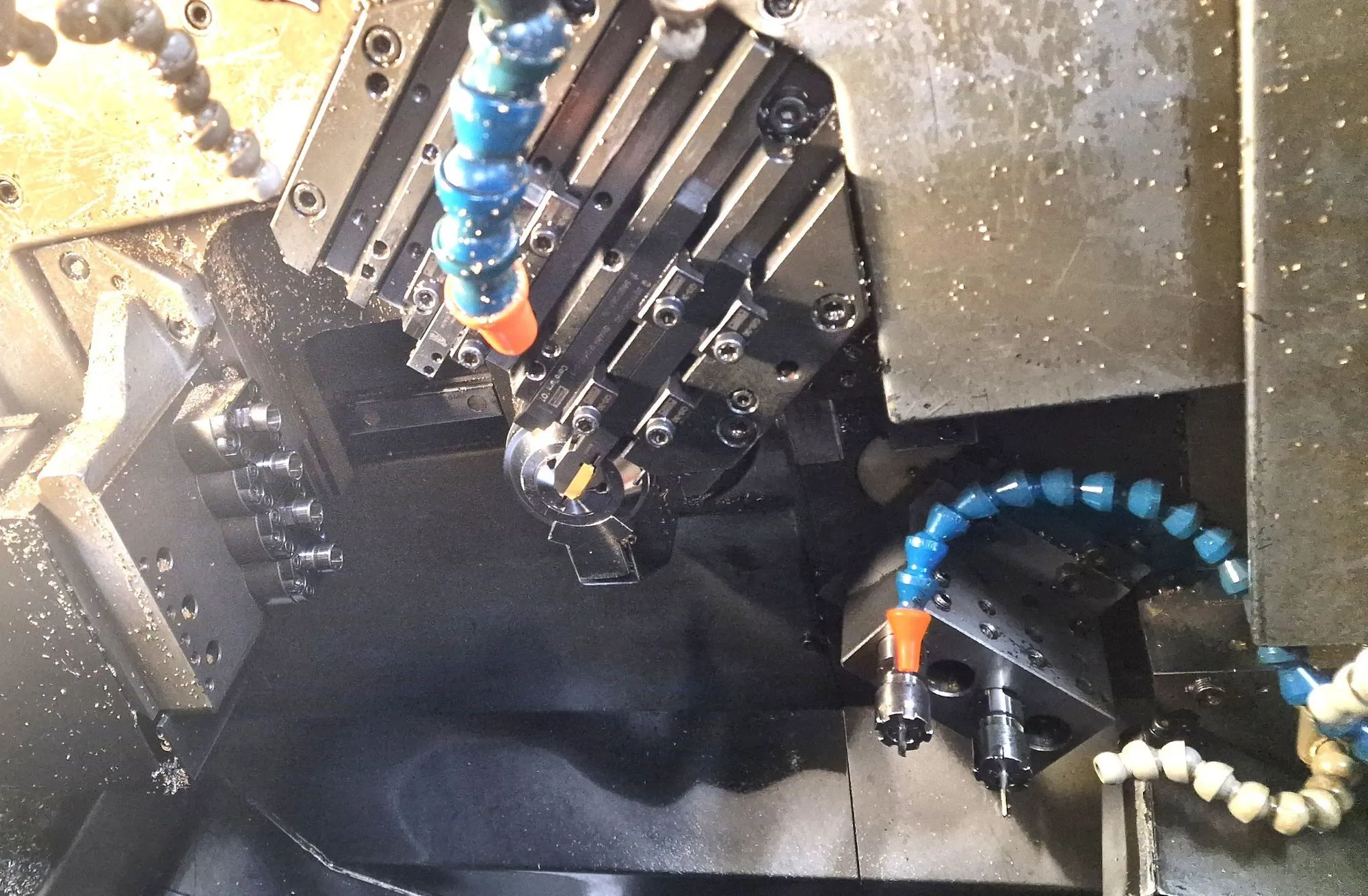

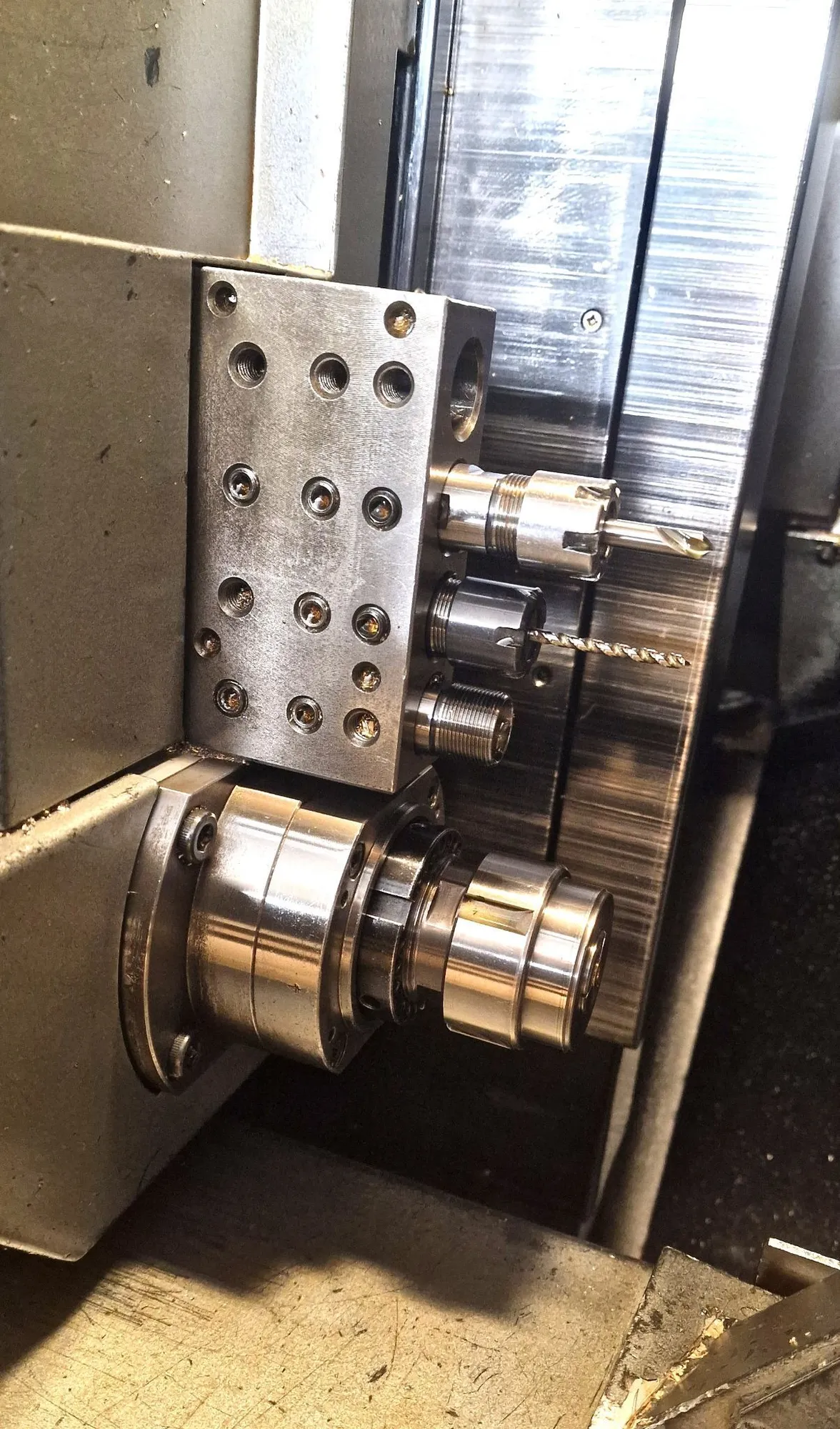

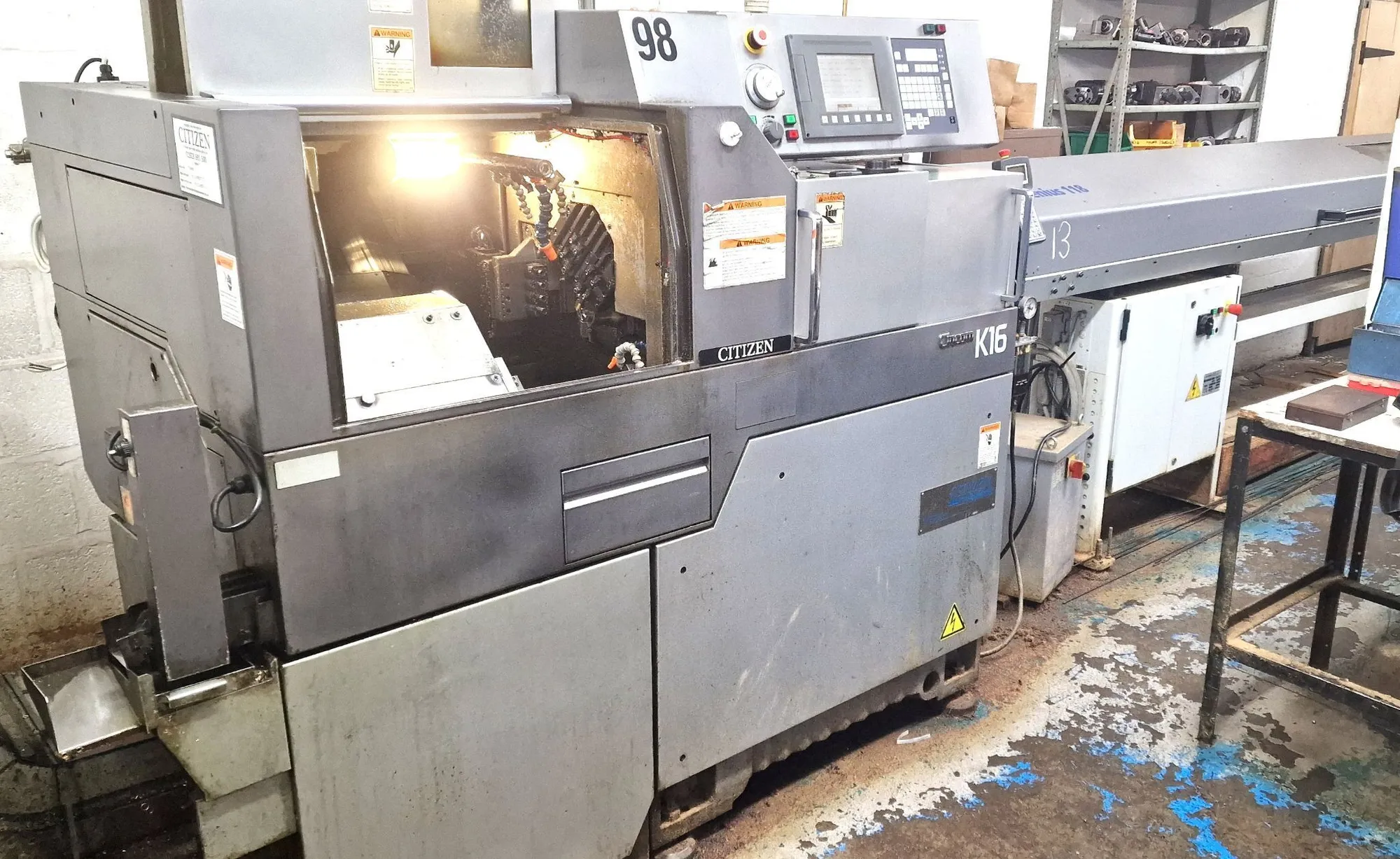

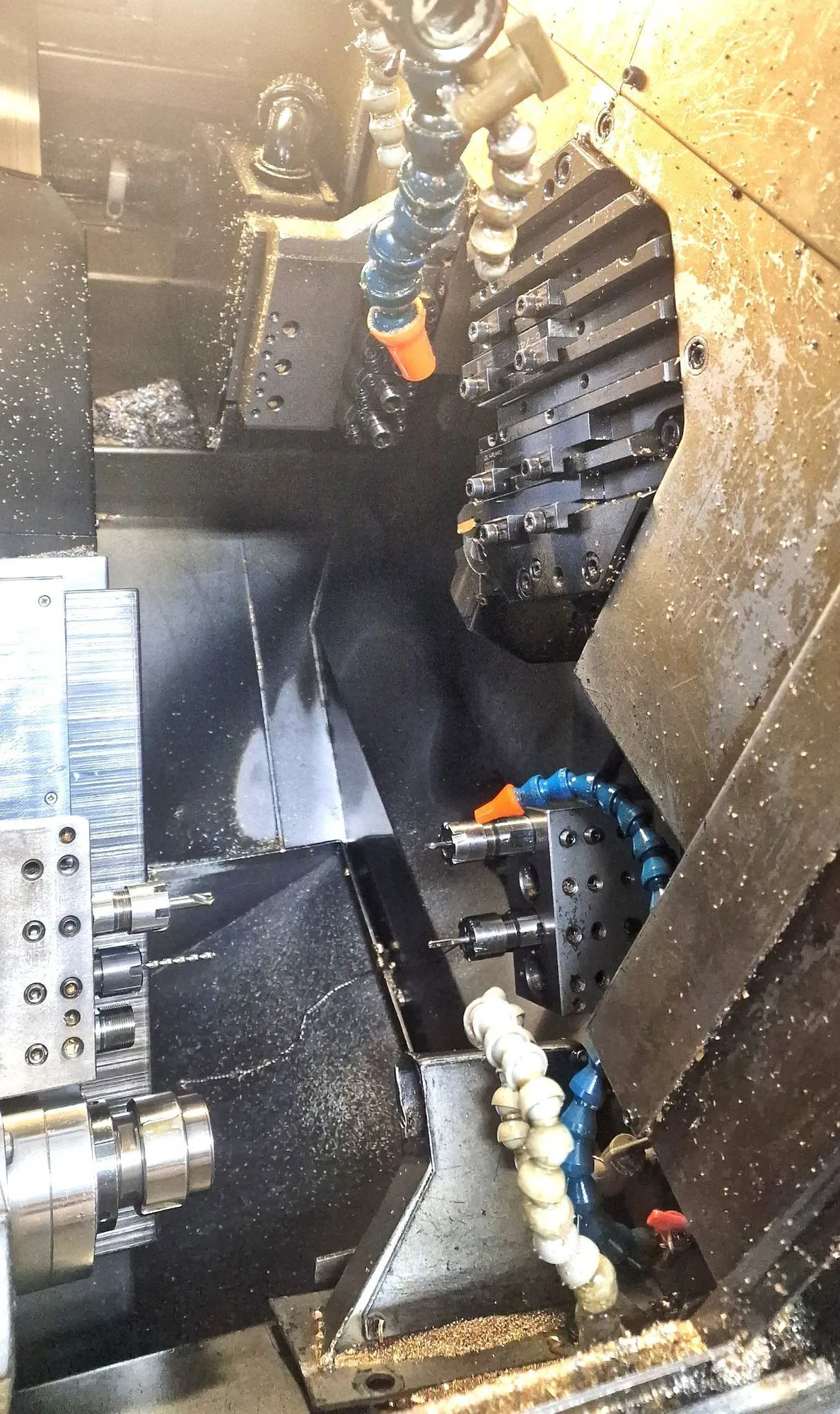

The 2007 Citizen K16VIIP is a 7-axis Swiss type CNC lathe designed for precision machining of small-diameter components. It features a dual-spindle configuration with a maximum bar capacity of 16mm and a maximum machining length of 200mm. The primary spindle operates at speeds up to 15,000 RPM with 3.7 kW of power, while the counter spindle reaches 10,000 RPM with 1.1 kW of power. Both spindles incorporate C-axis indexing with 0.001-degree precision. The machine is equipped with a 10-position tool carrier, including 4 motorized positions for live tooling, which operates at a maximum speed of 6,000 RPM. Additional technical components include a guide bush holder, parts catcher, and a bar feeder. The system runs on a supply voltage of 200 V with a total installed power of 8 kW.
2007 16mm Citizen K16VIIP Swiss Type CNC Lathe for sale. s include 10 positions, 7 axes, 2 spindles with max 16mm bar capacity and 200mm machining length. Comes with parts catcher, bar feeder, and more., MACHINE, Counter Spindle Max Spindle Speed:, 10000 rpm, Total installed power:, 8 kW, Supply voltage:, 200 V, Live ...more

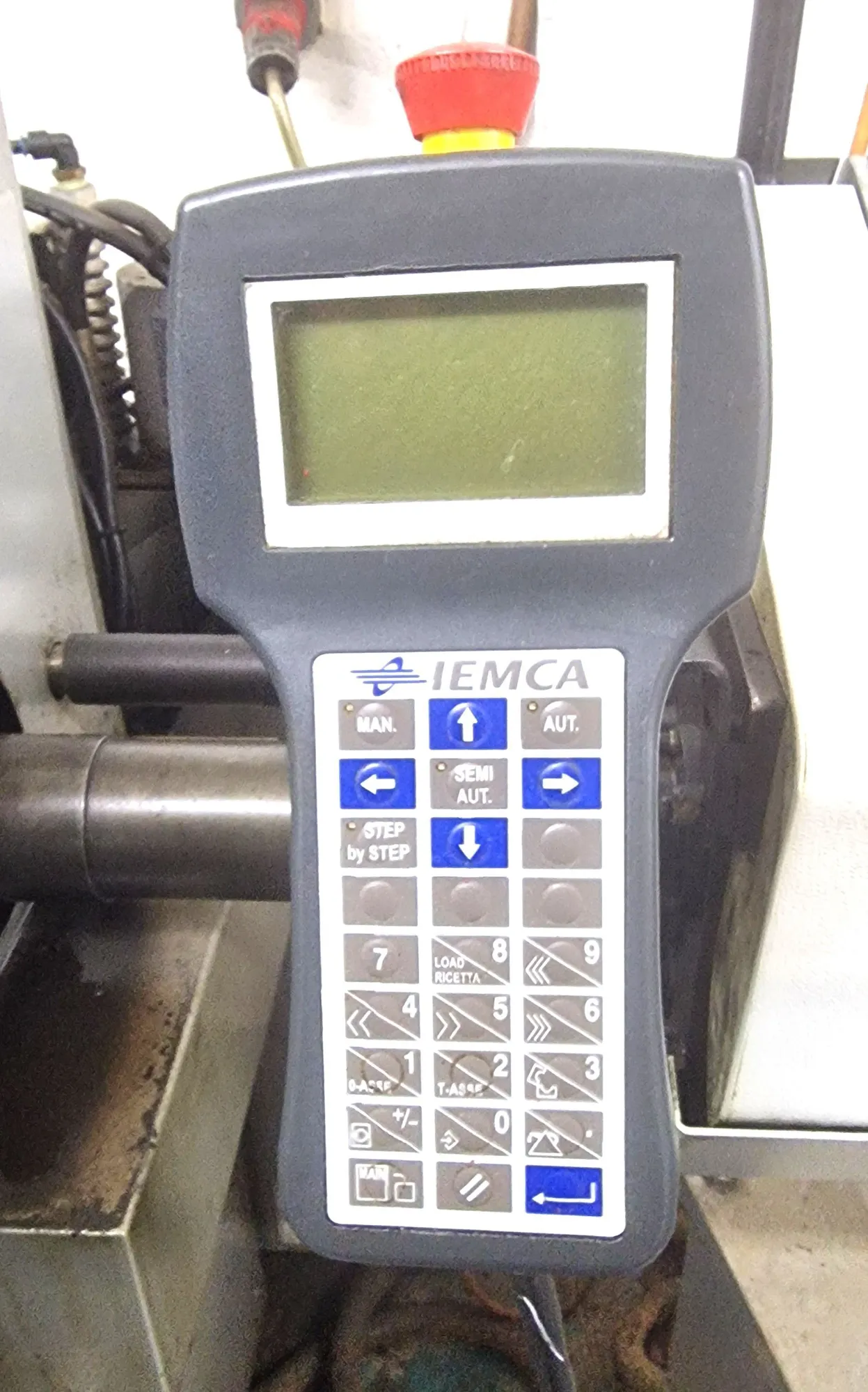

Citizen K16VIIP (1F7P) CNC Swiss Lathe, New in 2007, 5/8" cap high-speed machine cap, with 15000 RPM, full C-axis, Live tooling and CAV Bar Loader, High quality CNC Swiss is our focus. Machinery Resources has carefully prepared our machines for shipping., Of course, all customer have an open invite to inspect any of ...more

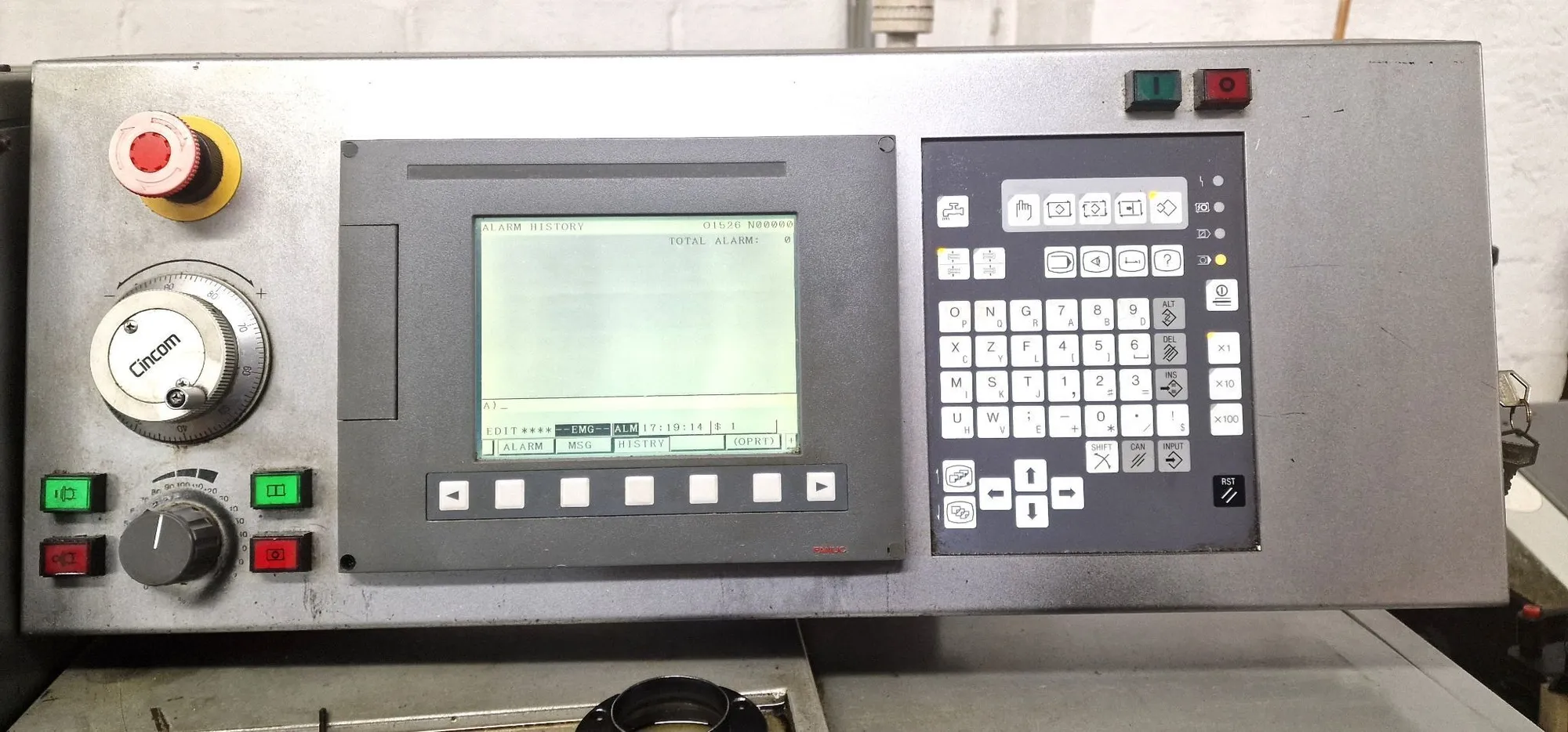

CITIZEN MODEL: K16 TYPE VIIP SWISS TYPE CNC LATHENEW: 2005 for OEM Brochure (All should be confirmed by buyer) Control:… Fanuc FS31iMax. Machining Diameter:… 16 mm (.63")Max. Machining Length:… 200 mm (7.87")Max. Front Drilling Diameter:… 10 mm (.39")Max. Front Tapping ...more
