Description

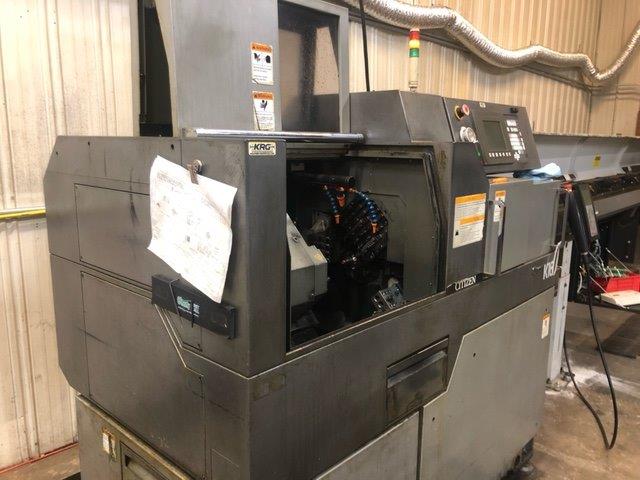

CITIZEN MODEL: K16 TYPE VIIP SWISS TYPE CNC LATHE
NEW: 2005
Specification for OEM Brochure (All details should be confirmed by buyer)

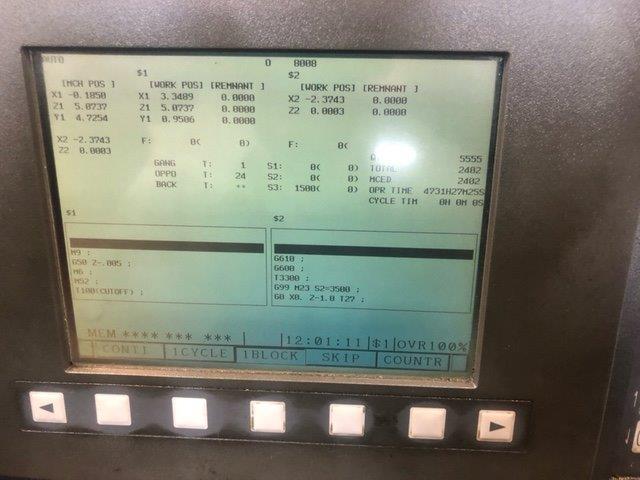

Control:… Fanuc FS31i
Max. Machining Diameter:… 16 mm (.63")
Max. Machining Length:… 200 mm (7.87")
Max. Front Drilling Diameter:… 10 mm (.39")
Max. Front Tapping Size:… M8 (w/ tap and die)
Main Spindle:… Full C
Sub Spindle:… 1 Degree Increments
Spindle Through-hole Diameter:… 20 mm (.79")
Main Spindle Speed:… 15,000 rpm
Main Spindle Indexing:… 1 Degree (C-Axis opt)
Max. Drill Dia. Rotary Cross Drill:… 5 mm (.2")
Max. Tap Dia. Rotary Cross Drill… M4
Rotary Spindle Speed:… 6,000 rpm
Max. Chuck Diameter of back Spindle:… 16 mm (0.63")
Max. Wkpiece Length for front Ejection:… 40 mm (1.57"
Max. Drill Dia. for BW:… 6 mm (0.24")
Max. Tap Dia. for BW:… M5
Back Spindle Speed:… 10,000 rpm
Back Spindle Indexing:… 1 Degree (C-Axis opt)

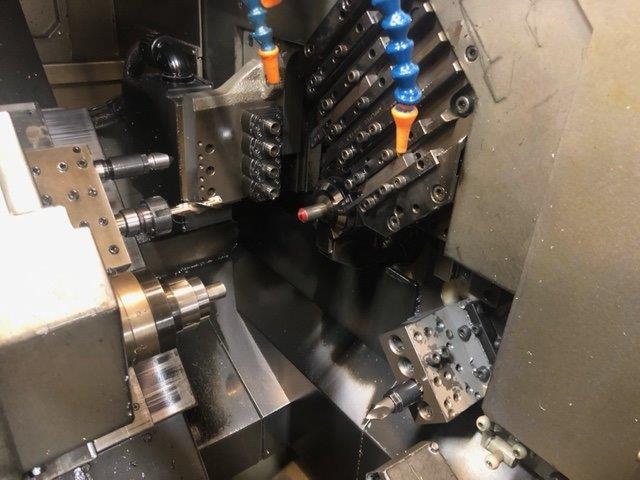

Number of Tools to be Mounted:… 18
Turning Tools on the Gang Tool Post:… 6
Rotary Tools on the Gang Tool Post:… 4
Tools for Front Spindle:… 4
Tools for Back Spindle:… 4
Tool Size:
Gang Tool Post (tool):… 13 mm (.51")
Sleeve:… 19.05 mm (.75")
Motor: Main Spindle Drive:… 2.2/3.7 KW
Input Power Capacity:… 8 KVA
Weight (approx):… 2,100 Kg (4,629.7 lbs)
Machinery Dimensions (aprox):… 86" x″8" x 64"H
Equipped With:
- Fanuc CNC Control

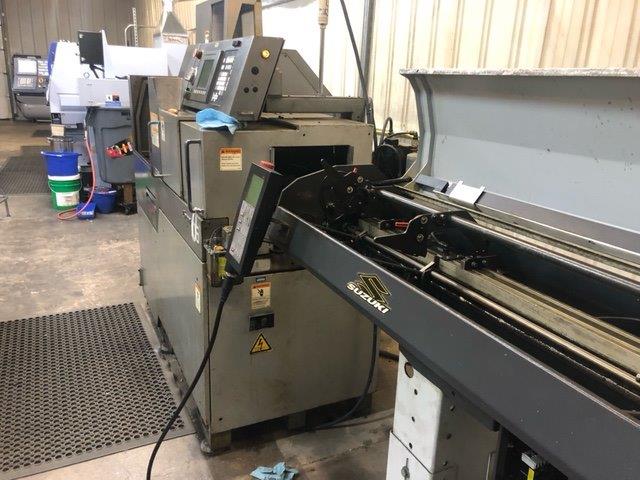

- LNS EXPRESS 220 Magazine Barfeed
Get Your Price from Machinery Values Inc!
