Description

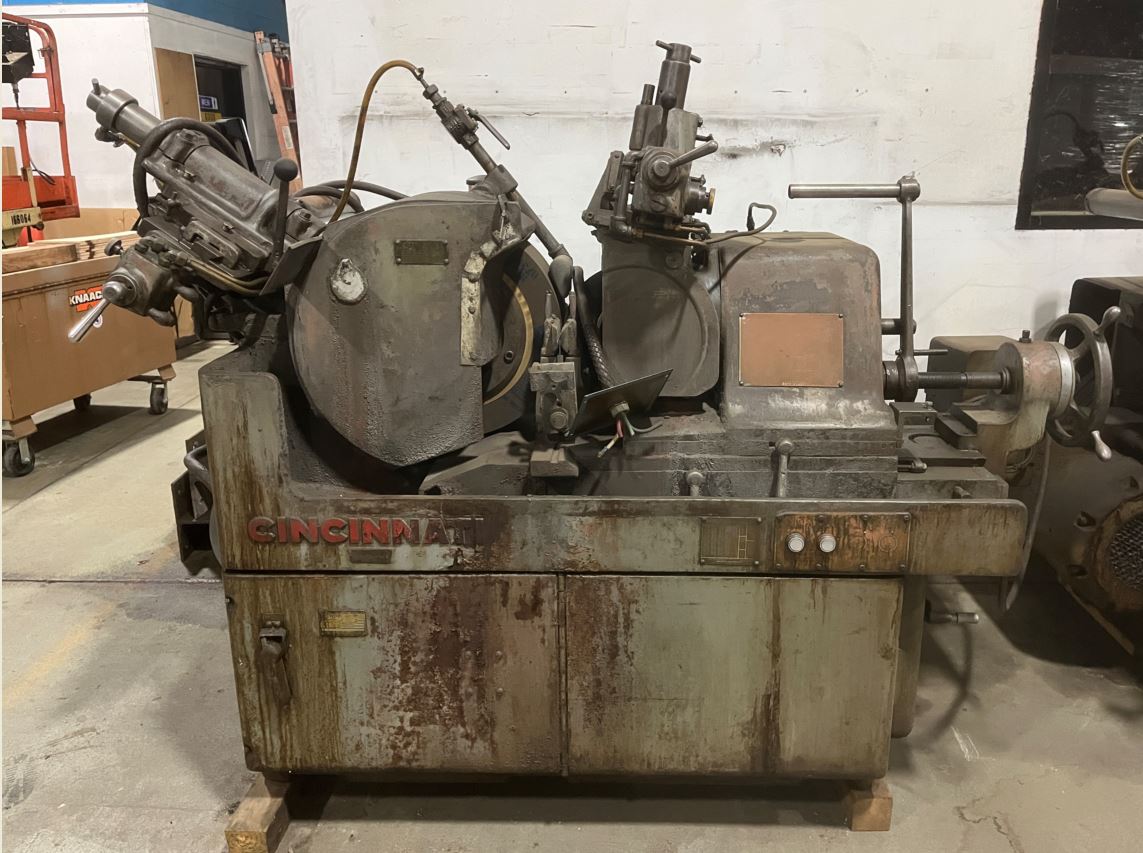

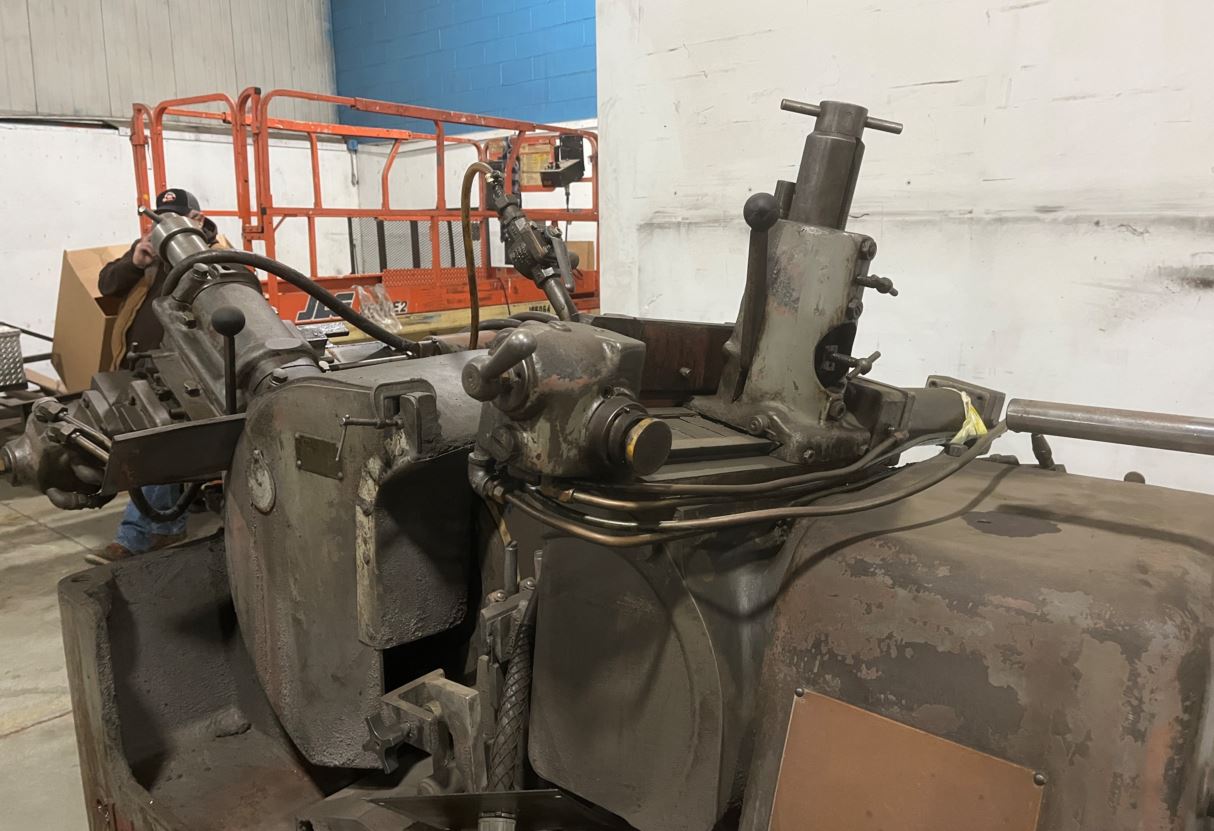

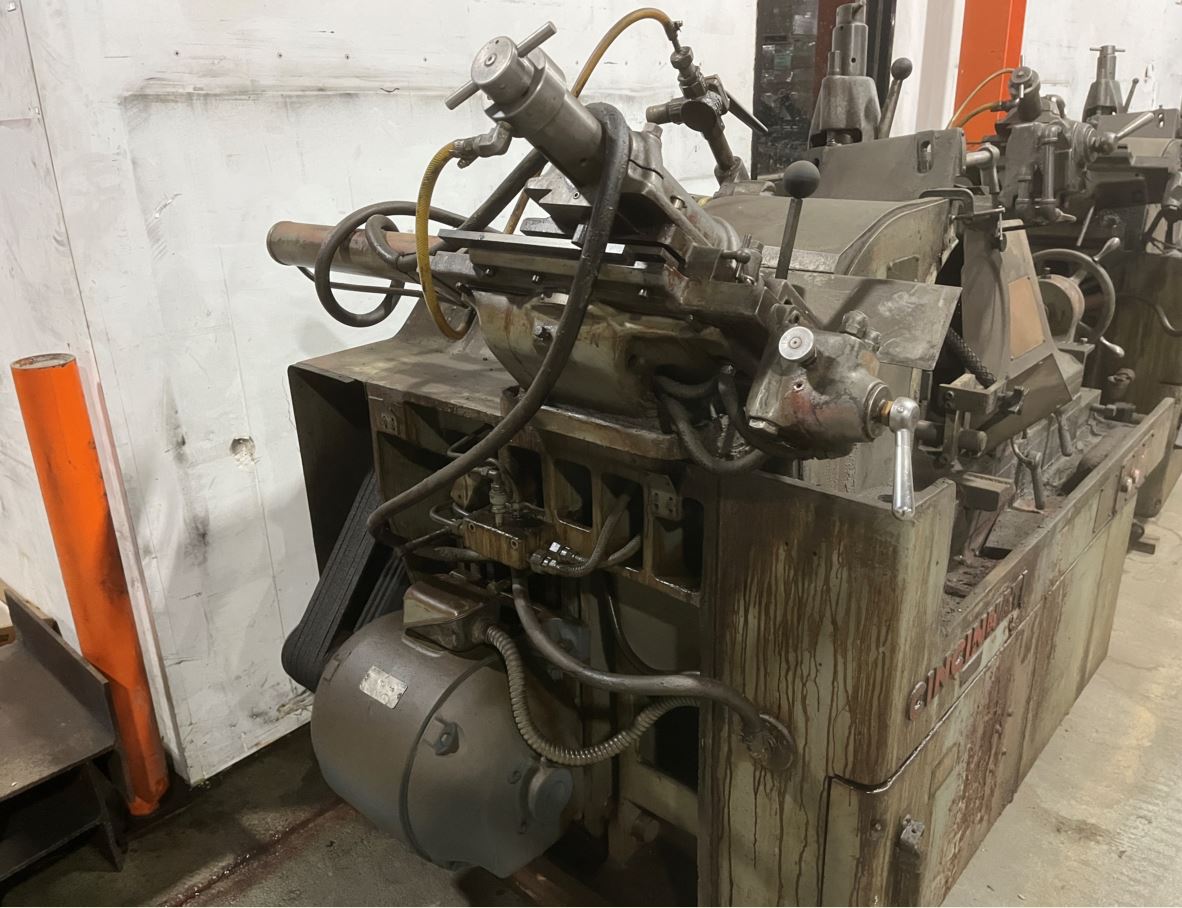

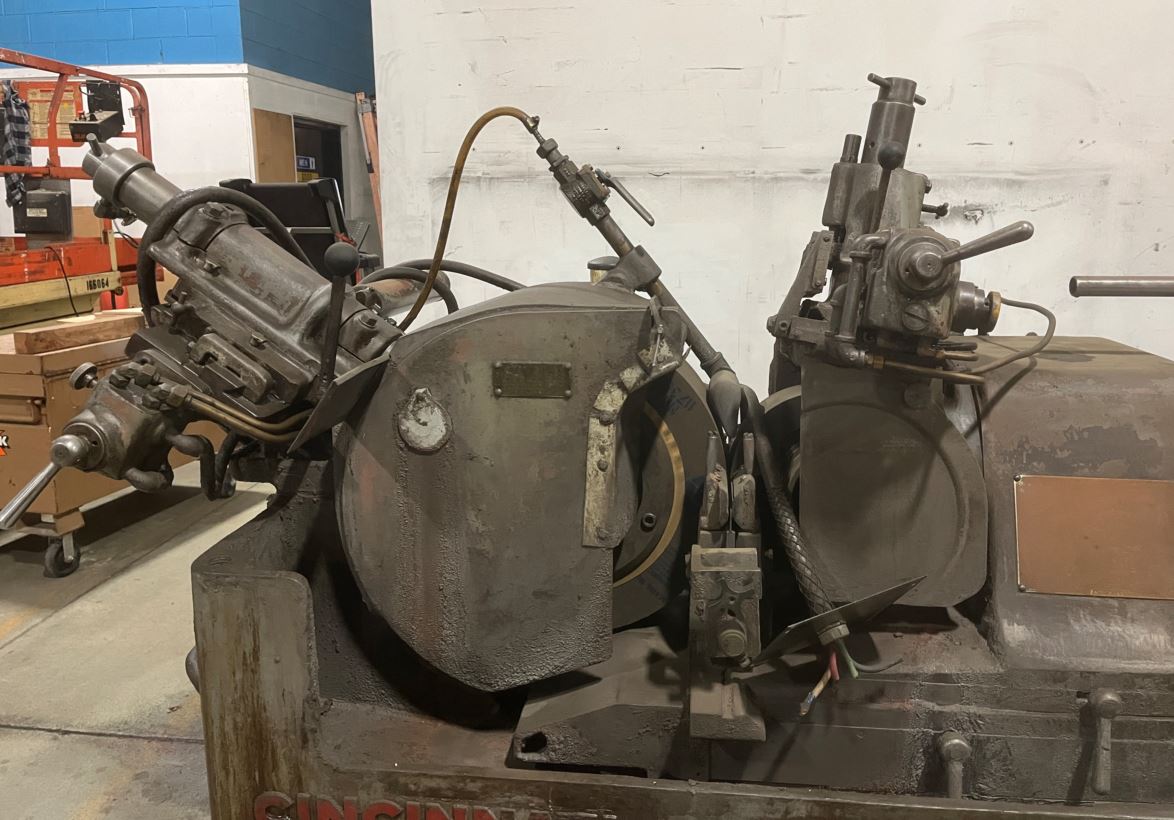

CINCINNATI No. 2…"OM" CENTERLESS GRINDER
(THIS MACHINE WAS MADE IN THE USA!)
S/N: 2M2H5A-119…
DIAMETER CAPACITY, NORMAL .......... 1/16" TO″"
GRINDING WHEEL DIAMETER, MINIMUM ... 16"
GRINDING WHEEL DIAMETER, MAXIMUM ... 20"
GRINDING WHEEL HOLE DIAMETER ....... 12"
GRINDING WHEEL MOTOR ............... 15 H.P.
REGULATING WHEEL DIAMETER, MIN. .... 9.5"
REGULATING WHEEL DIAMETER, MAX. .... 12"
REGULATING WHEEL WIDTH, MAXIMUM .... 8"
REGULATING WHEEL HOLE DIAMETER ..... 5"
REGULATING WHEEL SPEEDS, RANGE ..... 12 TO″00 RPM
REGULATING WHEEL MOTOR ............. 1- 1/2 H.P.
APPROX. MACHINE WEIGHT ............. 8,000 LBS.
FLOOR SPACE ........................ 53" x 86"
EQUIPPED WITH:
HYDRAULIC DRESSER FOR GRINDING WHEEL
HYDRAULIC DRESSER FOR REGULATING WHEEL
WORK REST WITH BLADE
VARIABLE SPEED DRIVE FOR THE REGULATING WHEEL
SWIVEL-TYPE REGULATING WHEEL UNIT - TAPER ADJUSTMENT
FILAMTIC GRINDING WHEEL SPINDLE BEARINGS
15 H.P./3/60/220-440 VOLT MOTOR FOR THE GRINDING WHEEL
MACHINE IS WIRED FOR 440 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** EXCELLENT CONDITION… APPEARANCE **
