For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

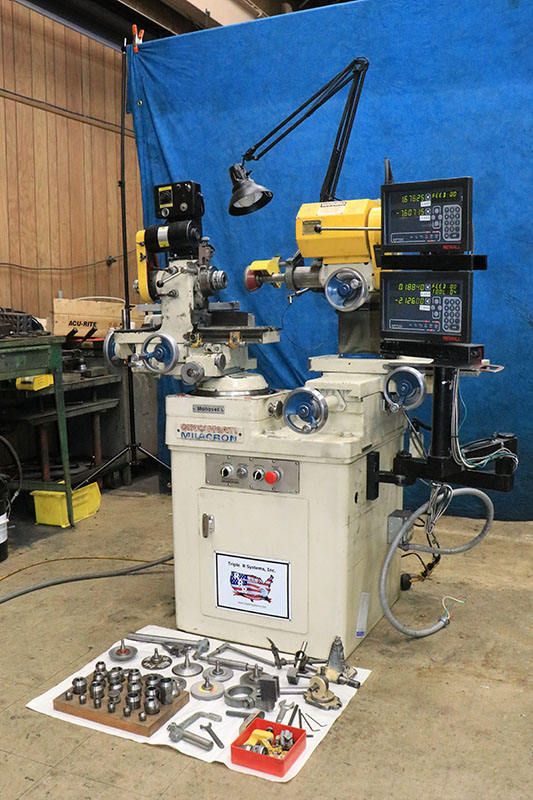

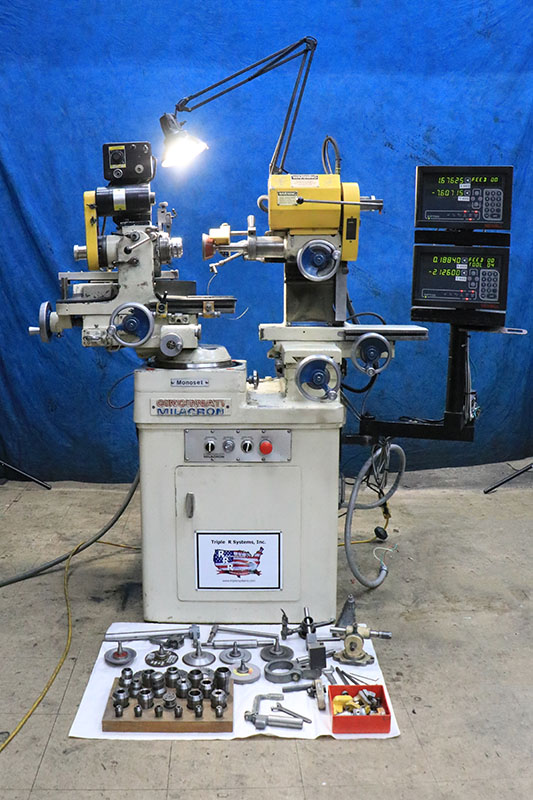

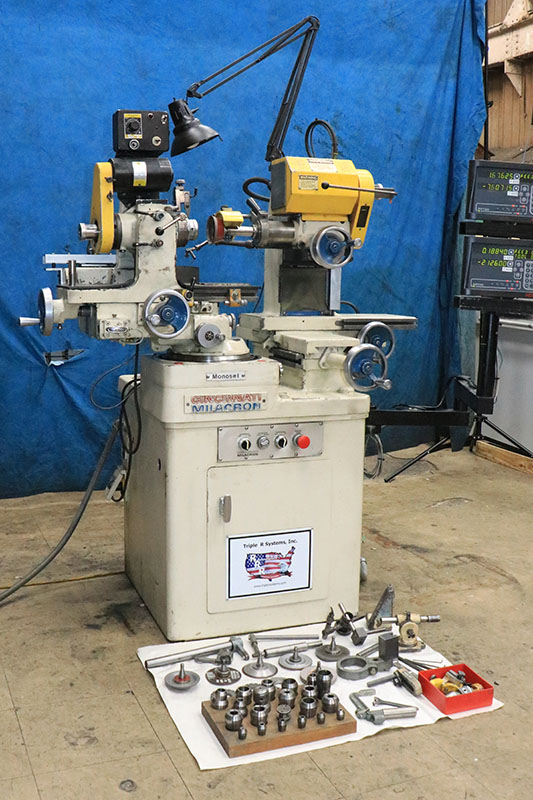

REBUILT BY…"TRIPLE R SYSTEMS" IN 2010,
CINCINNATI MILACRON…"MONOSET"
TOOL… CUTTER GRINDER,
WITH ENORMOUS COMPLIMENT OF ACCESSORIES,
AND (2) NEWALL 2-AXIS DIGITAL READOUTS **
MODEL: MT… S/N:3152A0178-0107…
NEW: 1978/REBUILT 2010
CAPACITY -
WORKHEAD SWING OVER MAIN SLIDE, MAX. DIA. ... 12"
MAX. WORKHEAD COLLET HOLE DIA. .............. 1-1/4"
MIN. WORKHEAD COLLET HOLE DIA. .............. 0.12"
MAX. GRINDING WHEEL DIA. .................... 4"
MAX. LENGTH OF WORK BETWEEN SPINDLE…
TAILSTOCK CENTER ............................ 6"
RANGE -
WORKHEAD SLIDE TRAVEL:
LONGITUDINAL ................................ 5-3/4"
CROSS ....................................... 5-3/4"
WORKHEAD ANGULAR ADJUSTMENT:
MAX. TURNTABLE SWIVEL ....................... 235°
ABOVE AND BELOW CENTER ...................... 40°
WHEELHEAD SLIDE TRAVEL:
LONGITUDINAL ................................ 6"
CROSS ....................................... 7-1/2"
WHEELHEAD, VERTICAL MOVEMENT:
ABOVE CENTER ................................ 4.5"
BELOW CENTER ................................ 5"
SPEEDS -
(3) WHEELHEAD SPINDLE SPEEDS ..... 4K, 5,730… 8K RPM
(1) WORKHEAD SPINDLE SPEED ....... 436 RPM
APPROXIMATE WEIGHT ............... 1,500 LBS.
MACHINE FEATURES:
HARD WAYS… SCREWS
MOTORIZED WORKHEAD
1/4 HP″/60/230-460 VOLT MOTORIZED WORKHEAD
BIJUR ONE-SHOT LUBRICATION SYSTEM

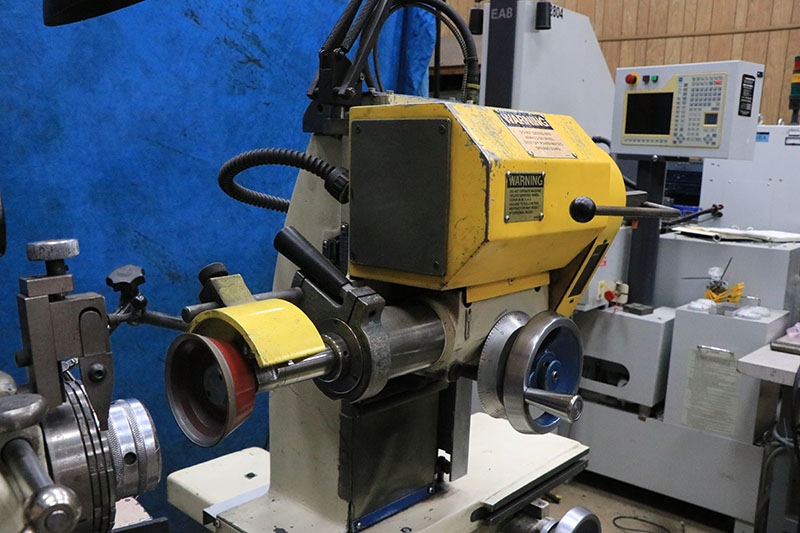

1/2 HP 230-460 VOLT WHEELHEAD DRIVE MOTOR
MACHINE IS PRESENTLY WIRED FOR″/60/230 VOLTS
EQUIPPED WITH:
EVERYTHING YOU SEE, YOU GET!
TWO…"NEWALL"…"DP700 DIGITAL READOUT DISPLAYS,
EACH DISPLAYING TWO AXES.…
READOUT DISPLY SHOWS 0.00005".
X, Y, A… Z AXES.

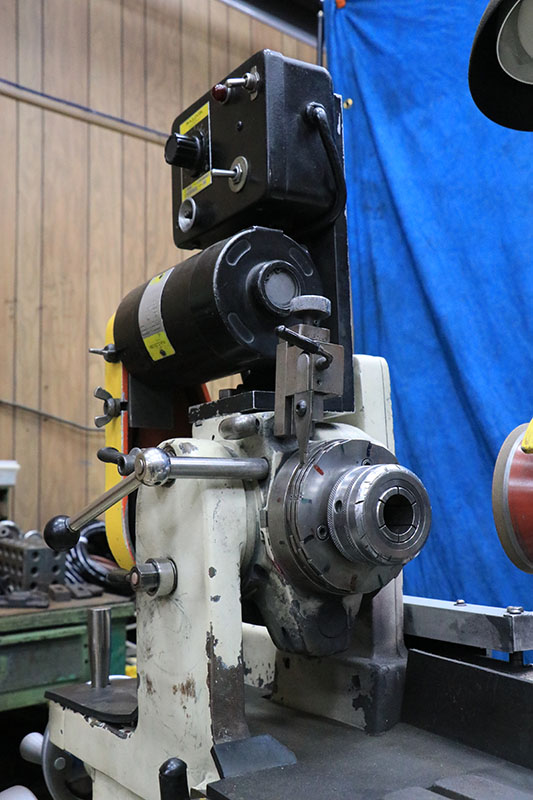

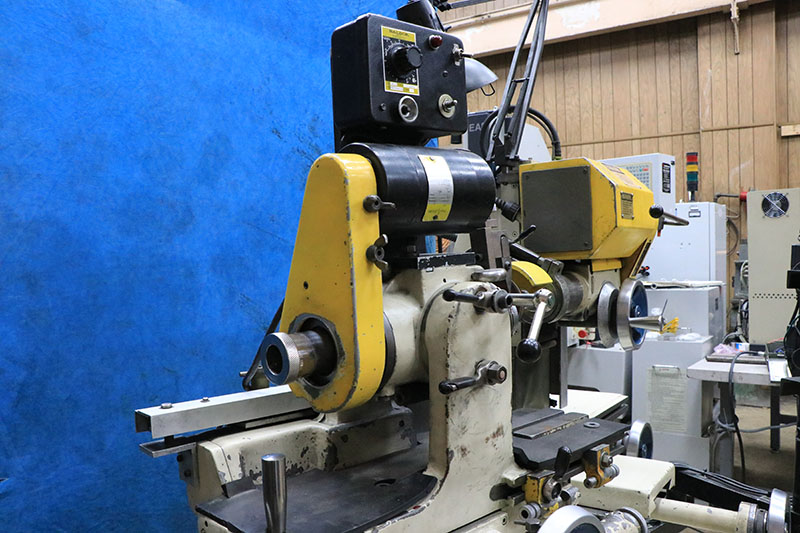

MOTORIZED POWER WORKHEAD, WITH THE FOLLOWING:
"BALDOR" CAT. No. BC-115 VARI-SPEED CONTROL UNIT.
"BALDOR 1/8 H.P. MOTOR
EQUIPPED WITH:
(7) - GRINDING WHEEL MANDRELS
(2) - GRINDING WHEEL GUARDS; ONE FOR TYPES 1, 5
AND 12 WHEELS, AND ONE FOR TYPE 11 WHEELS
(1) - GRINDING WHEELHEAD TOOTHREST AND EXTENSION BAR FOR
TOOTHREST
(1) - WORKREST, LOWER
(1) - SPRING LOADED INDEX PAWL FOR WORKHEAD FRONT INDEX.
(13) - STRAIGHT CYLINDRICAL COLLETS FOR THE WORKHEAD SPINDLE
WITH HOLE DIAMETERS IN INCH SIZES THAT ACCEPT STRAIGHT
CYLINDRICAL DIAMETER WORKPIECES; AND, INCLUDING AN
ADAPTER ("C" TO…"A") THAT ACCOMMODATES THE COLLETS
SMALLER THAN 1/2" SIZE.… THE COLLETS ARE:
(7) - SERIES…"A" (FITS INTO THE…"C" TO…"A" COLLET
ADAPTER, WHICH MOUNTS DIRECTLY INTO THE SPINDLE
NOSE) 1/8",″/16", 1/4", 5/16"″/8", 7/16" AND
1/2".
(6) - SERIES…"C" (MOUNTS DIRECTLY INTO SPINDLE NOSE),
5/8",″/4", 7/8", 1", 1-1/8", AND 1-1/4"
(6) - TAPER… HOLE COLLETS,…"C" SERIES, FOR THE WORKHEAD
TO ACCOMMODATE TAPER SHANKS OF #2,″, AND 4 MORSE
TAPERS, AND #5, 7 AND 9 BROWN AND SHARPE TAPERS
(1) - WOODEN RACK FOR HOLDING 1 SET OF CYLINDRICAL COLLETS
AND 1 SET OF TAPER COLLETS
(3) - INDEX PLATES FOR THE LEAD MECHANISM INDEXING DEVICE
OF 8, 10 AND 12 DIVISIONS
(1) - ADJUSTABLE TAIL-CENTER SUPPORT
(1) - DIAMOND BRACKET, WITH WORKREST, INCLUDING ONE
MOUNTED DIAMOND
(1) - SET OF WRENCHES
(7) - GRINDING WHEELS; WITH″/4" MOUNTING HOLES
NO.… DIA… WIDTH… TYPE… SHAPE
1… 4"… 1/16"… 1… STRAIGHT
2… 4"… 1/8"… 1… STRAIGHT
3… 4"… 1/4"… 1… STRAIGHT
4… 4"… 1/2"… 1… STRAIGHT
5… 4"… 3/4"… 5… RECESSED
6… 4"… 1/2"… 12… DISH
7… 3-1/2"… 1-1/2"… 11… FLARING
** EXCEPTIONAL CONDITION… APPEARANCE… **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
LINK TO VIDEO: https://youtu.be/sX9ZueDL5Xk?si=FAUMN9BtxR6gMPig
