Description

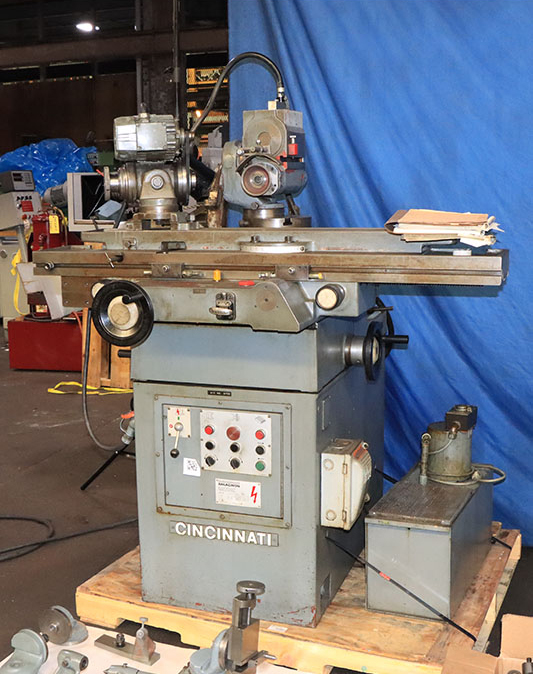

#2 CINCINNATI-MILACRON
UNIVERSAL TOOL… CUTTER GRINDER
MODEL: MT…

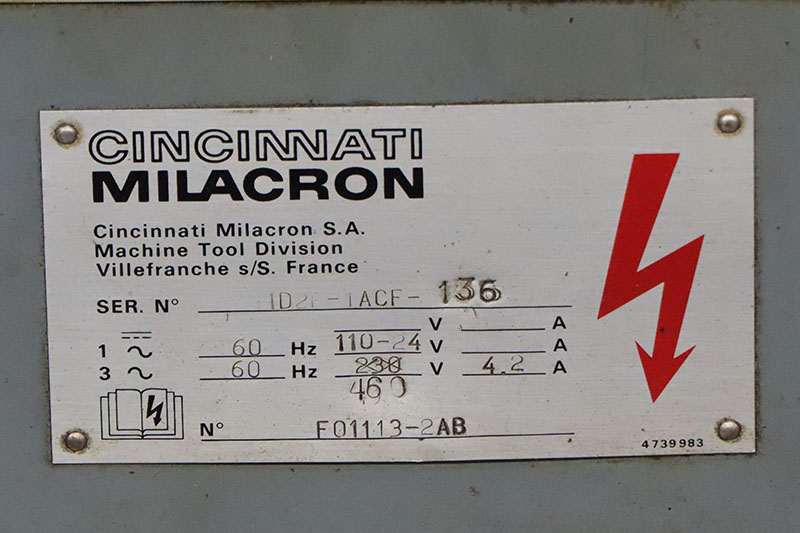

S/N:″2F-1ACF-136…
NEW: 1975
CAPACITY:
SWING OVER TABLE DIAMETER ............. 10"
LENGTH, BETWEEN R.H.… L.H.
TAILSTOCKS ........................... 27"
LENGTH BETWEEN TAILSTOCK
AND WORKHEAD ......................... 21-1/2"
FACE MILLS ON WORKHEAD DIAMETER ....... 10"
FACE MILLS USING FACE MILL
GRINDING ATTACH. DIA. ................ 18"
SAWS ON TABLE DIAMETER ................ 48"
FORMED CUTTERS (USING 6" WHEEL)
DIAMETER ............................. 10"
RANGE:
TABLE SIZE ............................ 6" x″6"
LONGITUDINAL TABLE TRAVEL ............. 16"
CROSS MOVEMENT OF TABLE ............... 10"
TABLE SWIVEL .......................... 180°
TABLE TAPER PER FOOT ON DIA.
(TOWARD… AWAY) ...................... 5"
FINE ADJ. TAPER PER FT.
ON DIA. (TOWARD… AWAY) .............. 2"
TABLE GRADUATIONS IN CENTER,
IN DEGREES ........................... 90°
VERTICAL MOVEMENT OF GRINDING
WHEEL SPINDLE ........................ 10-1/2"
MAX. DIST. CENTERLINE OF
SPINDLE TO TABLE ..................... 13-1/2"
SPINDLE TILTS ABOVE
AND BELOW CENTER ..................... 15°
SWIVEL MOVEMENT OF GRINDING
WHEEL SPINDLE ........................″60°
SPINDLE SPEEDS:
6" WHEEL, SURFACE SPEED
6,022 FT./MIN. .......................″,834 RPM
3" WHEEL, SURFACE SPEED
5,887 FT./MIN. ....................... 6,425 RPM
APPROXIMATE MACHINE WEIGHT ............″,000 LBS
APPROXIMATE DIMENSIONS ............″6" x″8"D x 60H
MACHINE FEATURES:

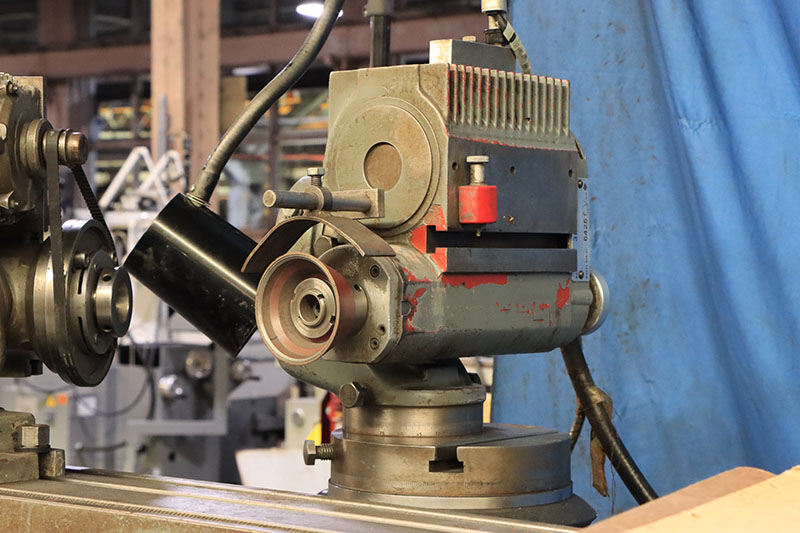

TILTING WHEELHEAD (15 DEG. ABOVE… BELOW)
DUPLICATE CONTROLS @ THE FRONT… REAR OF THE TABLE
BALL BEARING ANTI-FRICTION TABLE ROLLING IN
REPLACEABLE HARDENED STEEL V-WAYS
360 DEG. ECCENTRIC WHEELHEAD… SWIVEL TABLE WHICH
CAN INCREASE SPECIFIED CROSS RANGE BY 70%
CAST IRON CONSTRUCTION
ONE-SHOT LUBRICATION SYSTEM
2-SPEED SPINDLE, INSTANTLY REVERSIBLE
1 HP″/60/230-460 VOLT SPINDLE MOTOR
EQUIPPED WITH:

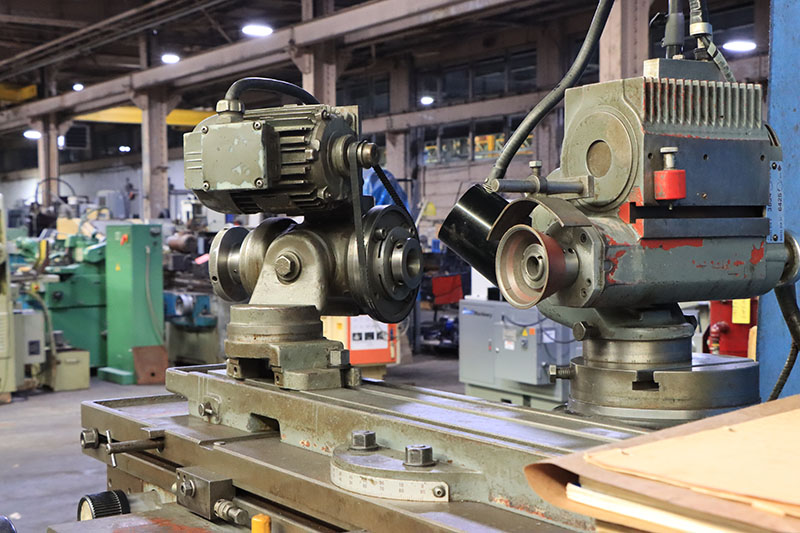

CINCINNATI-MILACRON MOTORIZED WORKHEAD
- WORKHEAD IS WIRED DIRECTLY INTO THE MACHINE
- SELECTOR SWITCHES FOR THE MOTORIZED WORKHEAD
- CINCINNATI TAILSTOCKS
- COOLANT SYSTEM
- TWO WELDON ATTACHMENTS

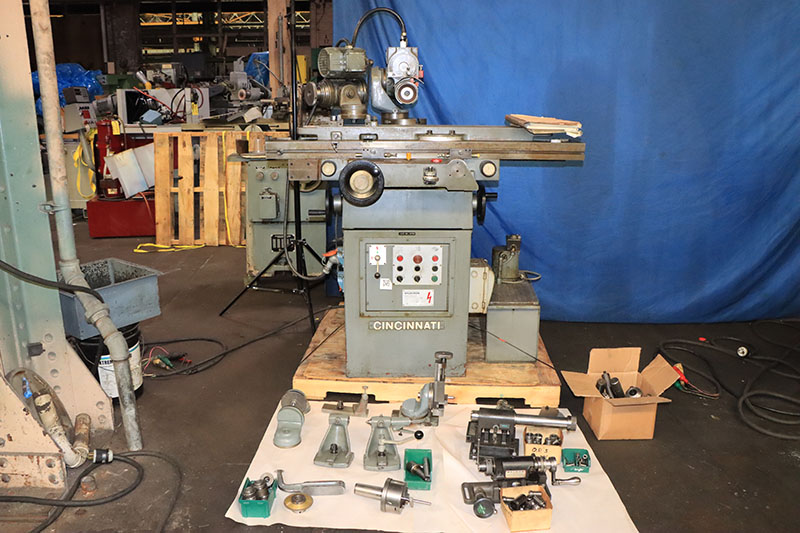

- ASSORTMENT OF OTHER ITEMS AS SHOWN IN THE PHOTOS
- WIRED FOR 440 VOLTS
SPECIAL NOTE, IN STOCK, AVAILABLE TO PURCHASE:
CINCINNATI-MILACRON RADIUS ATTACHMENT, WITH WORKHEAD
CINCINNATI NON-MOTORIZED WORKHEAD
LINK TO VIDEO: https://youtu.be/Z4KX1KAuplM?si=1FQi-7pPNDuaSkxQ
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
** ORIGINAL PAINT - EXCELLENT CONDITION… APPEARANCE **
