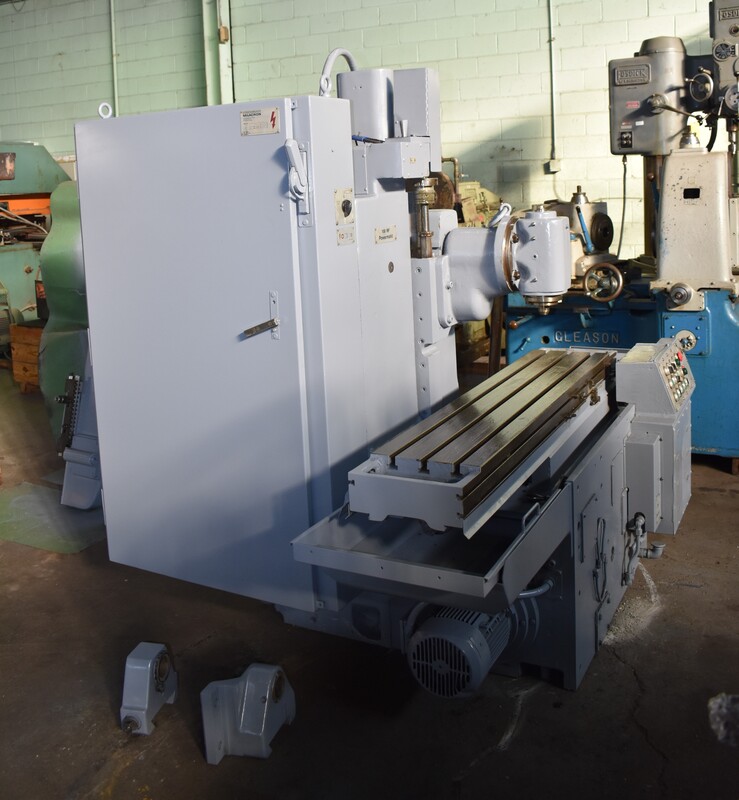

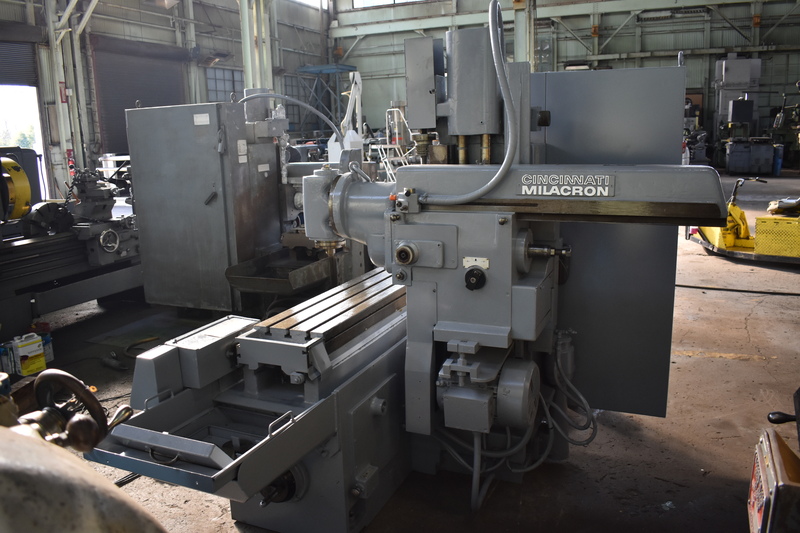

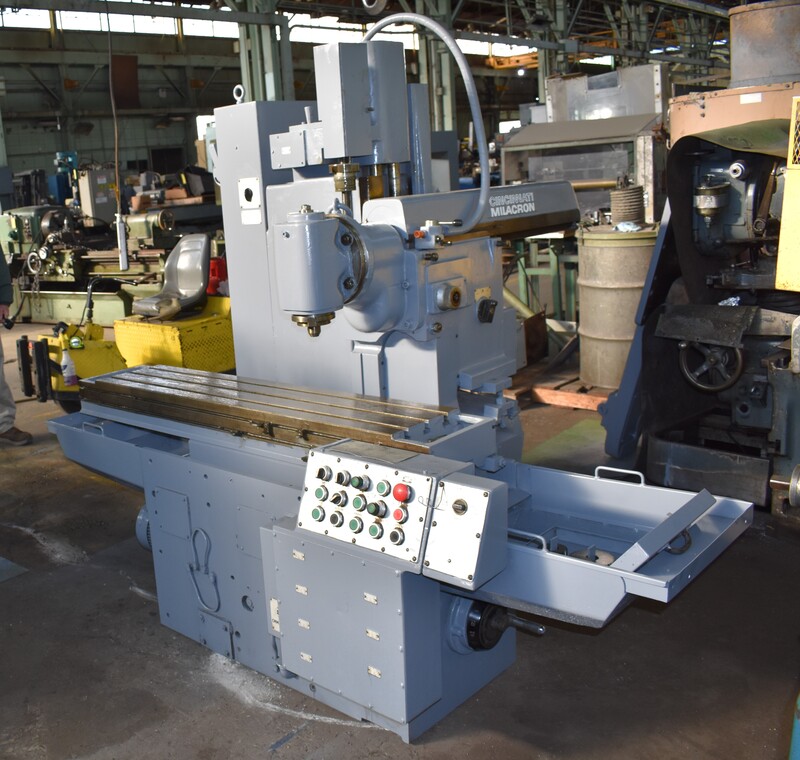

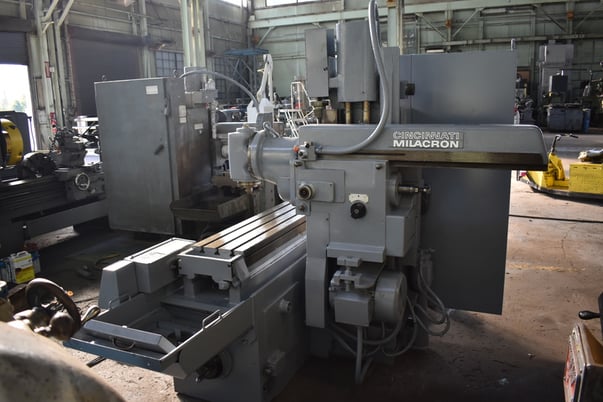

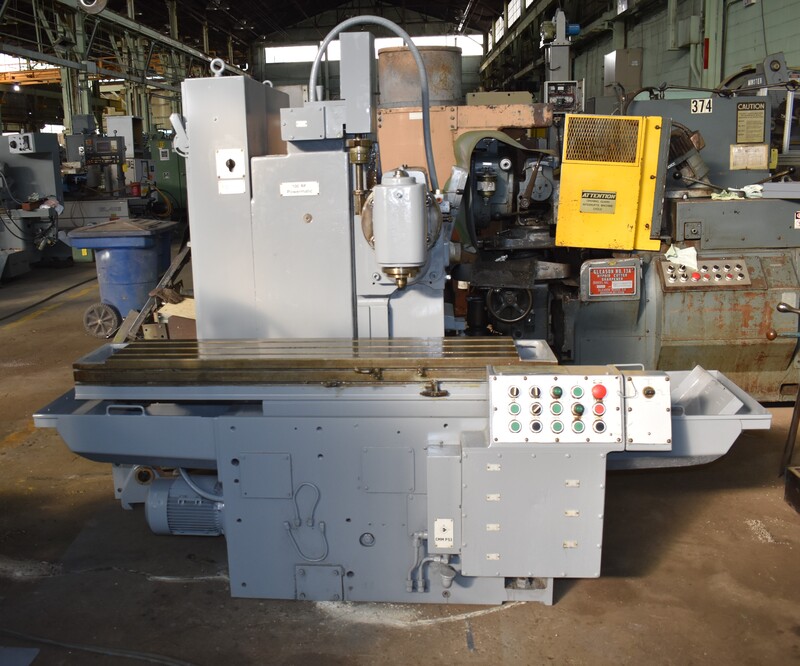

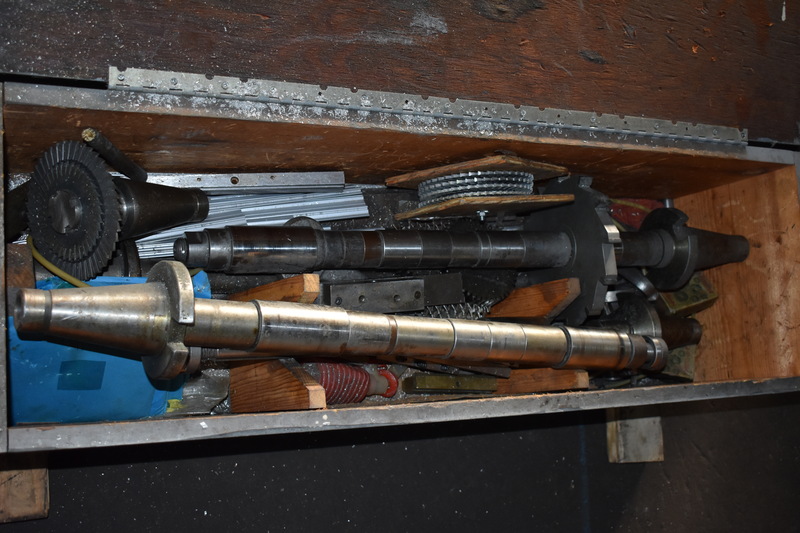

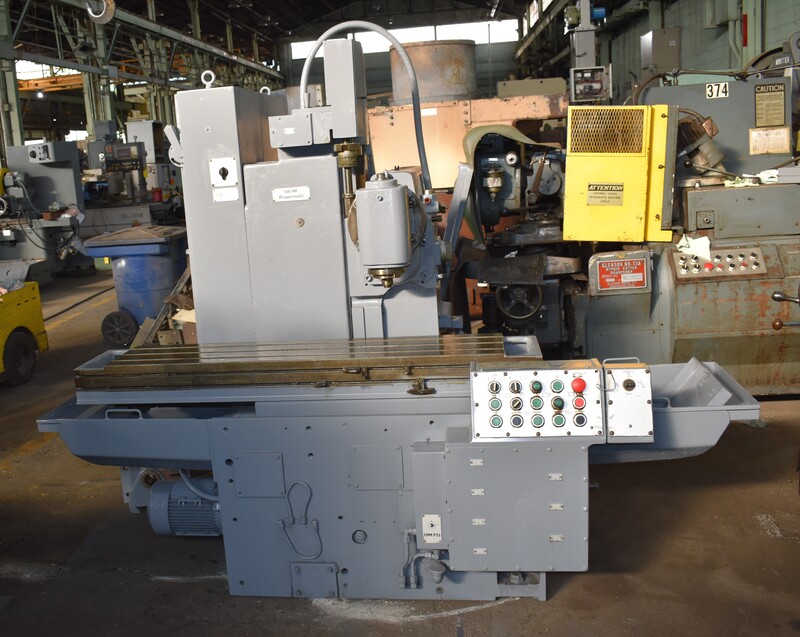

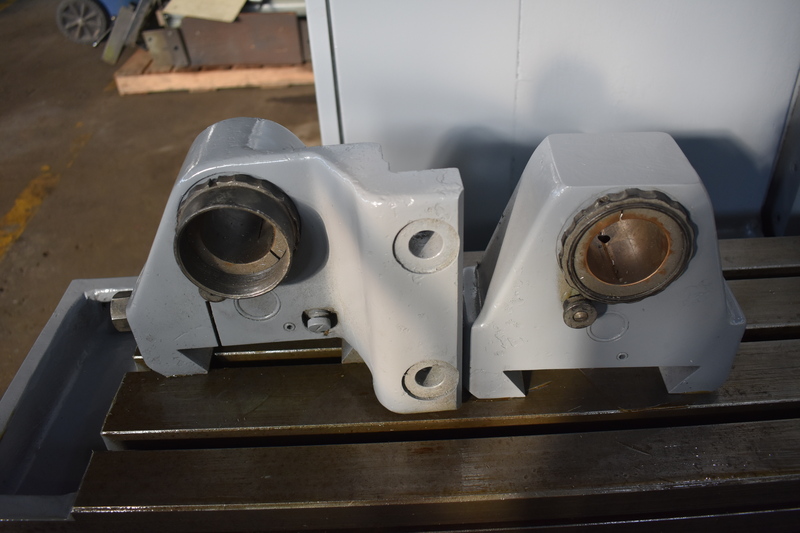

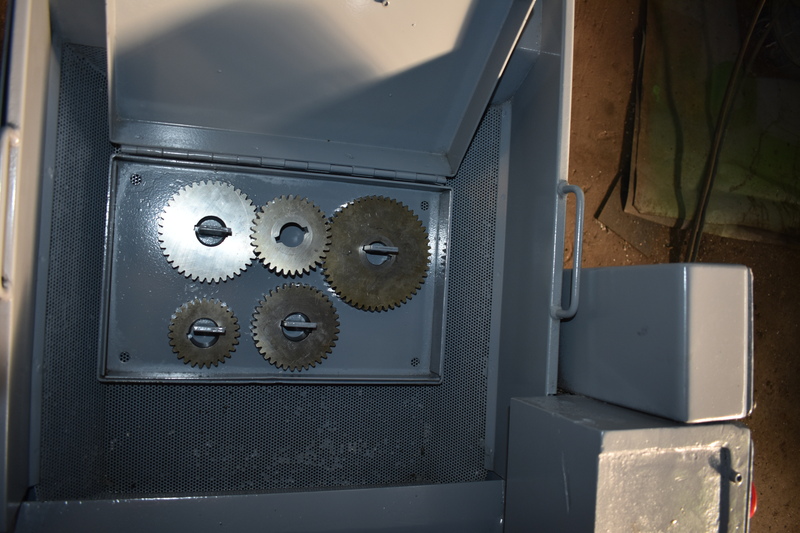

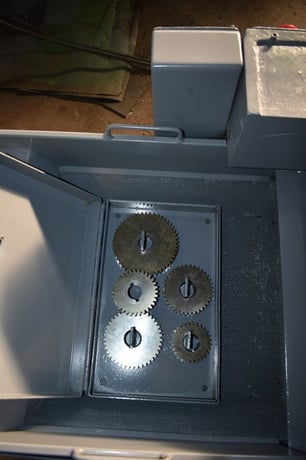

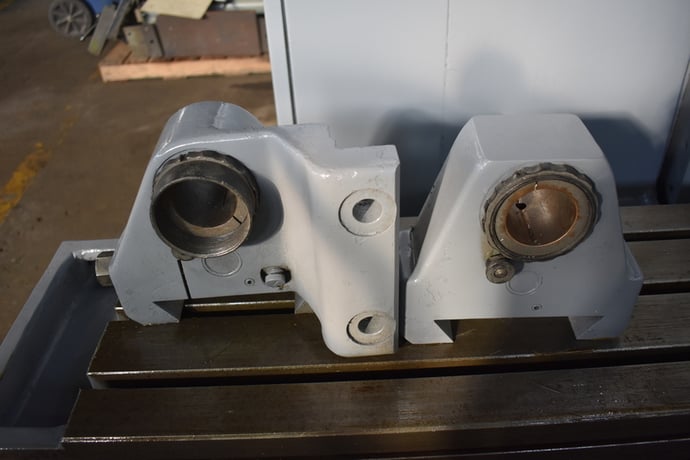

107-122 CINCINNATI-MILACRON "POWERMATIC 100 RF" HORIZONTAL-SPINDLE PRODUCTION MILL W/VERTICAL HEAD ATTACHMENT Serial No 11B11P1AHE-17, Series Powermatic 100 RF, Model 107-122, 107-122 CINCINNATI-MILACRON "POWERMATIC 100 RF" HORIZONTAL-SPINDLE PRODUCTION MILL W/VERTICAL HEAD ATTACHMENT Serial No 11B11P1AHE-17, Series Powermatic 100 RF, Model 107-122, EQUIPPED WITH: Vertical Head Attachment Rise and Fall Head Travel Outboard Arbor Support - Two Arbor Supports Arbor - Some Change Gears Bijur Automatic Lubrication System CATALOG SPECIFICATIONS: Table Dimensions (Overall) W x L .......... 12" x 54" Table Working Surface, W x L .......... 12" x 54" Table Longitudinal Travel (X-Axis) .......... 24" Spindle-Head Vertical Travel (Y-Axis) .......... 11" Quill Cross Adjustment (Z-Axis) .......... 3" Spindle-Center to Table-Top, Minimum .......... 3.25" Spindle-Center to Table-Top, Maximum .......... 14.25" Quill Diameter .......... 6" Spindle Nose Diameter .......... 5.06" (16) Spindle Speeds, Range .......... 30 to 1200 RPM Longitudinal Table Feeds, Range .......... 1 to 40 IPM Vertical Spindle-Carrier Feeds .......... 1 to 40 IPM Power Rapid Table Traverse .......... 300 IPM Spindle Motor, Horsepower .......... 7.5 HP Feed Drive Motor, Horsepower .......... 1.5 HP Electrical System .......... 220-440/3/60 Floor Space Required, L x D .......... 7'7" x 5'6" Overall Height .......... 6' Weight, Approximately .......... 5700 LBS F.O.B. OUR WAREHOUSE Table Longitudinal Travel (X-Axis): 24" Spindle-Head Vertical Travel (Y-Axis): 11" Quill Cross Adjustment (Z-Axis): 3" Spindle-Center to Table-Top, Minimum: 3.25" Spindle-Center to Table-Top, Maximum: 14.25" Quill Diameter: 6" Spindle Nose Diameter: 5.06" (16) Spindle Speeds, Range: 30 to 1200 RPM Longitudinal Table Feeds, Range: 1 to 40 IPM Vertical Spindle-Carrier Feeds: 1 to 40 IPM Power Rapid Table Traverse: 300 IPM Spindle Motor, Horsepower: 7.5 HP Feed Drive Motor, Horsepower: 1.5 HP Electrical System: 220-440/3/60 Overall Height: 6' Weight, Approximately: 5700 LBS
