For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Location: Harrison, NJ
Contact Andrew Valitt
Phone Number: 973...> Show Phone Number 973-497-7600
Let the seller know you found their listing on Surplus Record!
Description

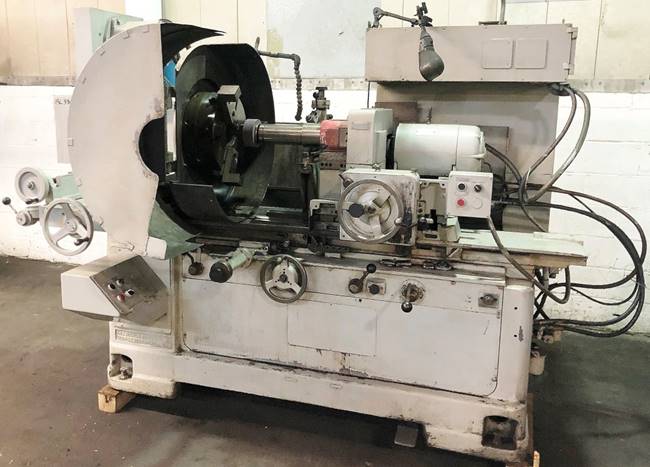

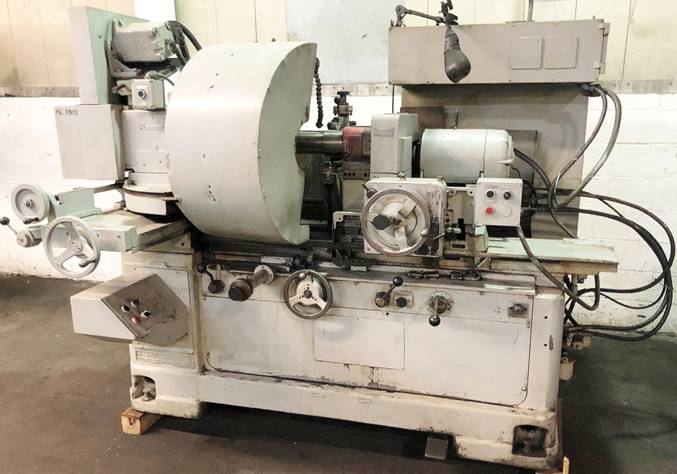

CINCINNATI-MILACRON HEALD MODEL No. 274 UNIVERSAL
"LARGE CAPACITY - LONG BASE INTERNAL GRINDER"
MODEL:… No. 274… S/N: 40414… NEW: 1976
SPECIAL NOTE:
MACHINE WAYS HAVE BEEN REDONE BY THE REKNOWNED
MACHINE TOOL REBUILDER,…"AMERICAN MACHINE TOOL REPAIR
& REBUILDING CO. INC." OF RANDOLPH, NJ.
PLEASE CALL MR. ALEX KAROLY, FOR DETAILS
ABOUT THE WORK HE PERFORMED FOR THIS MACHINE.
HIS OFFICE PHONE IS (973) 927-0820 **
** A INTERNAL GRINDER WITH WIDE ANGULAR
CAPACITY, BROAD APPLICATION VERSATILITY,
SPEED, EASE OF OPERATION.… THIS VERSATILE
MACHINE GRINDS STRAIGHT OR TAPERED HOLES,
STRAIGHT OR TAPERED EXTERNAL SURFACES,
AND FLAT, CONCAVE OR CONVEX FACES. **
SWING OVER TABLE .......................″4.5"
(WORKHEAD PARALLEL TO
TABLE ON CENTER)
SWING INSIDE CHUCK GUARD ...............″1"
ANGULAR ADJ. OF WORKEAD ................ 0 TO 90 DEG.
TABLE WORKHEAD CROSS SLIDE ............. FRONT, MAX. 6"
REAR, MAX. 15"
DIAMETER OF WORKHEAD SPINDLE FLANGE .... 9- 5/8"
WORKHEAD SPINDLE SPEEDS ................ 40 TO″50 RPM
TOTAL TABLE TRAVEL .....................″0- 1/4"
INFINITELY VARIABLE TABLE SPEED ........ 0 TO 15' FPM
RAPID TRAVERSE OF TABLE ................″5' FPM
CROSS FEED, 1 REV. OF HANDWHEEL ........ 0.050" ON DIA.
ROUGHING CROSS FEED - ADJ. FROM ........ 0.0001" TO .0006" DIA.
FINISHING CROSS FEED - NON ADJUSTABLE .. 0.0001" ON DIA.
ONE TURN OF WORKSLIDE HANDWHEEL ........ 0.100"
APPROX. DIMENSIONS...................... 120" X 81"W
APPROX. MACHINE WEIGHT.................. 8,850 LBS
MACHINE FEATURES:
LARGE CAPACITY, LONG BASE FOR LONG WORK, WITH
30-1/4" TABLE TRAVEL34.5" SWING TO TABLE IN
THE GAP,″1" SWING INSIDE CHUCK GUARD,
THE CENTER OF GRINDING WHEEL TO TABLE
TOP IS 16" (32" SWING)
HYDRAULIC TABLE FEEDS WITH HANDWHEEL FOR MANUAL OPERATION
AUTOMATIC FEEDS OF THE WWHEELHEAD, HAS…"PLUNGE" FEED
HEAVY DUTY WORKHEAD
WORKHEAD HAS HANDWHEEL FOR CROSS-SLIDE MOVEMENT
WORKHEAD SWIVELS 0 TO 90 DEGREES
INFINITELY VARIABLE SPEED CONTROL FOR WORKHEAD SPINDLE SPEEDS
SELF-CONTAINED HYDRAULIC SYSTEM
HYDRAULIC SYSTEM IN THE REAR OF THE MACHINE,
WITH NEWER″ H.P. BALDOR MOTOR… HYDRAULIC PUMP
10 H.P./3/60/230-460 VOLT MOTOR (WHEELHEAD)
EQUIPPED WITH:
15" DIAMETER″-JAW CHUCK
HEALD RED HEAD I.D. SPINDLE,
TYPE 407-160209-7,
S/N: 110069,
4,800 MAX. RPM,
SPINDLE IS 12-″/4" FROM THE CASTING TO THE WHEEL,
WHEEL IS 5" DIAMETER x 2"WIDTH,
THIS SPINDLE HAS BEEN REBUILT BY…"SOPKO"
IN THE RECENT PAST
FACING ATTACHMENT
MULTI-POSITION STOP FOR CROSS-SLIDE POSITIONING
DIAL INDICATOR HOLDER FOR MULTI-STOP
DROP DOWN WHEEL DRESSER
COOLANT SYSTEM
COMES WITH ORIGINAL ELECTRIC PRINTS
TAG ON THE MACHINE SAYS…"CINCINNATI-MILACRON"
MACHINE IS PRESENTLY WIRED FOR 440 VOLTS
** PRESENTLY DISASSEMBLED, OUR MACHINE IS LOCATED
IN OUR HARRISON, NJ WAREHOUSE **
** - WAYS REDONE BY:
"AMERICAN MACHINE TOOL REPAIR… REBUILDING CO. INC."
OF RANDOLPH, NJ (973) 927-0820 - **
** WITH THE WAYS REDONE, OUR MACHINE IS SUPERIIOR
IN ALL RESPECTS! **
Get Your Price from Machinery Values Inc!
