Description

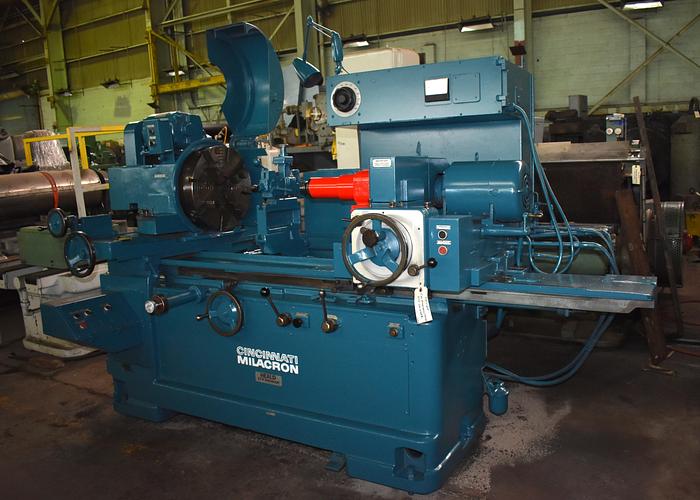

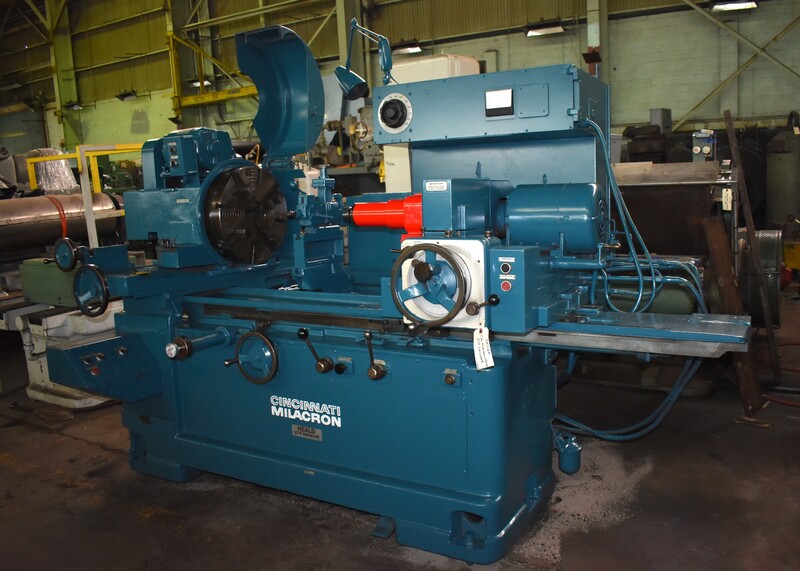

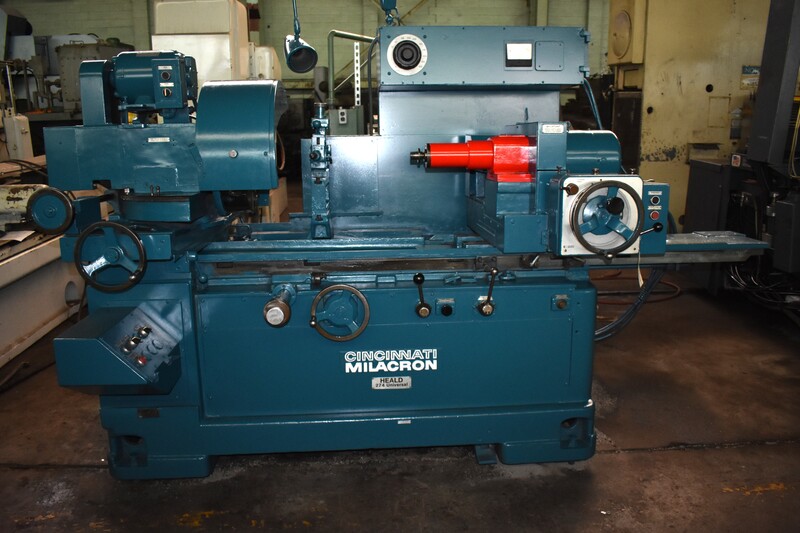

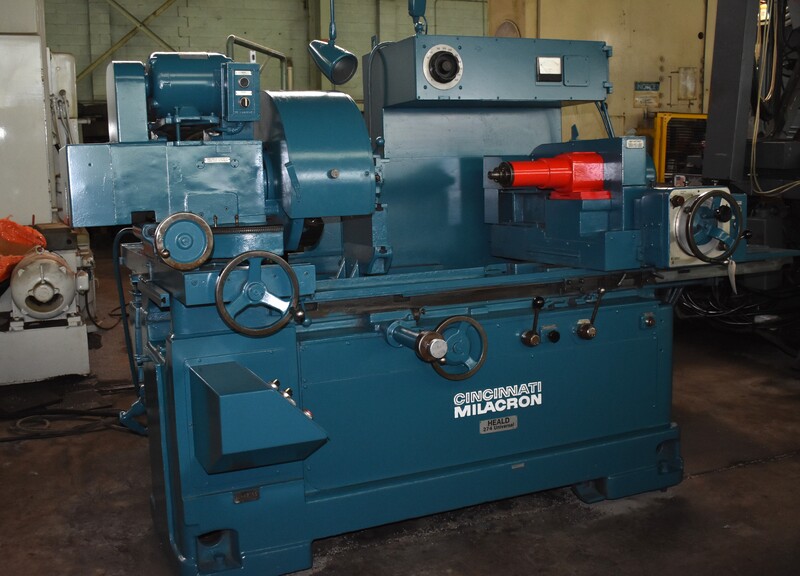

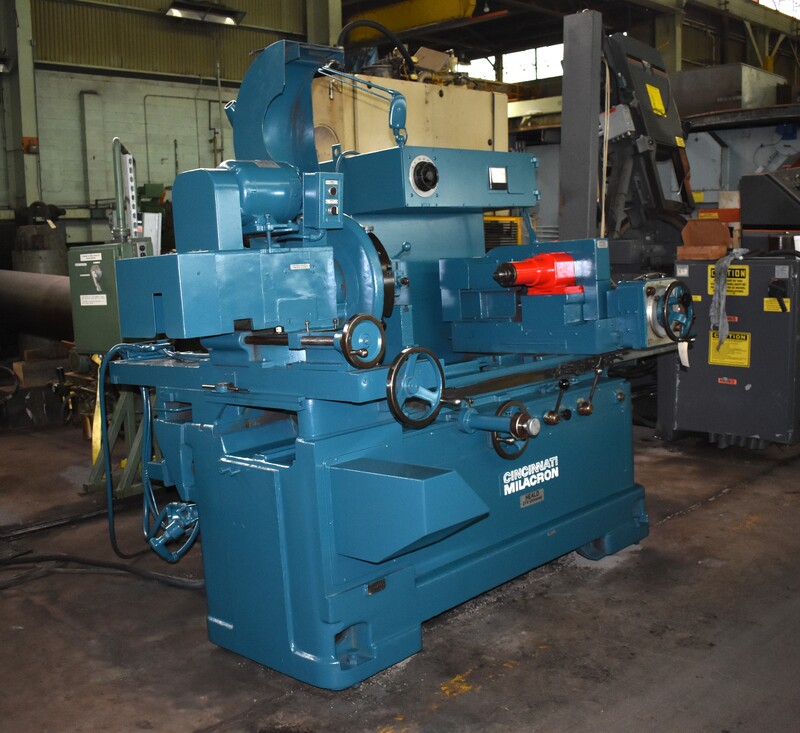

#274 CINCINNATI-MILACRON/HEALD "UNIVERSAL" INTERNAL GRINDER Serial No 47195, Model 274, Series "UNIVERSAL"

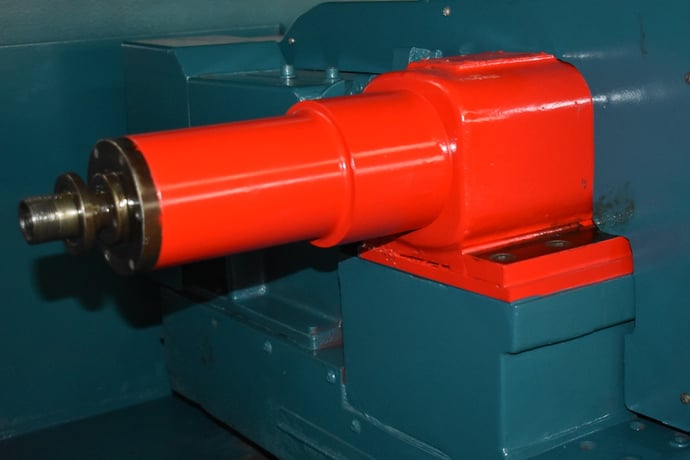

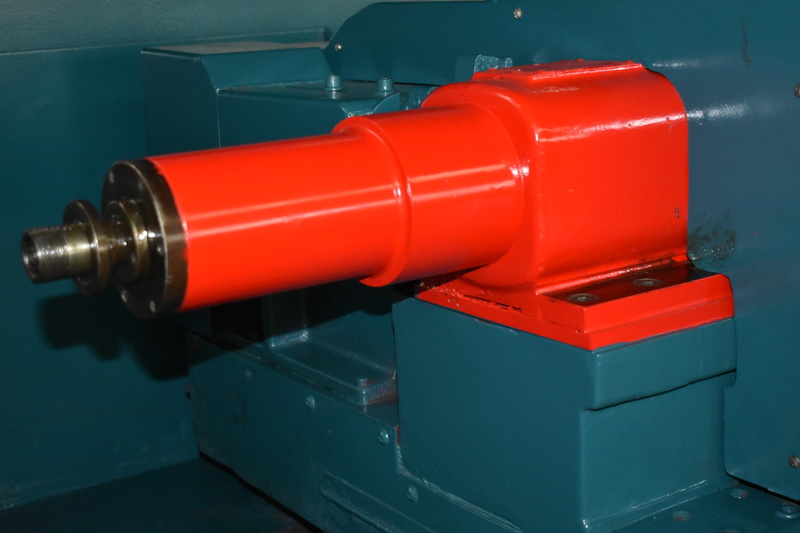

EQUIPPED WITH: Long Base Heald "Red-Head" Grinding Spindle Wheel Dresser 18" 4-Jaw Chuck w/Jaws
CATALOG SPECIFICATIONS: Swing Over Table, Maximum 30" Swing Over Workhead Slide-Head, 90-Degree 20" Bore Diameter Ground, Maximum 21.75" Bore Length Ground, Maximum 14" Table Longitudinal Travel 30.25" Workhead Cross-Slide Travel, Front 6" Workhead Cross-Slide Travel, Rear 15" Grinding Angle, Maximum Included 9-DEGREES Workhead Swivel Angle, Maximum 90-DEGREES Workhead Spindle Speeds, Range 40 TO 350 RPM Grinding Table Speeds, Infinite 0 TO 15 FPM Center Of Chuck Spindle From Floor 48" Workhead Spindle Flange, Diameter 9.625" Power Rapid Table Traverse 35 FPM Floor Space, L x W 123" x 101" Weight, Approximately 8850 LBS
NOTE: This Machine Is A Long-Base Internal Grinder With Wide Angular Capacity, Broad Application Versatility, Speed, Ease Of Operation And Efficiency.
CINCINNATI-MILACRON HEALD MODEL No. 274 UNIVERSAL "LARGE CAPACITY - LONG BASE INTERNAL GRINDER" MODEL:… No. 274… S/N: 40414… NEW: 1976 SPECIAL NOTE:MACHINE WAYS HAVE BEEN REDONE BY THE REKNOWNED MACHINE TOOL REBUILDER,…"AMERICAN MACHINE TOOL REPAIR & REBUILDING CO. ...more
