Description

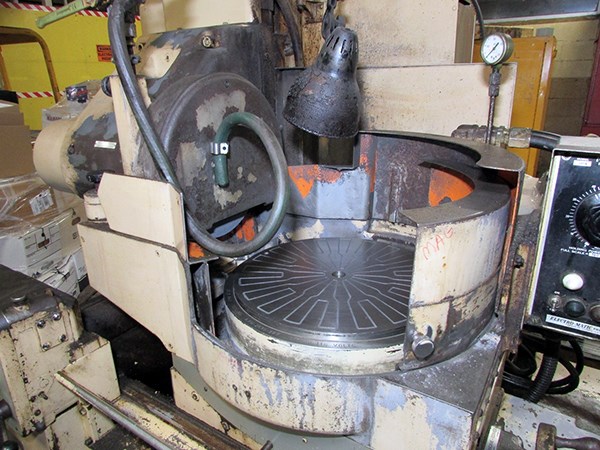

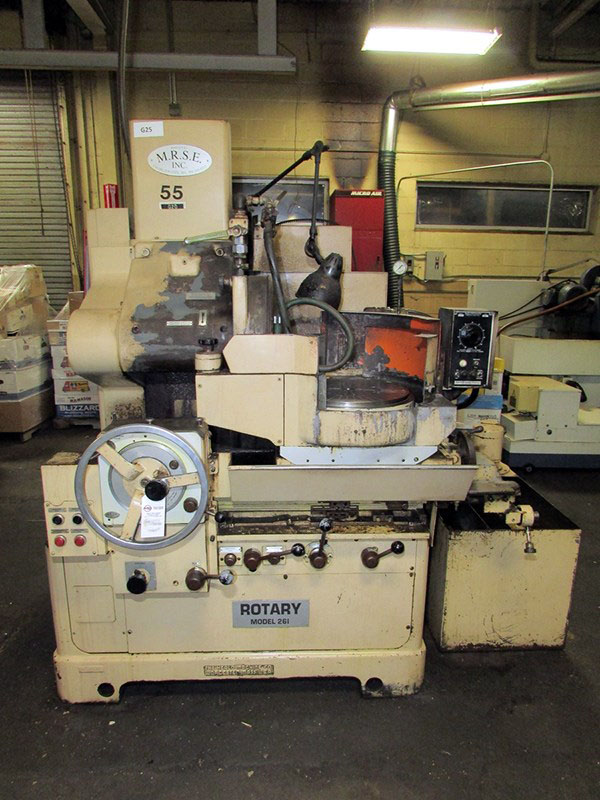

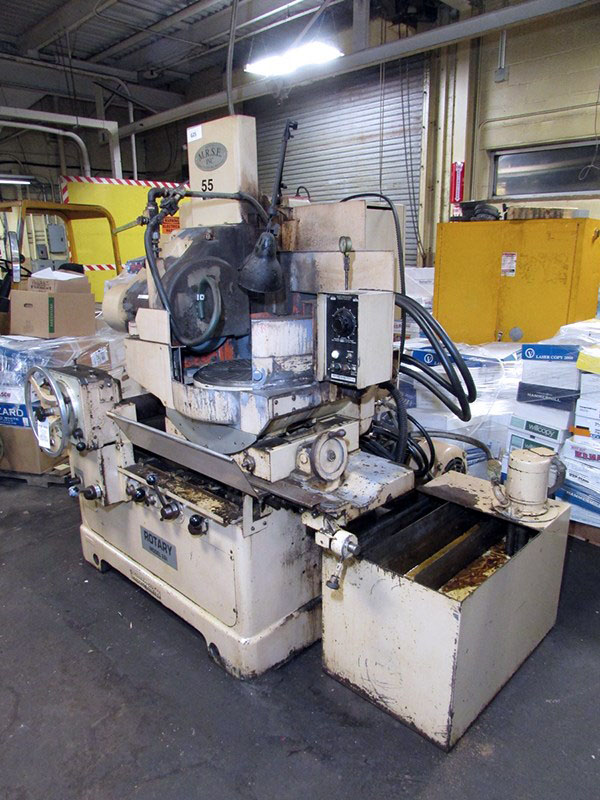

17" Cincinnati-Milacron - Heald Rotary Surface Grinder
Model No. 261… S/N: 42176…
Rebuilt by M.R.S.E. in 1996
SPECIFICATIONS:
Chuck Face Diameter ................ 16- 7/8"
Max. Swing Inside Guards ........... 18- 1/2"
Std. Wheel Size .................... 14" Dia. X 1"W x 5"B
Max. Distance From Top of Chuck
to Wheel Center .................. 17-3/4"
Min. Distance From Top of Chuck
to Wheel Center .................. 4-1/4"
Max. Height Under a New Wheel ...... 10-1/2"
Total Table Slide Travel ........... 12"
Grinding Stroke of Table ........... 8"
Table Tilt Adjustment, Convex ...... 17 Degrees
Table Tilt, Concave ................ 10 Degrees
Table Speeds for Grinding .......... 0 to 12' FPM
Table Speeds for Run-Out ...........″5' FPM
Chuck Speeds, Variable ............. 50 - 225 RPM
Chuck Feed Rates ................... 0 - 20 FPM
Auto Power Downfeed Of Spindle ..... 0.0001" to .0006"
Machine Weight, Approx. ............ 8,350 Lbs
Approx Dims. ....................... 78" x 60" x 80"H
Equipped With:

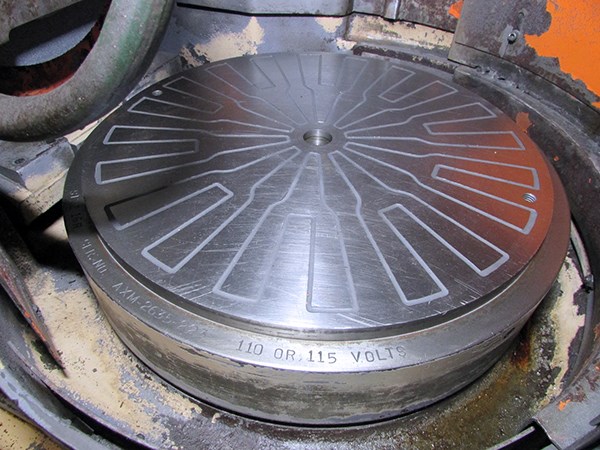

* 17" O.S. Walker #16R Electro-Magnetic Chuck,
"Tuning Fork Top"

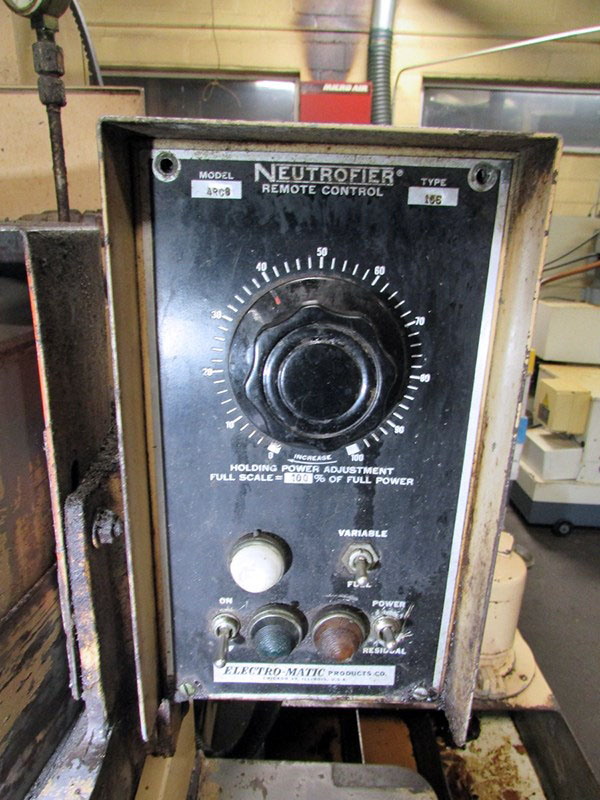

*…"Electro-Matic" Neutrofier,″00 Watts,
with Variable Power Control

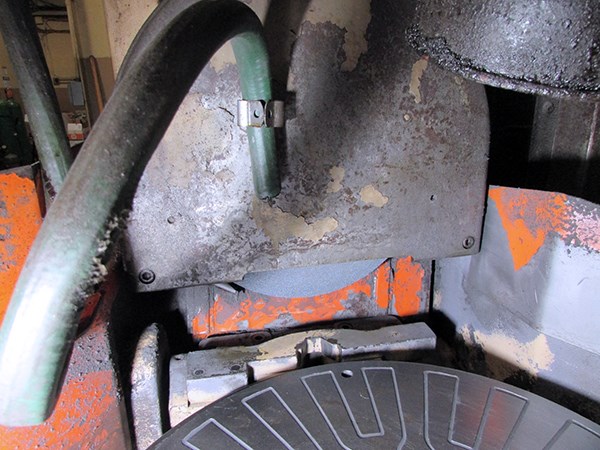

* Over-The-Wheel Dresser
* Wheel Retraction Knob
* Automatic Lubrication Through Hydraulic Reservoir,
for the Table Ways… Vertical Ways
* Separate Lubrication System for the Chuck
* Coolant Pump… Tank,″3" x 20" x 20"
* 15 HP Spindle Motor″/60/230-460 Volts
*″ HP Hydraulic Pump…
*″/60/220-440 Volt Motors
* Presently Wired for″/60/220 Volts, 41 FLA
** Inspect Under Power in our Harrison, NJ Warehouse **
** Superb Condition… Appearance **
** Rebuilt by the Known Heald Rebuilder, M.R.S.E. **
Get Your Price from Machinery Values Inc!
