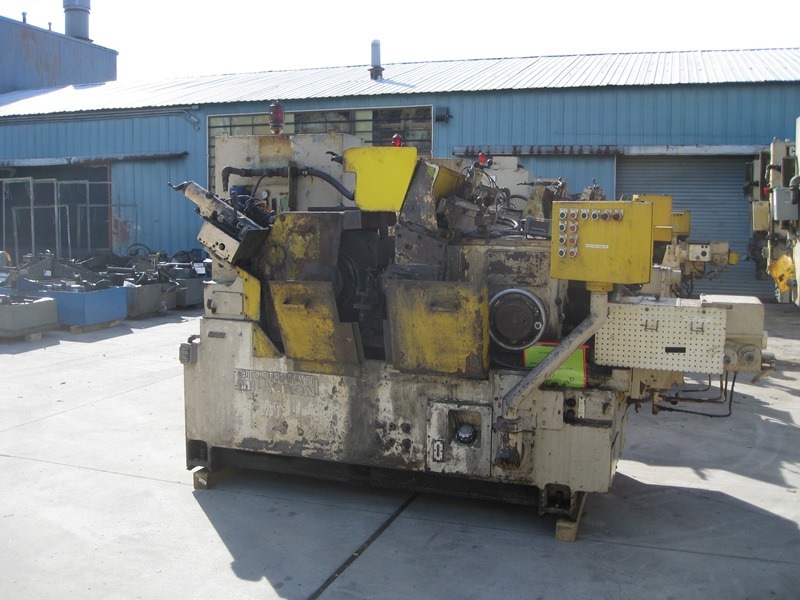

Cincinnati No. 325-12, centerless grinder, 6" diameter work capacity, 12" thru-feed work rest, 24" diameter x 12" width grinding wheel, 8500 SFPM, 25 HP

#325-12 DE Cincinnati Centerless Grinder, 24" x 12" Wheel, 12" Thrufeed Workrest, Standard Trans, As Is
325‑12 CINCINNATI CENTERLESS GRINDER
PRIVATE S/N350412H81-0006
STANDARD CATALOG SPECIFICATIONS
CAPACITY (Work rests or bar grinding fixtures are not standard equipment.)
Standard thru feed in feed work rests……………………………. 1/2 to 3dia.
Maximum work diameter…………………………………………… 6
(Depending on which work rest is ordered)
WHEELS (Not included in price)
Grinding wheel……………………………………………. 12 Hole, 8‑12 Widths
……………………………………………...........................24 Max. dia., 16 Min. dia.
Regulating wheel………………………………………….. 6 Hole, 8‑12 Widths
……………………………………………...........................14 Max. dia., 10 1/4 Min. dia.
GRINDING WHEEL SPINDLE
High grade alloy steel, heat treated, titanium dioxide coated and ground.
Filmatic bearings self‑adjusting for variations in load with plain thrust bearing in center.
Automatic circulating lubrication under pressure.
REGULATING WHEEL SPINDLE
High grade alloy steel, heat treated, titanium dioxide coated and ground.
Two piece bronze front and rear bearings, anti‑friction radial and thrust bearing on end.
Automatic pressure lubrication.
REGULATING WHEEL SPEEDS
Number………………………………………………. Infinite
Range………………………………………………… 60 cycle: 11 to 300 RPM
……………………………………………...........................50 cycle: 12 to 315 RPM
Low range……………………………………………. 60 cycle: 11 to 56 RPM
……………………………………………...........................50 cycle: 12 to 59 RPM
High range……………………………………………. 60 cycle: 56 to 300 RPM
……………………………………………...........................50 cycle: 59 to 315 RPM
GRINDING WHEEL DRIVE
Enclosed motor on end of machine………………… 25 HP
Constant speed, NEMA dimensions……………….. 50 ‑ 60 cycle, 3 phase
208 or 575 single; 230/460 dual voltage
AC drives grinding wheel only.
Power transmission…………………………………. 8 V‑belts
REGULATING WHEEL DRIVE
Motor mounted on upper slide……………………… 60 cycle: 2 HP @ 1200 RPM
……………………………………………...........................50 cycle: 2 HP @ 1500 RPM
Constant speed, NEMA dimensions………………… 50 or 60 cycle, 3 phase
……………………………………………...........................208 or 575 single; 230/460 voltage AC
Power transmission…………………………………… 8 V‑belt chain
Speed changes………………………………………… Variable pitch sheaves and gear shift
CUTTING FLUID EQUIPMENT
Individual motor driven cutting fluid pump capacity 30 GPM
Cutting fluid tank capacity……………………………… 75 gallons
WHEEL TRUING
Independent truing units for each wheel.
Hydraulic diamond truing for grinding and regulating wheels.
Diamond not included as standard equipment.
SIZING ADJUSTMENT
Accurate adjustment of regulating wheel slide by in feed hand wheel graduated in fifty millionths of an inch.
PRIVATE FEATURES AND EQUIPMENTtc' \l 2 FEATURES AND EQUIPMENT
Gibbed upper and lower slides.
8,500 S.F.P.M.
Non-balancer grinding wheel.
Standard transmission.
Electro-hydraulic in feed unit with comp.
Attached electrical panel.
FLOOR SPACE WEIGHT
Floor space……………………………………………… 95 1/4 x 140 3/8
Weight…………………………………………………… 20,000 lbs.
Specifications are deemed accurate, however, subject to verification or prior sale.
