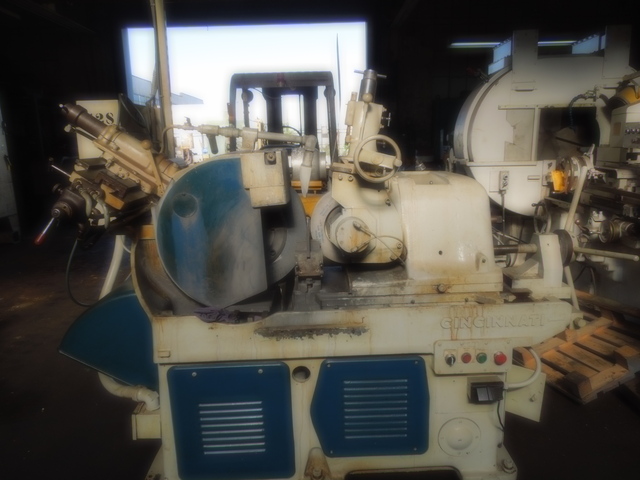

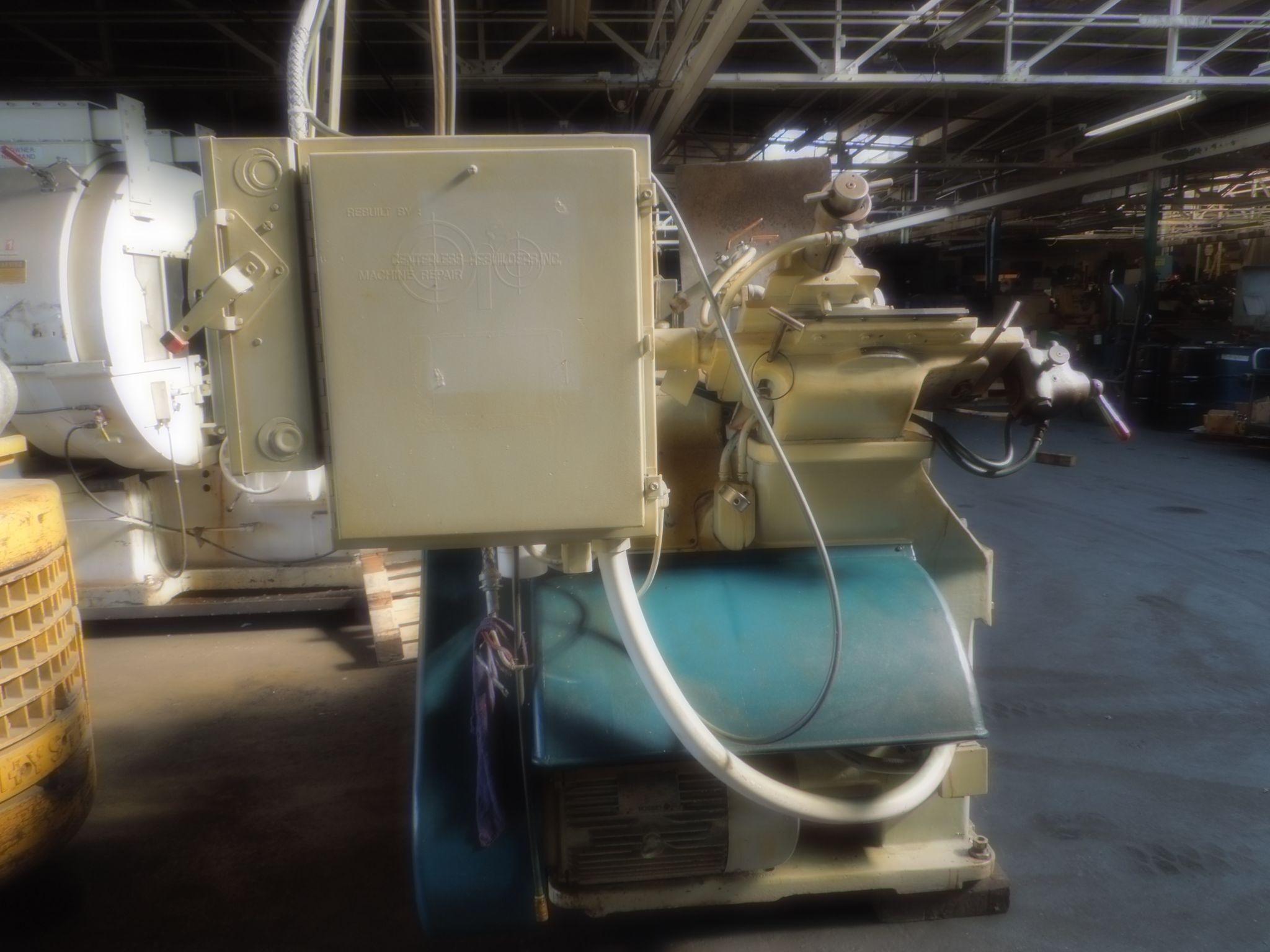

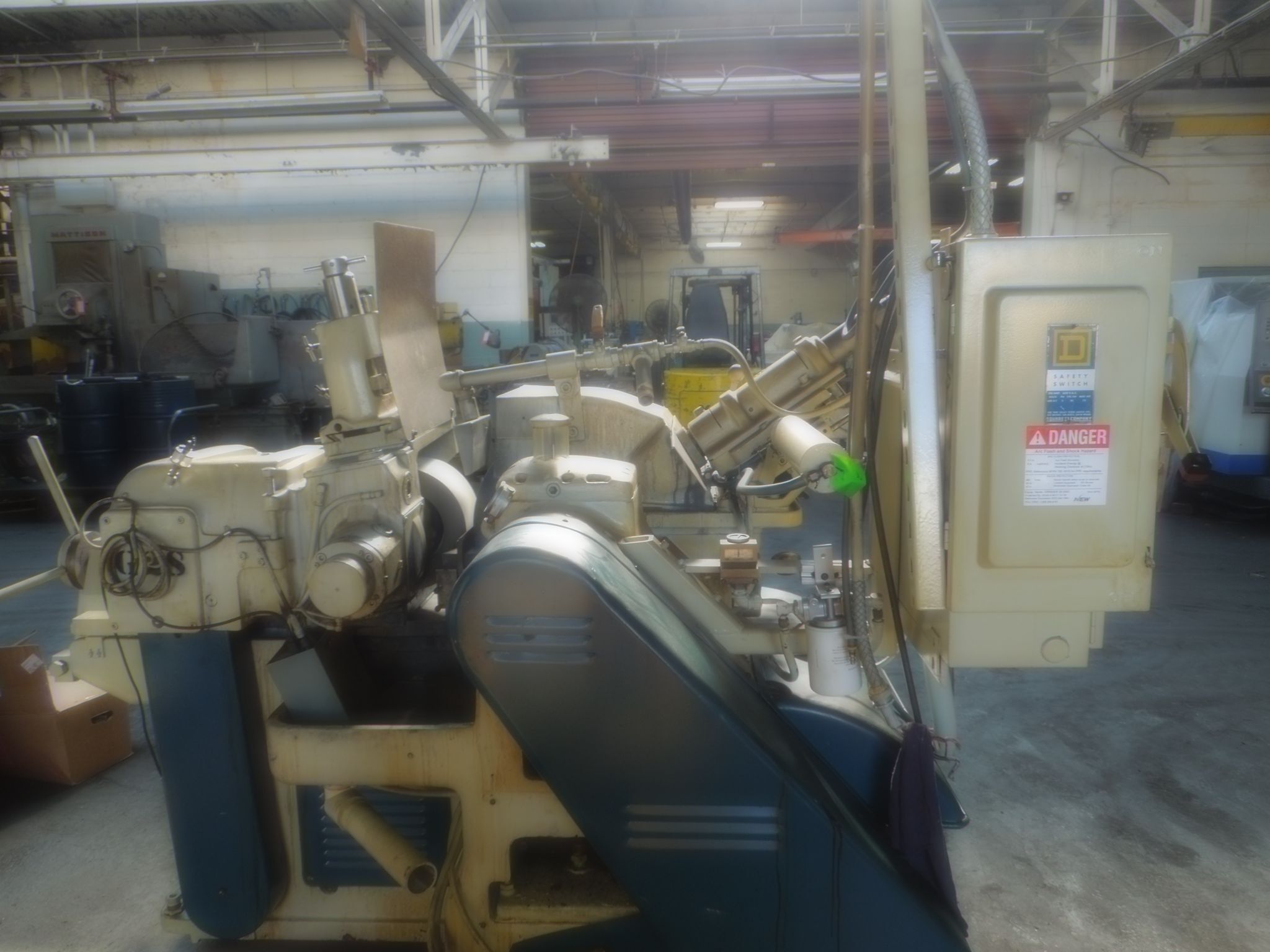

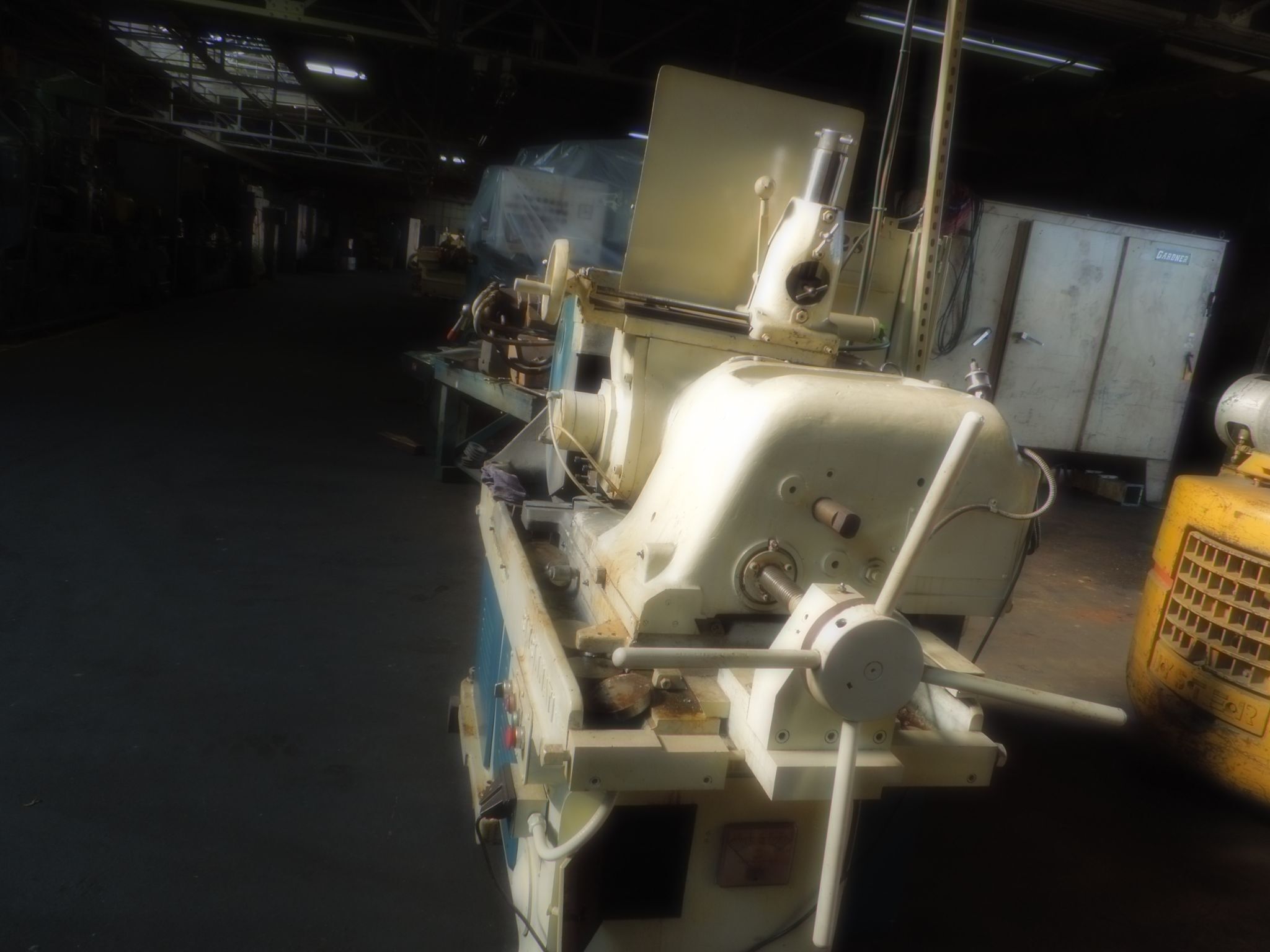

Cincinnati No. 2 Mdl. EA, centerless grinder, 3.5"/4.75" diameter work rest capacity, 20" diameter grinding wheel, 12" diameter x 18' L bar, 15 HP, 1200 RPM, 1944

1944 CINCINNATI #2 EA centerless grinder, used condition. Capable of handling diameters 1/16" to 3 1/2", powered by 15 HP grinding motor. Features filmatic bearings, hydraulic profile truing, and variable speed spindle drive.
#2 EA CINCINNATI CENTERLESS GRINDER
S/N 2M2H1P-601
STANDARD CATALOG SPECIFICATIONS
CAPACITY(Depending on which work rest is ordered ‑
not included in price)
Standard work rest....................... 1/16 to 3 1/2 diameter
Low thru‑feed work rest.................. 2 to 4 3/4 diameter
Bar work......(18' Long)................. 1/8 to 2 diameter

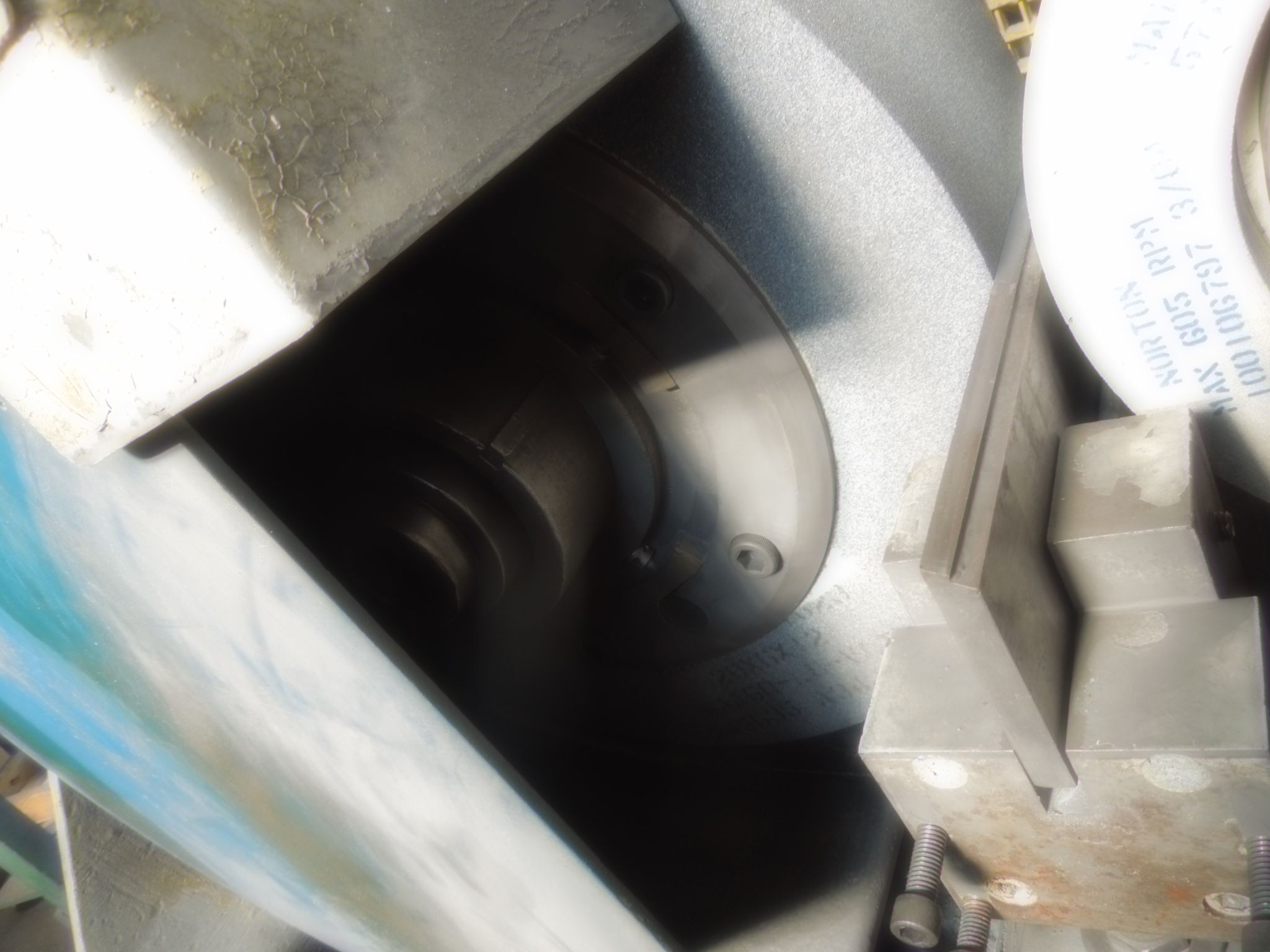

GRINDING WHEEL (Not supplied)
4,6, or 8 Width ‑ 12 Hole
20Maximum diameter
14Minimum diameter
Speed ‑1200 RPM
REGULATING WHEEL (Not supplied)
4,6, or 8 Width ‑ 5 Hole
14Maximum diameter
9Minimum diameter
Range of speeds ‑ 12 to 300 RPM
MOTOR DRIVES
Grinding wheel........................... 15 HP
Regulating wheel......................... 1 1/2 HP
Hydraulic pump........................... 1 1/2 HP
Cutting fluid............................ 1/4 HP
Floor space.............................. 53 x 86
Weight...................................7,000 lbs.
EQUIPMENT FEATURES
Filmatic bearings.
Hydraulic profile truing on grinding wheel.
Manual profile truing on regulating wheel.
Grinding wheel mount.
Regulating wheel mount.
RWH Outboard support.
Variable speed reg spindle drive.
Specifications are deemed accurate, however, subject to verification or prior sale.
