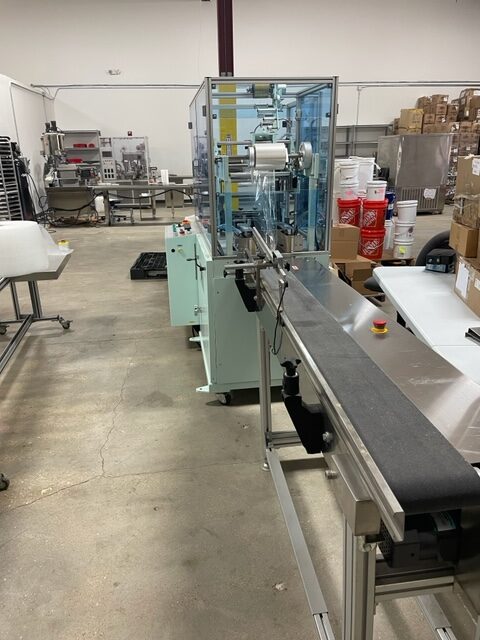

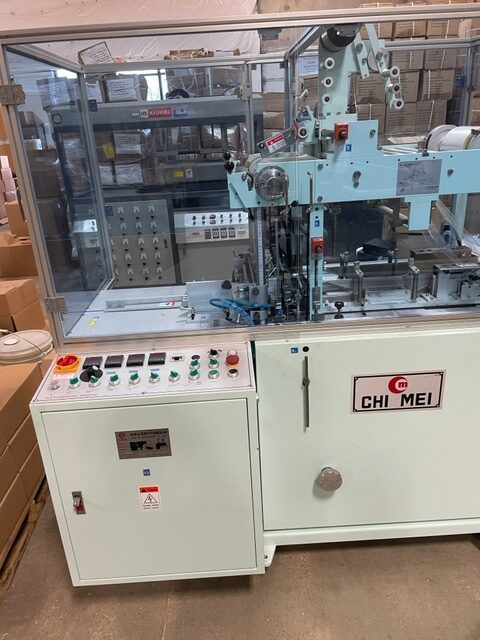

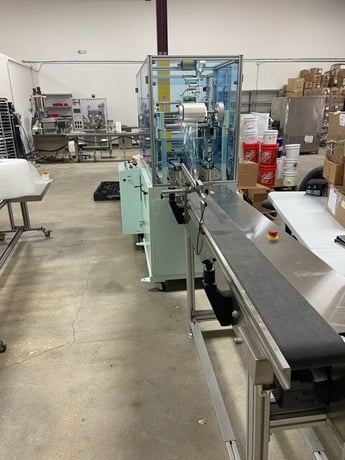

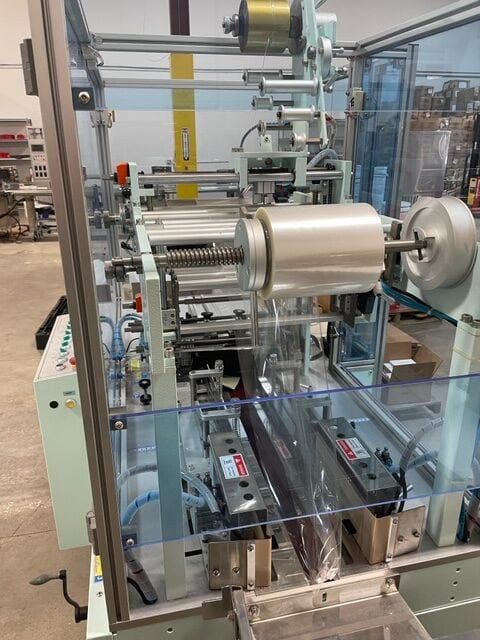

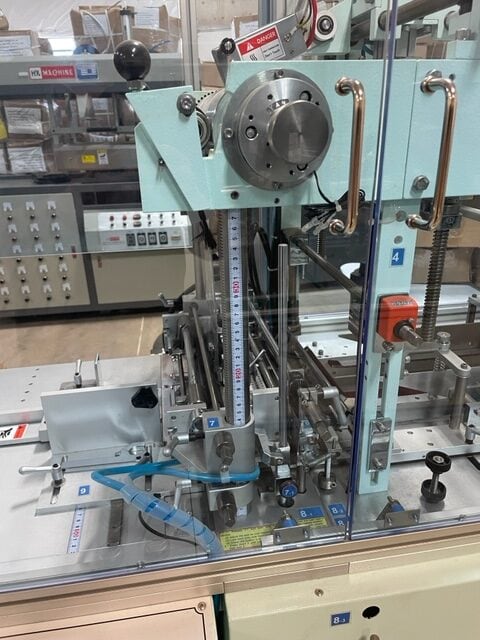

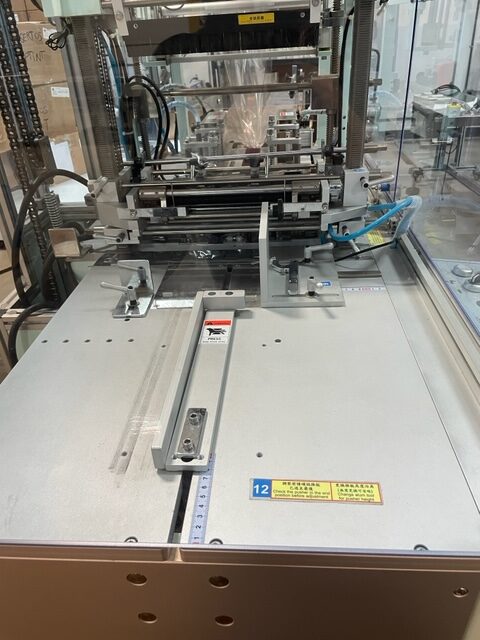

Chie Mei #PM-808c, Automatic Cellophane Overwrapping Machine, 40 Packages/Min, 1/4 HP, 2016

Equipment Overview

This 2016 Chie Mei PM‑808C offers automated overwrapping of small rectangular items (CD/booklet-sized) using cellophane or heat-seal films, with rapid size changeover and ease of maintenance for flexible packaging lines.

Key Features and Specifications
– Cam-driven mechanism – robust and low maintenance
– Quick changeover system – size switch in ~15 min
– Conveyor feeding for line integration
– Supports optional add-ons: tear tape, side seal, stacker, shrink tunnel, safety interlocks
– Product dimensions: L55–160mm × W30–80mm × H50–200mm
– Speed: 20–40 packs/min
– Heater power: 1.2kW
– Motor configuration: 1/4HP + accessory drives
– Overall machine size: 1630×2640×1880mm (L×W×H)
– Accepts cellophane, BOPP/OPP, KOP, and heat-seal papers
