Description

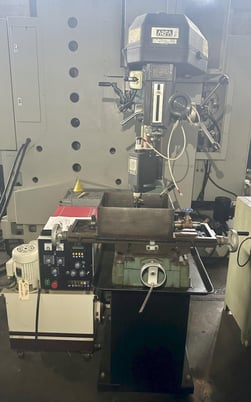

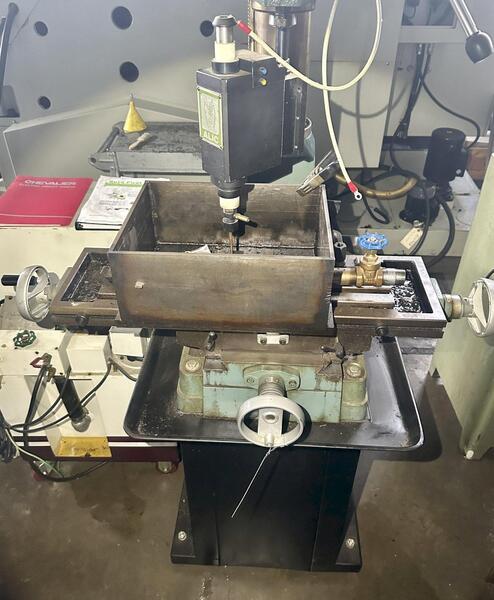

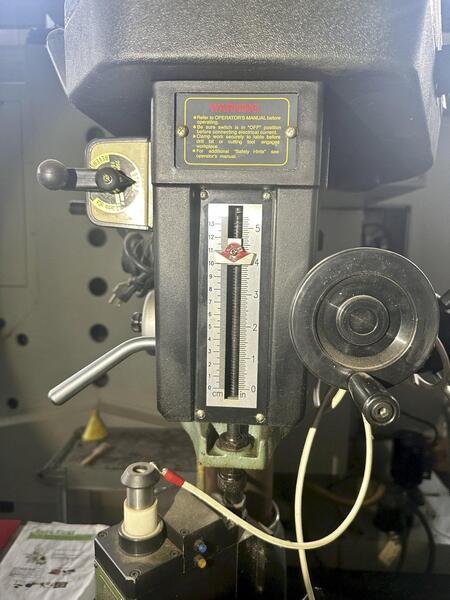

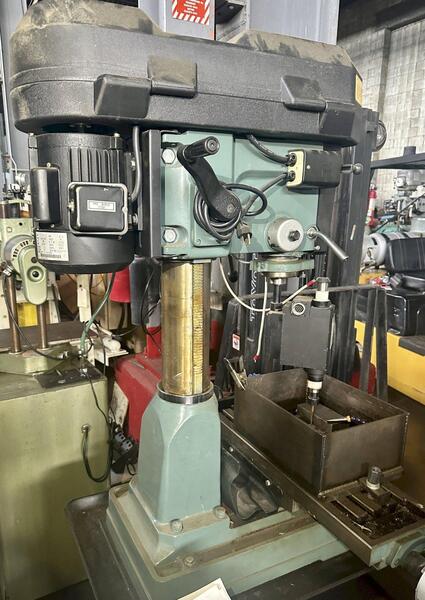

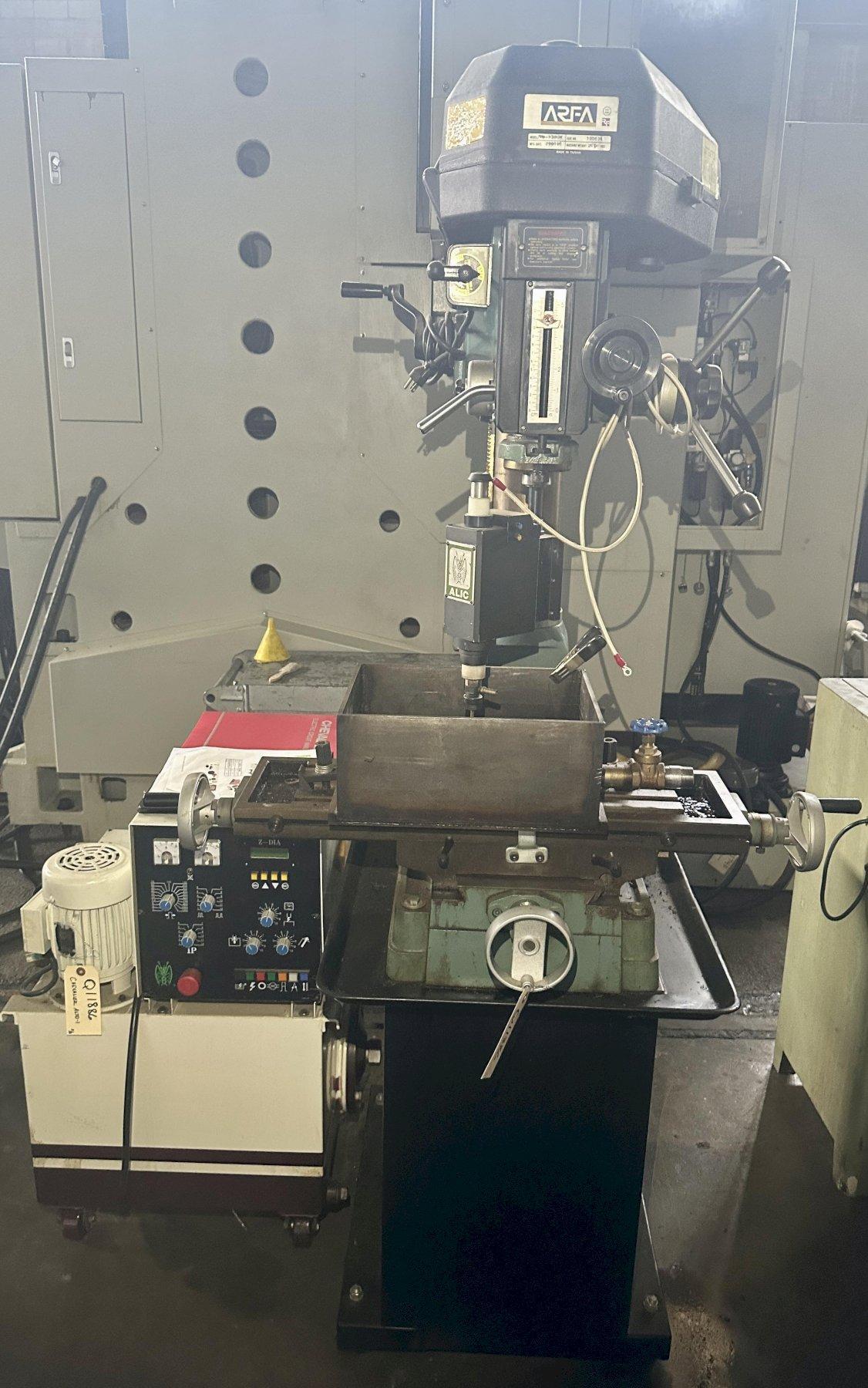

CHEVALIER ALIC-1 MANUAL RAM PORTABLE TOOL TYPE EDM, ARFA MMD-9100 Milling Machine with an ALIC-1 EDM Tool (15AMP) Mounted to Spindle Powered by a Chevalier DT-168 Portable EDM Power Unit, Travels X=14", Y=8", Z=5", Max Work Piece Dimensions 13.75" x 10.75" x 5.5", Magnetic Chuck, New 2001.

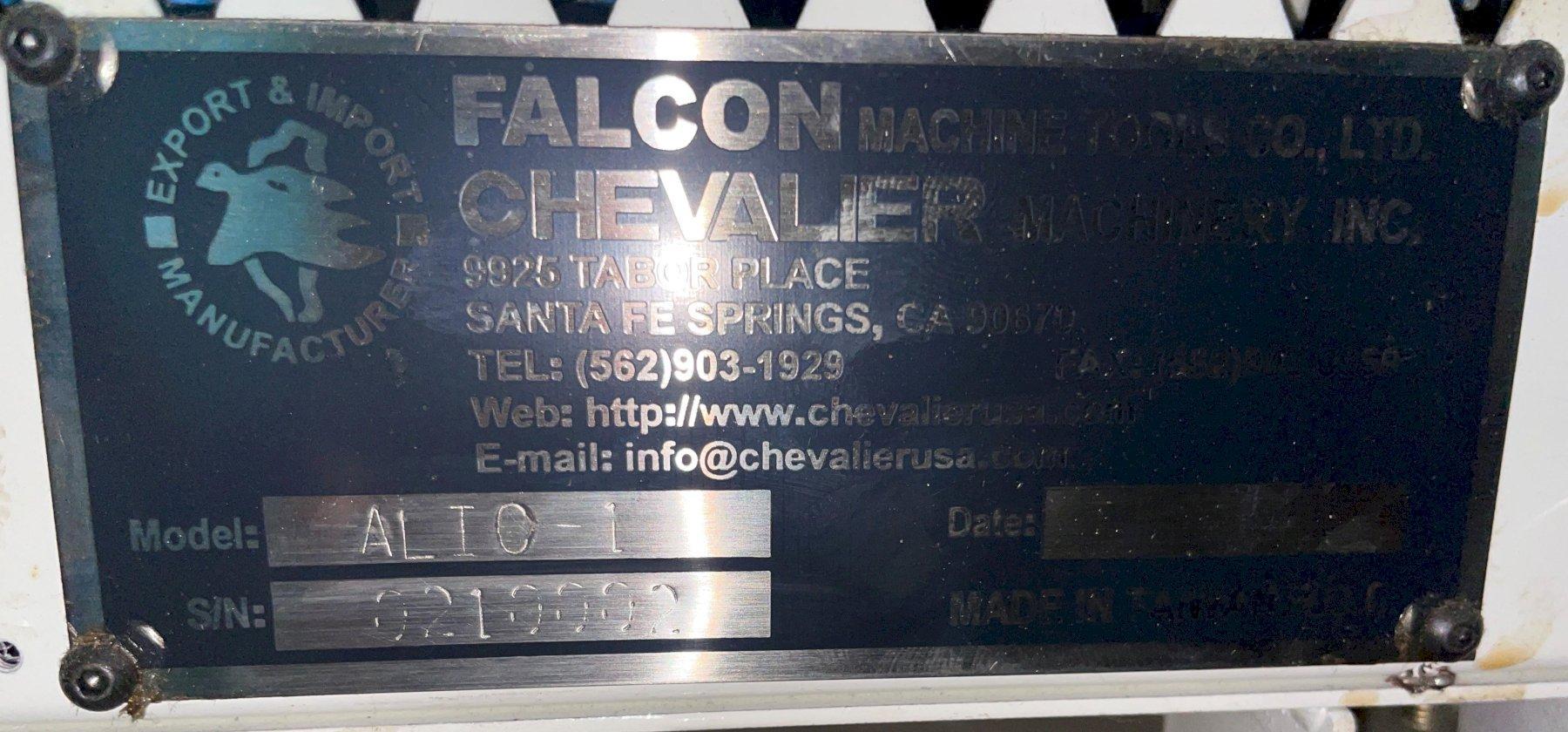

2001 Chevalier ALIC-1
EQUIPPED WITH:

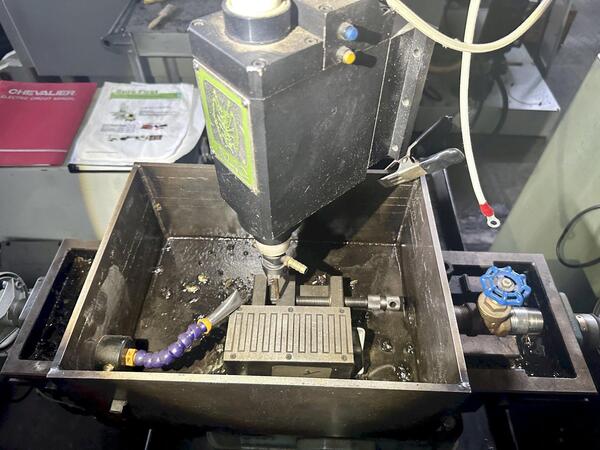

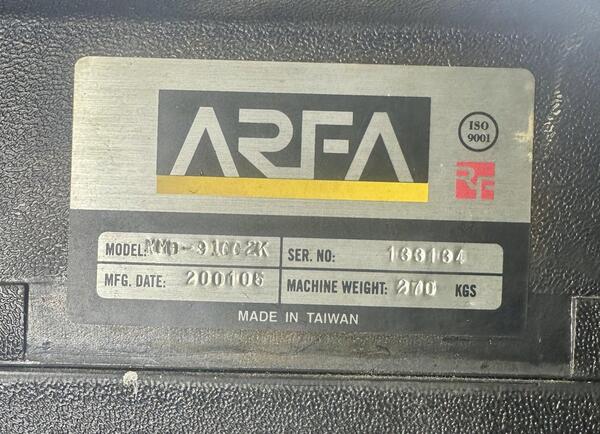

ARFA MMD-91002K Milling Machine with an Alic-1 EDM Tool Mounted to Spindle powered by a Chevalier DT168 Power Unit, 15 Amp Max Processing Current, 5.25" x 2.5" Magnetic Chuck, Welded Work Tank 13.75" x 10.5" x 5.5" with Fluid Return.
SPECIFICATIONS:
Control....................................... CNC (220/3/60)
Internal Work Tank Width...................... 13.75"
Internal Work Tank Depth...................... 10.5"
Internal Work Tank Height..................... 5.5"
Table-L....................................... 13.75"
Table-W....................................... 10.5"
Dielectric Fluid Capacity..................... 24 gal
Dielectric Tank Capacity...................... 24 gal
X-Axis (Longitudinal Travel).................. 14"
Y-Axis (Cross Travel)......................... 8"
Z-Axis (Ram Travel)........................... 5.5"
Electrode Quill Stroke........................ 2.3125"
Max Electrode Weight.......................... 22 lb
Max Process Current........................... 15 A
Electrics..................................... 220/3/60

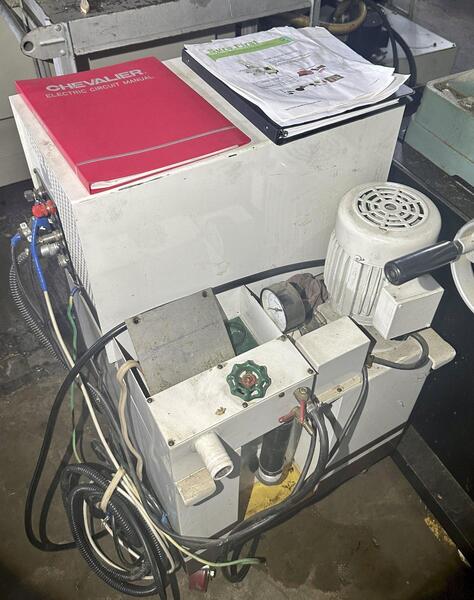

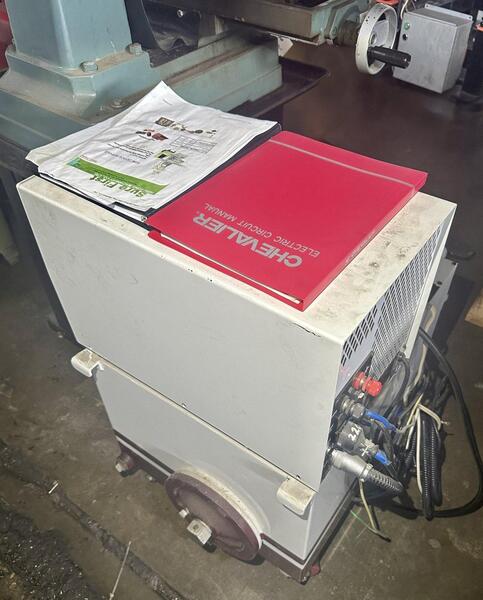

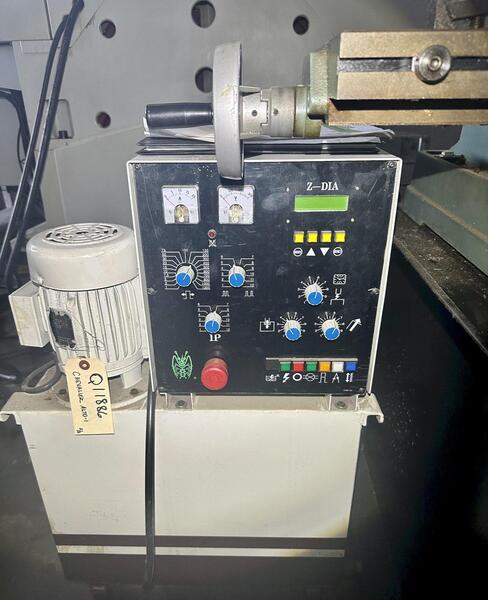

Power Supplier Unit - Model................... DT-168
Power Supplier Unit - Max Machining Current... 15 A
Dimensions.................................... 60" x 40" x 81"
Weight........................................ 2500 LBS
2001 Chevalier ALIC-1
EQUIPPED WITH:
ARFA MMD-91002K Milling Machine with an Alic-1 EDM Tool Mounted to Spindle powered by a Chevalier DT168 Power Unit, 15 Amp Max Processing Current, 5.25" x 2.5" Magnetic Chuck, Welded Work Tank 13.75" x 10.5" x 5.5" with Fluid Return.
SPECIFICATIONS:
Control....................................... CNC (220/3/60)
Internal Work Tank Width...................... 13.75"
Internal Work Tank Depth...................... 10.5"
Internal Work Tank Height..................... 5.5"
Table-L....................................... 13.75"
Table-W....................................... 10.5"
Dielectric Fluid Capacity..................... 24 gal
Dielectric Tank Capacity...................... 24 gal
X-Axis (Longitudinal Travel).................. 14"
Y-Axis (Cross Travel)......................... 8"
Z-Axis (Ram Travel)........................... 5.5"
Electrode Quill Stroke........................ 2.3125"
Max Electrode Weight.......................... 22 lb
Max Process Current........................... 15 A
Electrics..................................... 220/3/60
Power Supplier Unit - Model................... DT-168
Power Supplier Unit - Max Machining Current... 15 A
Dimensions.................................... 60" x 40" x 81"
Weight........................................ 2500 LBS
Get Your Price from Great American Eqpt Co!
