For Sale by Machinery Values Inc
Surplus Record Dealer Since 1997
Andrew Valitt
973-49...> Show Seller's Phone Number 973-497-7600 Let the seller know you found their listing on Surplus Record!
Description

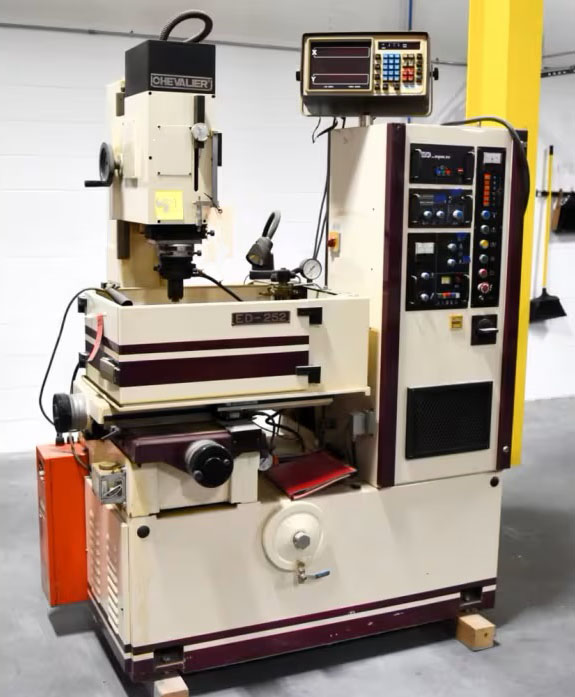

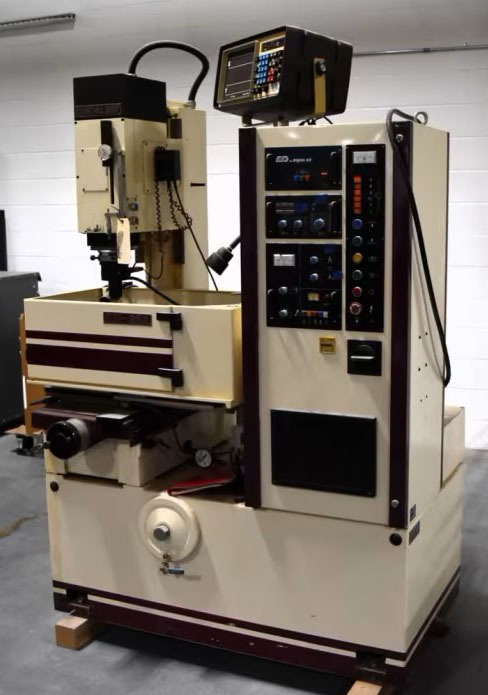

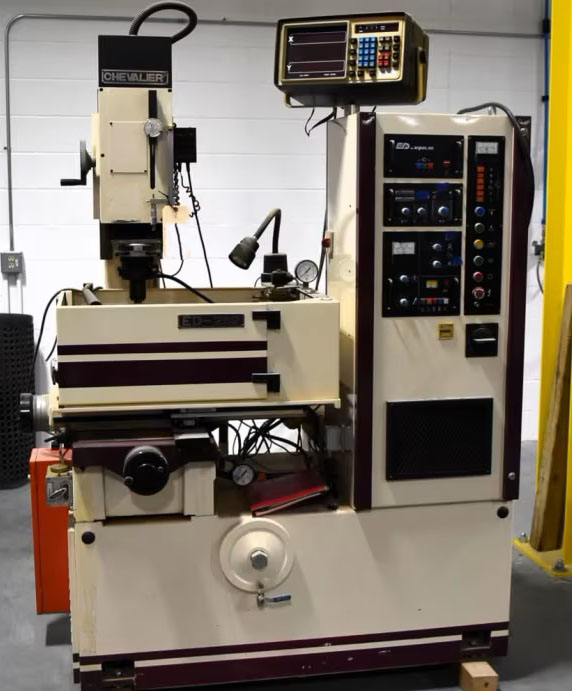

CHEVALIER/SURE FIRST MADE IN TAIWAN
RAM TYPE CONVENTIONAL EDM
WITH DIGITAL READOUT DISPLAY
**** ONLY 148 HOURS!!, HOLY COW!! ****
MODEL: ED252… S/N: 0022145… NEW: 1992
TABLE DIMENSIONS ............. 23.6" X 11.8"
X-TRAVEL ..................... 11.8"
Y-TRAVEL ..................... 7.9"
QUILL STROKE ................. 5.9"
WORK TANK DIMENSIONS .........″0.3" X 20" X 10.6"
OIL CAPACITY ................. 87 GALLONS
MACHINE HEAD STROKE .......... 7.9"
MAXIMUM ELECTRODE LOAD ....... 132 LBS.
MAXIMUM TABLE LOAD ........... 1,100 LBS.
APPROX. DIMENSIONS ........... 56"L-R x 47"D x 80"H
APPROX. WEIGHT ............... 2,500 LBS.
EQUIPPED WITH:

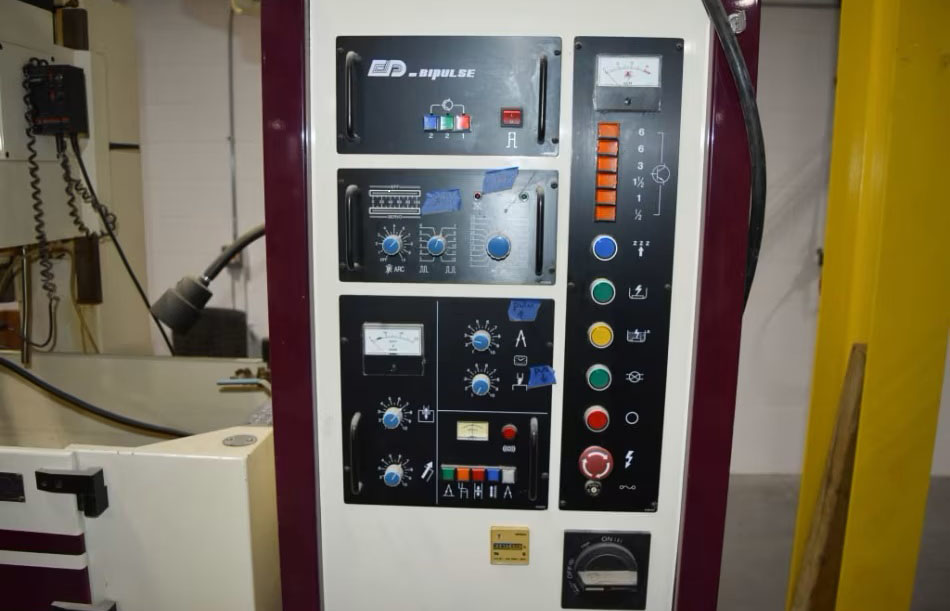

CHEVALIER/SURE FIRST″0 AMP POWER SUPPLY
SERVO MOTOR DOWNFEED
"QUALITY MEASUREMENTS SYSTEMS" 2-AXIS DRO

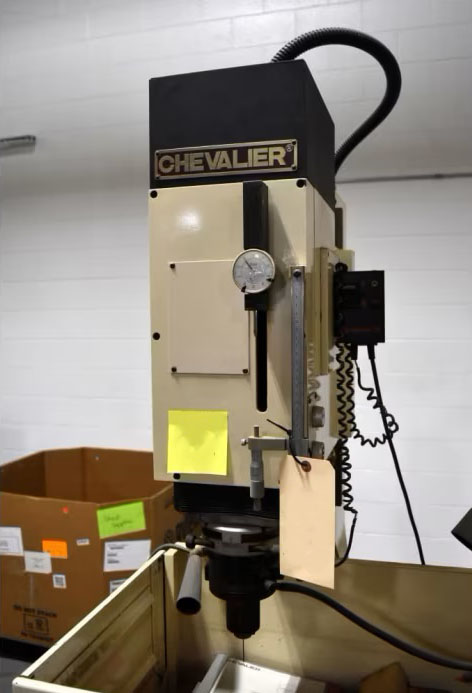

DIAL INDICATOR FOR RAM TRAVEL
"SYSTEM″R" TOOLING SET-UP AND MAGNETIC CONTROL BOX
"X"……"Y" LEADSCREWS HAVE ADJUSTABLE COMPENSATION
SCREWS FOR BACKLASH
"SCHNEEBERGER" ROLLER BEARING SYSTEM ON ELEVATING GUIDEWAYS
AUTOMATIC FIRE EXTINGUISHER
MACHINE IS PRESENTLY WIRED FOR″/60/230 VOLTS/4 KVA
MACHINE CAN BE WIRED FOR OTHER VOLTAGES

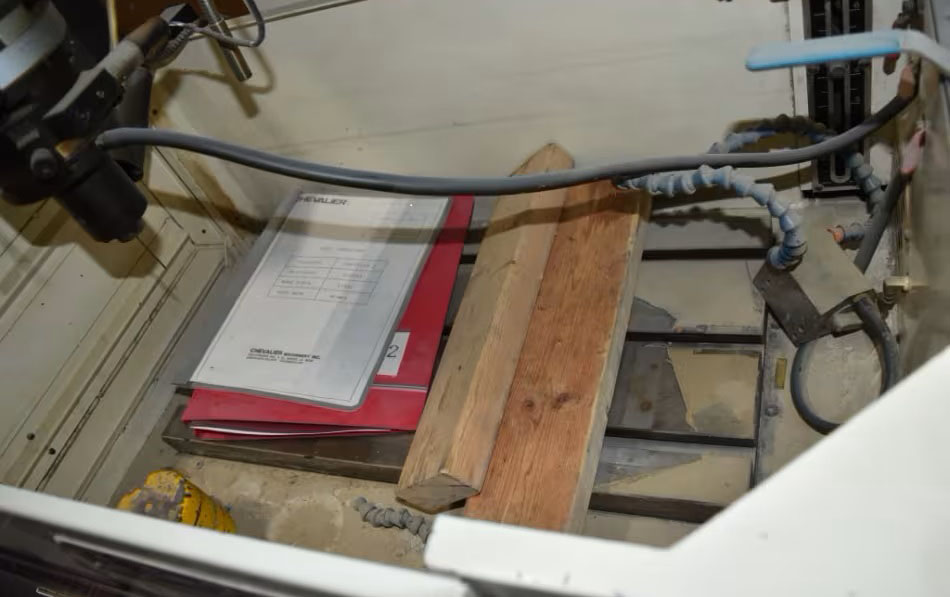

MACHINE COMES WITH A MANUAL… ELECTRICAL DRAWINGS
** VERY LOW USEAGE - BEAUTIFUL MACHINE… **
**** ONLY 148 HOURS!!, HOLY COW!! ****
** F.O.B. OUR HARRISON, NJ WAREHOUSE **
