For Sale by Machine Tool Technologies
Surplus Record Dealer Since 2011
Location: Milwaukee, WI
Contact Joe Ryan
Phone Number: 414...> Show Phone Number 414-486-9700
Let the seller know you found their listing on Surplus Record!
Description

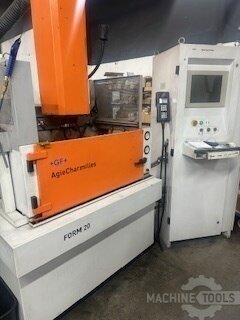

Brand CHARMILLES
Model FORM 20
ID # 633800
Type EDM Sinkers
Condition Used - Good
Year 2009
Location Arizona
United States
United States
Return Policy as-is
Stock # LA
| Power Pack | 32 A |
| Table Size-W | 11.8" |
| Table Size-L | 15.7" |
| X | 11.8" |
| Y | 9.8" |
| Z | 9.8" |
| Dimensions | 37.7" x 39.3" x 81" |
| Weight | 1720 (LBS) |
Equipped With

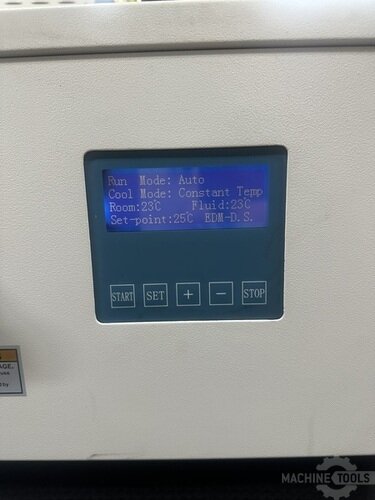

Erowa 3R Chuck, Chiller
Spec Sheet
X-Axis Travel: 13.78”
Y-Axis Travel: 9.85”
Z-Axis Travel: 9.85”
C-Axis Rotation Speed: 0 – 100 RPM
Speed (X/Y-Axes): 13.12 ft/min
Speed (Z-Axis): 19.69 ft/min

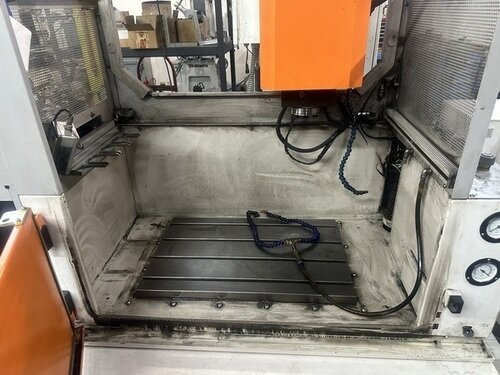

Work Tank Size: 37.60” x 21.26” x 13.78”
Work Table Size: 24.81” x 15.75”
Max Electrode Weight: 110 LB
Max Workpiece Weight: 440 LB
Equipped with:
Erowa 3R Chuck
Chiller
***CALL Louie at 847-627-6009 for more details or a quote***
Y-Axis Travel: 9.85”
Z-Axis Travel: 9.85”
C-Axis Rotation Speed: 0 – 100 RPM
Speed (X/Y-Axes): 13.12 ft/min
Speed (Z-Axis): 19.69 ft/min
Work Tank Size: 37.60” x 21.26” x 13.78”
Work Table Size: 24.81” x 15.75”
Max Electrode Weight: 110 LB
Max Workpiece Weight: 440 LB
Equipped with:
Erowa 3R Chuck
Chiller
***CALL Louie at 847-627-6009 for more details or a quote***
Get Your Price from Machine Tool Technologies!
