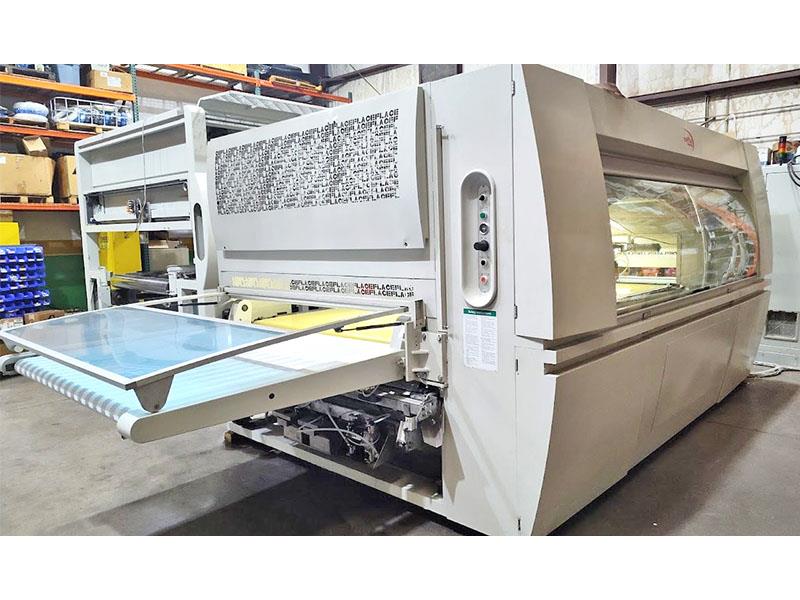

20 Guns; utilized for automatic application of stain material on workpieces; the "Roto-Stain ROT 10 + 10" represents a new generation Spray Machine from CEFLA, the leader in CEFLA "ROTOSTAIN RT 2000 10 + 10 Rotary Stain Machine with:
20 Guns; utilized for automatic application of stain material on workpieces; the "Roto-Stain 2000 10 + 10" represents a new generation Spray Machine from CEFLA, the leader in technology development for spraying applications.
The "Roto-Stain 2000 10 + 10" incorporates CEFLA's previous innovative developments into a machine with maximum capabilities (line speed and production output) for stain application.
Continuous 65" width carbon fiber belt enables the recovery of over sprayed coating material for reuse.
Cefla's patented conveyor belt system for coating recovery and belt cleaning is controlled by the PLC and recovers approximately 98% of the coating material deposited on the belt, which is then automatically cleaned with "Coating Appropriate Solvents"
The automatic air flow system monitors and maintains consistent air flow/pressurization through spray booth. When filters become too plugged to maintain sufficient air flow, system operation is ceased
electronic control unit utilizes a 60 cell photodiode bar to monitor and regulate spray application, further maximizing application transfer efficiency
Spraying is performed through a rotary system designed for the installation of ten plus ten (10 + 10) guns in (2) coating supply circuits with recycle.
TECHNICAL SPECIFICATIONS: ● Working width from 0 - 1300mm ( 0 - 51") ● Minimum workpiece length 305mm (12") ● Speed range from 2 - 11 m/min (6.6 - 36 ft/min) ● Power consumption 10.7 kW ● Compressed air required 50 NI/min (1.8 cfm) ● Exhausted solvent /air mix 10000 mc/h (5886 cfm)
Flexispray is perfect for small production batches. It is a compact linear spray machine, perfect for applying water or solvent-based stains and paints to mouldings, narrow boards or casings up to 240 mm wide. It has a roller and belt conveyor system that is up to 6 spray guns, subdivided into 2 product circuits.
This used coil painting line is designed for processing galvanized steel sheets and s an annual production capacity of approximately 11,500 tons. Its production rate sits at 2.5 tons per hour, with the capability to handle sheet dimensions ranging from a thickness of.008" to.031", widths between 29" to 49", and ...more
