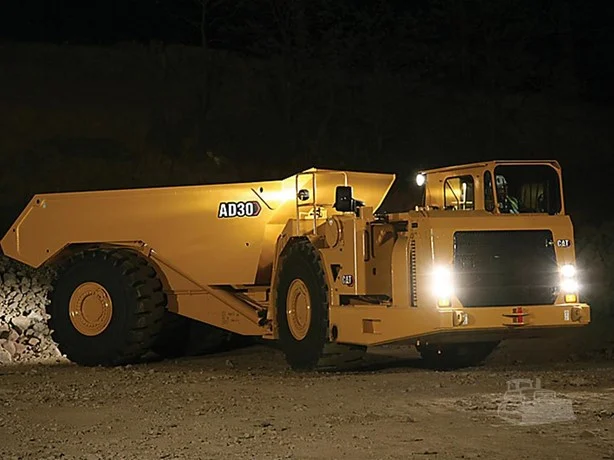

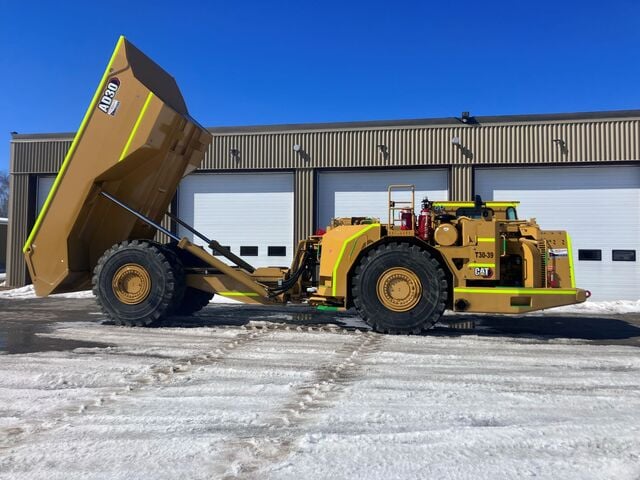

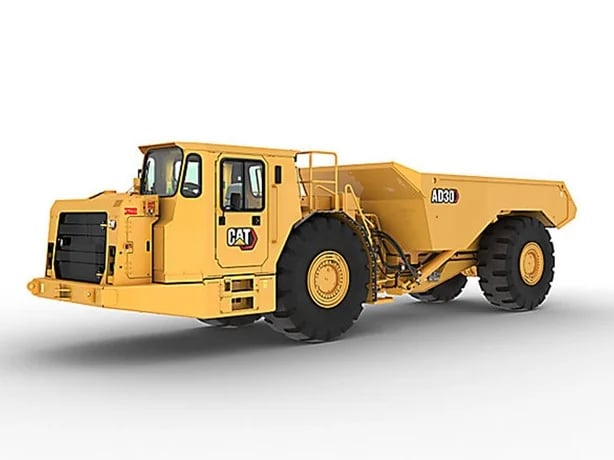

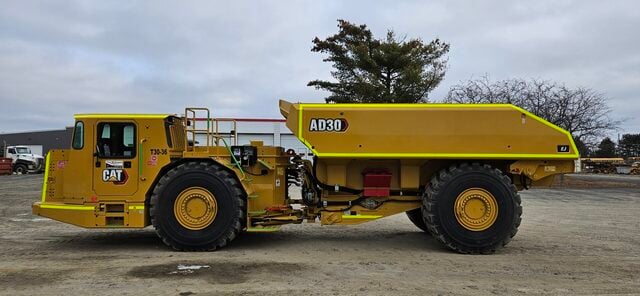

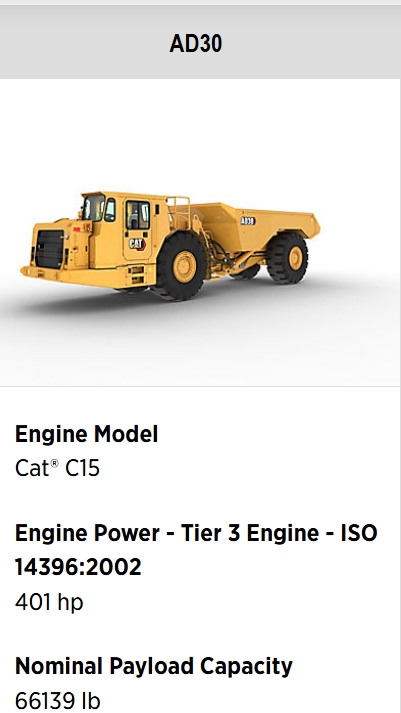

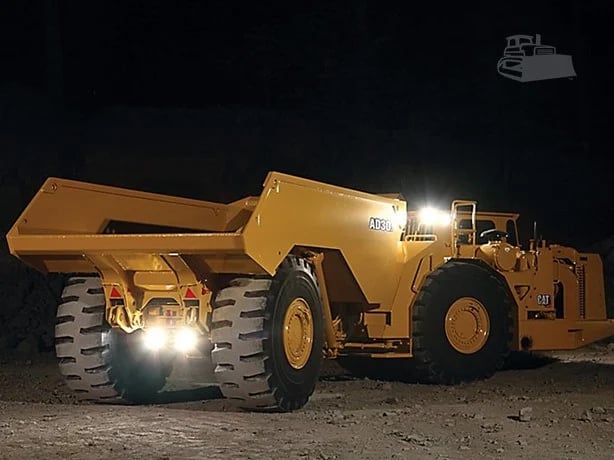

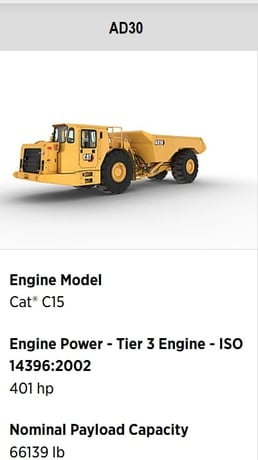

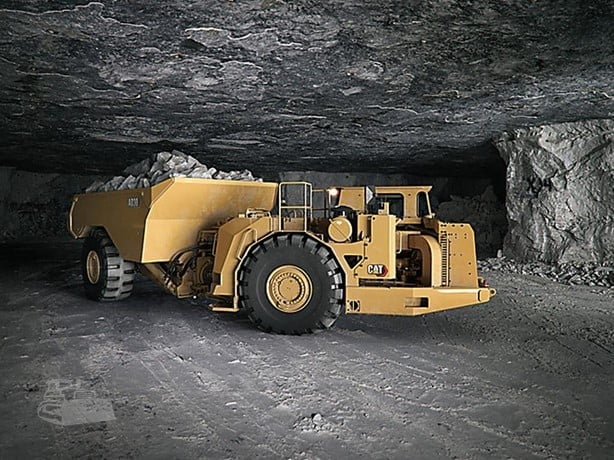

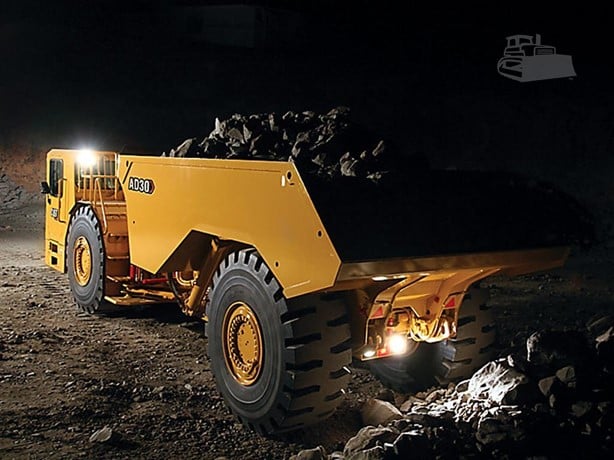

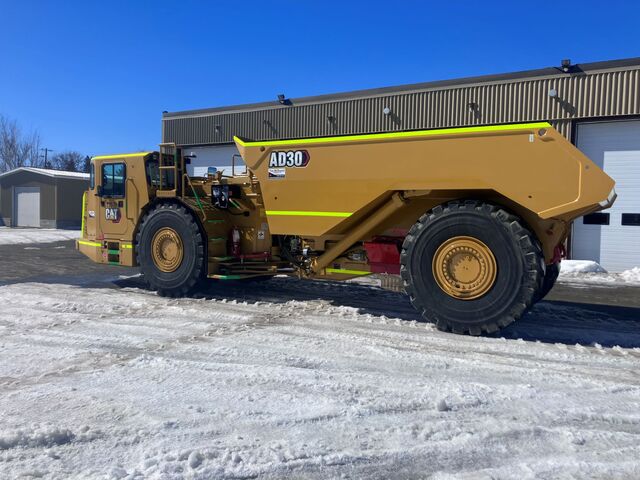

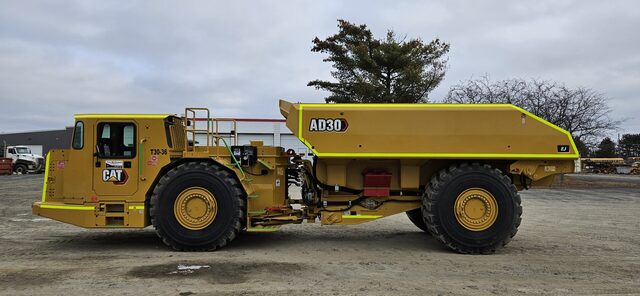

Caterpillar AD30, Underground Mining Truck, 401 HP Cat C15 diesel engine, 33-ton payload, 108-gallon fuel tank

CATERPILLAR AD30 UNDERGROUND TRUCK Powered by a Cat® C15 engine

CONSISTENT PERFORMER IN A LIMITED ENVELOPE

1. Powered by a Cat® C15 engine, which provides efficient fuel management, quick response times, high productivity and exceptional service life.

2. Optional flow-through diesel particulate filter, developed for the VR engine, that is suitable for mine sites using 15ppm Sulphur content fuel, further reducing particulate matter by ~ 51% 8 2 6 7 4 1 5 3 9 THE CAT® AD30 UNDERGROUND TRUCK.

3. Radiator guard that swings open to allow service access; high efficiency radiator as optional cooling package.

4. Mechanical powertrain and power shift transmission that offer unmatched operating efficiency and control on steep grades and poor underfoot conditions.

5. Superior braking performance with integrated braking system; four-wheel, multiple disc brakes; and Automatic Retarder Control 6. Frame constructed using box sections with stiff frame beams to resist twisting forces

7. Articulating and oscillating hitch that helps the truck maintain all-wheel ground contact even in rough terrain, providing better control and reducing stress on the hitch

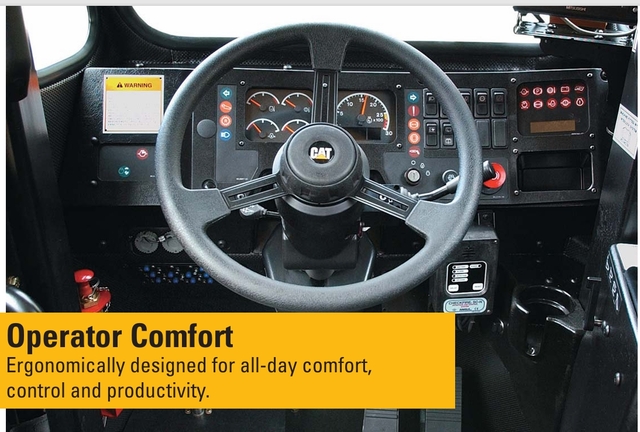

8. Continuous focus on operator’s safety and comfort, including ROPS/FOPS cabin with ergonomic layout, Operator Present System and interior and exterior safety details

9. Illuminated steps for operator safety.

10. Optional reverse camera that shows the view behind the machine and enhances the operator’s visibility to surroundings

11. Truck Payload Measurement System (TPMS), which allows a mining operation to manage payloads and ensure that trucks are not under- or over-loaded.

12. Six body options available including two ejector bodies, which can be easily removed and replaced with a dump body for a more versatile machine

13. Ansul LVS (wet) Fire Suppression available

14. Optional Autolube system available

15. Tray locking pins to ensure safety when performing maintenance under the body

16. E-stops and fire suppression activation point
