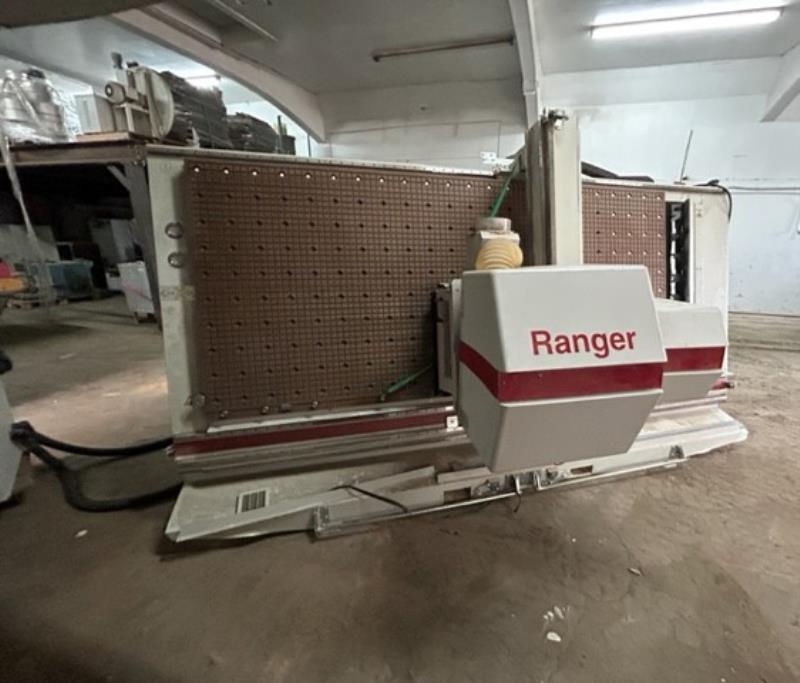

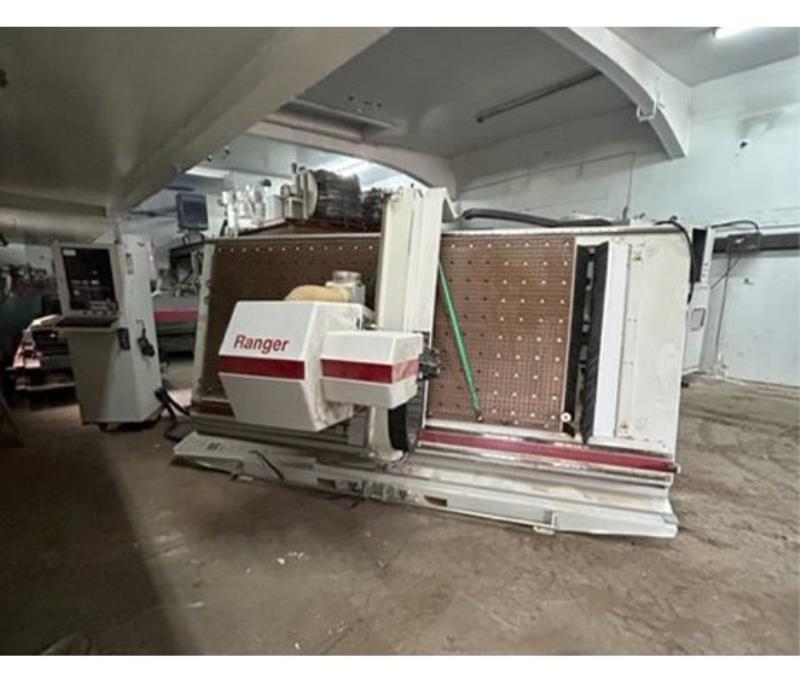

Casadei #Ranger-MC3012, Vertical CNC Machining Center w/ATC, 118" x, 47.2 Y, 3.9" max part thickness, 2009

Estimated monthly payment valid upon approved credit.

Request Formal Quote

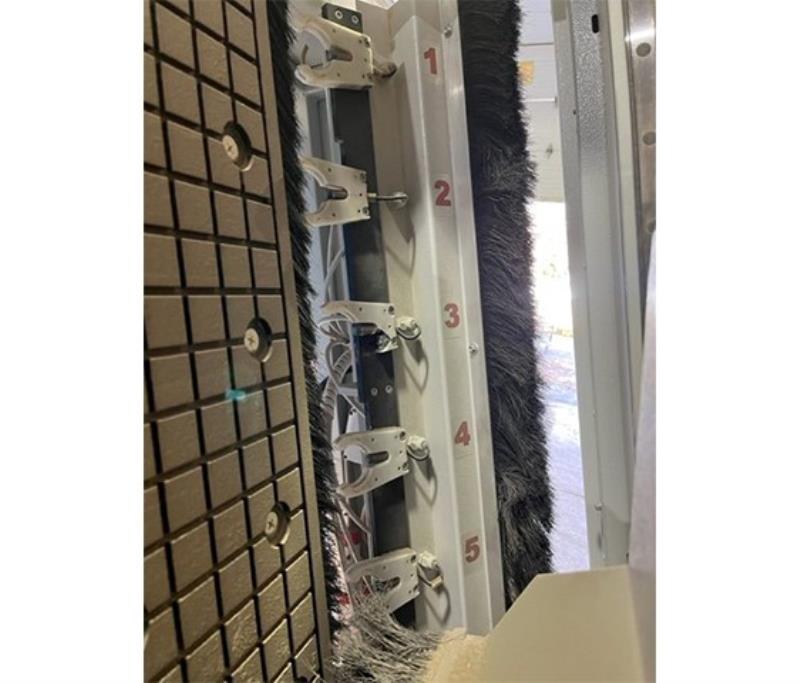

CASADEI RANGER MC 3012 CNC MACHINING CENTER (VERTICAL, W/ATC): -- Specifications: Flexible "Vertical" Machining Center reaches movement speeds of 131 FPM (40 MPM) in X-axis, 98 FPM (30 MPM) in Y-axis, & 66 FPM (20 MPM) in Z-axis. -- Work Capacity:Max. part size for: X-Axis is 118" (3,000 mm); Y-axis 47.2" (1,200 mm); max. part thickness 3.9" (100 mm). -- Worktable:Vertical Phenolic MATRIX Grid table with: (5) Adjustable "tubeless" pneumatic locking panel supports, (3) adjustable vacuum pods per support.Pop Up Pneumatic backstops & pneumatic side stops for material positioning on the LH or RH side of the machine for mirror imaging. -- Boring Unit:(1) Boring block with: 2.25 HP (1.7 kW) - 4,000 RPM Motor.(10) Vertical spindles with: (5) Spindles in X-axis & (5) spindles in Y-axis.(6) Horizontal spindles with (2 + 2) in X-axis & (1 + 1) horizontal spindle in Y-axis.(1) X-Axis grooving saw: 5,000 RPM; for max. 120 mm dia. saw blade. -- Machining:(1) 6.7 HP (5 kW) Router with: ISO 30 Adaptor, variable speed from 1,000 - 18,000 RPM.(1) 5-Position ATC rack mounted on the side of the working unit. -- Operator & Machine Control:CNi PC Front End + Windows "XP" Operating System; 17" LCD, TFT monitor; international keyboard, soft touch keypad & industrial mouse; RS-232 Serial ports, USB ports; Ethernet connection.Real-time multitask processing; programs can be transferred via USB or downloading by wire is possible. -- Complete with:(1) 100 CBM/Hr BECKER Vacuum Pump; sound enclosure & perimeter safety devices. -- Actual Model is: CASADEI - RANGER MC 3012.
