$7,100 USD
Description

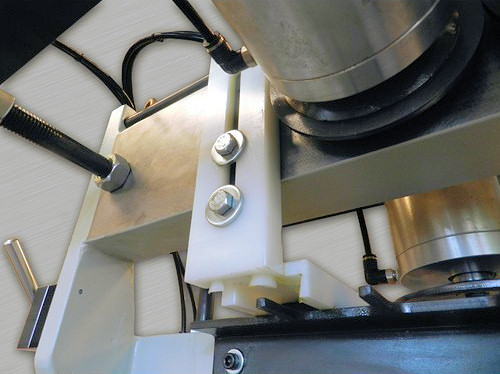

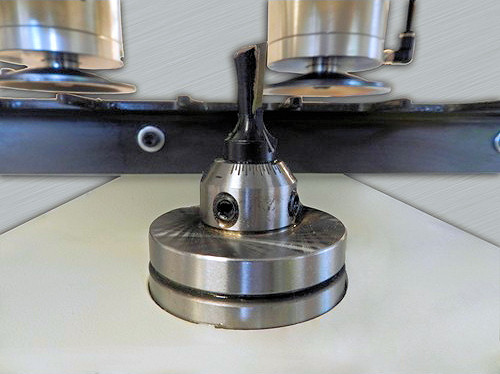

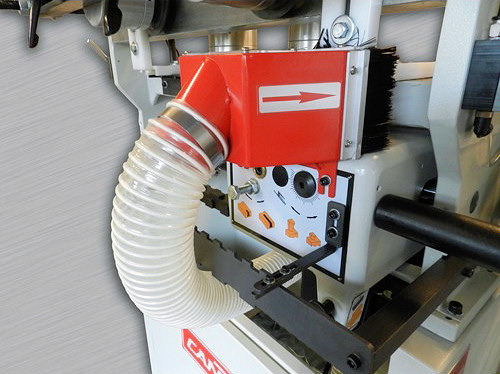

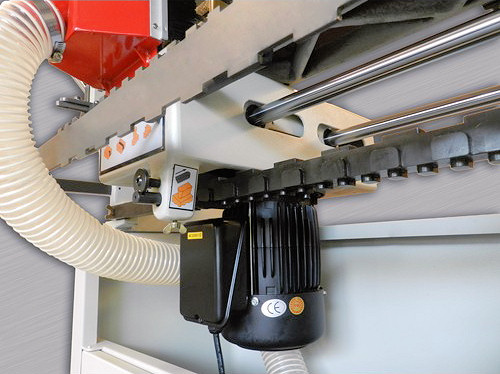

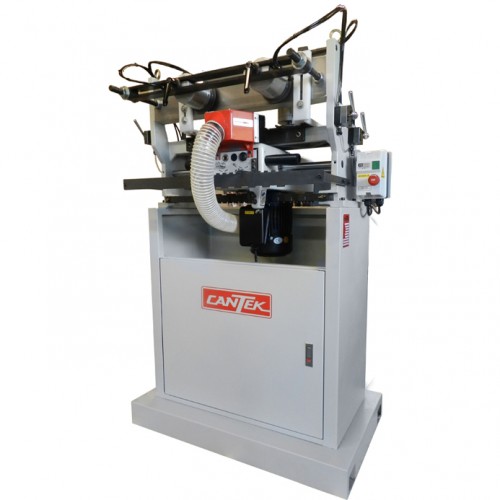

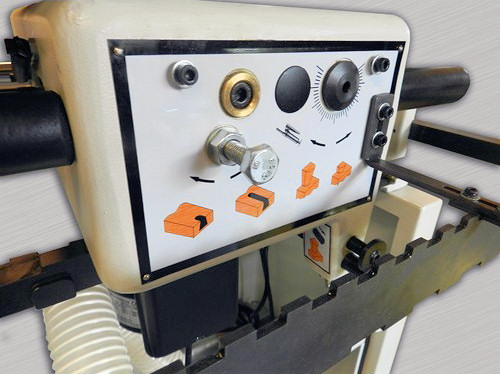

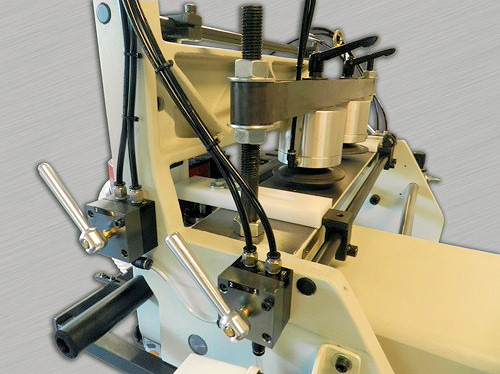

CANTEK JDT-65 Single Spindle Manual Dovetail Machine: Single spindle Dovetailer for machining male & female dovetail (English type) in (2) joining drawer parts in (1) cutting cycle. -- Features: 1 HP - 18,500 RPM spindle rotation for an extremely fine finish on dovetail joints; high RPM spindle allows for precision machining of plywood & solid drawer sides. -- Independent adjustment of both the tenon and the mortise depth for precise fitting of dovetail joints. Dust hood for milling cutter, safety rail in front of spindle motor. -- High quality pneumatics Work pieces are clamped by pneumatic clamps for smooth feeding, resulting in quality cutting with cast iron base to ensure vibration free cutting. -- Work Piece Dimensions: Working Length: Min. 7.9" (200 mm) to max. 59" (1.500 mm), working width: min. 2.4" (60 mm) to max. 16.5" (420 mm), front material thickness: 0.28" to 2.36", side material thickness: 0.28" to 3.6".Machine Specifications: Standard pitch: 1", 1-1/2", 2" and 2-1/2". -- Spindle Speed: 18,500 RPM and 1 HP Spindle motor. -- Spindle Diameter: 0.472" (12 mm). -- Feed Speeds (3): 16, 22 and 31 Cy/Minute. Shipping dimensions & weight: 42" x 31" x 63" and 539 Lbs.
Inquire Further with Ex-Factory!
