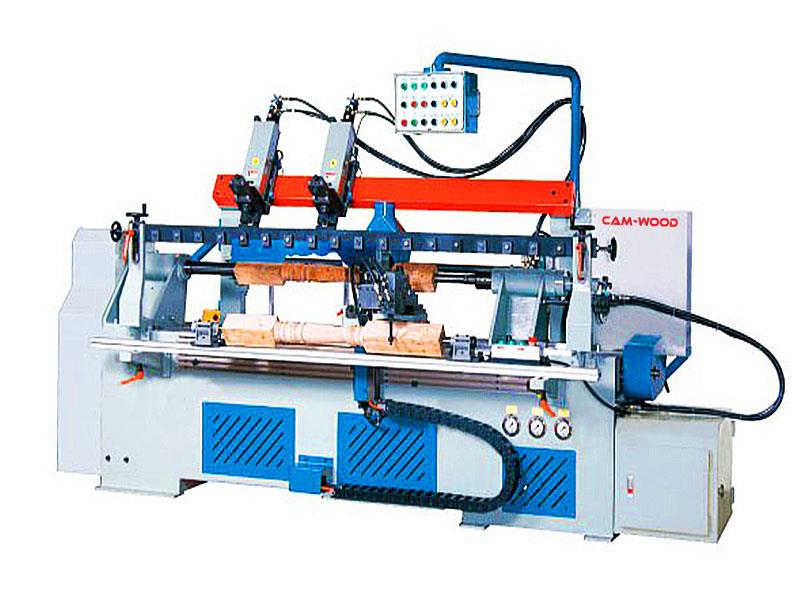

Cam-Wood #XCL-59, automatic copy lathe, 59" cc, 7.5 HP, 4.25" finish product diameter, 2025, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

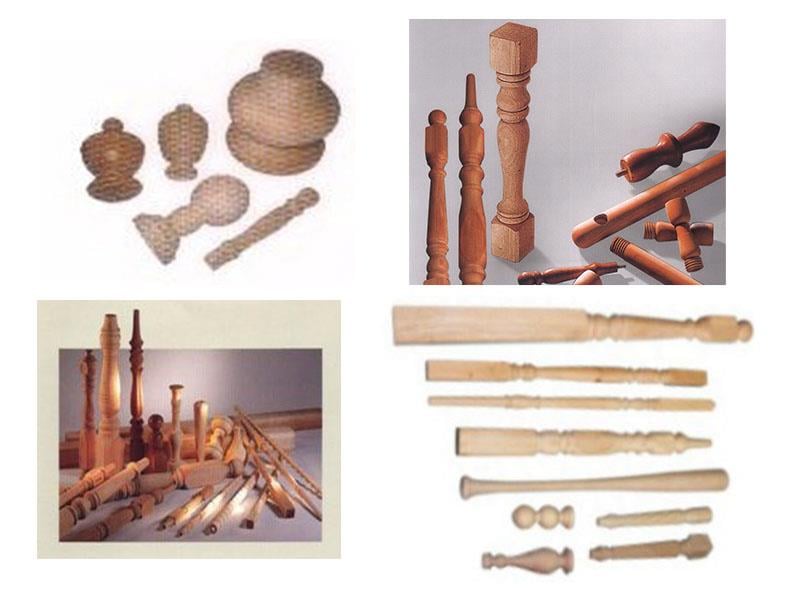

CAM-WOOD XCL-59 Auto Copy Lathe. via a template. SPECIFICATIONS: --Max. Between Center: 59". --Max. Finish Product Dia: 4-1/4". --Spindle Speed: 2,000 ~ 6,000 RPM. --Main Motor: 7.5 HP. --Hydraulic Motor: 3 HP. --Template Copier: One. --Model Copier: One. --Max. Copier Travel: 3-1/8". --Total Cutting Knives: 4 (including top plunging knives) --Feed Speed: Variable. --Includes (2) top plunging knives which can hold profiled or flat knives for dowel ends, etc. --Operation Modes: Manual Semi-auto, Auto. --Gross Weight: 3,400 Lbs, Net Weight: 2,900 Lbs.FEATURES: Suitable for small quantity and multiple style production uses. Can use sample or template for duplicate productions. Cutter carriage forward and backward movements are hydraulically operated with feed.speed control, providing a smooth motion and stable cutting performance. Adopts the precision hydraulic copy unit, most forms can be duplicated. Easy to operate and lower maintenance costs. There is a tongue shaving knife to pre-cut and guide ring to support the workpiece whencutting. This enables the cutting performance to be stable and more accurate. Equipped with two sets of copying devices; one is copying device, which is driven by links andadopts U-Cutting tools. The other one is sample copy device by hydraulic system and adopts V-Cuttingtools. Equipped with material center setup rack and automatic lubricator to lubricate the slide waysand keeps the slide ways in the optimal lubricated condition. Industrial full power motor for maximum cutting capacity. Precision sealed long-life bearing. Heavy cast iron frame and table for durability usage.
