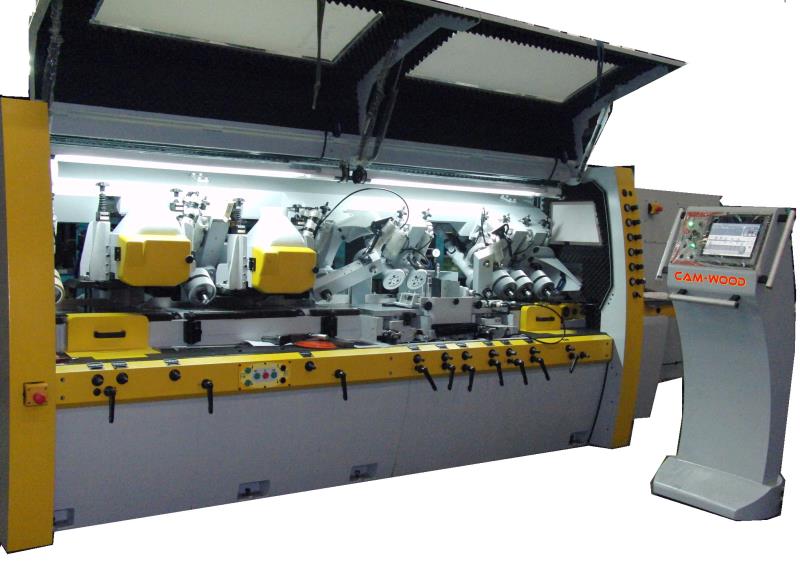

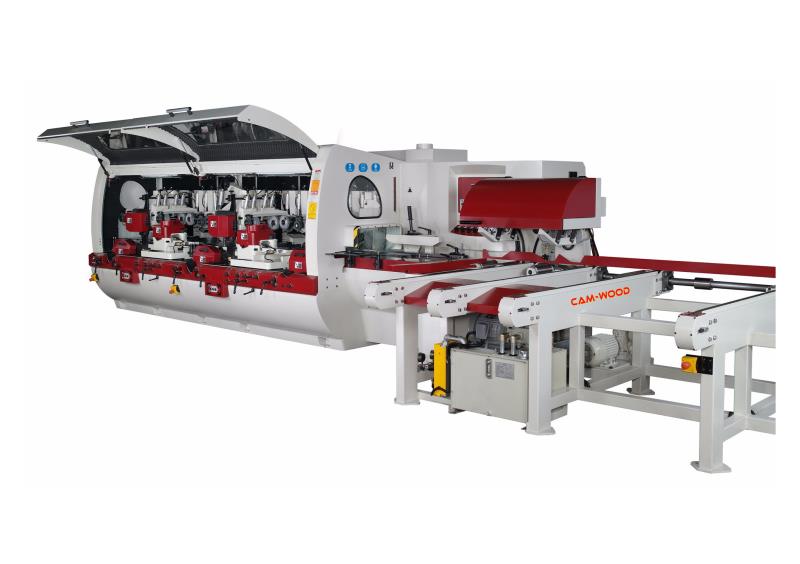

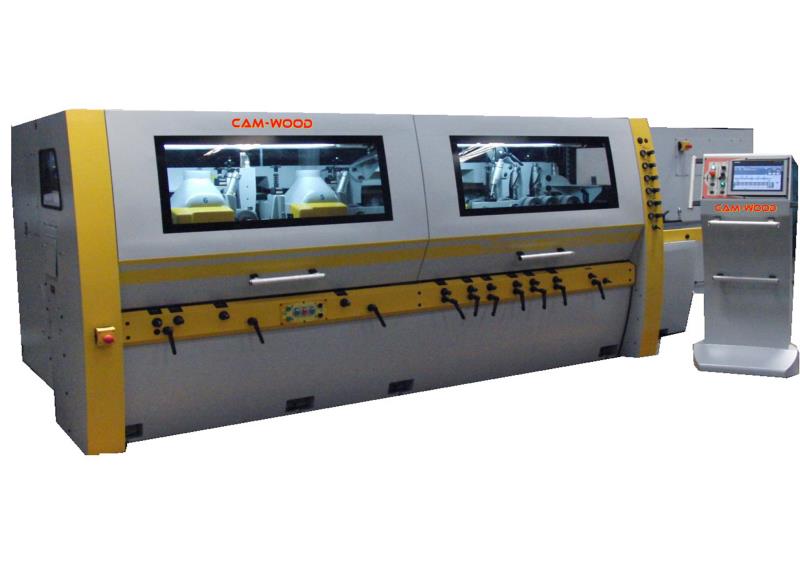

(6)-Heads (B-R-L-T-T-B), working cap. 9" x 6-1/4".
Specifications:
Max/Min working width 9-3/4"
Max/Min thickness 6-1/4" - 5/16"
Minimum length 9-1/2"
Head sequence: Bottom 10 HP, right 10 HP, left 10 HP, top 15 HP, top 15 HP and bottom 15 HP motor.
Spindle dia. 40 mm (or by request) with cutterhead speed of 6,200 RPM.
Feed works: Inverter driven, 10 HP feed system with feed speeds of 20 - 260 FPM.
Infeed table 2 M (6'6"), chromed tables, and fences. Side pressure roller mounted at the infeed.

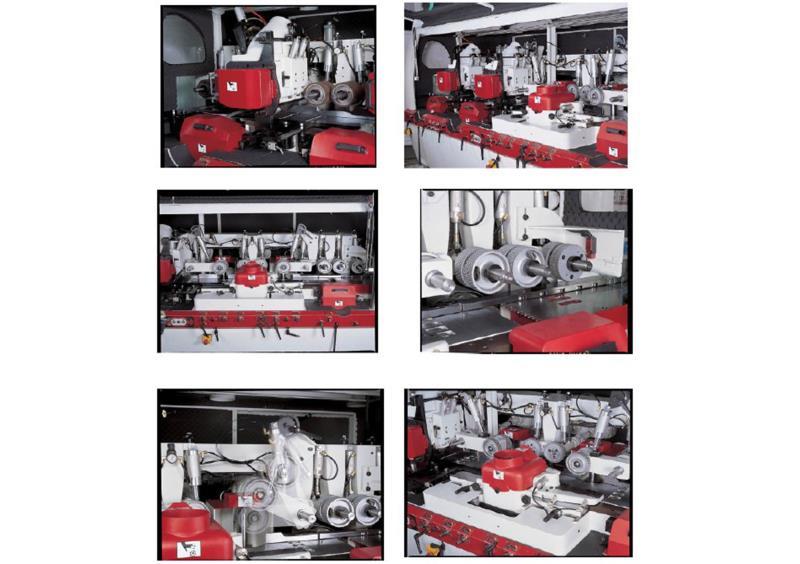

Features and complete with:
SM-237-DG where the last bottom spindle can be used for cutter head or saws with inverter RPM control
HMI Touch Screen Control for all the head positions
Automatic setting from 2nd to 6th heads, (2) axis positions and thickness control by servo control movement
200 sets of memory (Extendable)
Feed speeds ranging from 20' ~ 260' per minute are standard specifications.
Hard chrome-plated table for maximum wear resistance.
Full enclosure safety hood reduces noise and completely prevents chips from splashing.
Anti-impact plate for over-width and over-thickness protection.
Oversize top and bottom rollers run synchronized, ensuring smooth feeding.
FRP plastic steel safety guard features maximum durability and is impact resistance.
The three independent section pneumatic pressures for the infeed rollers, in-process rollers, and outfeed rollers can be set with individual pressure allowing for consistent feeding results and outstanding effect.
The smooth initial feeding of the stock is achieved by the independently powered infeed rollers.
Exclusively designed template inserted pressure plate suits various stock thicknesses and profile variations.
A special pressure plate with table feeding roller design, provides smooth and precise cutting of dry and wet wood, reducing the possibility of material jams.
All control levers for the spindles are located at the front of the machine for convenient adjustment.
Vertical spindle adjustment up to 80 mm, allows fitting several tools on the vertical spindle, eliminating troublesome cutter change.
Separate adjustment of the vertical spindle and insert table permits the table to be positioned extremely close to the cutterhead for added cutting stability.
An individual motor drives each spindle and is separately mounted to eliminate spindle chattering during high-speed running.
Centralized lubrication system
Available options:
Automatic jointer head for all (6) heads add ...$ 58,500
Siko encoder with digital display for all axis add ...$ 4,200 per head
