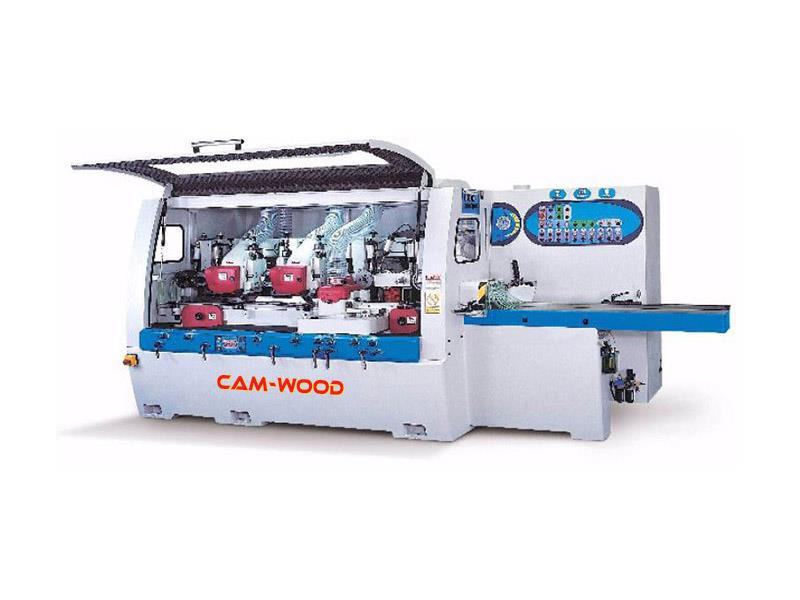

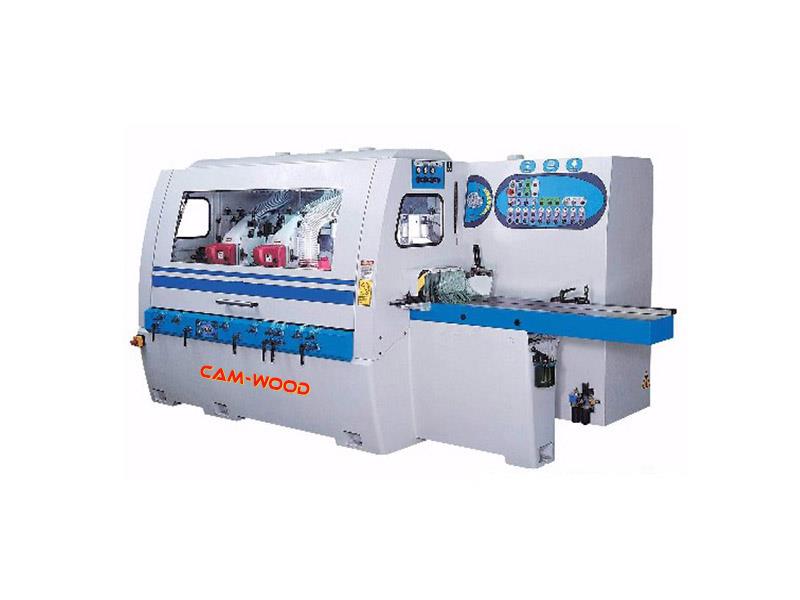

Cam-wood SM-623LX, feed through moulder, 6-head, 9-3/4" x 5 1/4" working capacity, 40 mm spindle diameter, 7200 RPM, 2026, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

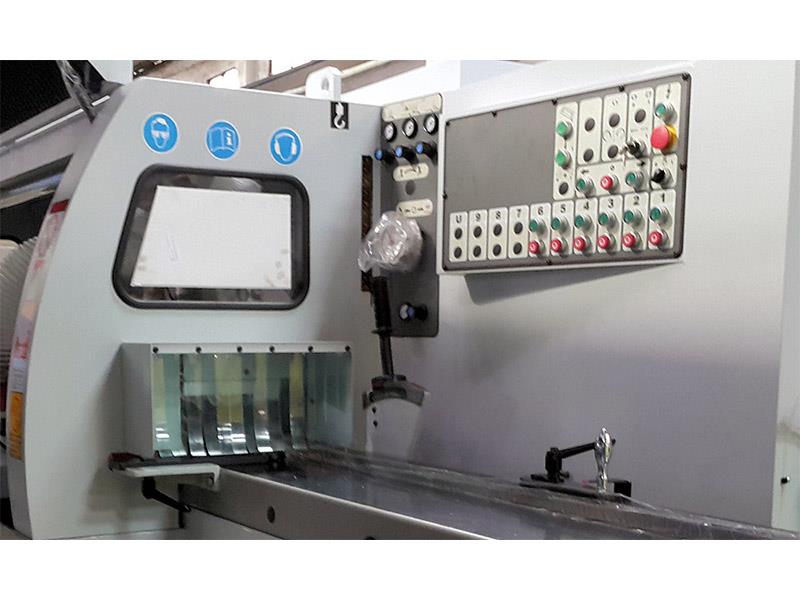

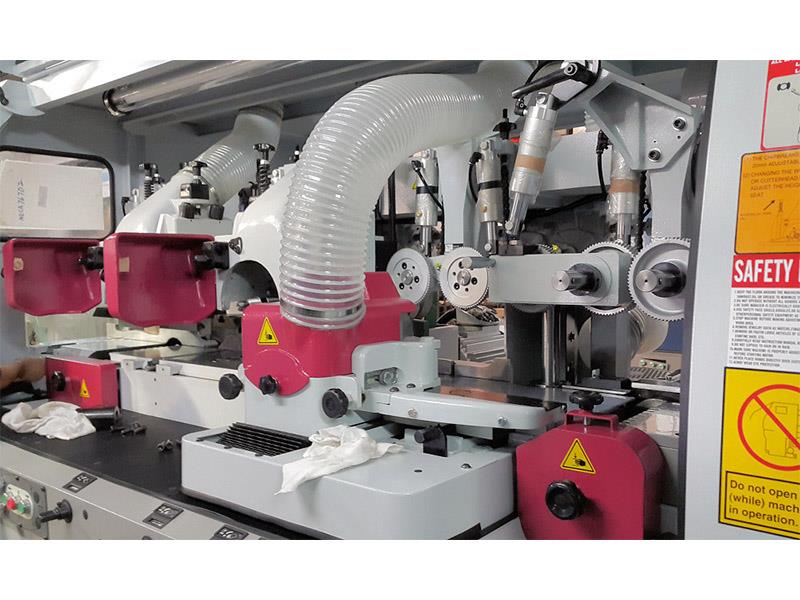

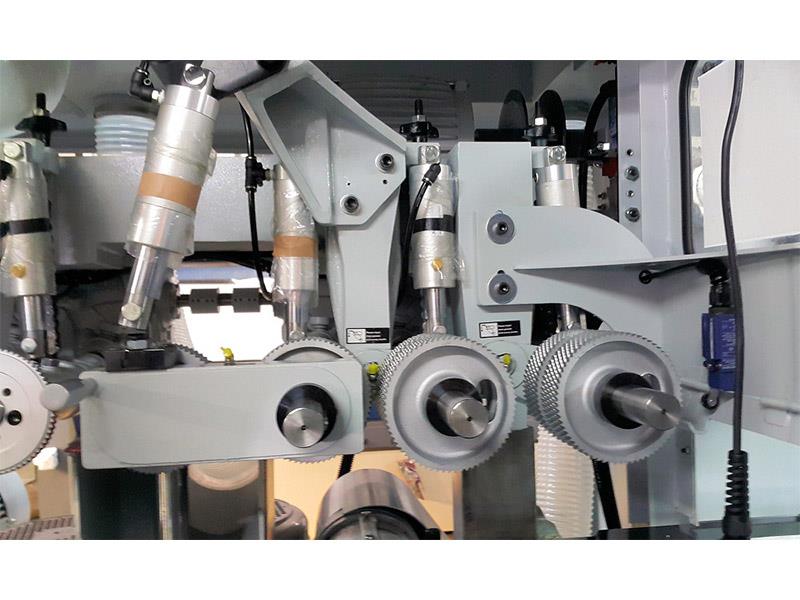

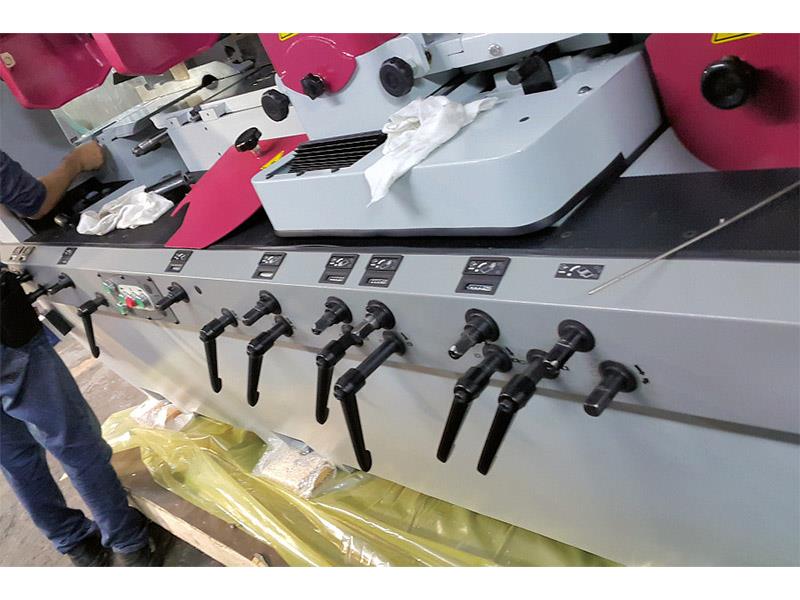

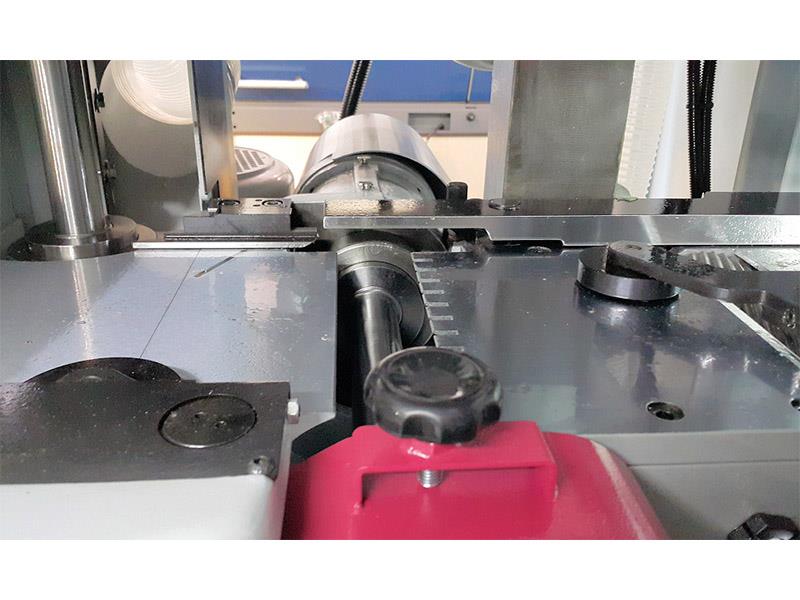

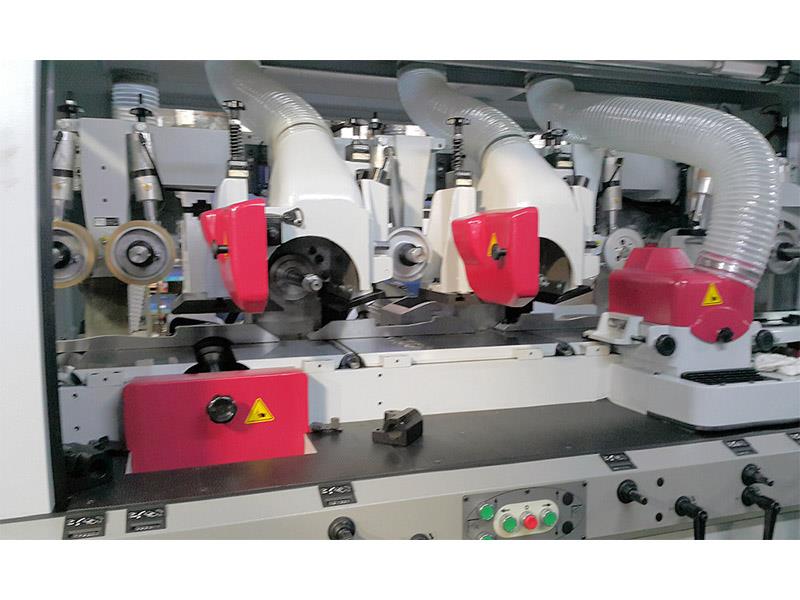

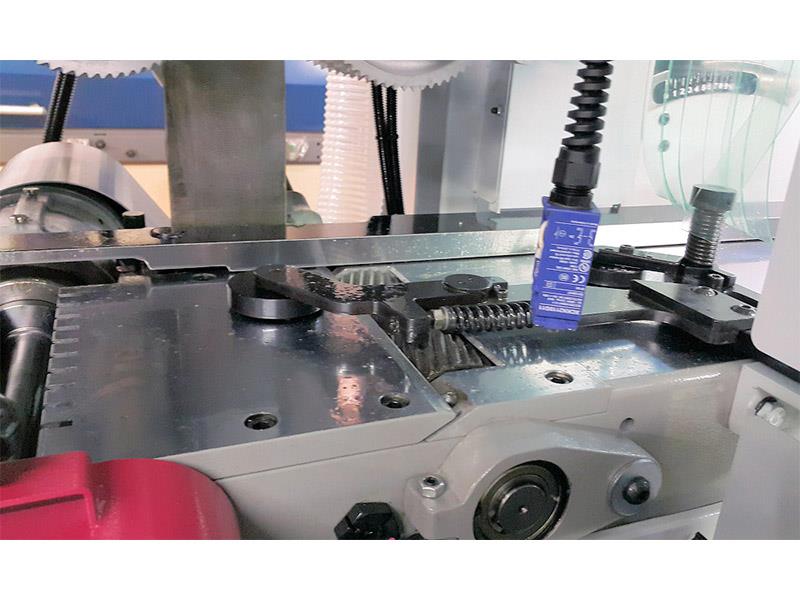

CAM-WOOD SM-623L Moulder, Feed Through 6-Head (B-R-L-T-T-B), working cap. 9-3/4" x 5-1/4". Head sequence: -- Bottom 10 HP, right 10 HP, left 10 HP, top 20 HP, top 15 HP, and bottom 20 HP motor. -- Spindle dia. 40 mm with a cutter-head speed of 7,200 RPM. All spindles with mechanical digital readouts. -- Feed: Variable speed of 26 - 119 FPM, with 7-1/2 HP feed drive motor. Powered feed rollers top and bottom. -- Infeed Straightening table 2M (6'6"), with side pressure roller and table lubrication pump. -- Dust outlet Diameters are 5" X 6" outlets. Includes: -- Hard chrome-plated fences and table, -- Operator/spare parts manuals, -- Centralized control panel, -- Sound and safety enclosure, -- Short stock feeding mechanism (9 1/2" min length), -- Power elevation (1-1/2 HP beam.)Options:Training and installation, tooling & rigging are optional. -- SM-KFST Knife Setting Stand ...$1,970.00The machine base is one piece coated from high-quality cast iron (FC-25) for maximum stability of the structure. Base is machined by CNC machine equipment to ensure the utmost working accuracy. Net weight 11,220 Lbs Shipping weight 12,300 Lbs.
