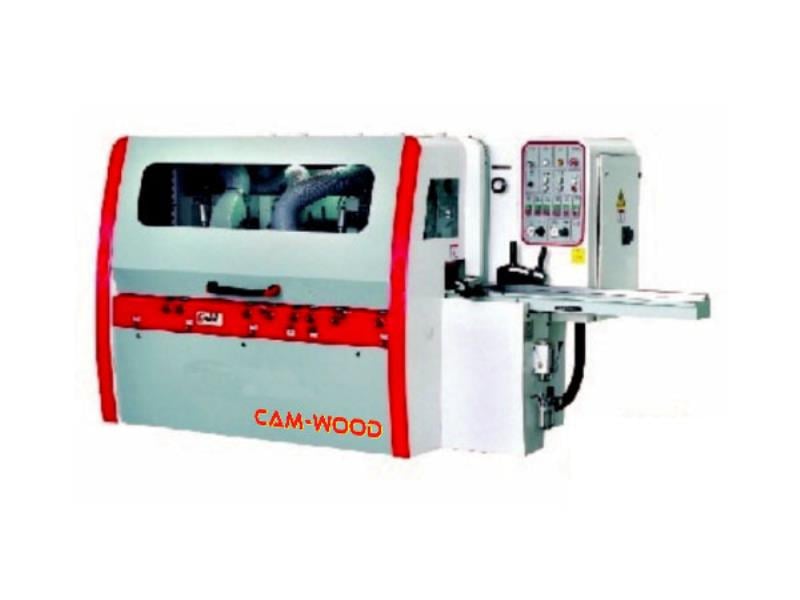

Cam-wood SM-155AX, feed through moulder, 5-head moulder, 6" width, 4.75" max thickness, 9 1/2" length, 4 HP feed motor, 2026, new

Estimated monthly payment valid upon approved credit.

Request Formal Quote

CAM-WOOD SM-155AX Feed Through Moulder 5-Head Moulder with a 6" width and a 4.75" max. thickness capacity.Overall Description: -- Cast Iron mainframe to maximize stability & minimize vibration during operation for years of use. -- Fully enclosed sound hood with lift-up door for easy set-up access. -- Adjustable infeed table w/fence for straightening rough sawn material. -- 16 - 66 FPM Variable feed speed system with top-driven rollers. -- All spindle adjustments except 1st bottom spindle with mechanical digital readouts. -- Left and Top spindles with mechanical Digi-set readouts. Chipbreaker and pressure element with mechanical digital readouts for accurate adjustment and precise settings.Complete with: 5' Infeed table length, Chromed table plates, fences, and pressure shoes. Manual Waxilit pump, Central lubrication of the machine from the front side.Specifications: -- Max. (Min.) Working Width 6" (3/4") -- Max. (Min.) Working Thickness 4-3/4" (5/16") -- Min. Working Length 9½". -- 1st Spindle Horsepower 7½ HP. -- 2nd, 3rd Spindle Horsepower 5½ HP, 5½ HP; -- 4th, 5th Spindle Horsepower 10 HP, 7½ HP. -- Cutterhead Dia.: 1st Bottom Head 5" dia.; 2nd, 3rd Vertical Head 5" - 6-1/4" dia.: 4th, 5th Head 5" - 7" diameter. -- Feed Motor 4 HP. -- Elevation 1 HP motor. -- Spindle Diameter 40 mm. -- Cutter Head Speeds 6,500 RPM. -- Variable Feed Speeds 16 ~ 66 FPM. -- Pneumatic Air 90 PSI (5 CFM by bolume) -- Dust Outlet Diameter 5" x 5" -- Net Weight 5,900 Lbs; Gross Weight 6,700 LbsIncludes: -- Operator/spare parts manuals and setup tools.
