Cam-Wood #Set-108TS-SHJCX, double end tenoner, 8-head, 120" working cap., 2026, new

Manufacturer: Cam-Wood
Year: 2026
Stock # TE-300039

For Sale by Ex-Factory

Surplus Record Dealer Since 2022
Gold Level Dealer
Location: Charlotte, NC
Contact Sales Dept.
Let the seller know you found their listing on Surplus Record!

Description

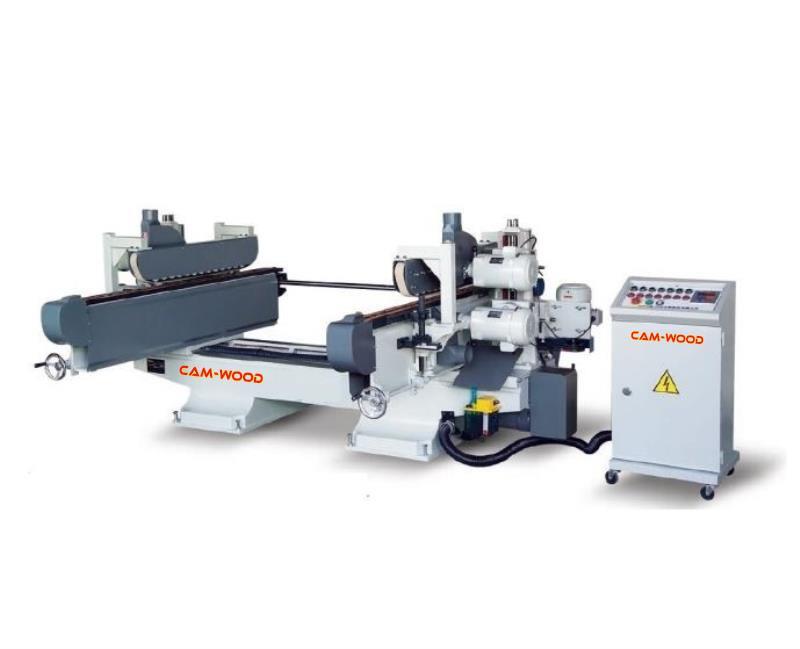

CAM-WOOD SET-108TS- SHJC Double End Tenoner, (8) Heads

Capacity & Style:


  • Max. 120" working capacity, min. 12"; max. 2" opening(thickness), 24" load area in front of hold-downs.
  • Single-post machine, single "dual-track" base, right side fixed, left side movable.
  • Motorized opening with LED indicator.

    Each side equipped with:
  • Top scoring head, 2 HP - 3,600 RPM motor, 1" dia. arbor for up to 10" blade.
  • Top trim head , 10 HP - 7,200 RPM motor, 5-7/8" (150 mm) long & 1" dia. arbor, 8" max. dia. cutter-head.
  • Cope shaping head, 7.5 HP - 7,200 RPM motor, (150 mm) 5-7/8" long x 1" diameter arbor, 6" to 8" max. dia. cutter head
  • Jump coping head, 7.5 HP - 7,200 RPM motor, (150 mm) 5 7/8" long X 1" diameter arbor, 6" to 8" maximum dia. cutter head
  • Variable feed speed from 12 - 52 FPM, 2 HP motor, steel feed chains with plastic anti-slip pads, and dogs at 6" center.

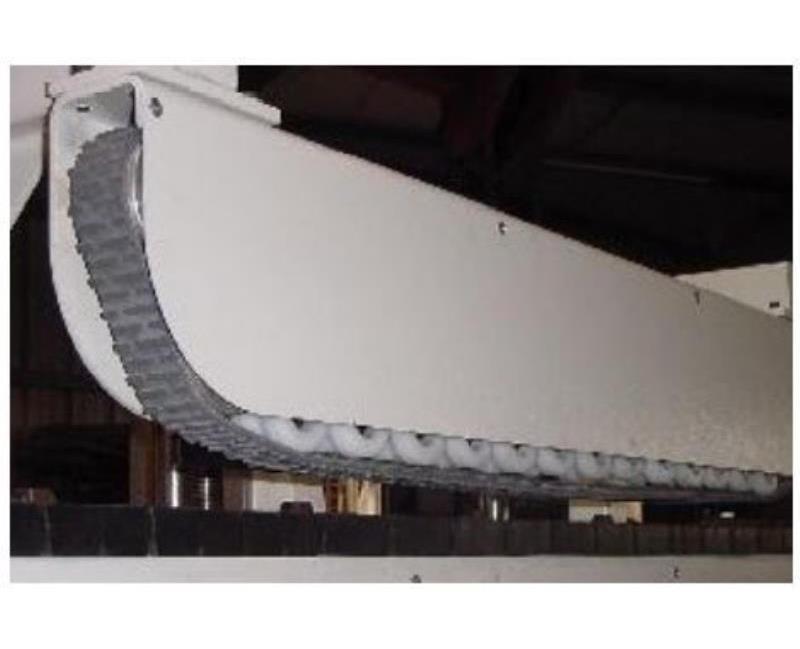

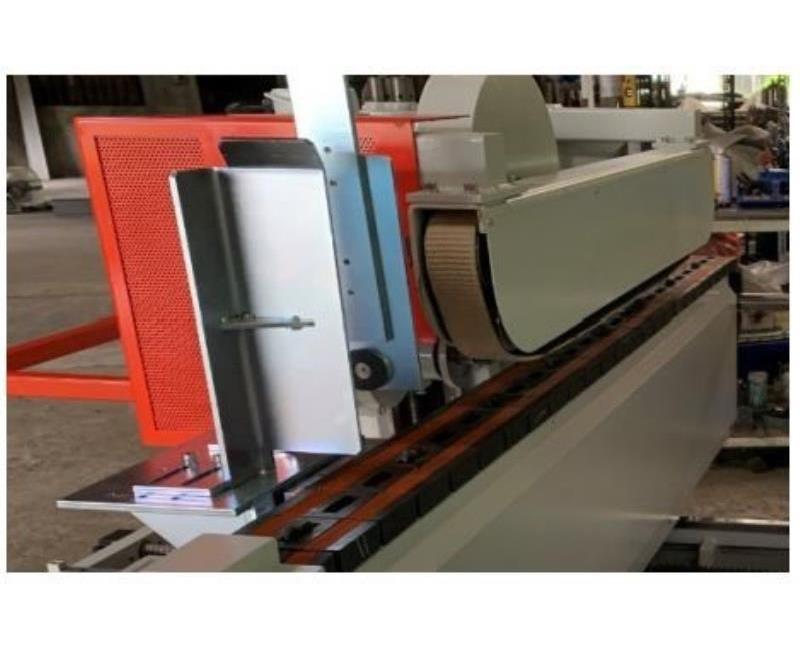

  • Spring-loaded overhead hold-down beams with endless belts.

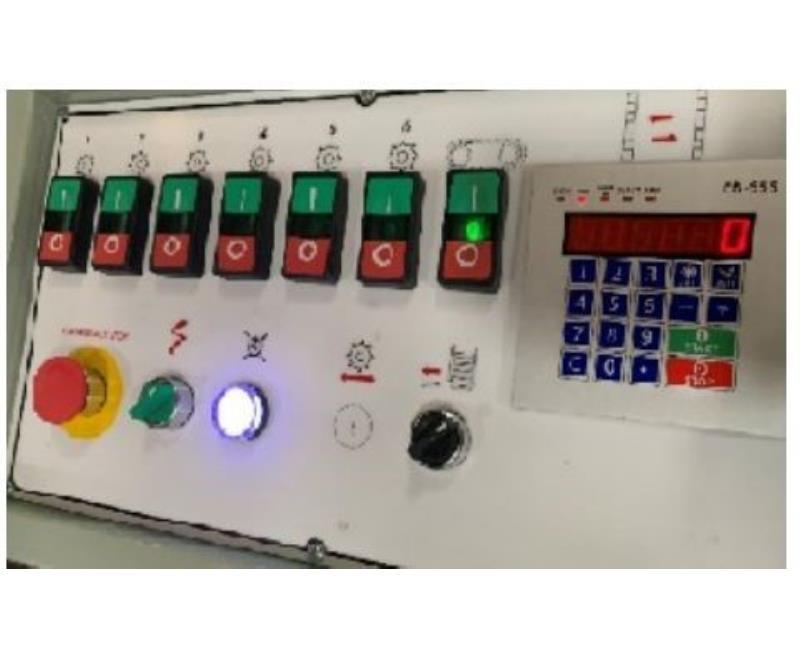

  • Separate electrical control cabinet with operator controls.

    Options Available: (Pricing to be confirmed at time of order)

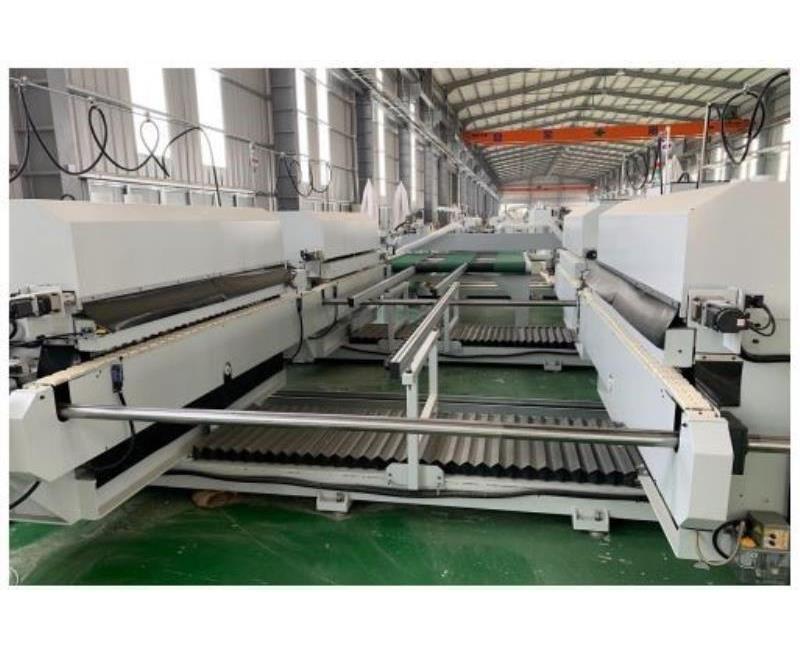

  • Cross transfer system with transfer line 4' X 8' transfer table with rollers (additional ...$48,650).
  • Hopper feed magazine (additional ...$4,990).
  • 42" Infeed extension (additional ...$5,620)
  • Pneumatic jump control on scoring or shaping unit.
  • Sound enclosure (...$8,625)
  • Electric motor brake
  • Central support Included for 10' opening machine

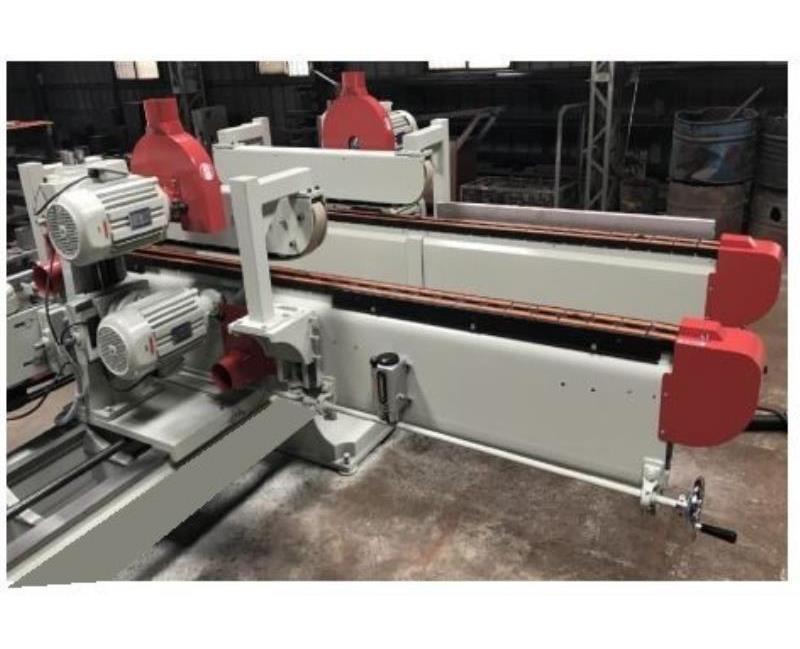

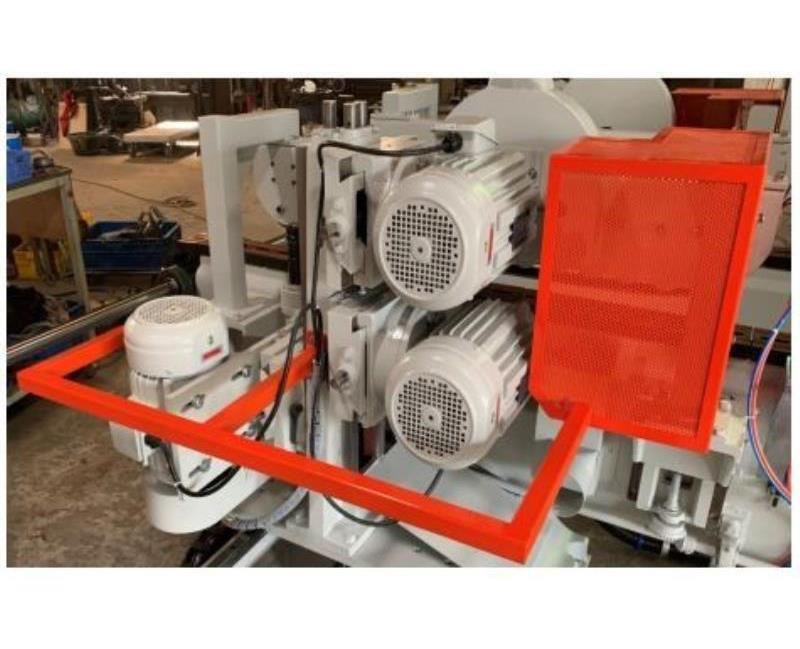

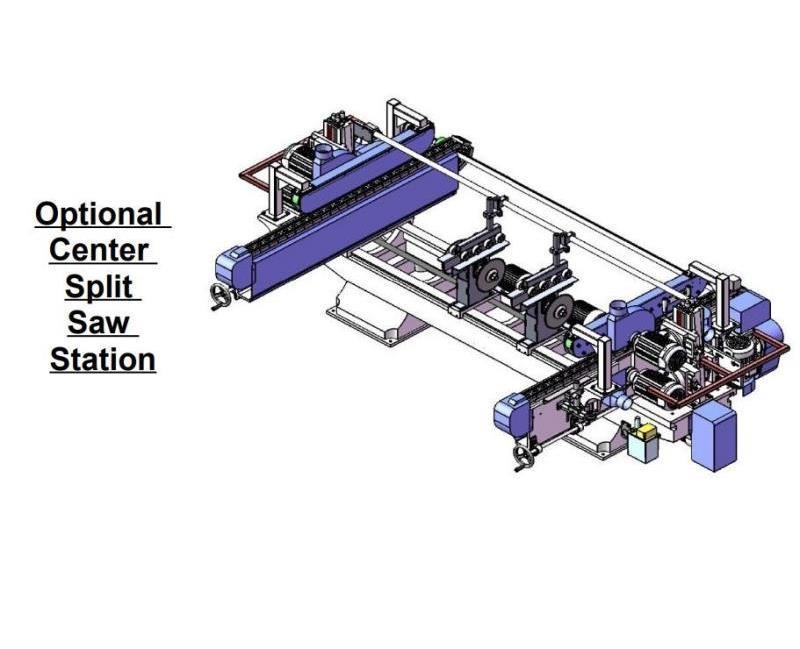

    Note: Pictures are showing the machine with several options included

Get Your Price from Ex-Factory!
