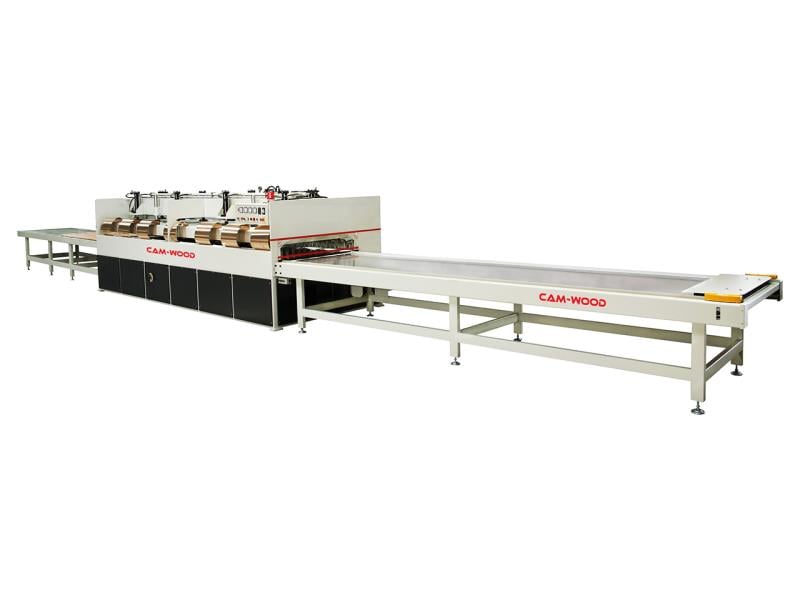

Cam-Wood PT-416-HFX, high frequency feed thru g, 4' x 16' x 4" Thickness Feed Thru, 460 V., 2026, new

$179,900 USD

Request Formal Quote

CAM-WOOD PT-416HFX Feed Trough High Frequency Press4' X 16' X 2" Thickness Feed Through High-Frequency PressFeatures: -- Mass production for wood-based boards (panels), 2 to 3 minutes for curing a 4' x 16' wood panel (board) -- Automatic infeed, outfeed cycle, mass production with a 3 - 5 minute cycle time. -- Shortens manufacturing procedures – no need to pass through for the dovetailing or joiningprocess.Equipped with: -- A massive upper plate supplies powerful hydraulic pressure pressing each part of the wood panel (board) to make even the most uneven wood panels flat. -- User-friendly operations; it is equipped with an automatic inlet and outlet feeding table system for continuous and mass production. -- The top-quality wood board is manufactured by way of glue-cured and completely hardened glue joins with high-frequency heating in the process. -- All processing steps are integrated into the HMI interface control panel for easy one-touch control on the screen. -- Utilizes high-frequency, curing glue evenly from the inner of the glue line of the wood.Technical Specifications: -- Input Power 90 KVA -- Output Power 70 kW -- Max. Working Width 49" -- Max. Working Length 192" -- Working thickness 9/16" ~ 2" (3 1/8" optional) -- Pressure 65 kG/cm -- Hydraulic Pump 7.5 HP -- (6) Press Cylinders from the top -- (24) Press Cylinders from the Rear -- (5) Out Feed Rollers Option: -- The PT-416HF Optional up to 3 1/8"; in thickness (15 to 80 mm) add extra $9,380.00 -- Machine Dims 600" x 87" x 87" (L x W x H) -- Machine Weight 22700 Lbs
