Cam-Wood #G2, Longitudinal Veneer Splicer, .197" thick, 13-3/4" min. L, 2.17" min. width, 212 - 428 deg.F, 59.1" heating zone, 2026, new

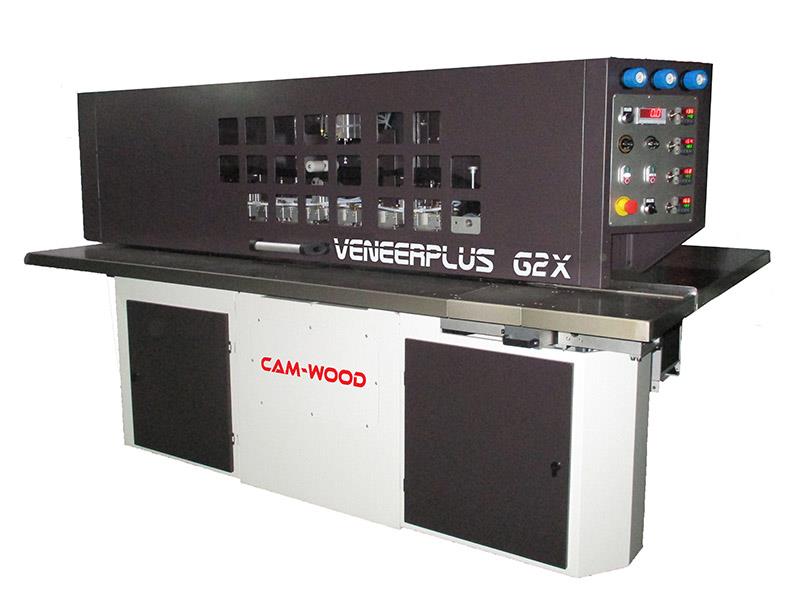

CAM-WOOD 'VENEERPLUS G2' Longitudinal Veneer Splicer with integral Glue Applicator for Thicker Veneer..... Handles Thicker Veneer - 0.5 mm to 5 mm (0.02 - 0.197"). -- General Description: Feed thru splicer with integrated glue applicator, glue with cooling system to increase glue life, joins veneer edges passing through a "disc style" glue application zone at high speed for an immediate tight joint or will join pre-glued veneers as well. A thermosetting glue that will not be affected by subsequent heat operations. -- Capability: Well-cut and trimmed veneer strips with a 90-degree jointing angle on the jointing face of veneer edges are aligned evenly by the synchronized infeed rollers; directly conveyed to the gluing unit for gluing edges and then thru the heating section for glue curing.Handles veneers with wide top and bottom feed chains; 0.5 - 5 mm (0.020" - 0.197") veneer thickness; veneer length 350 mm (13-3/4") min.; and 55 mm (2,17") min. width. -- Controls/Heating: Controls at eye-level height control panel; accurate SSR (solid state relay) heating controller with individual temperature settings & thermostats; heating temperature range 100 - 220C max. (212 - 428F); about 1500 mm (59.1") heating zone. -- Equipped with: Gluing unit powered by variable speed drive. Precise cooling system to extend glue pot life. Narrow chromium heating strips; dual upper & lower engineered plastic feeding transport chains reducing the heat on the veneers; synchronized by one variable feed speed from 26 - 148 FPM (8 - 45 MPM); depending on veneer thickness; with inverter control from the operator panel.Approx. 1.5 HP feed drive, disc roller drive feeding system w/thickness compensation. A reflective photocell sensor on the infeed section ensures alignment of the jointed edges. -- Complete with: Front and rear chromed work surface, tool box, lubricant, release agent and manuals. -- Feature: Infeed Stopper Device for smoother feeding of thick veneers above 1.5 mm. Users are recommended to adopt our stopper device if the veneer thickness is above 1.5 mm for perfect. Alignment of the jointed veneers. Stopper is mounted between the first infeed roller and the secondary gluing rollers. With this unique function, the operator can simply align the veneers perfectly at the beginning of the feeding stage. -- Services required: Approx 10.8 kW power supply; Clean compressed air 6 l/Min and 6 bar (75 PSI). -- Dimensions/Weight: 2500 x 2100 x 1600 mm (99" x 83" x 64"); approx. 1530 kG (3375 Lbs). -- Factory Warranty: (1) Year on mechanical parts and (6) months on electrical parts.
