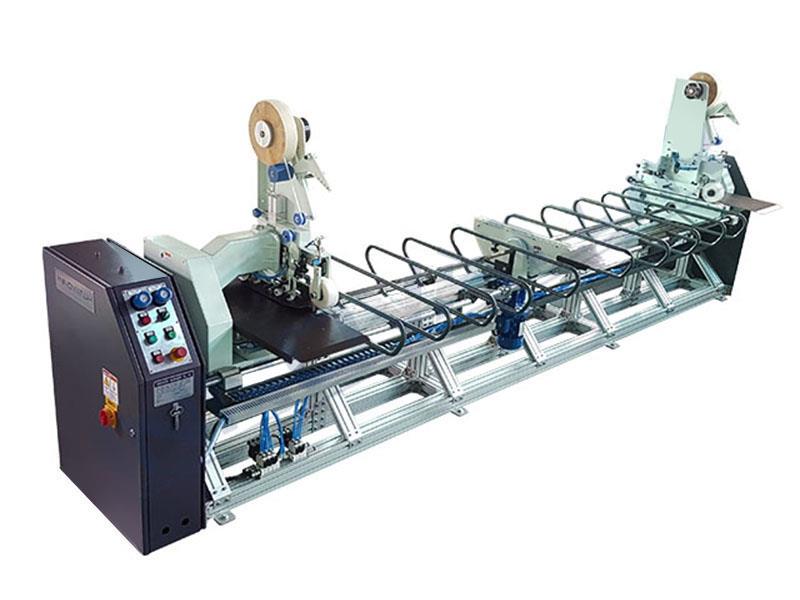

Cam-Wood #ERD-2800, veneer edge reinforcing, 23.6-110" L, 0.012-0.079 thick, w/ warranty, 2026

CAM-WOOD/INNOVATOR ERD 2800 Edge Reinforcing Machine. Tape veneer sheets up with paper and simultaneously cut off the waste as the final step. Adjustable width of trimming heads to fit the size of veneer faces as required. Device uses tape to effectively keeps the edges of veneer faces from splitting while being transported. (Can also choose not to use the adhesive and trimming function). Combining with automatic stacker with scissor lifting table is more efficient for operators. The finished veneer sheets will also be stacked automatically. -- Specifications: -- Veneer Face Length: 600 ~ 2800 mm (23.6 - 110"); 450 ~ 2800 mm (17.7 - 110") for a stand-alone machine. -- Face Width: Min. 500 mm (19.7"). Optional roller stacker 600 ~ 1400 mm (23.6 - 55"). -- Veneer Thickness: 0.3 ~ 2.0 mm (0.012 - 0.079"). -- Production Speed: 15 ~ 25 m/min (50 - 83 FPM). -- Cut-off Each Side: 15 ~ 300 mm (0.59 - 11.8"). -- Electric Power: Approx. 1.1 KW (1.5 HP). -- Compressed Air: Pressure 5 bar (73.5 PSI). Compressed Air Consumption: 6 L/min.(0.21 CFM). -- Working Height: 900 mm (35.4"). -- Dimensions (L x W x H) 4700 x 1200 x 1750 mm (185 x 48 x 69"). -- Net Weight: Approx. 850 KG (1900 Lbs). -- Features: -- Infeed and taping pressure pneumatically adjustable. -- User-friendly control panel for clear and easy operation. -- Can be connected to ULTIMATE series or as a single unit. -- Veneer alignment via stopper device with well-known brand SICK sensors. -- Trimming by roll knives with maximum veneer cutting thickness of 2.0 mm. -- Optimized laser system. Taping and trimming positions are indicated precisely via the optimized laser guide. -- Veneer trimming positions simultaneously adjustable for both sides as a single unit, and individually adjustable for a single side (right hand/left hand) while connected to ULTIMATE series. -- Recommended Option: -- Automatic roller stacker with scissor lifting table for stacking veneer sheets. The jointed veneer faces will be transported onto the automatic roller stacker. With specially designed stacker, jointed veneer faces are then placed well on the top of the hydraulic scissor lifting table and well settled for stacking efficiency
