Description

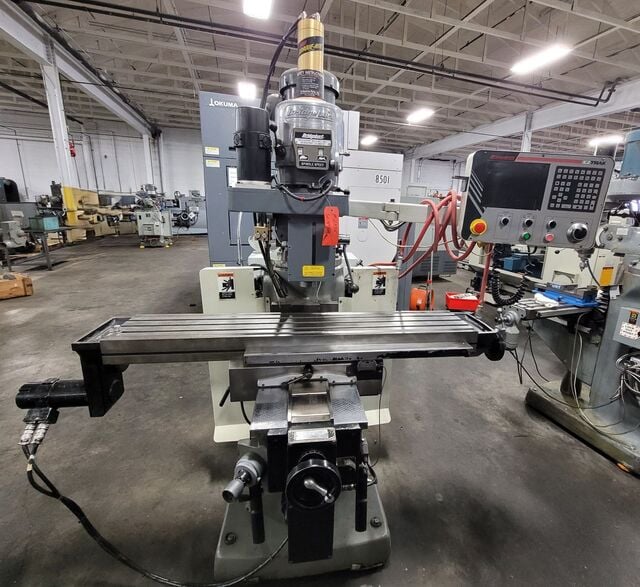

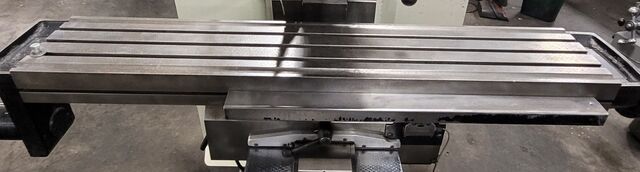

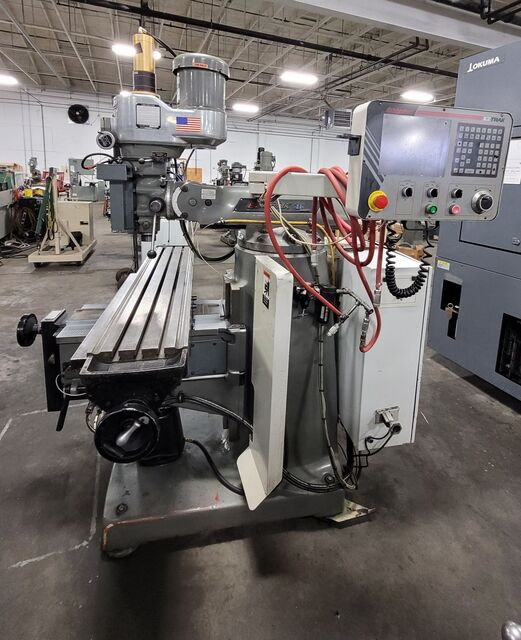

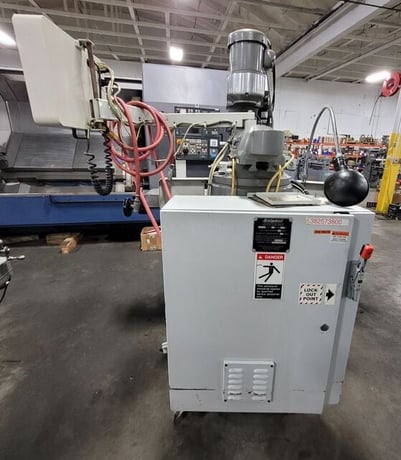

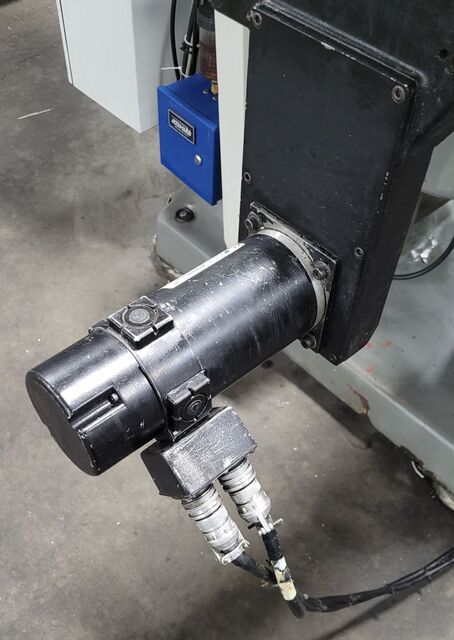

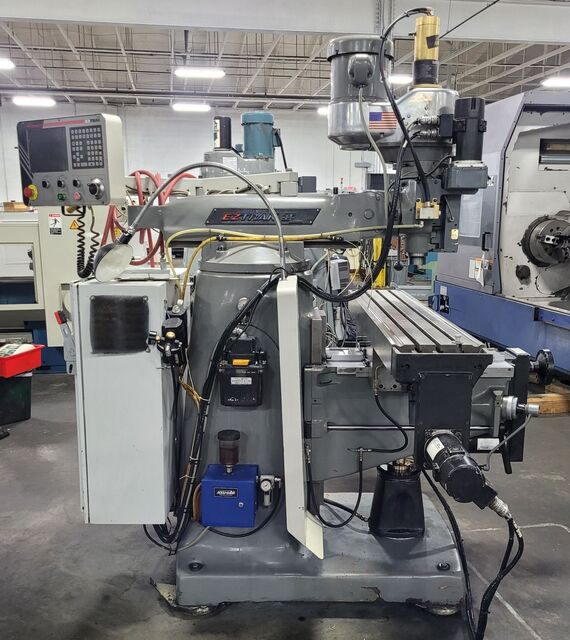

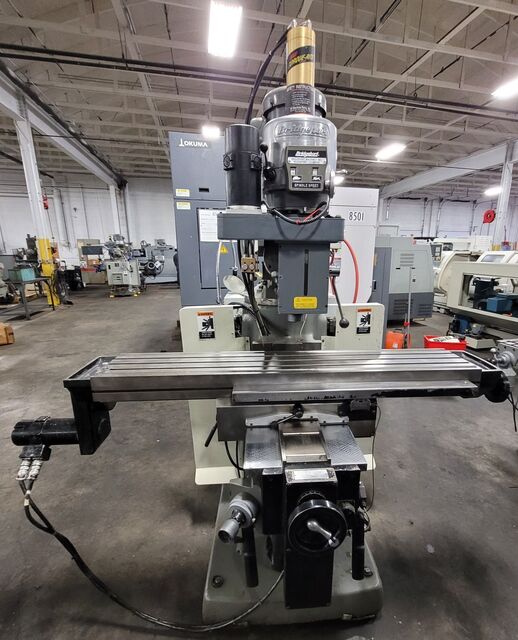

Spec Sheet: The Bridgeport EZ Trak Series II is a 3-axis CNC vertical milling machine, featuring a larger table, 2 HP motor, R-8 spindle. Key specifications include 32" X-axis travel, 15" Y-axis travel, and 16" manual knee travel with a 5" powered quill. It is designed for toolroom, prototype, and small-batch production. Key Specifications (Series II 3-Axis) Table Size: 11" x 58". Travels (X/Y): 32" x 15" Quill Travel (Z-axis): 5 inches. Knee Travel: 16 inches (manual). Spindle Motor: 2 HP. Spindle Speed: 60 - 4,200 RPM (variable). Spindle Taper: 30-Taper. Max Table Load: 300 - 600 lbs. Control: Bridgeport EZTrak DXII. Features: Ball screws on X/Y, auto lubrication, USB Drive, pneumatic draw bar. Performance Specs Rapid Traverse Rate: 100 IPM. Feedrate Range: 0.1 - 100 IPM. Positioning Accuracy: 0.001 Positioning Repeatability: 0.0008 New Power Supply, New Motherboard, New Static Hard Drive, New USB Port 84"H x 70"D x 85"W 3200lbs
