Bridgeport 9″ x 49″ Vertical Milling Machine, Series I
Inventory # 9705
Model: Series I
Specifications:
Table Travel:
X-Axis:
Without Power Feed: 36″
With Power Feed: 33″
Y-Axis:
Without Power Feed: 12″
With Power Feed: 12″
Quill Travel: 5″
Knee Travel: 16″
Ram Travel: 12″
Throat Distance: 6 3/4″ Min. to 18 1/4″ Max.
Table to Spindle Nose: 2 1/2″ Min. to 18 1/4″ Max.
Table:
Working Surface: 9″ x 49″
Number of T-Slots: 3
T-Slot Centers: 2 1/2″
T-Slot Size: 0.0625″
Height Above Floor: 47 1/4″ Max.
Weight of Workpiece: 750 lbs. Max.
Spindle:
Spindle Diameter: 1 7/8″
Quill Diameter: 3 3/8″
Taper: R-8, Optional: NMTB30
Motor: 3 HP (30 Min. Duty Rated) 2 HP (Continuous)
Speed Range:
Low Range: 60 – 500 RPM
High Range: 500 – 4,200 RPM
Quill Feed Range (3): 0.0015″, 0.003″, 0.006″ /Rev.
Machining Capabilities (Mild Steel):
Power Quill Feed Drilling: 3/8″
Milling: 2 Cl /Min.
Boring Range: 6″ Diameter
Motor Input Power: 208v, 230v, 460v / 3ph
Standard Features:
One-Shot Lubrication System
Chrome-Plated Ways and Gibs
Mechanical Specifications:
Dimensions: 84″ x 120″ x 87″ H
Shipping Weight: approx. 2,075 lbs.
FOB Factory – Contact us for Pricing and Availability
Quote Configurations: Let us know how you’d like your quote configured based on the packages outlined below
Package A: Base Machine with Standard Equipment
Package B: Base Machine with Standard Equipment, 2-Axis Acu-Rite 200 X and Y Digital Readout System, and X-Axis Servo Power Table Feed
Package C: Base Machine with Standard Equipment, 2-Axis Acu-Rite 200 X and Y Digital Readout System, X-Axis Servo Power Table Feed, and a Power Drawbar
Package D: Base Machine with Standard Equipment, 3-Axis Acu-Rite 300 X, Y, and Z Digital Readout System (Z Scale on the Quill), and an X-Axis Servo Power Table Feed
Package E: Base Machine with Standard Equipment, 3-Axis Acu-Rite 300 X, Y, and Z Digital Readout System (Z Scale on the Quill), an X-Axis Servo Power Table Feed, and a Power Drawbar
Get Your Price from Norman Machine Tool Ltd!
Buyers Who Viewed This Listing Also Viewed:

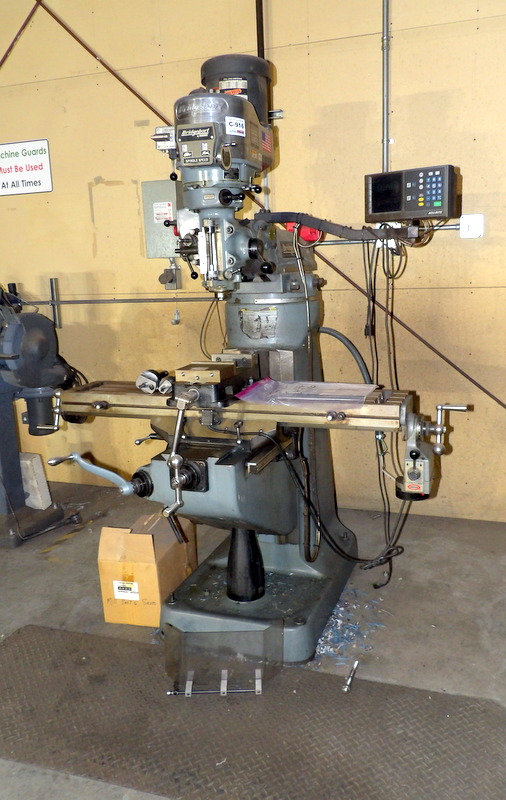

Bridgeport #Series-I, Vertical Mill, 9" table, 2 HP, Acu-Rite digital read out 200M, 6" Magnum vise, 3PH, 230 V.
