For Sale by Adams Machinery
Surplus Record Dealer Since 1924
Location: Libertyville, IL
Contact Mark Sonneborn
Phone Number: 847...> Show Phone Number 847-673-0556
Let the seller know you found their listing on Surplus Record!
Description
SPECIFICATIONS
EQUIPPED WITH
| Working Surface of Table | 9" x 42" |
| No. of T-Slots | 3 |
| Longitudinal Travel (X-Axis) | 30 inches |
| Cross-Slide Travel (Y-Axis) | 12 inches |
| Quill Travel (Z-Axis) | 5 inches |
| Vertical, Knee | 16 inches |
| Max/Min Distance, Spindle Nose to Table | 18.5" / 2.5" |
| Max/Min Distance, Centerline - Spindle to Face of Column | 18.75" / 6.75" |
| Ram Travel | 12 inches |
| Head Tilt, Left / Right | 90° |
| Head Tilt, Front to Rear, Each Way | 45° |
| Power Quill Feeds (3) | .0015, .003, .006 IPR |
| Spindle Drive | 2 HP 3/60/230-460 V |
| Inf.Variable Spindle Speeds (Low) | 60 – 500 RPM |
| Inf.Variable Spindle Speeds (High) | 500 – 4200 RPM |
| Spindle Motor | 2 HP |
| Spindle Taper | R8 |
| Maximum Collet Capacity | 0.75 inches |
| Currently Wired For | 3/60/230 Volt Operation |
| Approximate Overall Dimensions | 62”W x 63”D x 83”H |
| Approximate Weight | 2000 pounds |
| F.O.B. | Our Plant |
EQUIPPED WITH
Equipped with:

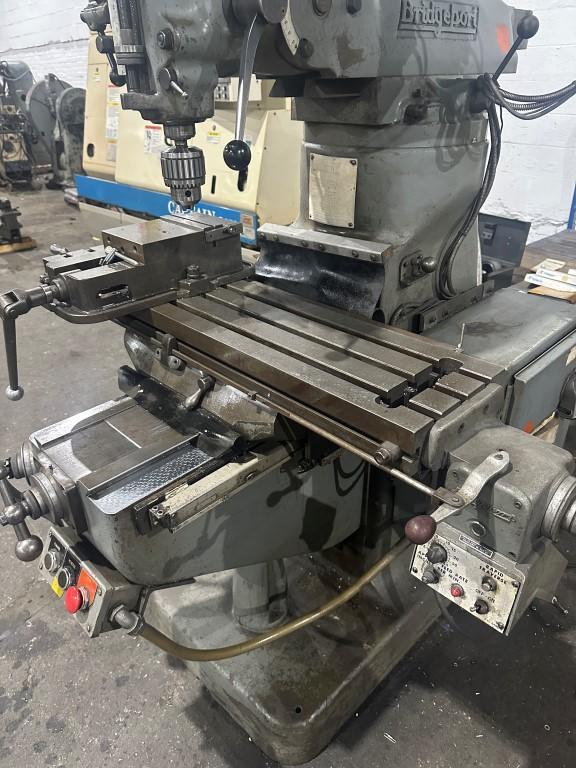

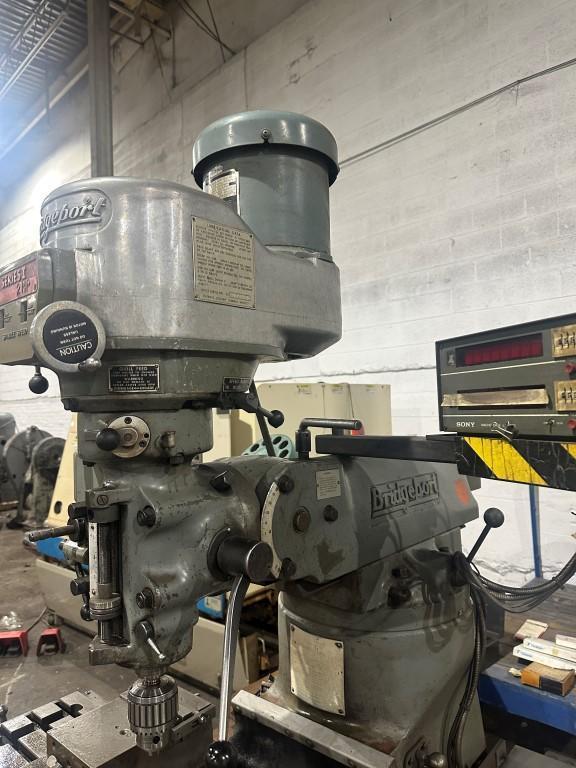

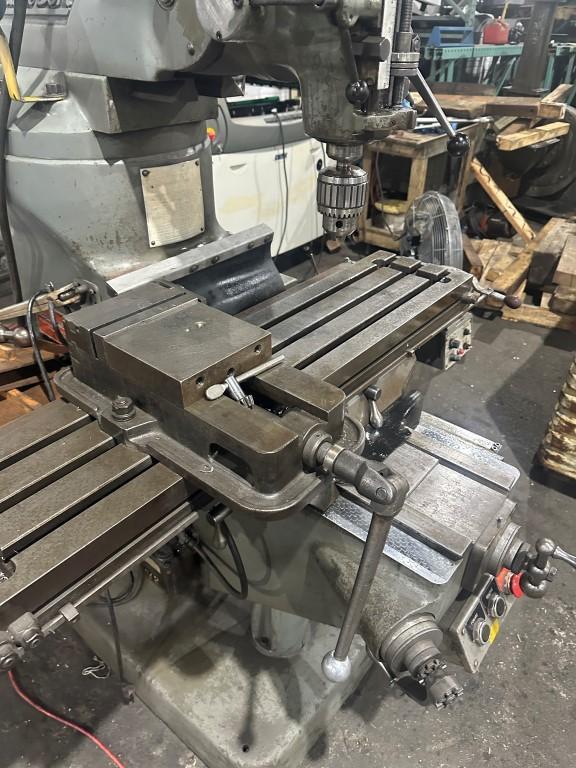

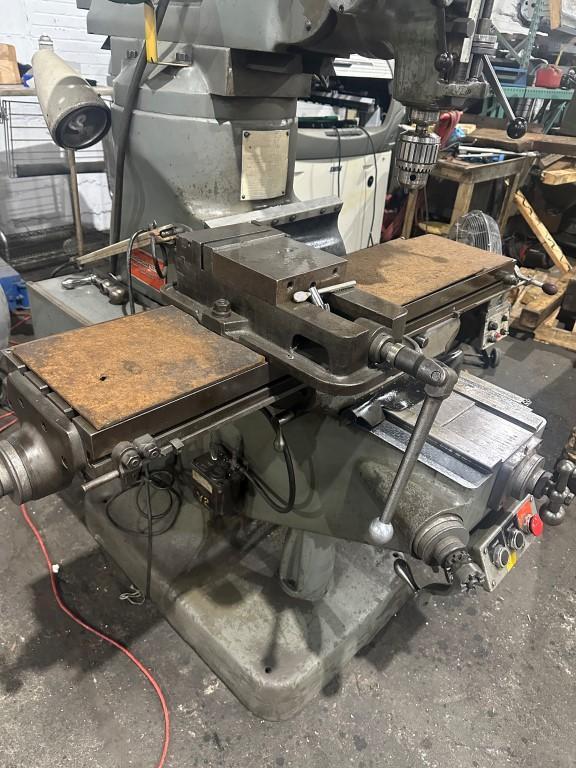

Power Feed for Longitudinal Travel of Table. Sony Single Axis DRO for Cross Travel. Bijur One-Shot Lubrication System. 6" Vise.
Get Your Price from Adams Machinery!
