Description

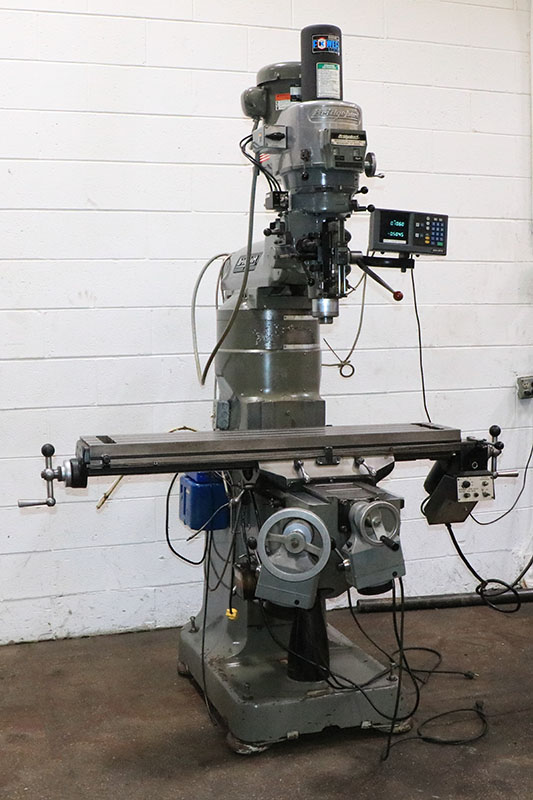

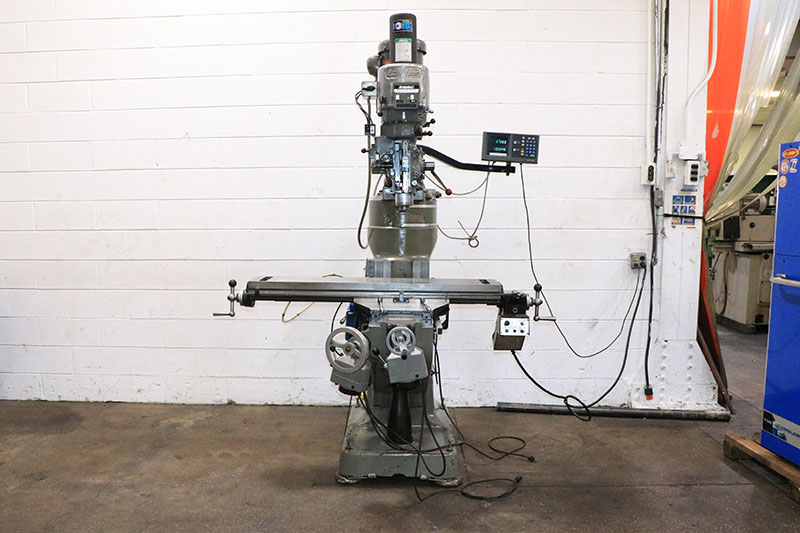

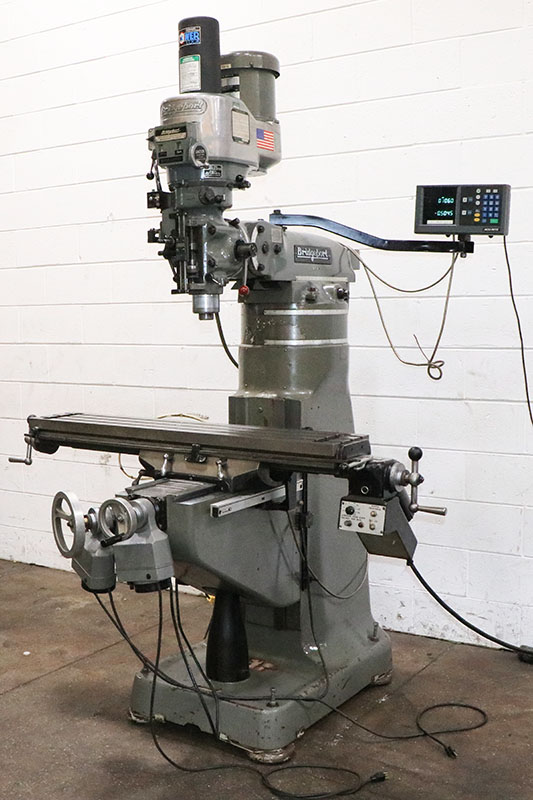

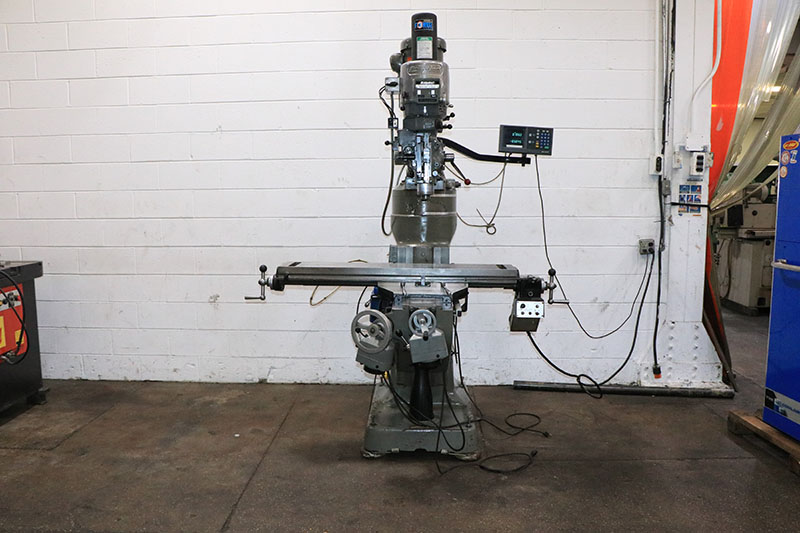

BRIDGEPORT VERTICAL MILLING MACHINE
MODEL: SERIES I, S/N: BR 263336, NEW: 1993
SPECIFICATIONS:
TABLE SIZE .............................. 9" X 48"
NUMBER OF T-SLOTS .......................″
LONGITUDINAL TABLE TRAVEL ...............″6"
CROSS TRAVEL ............................ 12"
QUILL TRAVEL ............................ 5"
KNEE TRAVEL ............................. 16"
RAM TRAVEL .............................. 12"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 18-1/2" / 2-1/2"
MAX/MIN DISTANCE, CENTERLINE OF SPINDLE.
TP FACE OF COLUMN ................... 18-3/4" / 6-3/4"
HEAD TILT, LEFT… RIGHT ................. 90 DEGREES
HEAD TILT, FRONT… REAR ................. 45 DEGREES
INFINITELY VARIABLE SPEED RANGE ......... 60-4,200 RPM
SPINDLE TAPER ........................... R-8
MAX COLLET CAPACITY .....................″/4"
QUILL TRAVEL ............................ 5"
QUILL FEEDS ........................ 0.0015", 0.003", 0.006"
APPROXIMATE WEIGHT ...................... 2,000 LBS
EQUIPPED WITH:
ACURITE TWO AXIS DIGITAL READOUT
MITUTOYO DIGITAL READOUT FOR QUILL TRAVEL
BRIDGEPORT POWER FEED FOR LONGITUDINAL TRAVEL
SERVO POWER FEED FOR CROSS TRAVEL
SERVO POWER FEED FOR VERTICAL KNEE TRAVEL
CHROME WAYS
KURT AIR ACTUATED POWER DRAW BAR
4" RISER BLOCK
BIJUR SPRAY MIST COOLANT SYSTEM
BIJUR ONE SHOT LUBRICATION SYSTEM

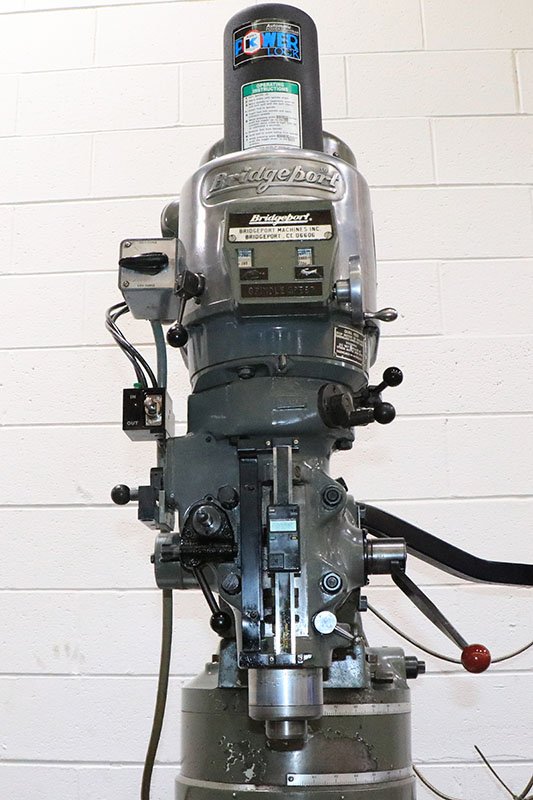

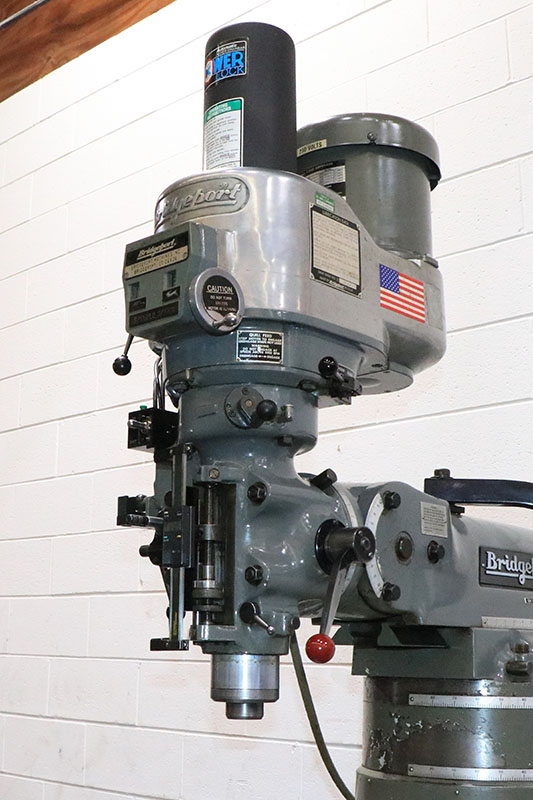

BRIDGEPORT SERIES I MILLING HEAD S/N: 289791
2 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
