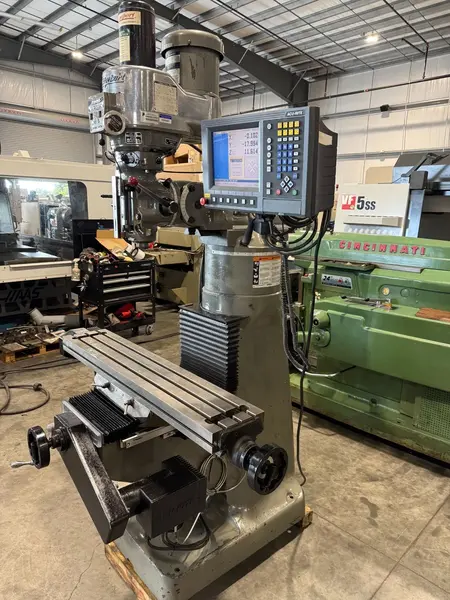

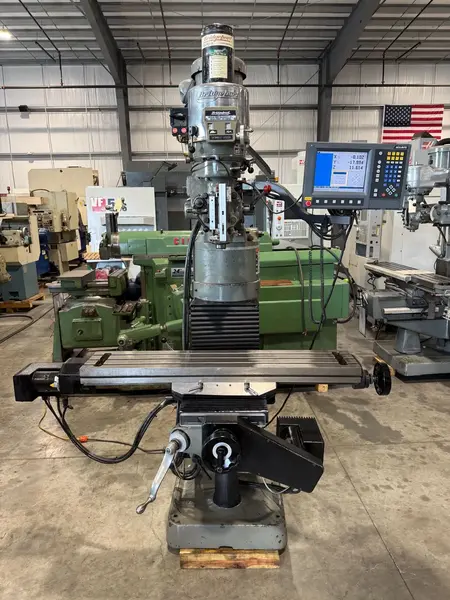

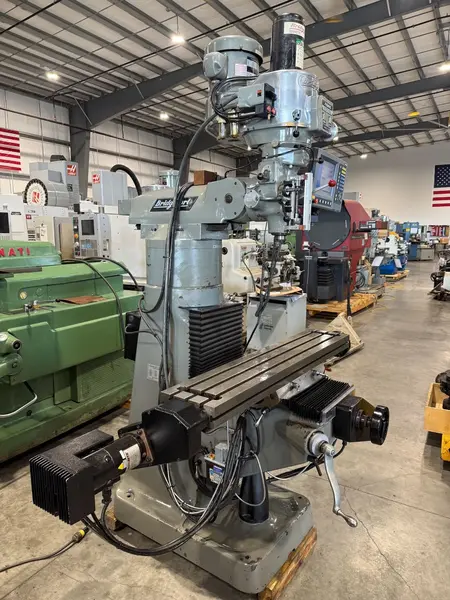

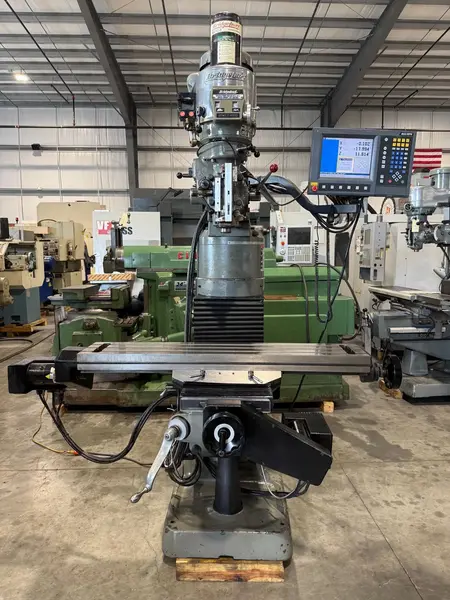

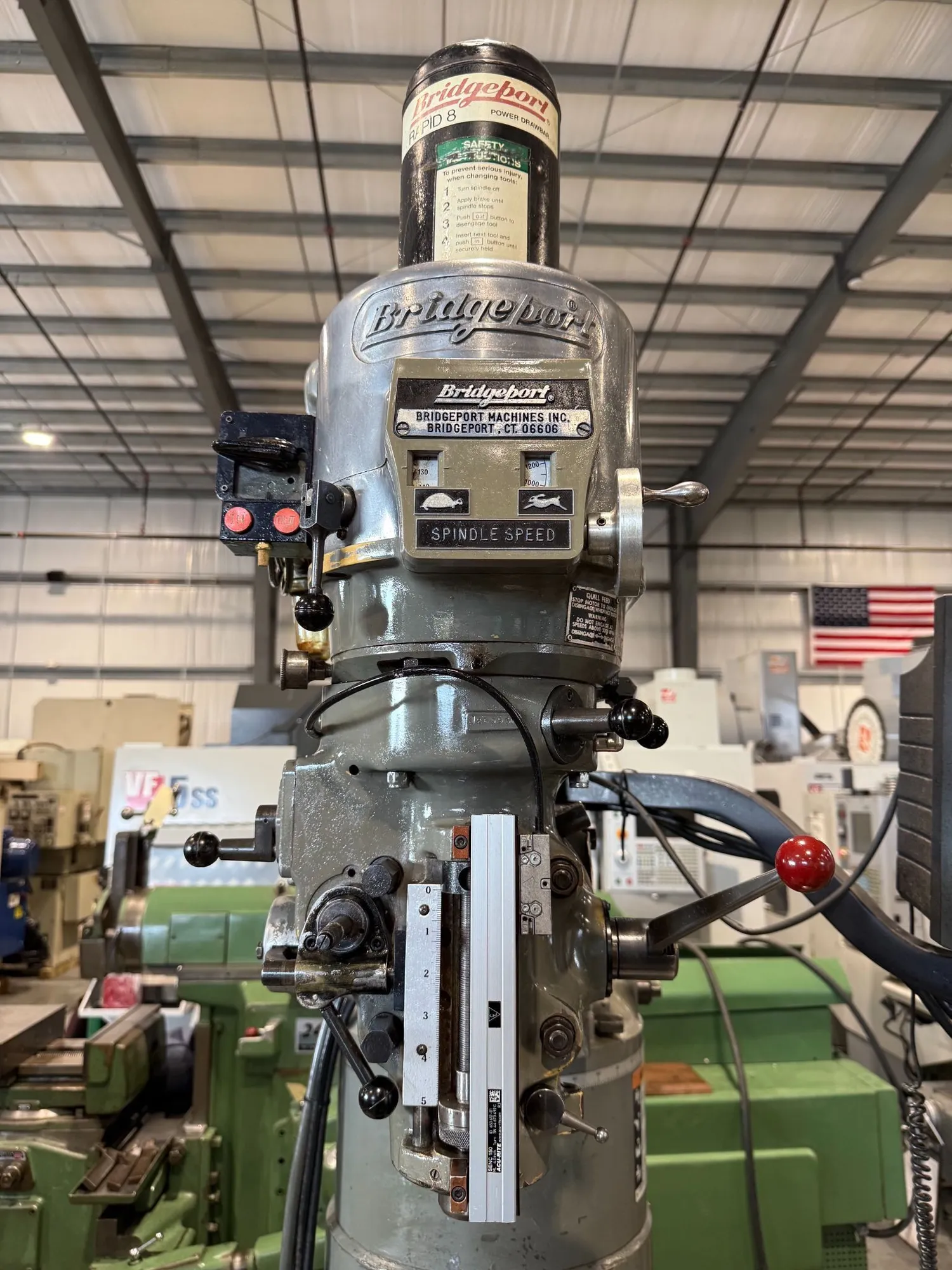

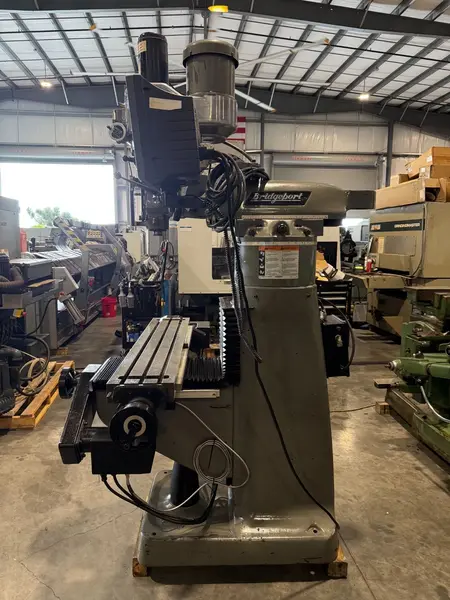

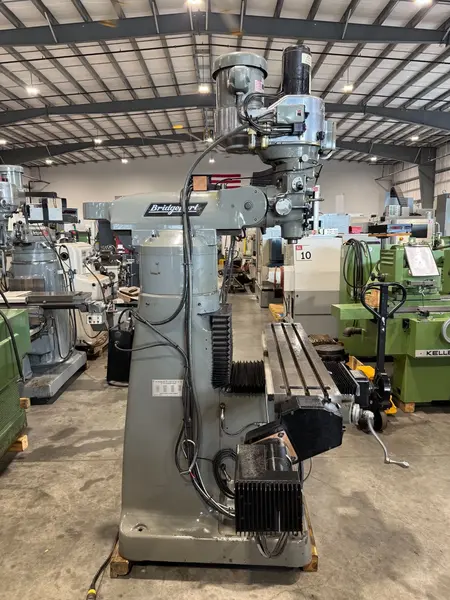

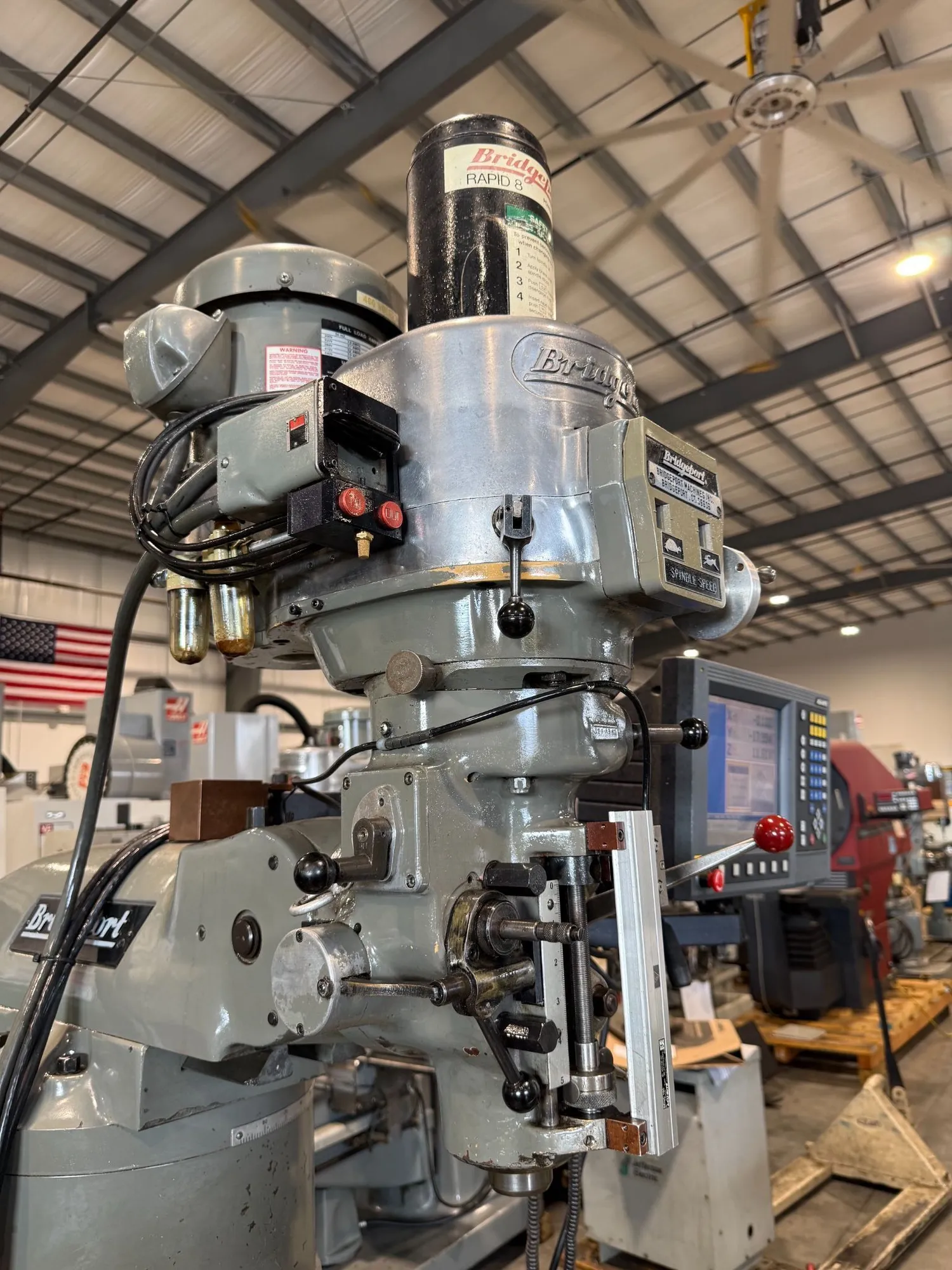

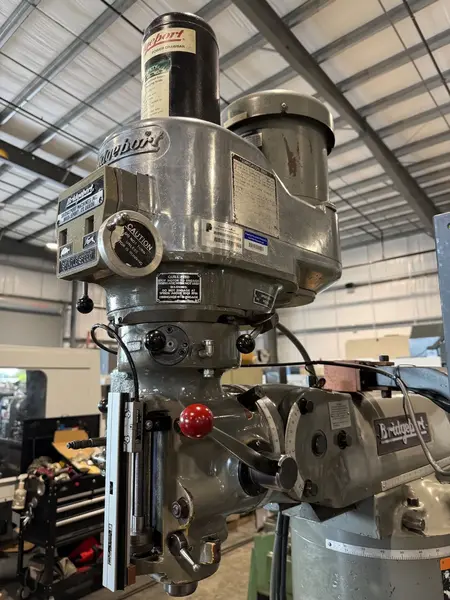

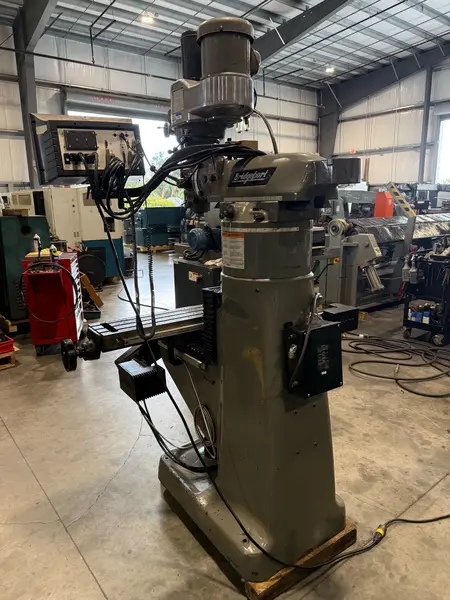

BRIDGEPORT SERIES 1 2 Axis CNC Vertical Milling Machine 1987’ # 8510 Reference # 8510 Model # Series 1 Serial # 248467 Year of manufacture- 1987’ Table working surface- 9” x 48” Number of t-slots- (3) Longitudinal travel- 26” Cross travel- 12” Vertical, knee travel- 16” Quill travel- 5” Maximum/Minimum distance, spindle nose to table- 18.5"/2.5" Maximum/Minimum distance, centerline of spindle to face of column- 18.75"/6.75" Ram travel- 12” Head tilt, left & right- 90 degrees Head tilt, front to rear, each way- 45 degrees (3) Power quill feeds- .0015, .003, .006 I.P.R. Infinitely variable spindle speeds, two ranges-60-4,200 R.P.M Spindle taper- R-8
Equipped With ACU-RITE MILLPOWER CNC CONTROL two-axis CNC/three-axis digital readout, RS-232 port Three-axis digital readout during manual operations Ballscrews installed in the table and saddle Pneumatic drawbar Factory column riser Automatic lubrication system 2 H.P. 3/60/230 spindle drive motor and electrical controls Machine is wired for 230 volt operation. Machine weight- 2000 Lbs. Machine dimensions- 76” L x 57” W x 83’’ H Machine location- F.O.B. Sarasota, Florida
