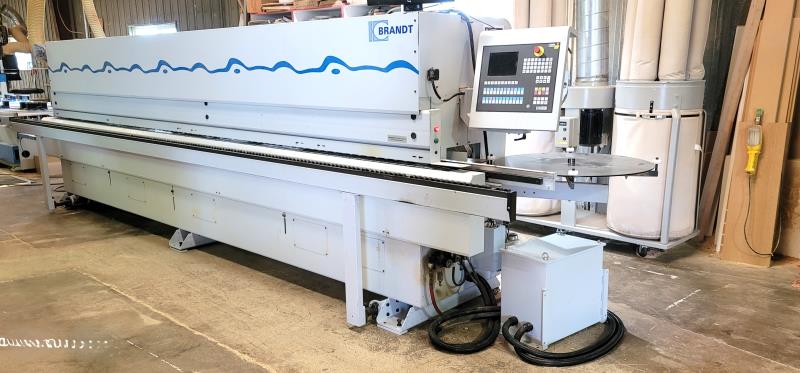

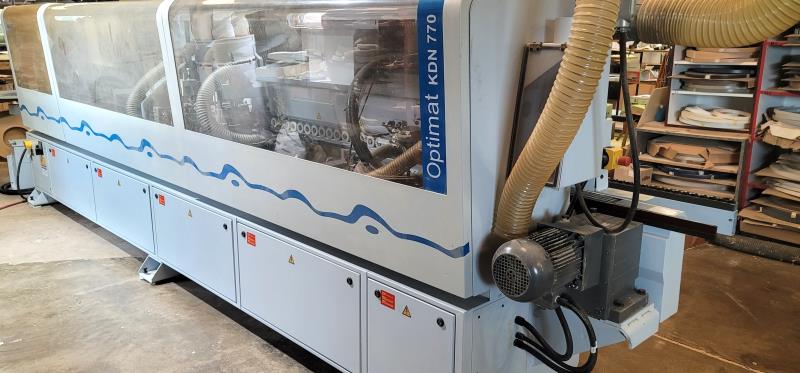

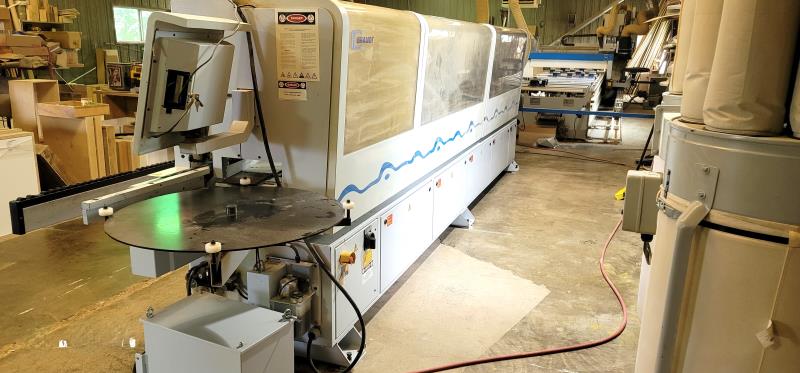

Brandt #KDN-770-2C, edgebander, 2003

Manufacturer: Brandt
Model: KDN-770-2C
Year: 2003
Stock # EU-014397

For Sale by Ex-Factory

Surplus Record Dealer Since 2022
Gold Level Dealer
Location: Charlotte, NC
Contact Sales Dept.
Let the seller know you found their listing on Surplus Record!

Description

BRANDT - KDN 770-2C: Edgebander

Specifications

  • Hot Melt granulate quick heat up glue system; overhead glue tank for easy maintenance & glue color change.
  • Automatic magazine for strip & coil: Large 800 mm dia. coil table to accommodate large coils of 3 mm PVC stock; 3 mm PVC guillotine.
  • (1) Drive plus: (3) Idle rolls "pneumatically controlled" pressure sections.
  • End Trimming: 0.33 HP - 12,000 RPM Motors; chamfers 0 - 15.
  • Flush Trimming. Top & bottom bevels 0 - 15 with: (4) Revolver type index presets; (2) 1/2 HP - 12,000 RPM motors; cutterheads with insert knives.

    Features
  • Fine/Radius Trimming. Top & Bottom; bevels 0 - 15 with: (4) Revolver-type index presets; 1/2 HP - 12,000 RPM motors; cutterheads with: Insert knives for 3 mm PVC radius.
  • 2-Motor corner rounding.
  • Scraping Unit. Top & Bottom for: 2 - 6 mm Radius; pneumatically controlled blowoff nozzles.
  • Buffing Unit: Top & bottom buffing; 1/4 HP - 1,400 RPM motors.
  • Variable feed chain track speed from: 8 - 20 MPM (26 - 65 FPM); 2 HP feed drive.

    NOTE: Description based on: Model Type, manufacturer's plate, and information from Seller. Please inspect to confirm the required specifications.

    * Dimensions & weight data are based on 3rd party information and could be incorrect; please verify & confirm if accurate dimensions & weight are required.

Get Your Price from Ex-Factory!

Buyers Who Viewed This Listing Also Viewed:

Brandt #KDN-520, Edgebander, 1/4" Edge, 2-3/8" panel thickness, 6-3/8" min. panel L, 2-3/8" min. width, 2007

Seller: Carolina Machinery Sales
Location: Monroe, NC
Mfr: Brandt
Model: KDN-520
Year: 2007
Edge band thickness 0.4 – 8mm (0.016" - 1/4” ), Coil cutoff maximum 0.8 x 60 mm; 3.0 x 45 mm (PVC), Edgeband height 12 - 65 mm (1/2" – 2 9/16 "), Panel length min. 160 mm (6 3/8"), Panel width min. 65 mm (2 3/8"), Panel thickness - min. 8 mm (5/16") - max. 60 mm (2 3/8"), Feed speed – 11 ...more

Brandt #KDN335, Edgebander

Seller: RT Machine
Location: Hughesville, PA
Mfr: Brandt
Model: KDN335
Brandt Model Optimat MDN 335 Edgebander Edgeband Thickness: 0.4 - 3mm (0.016" - 1/8") Min. Panel Length: 140mm (5.5") Panel Thickness: 8mm - 50mm Feed Speed: 11m/min (33 FPM) EVA Glue Pot Pneumatic Guillotine Two-Motor End-Trim Top & Bottom Fine Trim Top and Bottom Buffing Rubber-Padded Feed Chain Adjustable ...more

Brandt #KDF-230, Edgebander, 5/16" to 2-3/8" panel thickness, 1/8" max. edge thickness, 2-3/4" workpiece width, Brandt EasyTouch control, 2018

Seller: KD Machinery
Location: Scottsdale, AZ
Mfr: Brandt
Model: KDF 230
Year: 2018
Used Brandt KDF 230 (2018) Edgebander for Sale. This single-sided edgebander handles panel thicknesses from 8 mm up to 50 mm to 60 mm depending on configuration, with a minimum workpiece width of 70 mm and edgeband thickness up to 3 mm from coil or strip. Feedrate runs up to 11 m/min. Operation is through the BRANDT ...more

Brandt #Optimat-KDN540-2C, Edgebander, Push-Button Controls, 8.1 KW, 230 V., 60 Hz., 2005

Seller: NT North LLC
Location: Milwaukee, WI
Mfr: Brandt
Model: KDN540 2C
Year: 2005

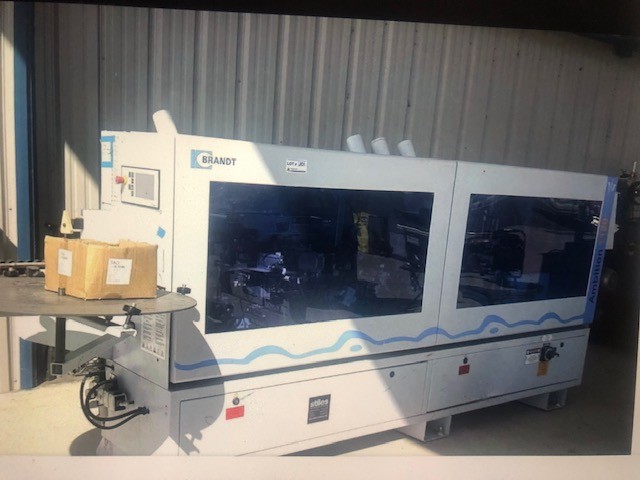

Brandt #11-20, woodworking edgebander, 2016
